1970 Challenger Bulb Sockets for tail lights

DY31970

Well-Known Member
Joined
May 20, 2022
Messages
143
Reaction score
27
Location
07013
Hi, How would I remove the bulb sockets on the under side of the tail light housing? I tried turning with no luck and didn't want to force it.


DY31970

Well-Known Member
Joined
May 20, 2022
Messages
143
Reaction score
27
Location
07013
Pull down? Can that break the socket? Or pull straight out?


NixDad

Well-Known Member
Joined
Dec 2, 2019
Messages
145
Reaction score
45
Location
Township of Polk, Wisconsin
Ok, what year and car are we talking about?
I presumed a 70 or 71 Challenger.
the socket snaps in from the bottom up on those models


DY31970

Well-Known Member
Joined
May 20, 2022
Messages
143
Reaction score
27
Location
07013
Thanks NixDad, I have a 70 Challenger. I don't understand what you mean by, it snaps in from the bottom up. The bulb socket goes straight into the tail light housing.


DY31970

Well-Known Member
Joined
May 20, 2022
Messages
143
Reaction score
27
Location
07013
I know the opening for the bulb socket is on the underside of the tail light housing, but socket plugs straight into the housing there.


DY31970

Well-Known Member
Joined
May 20, 2022
Messages
143
Reaction score
27
Location
07013
Thanks Challenger RTA. Do I just try to pull the socket straight out or wiggle it back and forth while pulling it out?


doubleyellow

Well-Known Member
Joined
Aug 3, 2015
Messages
331
Reaction score
89
Location
Metro Detroit
Wiggling helps to loosen, while pulling out, but don't bend too far or may damage the bulb socket. Don't pull on the wires. It is hard to get a grip - not much room under the housing


DY31970

Well-Known Member
Joined
May 20, 2022
Messages
143
Reaction score
27
Location
07013
Thanks very much doubleyellow, now I know how to remove the bulb socket.


MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
505
Reaction score
387

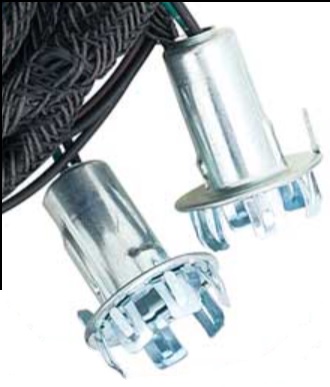

They push straight into the tail lamp housing with spring clips. Wiggle back and forth and PULL. A picture is worth...
