1970 Challenger console automatic shifter

DY31970

Well-Known Member
Joined
May 20, 2022
Messages
143
Reaction score
27
Location
07013
Hi, Is the automatic console gear indicator supposed to light up?


tonysrt

Well-Known Member
Joined
Mar 12, 2017
Messages
560
Reaction score
152
If you have owners manual see if they list a bulb for it.


Chryco Psycho

Well-Known Member
Joined
Dec 28, 2008
Messages
4,401
Reaction score
2,039
Location
Panama
Yes , there is an orange wire under the carpet to the shifter , it will dim with the dash lights also


EW1BH27

Well-Known Member
Joined
Dec 31, 2021
Messages
473
Reaction score
214
Location
Canada

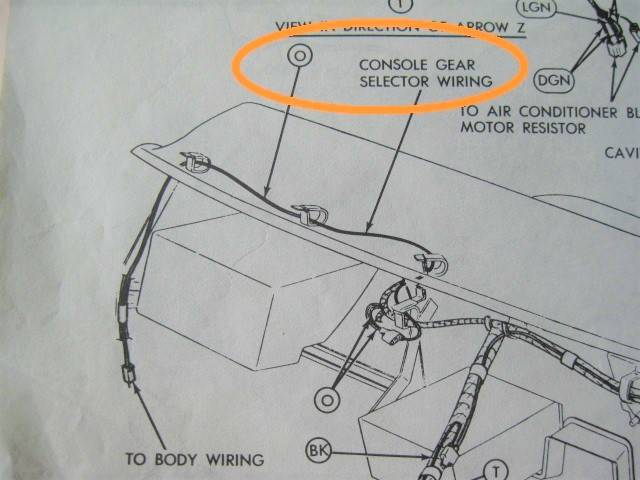

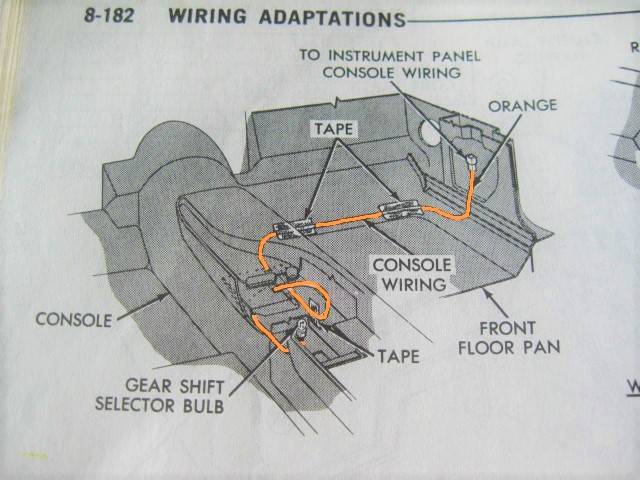

Picture from the service manual. Edit: found better pics.

CnslWrng 1.jpg


CnslWrng 2.jpg

Last edited:

DY31970

Well-Known Member
Joined
May 20, 2022
Messages
143
Reaction score
27
Location
07013
Thanks tonysrt, Chryco Psycho. Thanks EW1BH27 for the service manual pictures. I'll check the light bulb and wiring.


Kez

Well-Known Member
Joined
Apr 21, 2016
Messages
87
Reaction score
20
Location
San Luis Obispo, CA

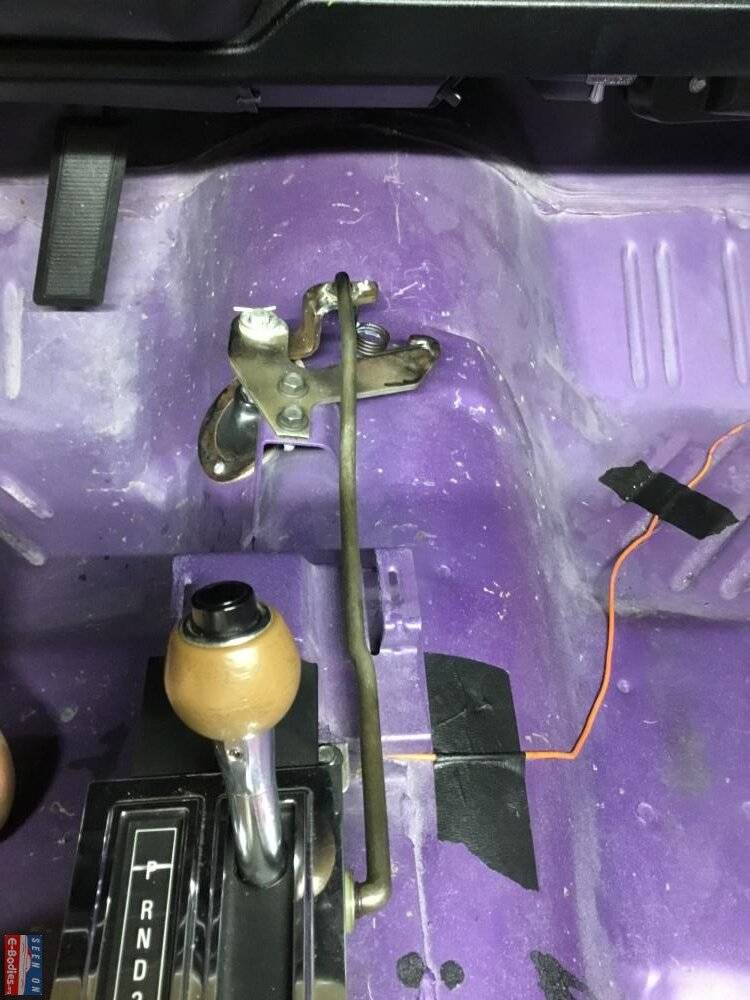

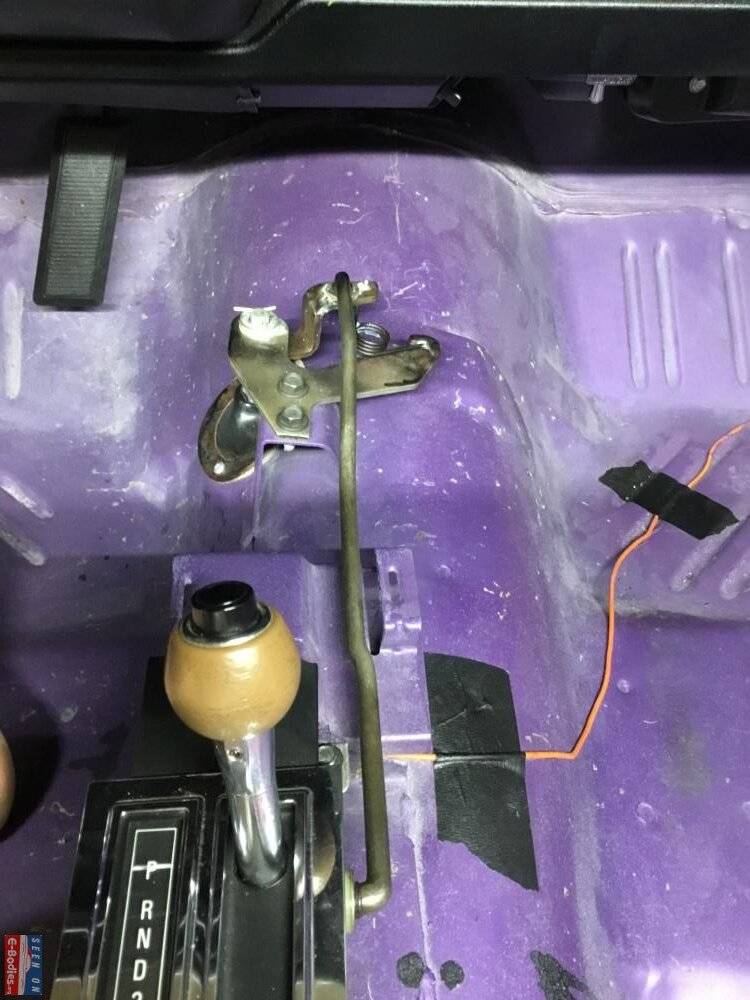

Does anyone know a source for the tape used by the factory to tape wiring to the body - as shown in the picture above? It has some sort of paper backing - have seen it called electrical tape but it’s not the same as the vinyl electrical tape I know. Want to make sure I use the correct tape on my car - especially for the done light wires above the headliner. Thanks!!!


moparlee

Well-Known Member
Joined
Jul 25, 2011
Messages
2,897
Reaction score
1,204
Location
Mid Michigan
Does anyone know a source for the tape used by the factory to tape wiring to the body - as shown in the picture above? It has some sort of paper backing - have seen it called electrical tape but it’s not the same as the vinyl electrical tape I know. Want to make sure I use the correct tape on my car - especially for the done light wires above the headliner. Thanks!!!
I used the 3M blue painters tape and rattle canned it with flat black before putting it on. Worked great and looked nearly exactly like the original stuff.


MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
496
Reaction score
383
2" x 60yd black masking tape on Amazon for under $10.


pschlosser

Well-Known Member
Joined
Dec 8, 2022
Messages
545
Reaction score
180
Location
Santa Rosa, California
Gaffers Tape would be the way to go. Something like this from Amazon:
Amazon product ASIN B07K1WW8WW
its a strong cloth tape, designed to NOT leave a sticky residue. Pretty nice stuff, used for taping wires to surfaces, and would be ideal in this application. It should hold up well to repeated heat caused by headers, for those afflicted.

That said, it's unclear how factory original this is, but I recommend this over a masking tape, painted or not.


Kez

Well-Known Member
Joined
Apr 21, 2016
Messages
87
Reaction score
20
Location
San Luis Obispo, CA
Gaffers Tape would be the way to go. Something like this from Amazon:
Amazon product ASIN B07K1WW8WW
its a strong cloth tape, designed to NOT leave a sticky residue. Pretty nice stuff, used for taping wires to surfaces, and would be ideal in this application. It should hold up well to repeated heat caused by headers, for those afflicted.

That said, it's unclear how factory original this is, but I recommend this over a masking tape, painted or not.
As I recall the tape I removed was paper backed - like masking tape. But masking tape would have medium duty adhesive. The Gaffers tape would probably be stronger and it will be hidden in most locations.
