1970 challenger rear brake drums orange?

wantonebadebody

Well-Known Member
Joined
Apr 29, 2009
Messages
124
Reaction score
36
looked at a survivor car today and the rear drums were orange looking threw the rear wheel?
is that factory?

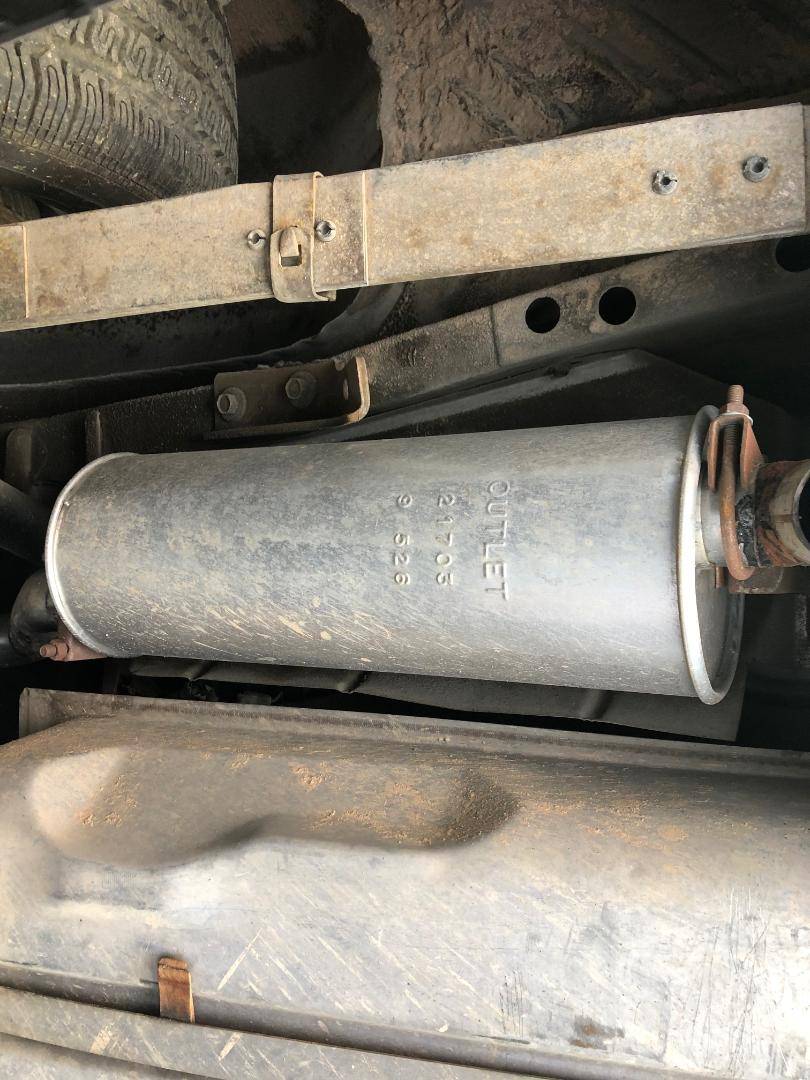

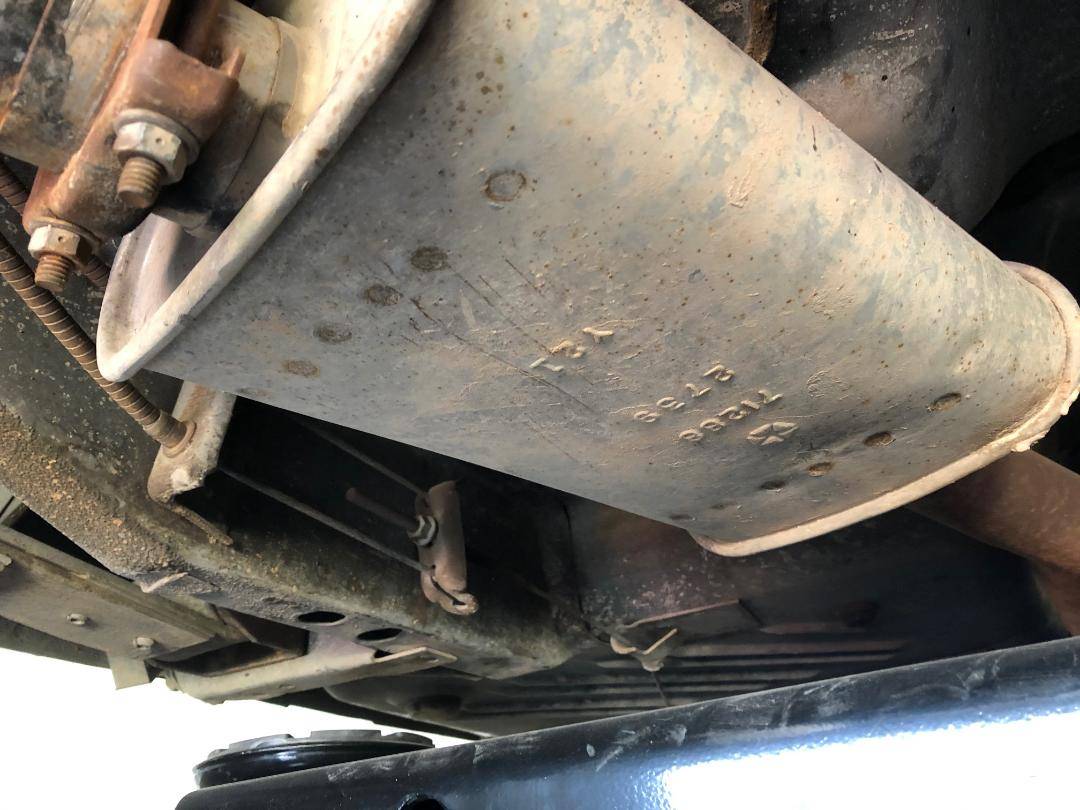

Also the muffler had a stamp on it 2739 273rd day of year of 69?


RJHJR

Well-Known Member
Joined
Oct 14, 2013
Messages
253
Reaction score
103

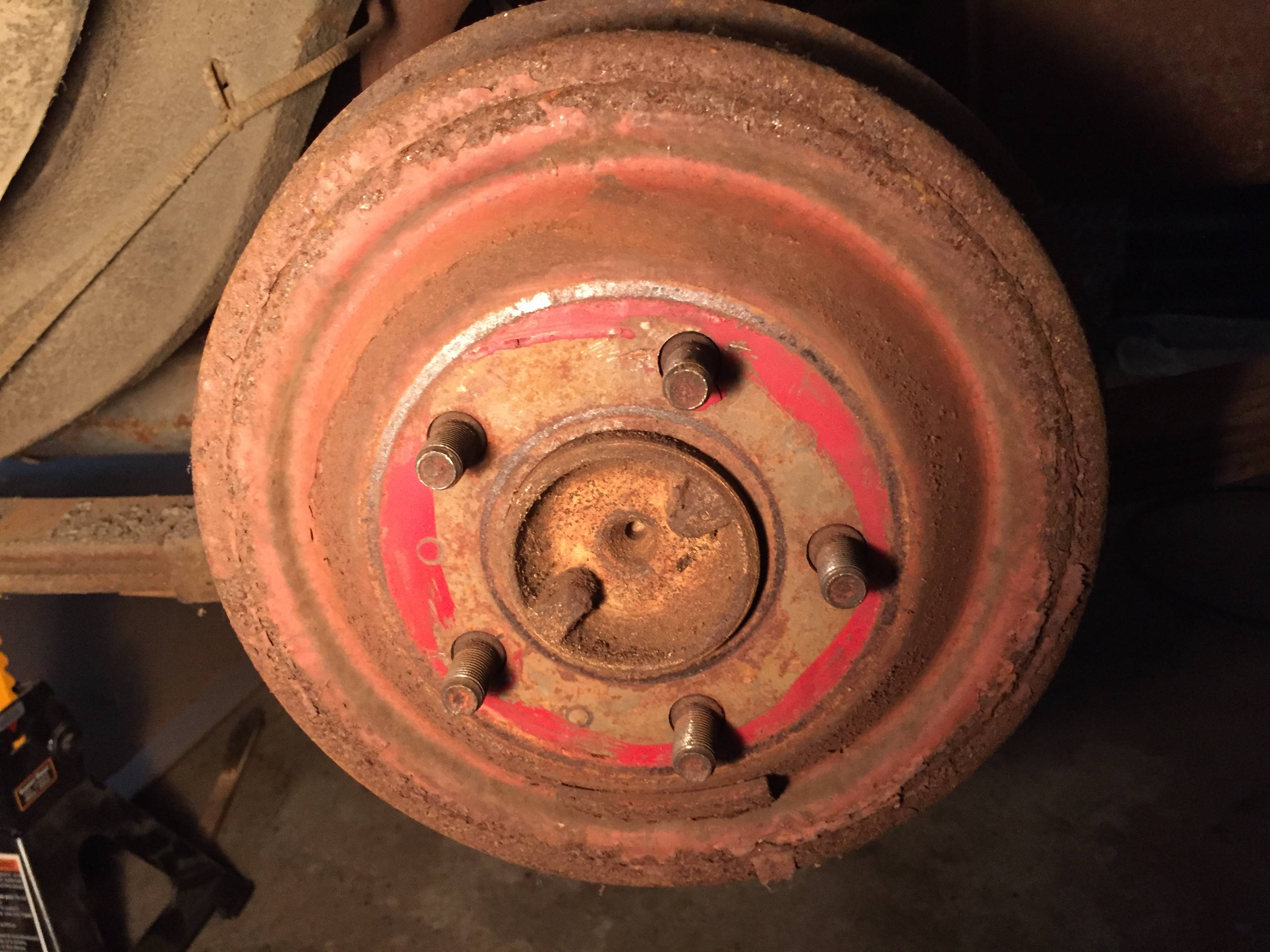

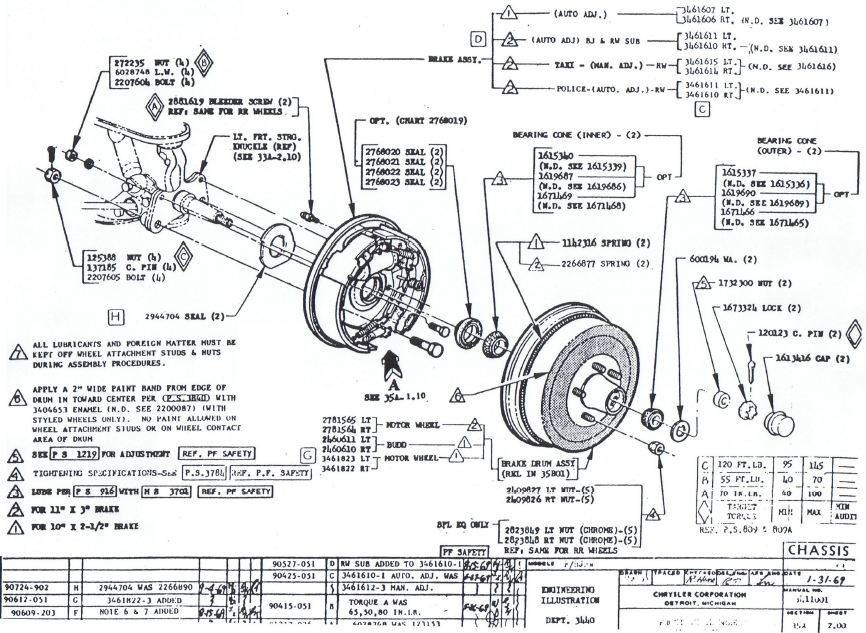

Its red paint or rather it was. 2" wide applied with a brush. Here's a tech notes that was on here showing it.



moparleo

Well-Known Member
Joined
Oct 17, 2011
Messages
6,926
Reaction score
1,709
Location
So. Cal. Riverside area Moreno Valley
Only on cars that came from the factory with Road wheels or Rally wheels where you could see through the openings of the wheel centers. Was not on cars equipped with standard steel/hub cap wheels.


wantonebadebody

Well-Known Member
Joined
Apr 29, 2009
Messages
124
Reaction score
36

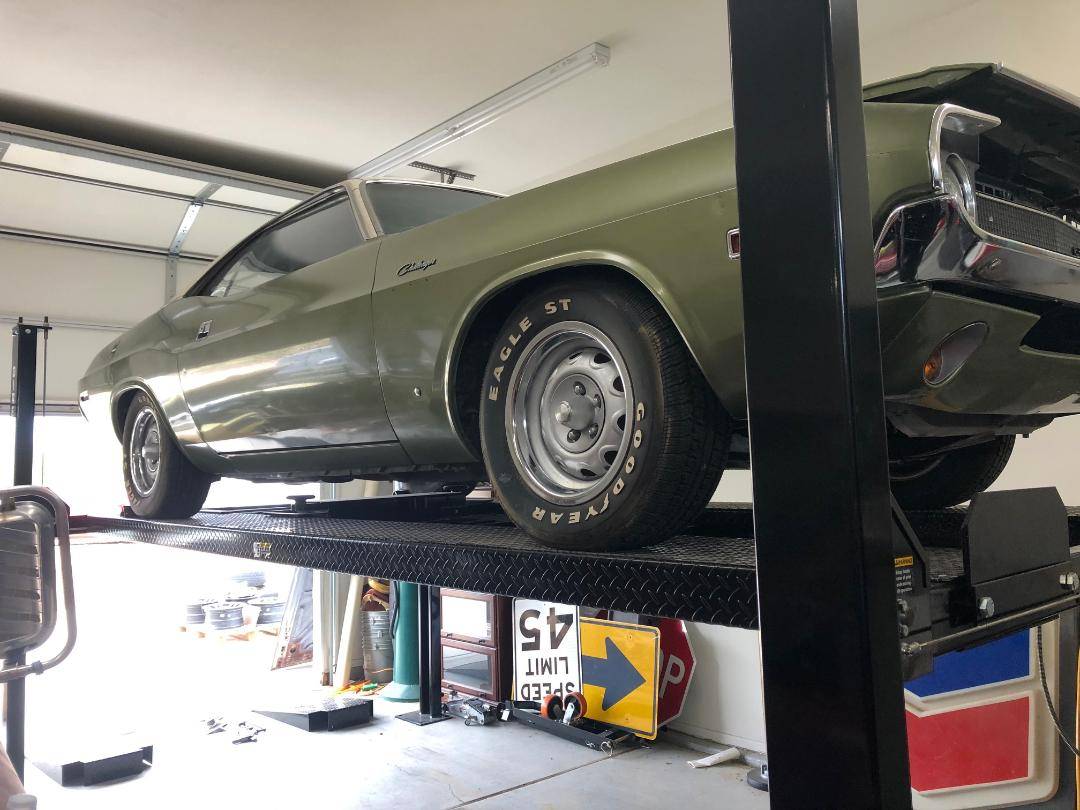

cool, so i guess it's a real survivor car i'll post some pics see what you guys think. was looking to purchase it,

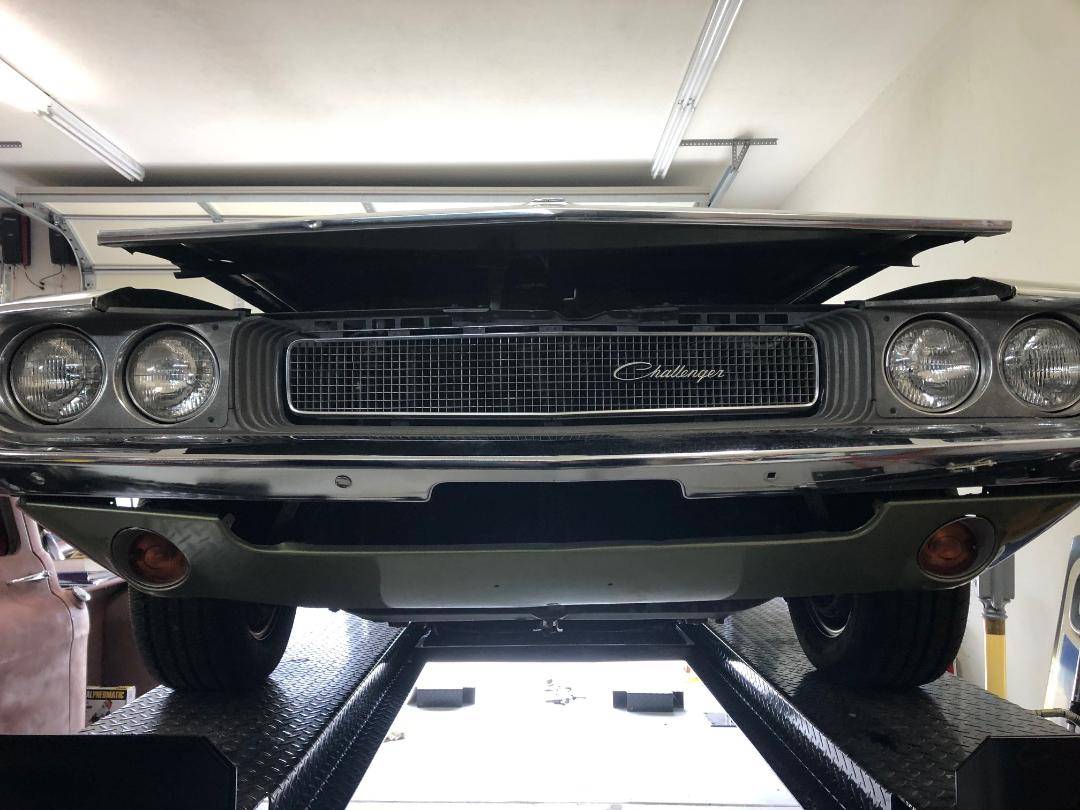

70 challenger front pic.jpg

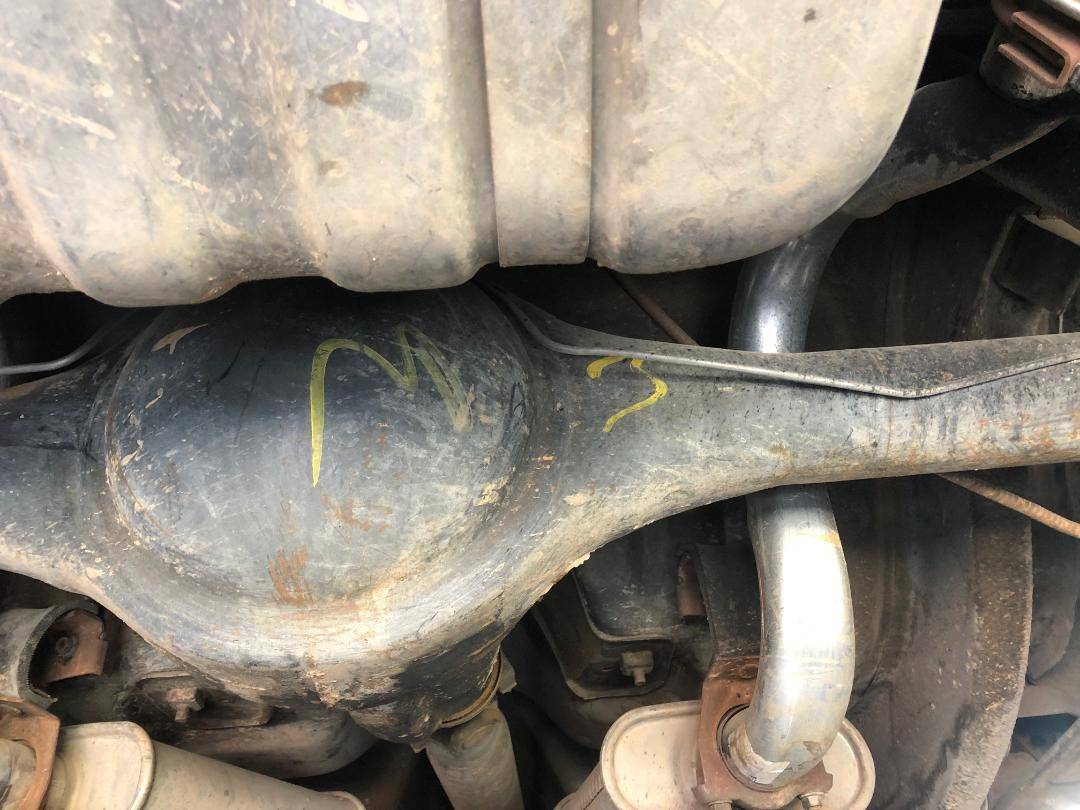

chally 2.jpg




chally 4.jpg


cha;;y 5.jpg

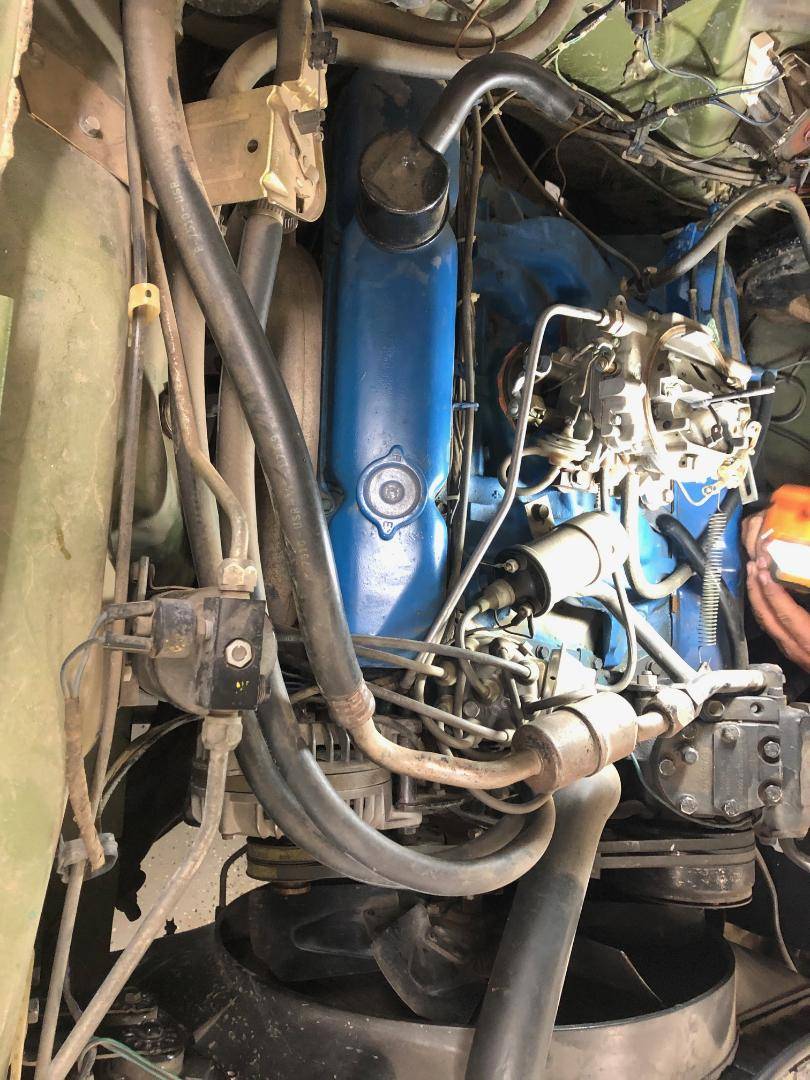

chlly 6.jpg

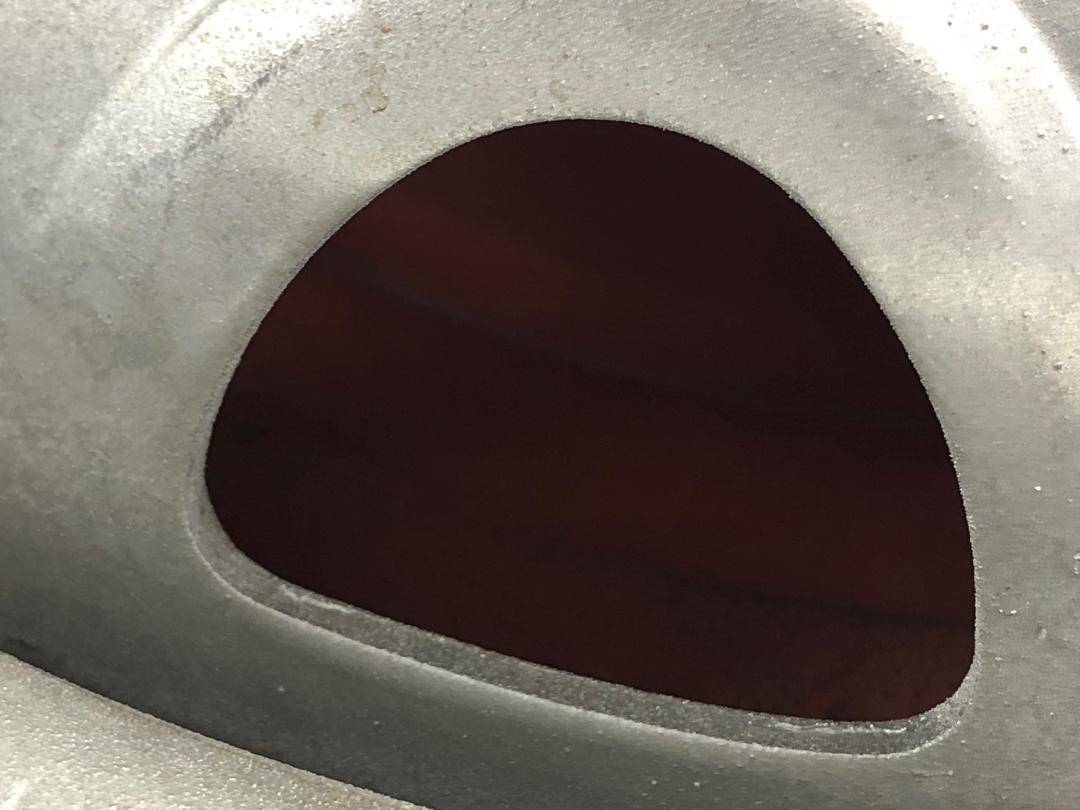

see the red threw the wheel? below

Last edited:

RJHJR

Well-Known Member
Joined
Oct 14, 2013
Messages
253
Reaction score
103

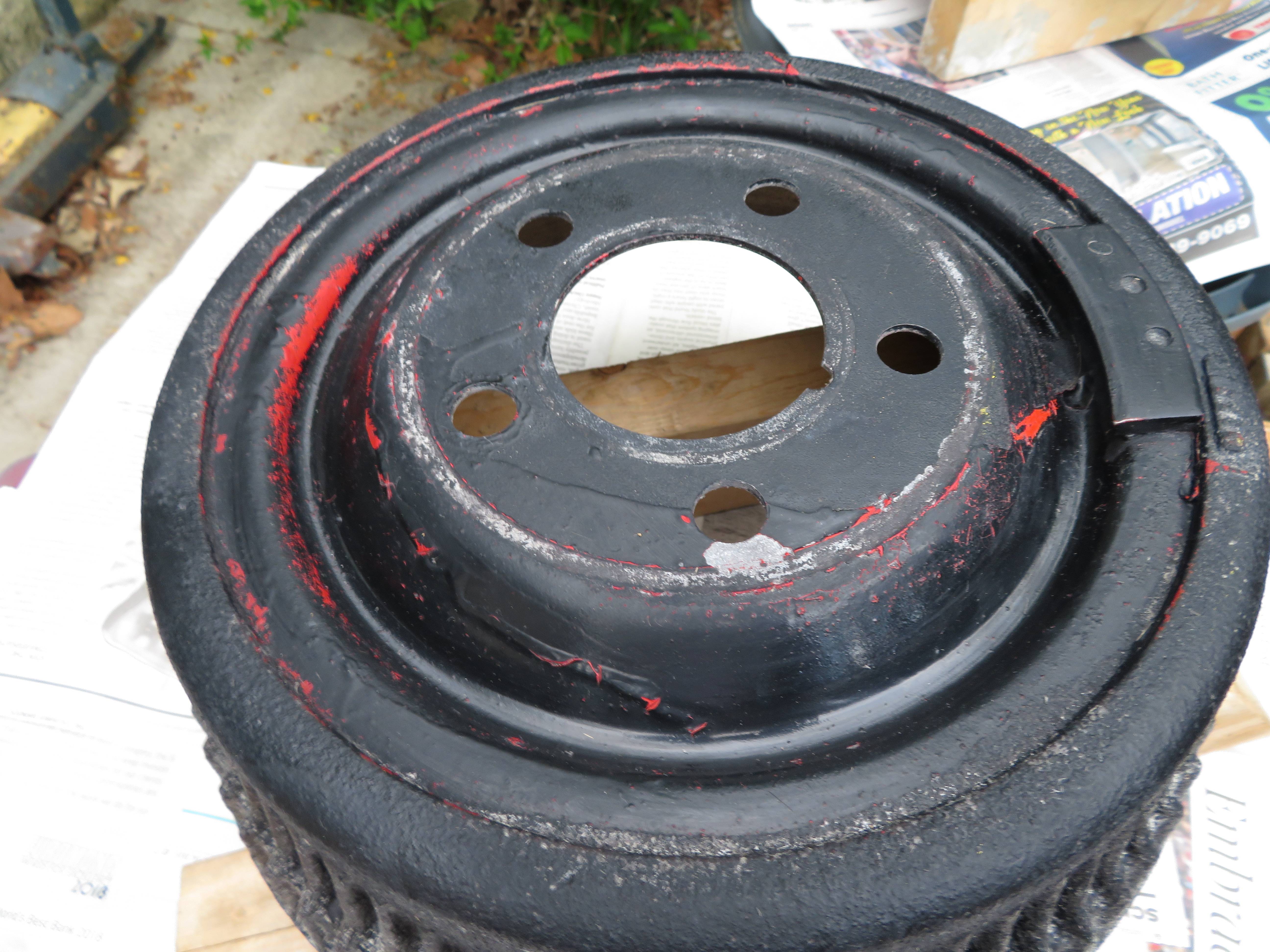

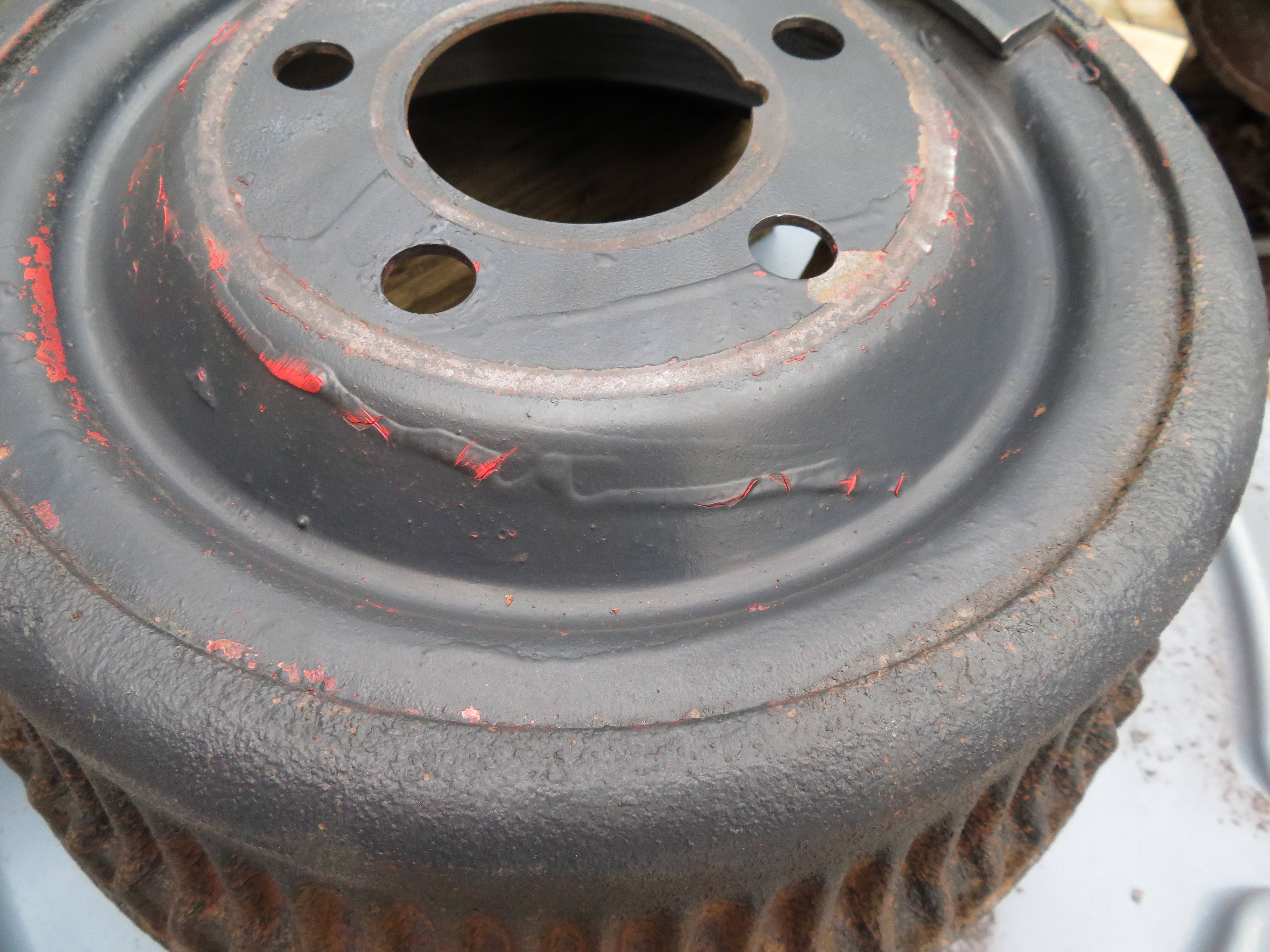

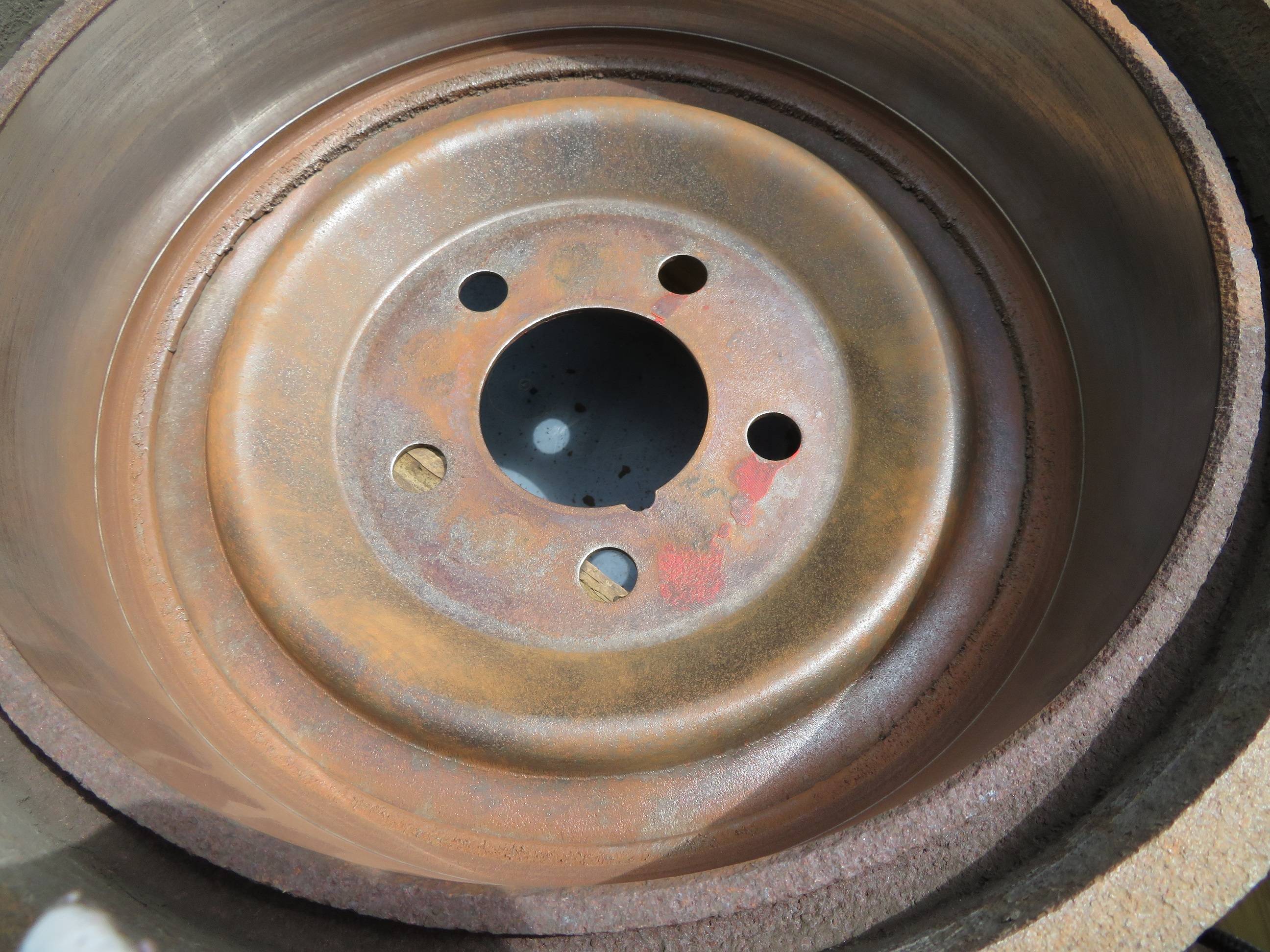

Here's what I found when I did my brakes last year. Apparently the red was covered up in the first 34k miles before I got in 1982. The runs and rips make it clear the wheel went on wet. One of the shots shows it leaked inside the drum a little.





RJHJR

Well-Known Member
Joined
Oct 14, 2013
Messages
253
Reaction score
103
Interesting...
It appears very clean.
Fender tag and build sheet?
Looks like its pretty original but may have had a two barrel swapped for a four.
Looks like points may have been swapped for electronic ignition.


RJHJR

Well-Known Member
Joined
Oct 14, 2013
Messages
253
Reaction score
103
Or perhaps it is an A66 car that had a big block installed?
Reasoning is the road wheels and the absence of badging, wheel well trim.
Are the brakes 11" drums?


wantonebadebody

Well-Known Member
Joined
Apr 29, 2009
Messages
124
Reaction score
36
Interesting...
It appears very clean.
Fender tag and build sheet?
Looks like its pretty original but may have had a two barrel swapped for a four.
Looks like points may have been swapped for electronic ignition.
they removed it havnt found it but the previous owner marked all the codes in a book of codes.
it is an N code 4 barrel car , yes swapped to electronic ignition. They also have repair bills from the Orig dealer documenting the miles threw the late 70's and 80's and 90's to 53 current miles,
shame the dash cracked. Can that be replaced?

Last edited:
