1970 Federal Power Steering Pump Picture

Steering / Suspension

  1. RamRod

    RamRod Member

    Messages:
    14
    Likes Received:
    0
    Joined:
    Aug 30, 2018
    Hi everyone. Everyone has been such a help and a resource. But I have one more question, and I swear that I looked all over the internet for a good picture, but I couldn't find one.

    I have a 1970 340 federal power steering pump and I am trying to figure out how it is mounted. I think that I have the correct mounts for it, but I am not sure. The guy that I got the car from just had a box of misc parts. Some were the correct parts, but I have even found Chevy, ford, and I have no idea parts in it.

    Does someone have a good picture of how this pump is mounted and how it goes together? I found a bunch for the Saginaw, but none for the Federal. Thanks again!!!

  2. 340challconvert

    340challconvert Well-Known Member

    Messages:
    2,783
    Likes Received:
    1462
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ
    My 1970 Challenger 340 ps pump mounting
    Hope it helps

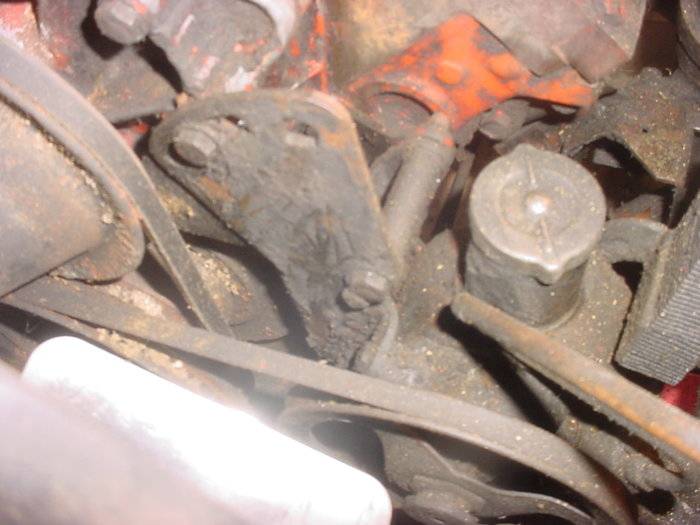

    Power Steering fr side.JPG

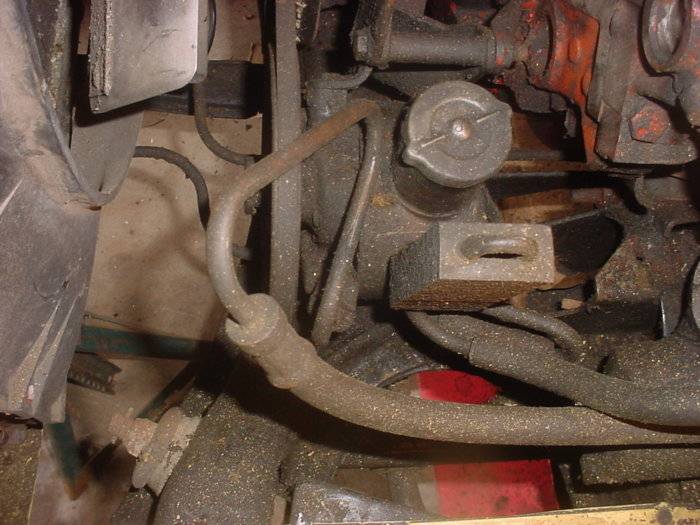

    PS Pump fr view.JPG

    PS Pump top view.JPG

  3. 340challconvert

    340challconvert Well-Known Member

    Messages:
    2,783
    Likes Received:
    1462
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ
    One more pic; cleaned up

    PS pump cooler.jpg

  4. RamRod

    RamRod Member

    Messages:
    14
    Likes Received:
    0
    Joined:
    Aug 30, 2018
    Thanks so much 340 ChallConvert for the pictures. They really help.

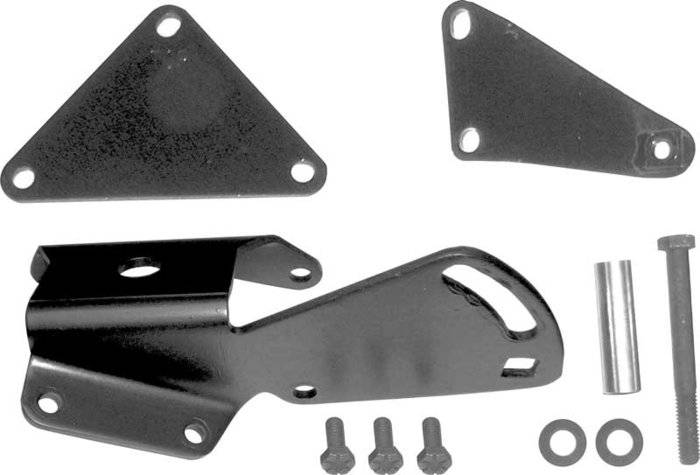

    But I'm really stuck on how the two triangle brackets go together. I see that one is attached to the engine, but where does the other one go? I understand that this might be a stupid question. But I apprecate your help. MD2186.JPG

  5. CARPORT T/A

    CARPORT T/A Active Member

    Messages:
    30
    Likes Received:
    8
    Joined:
    Aug 10, 2017
    Location:
    So Cal
    Hey RamRod,

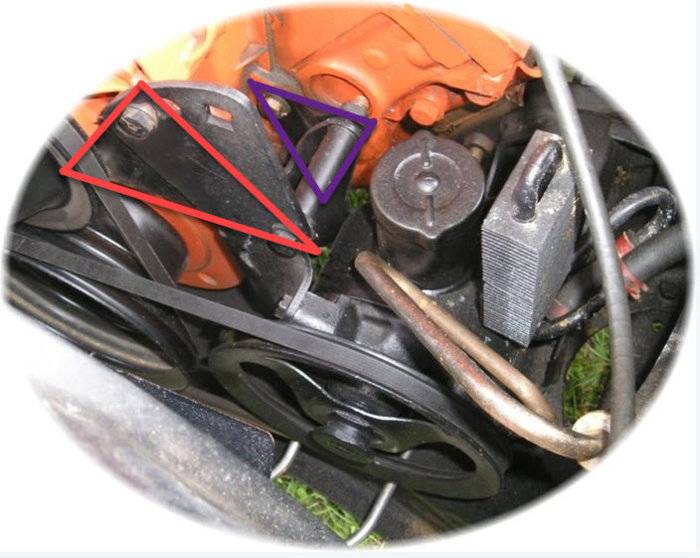

    The bracket shown in Purple is the one with the offset in it. It gets 2 bolt into the timing cover down low with the offset going away from the block. The one shown in red gets 2 bolts that go into the water pump. A factory one of these brackets will say TOP on it. That goes on the top and facing towards the front of the car. The red bracket is behind the pump brackets so it is hard to see in the picture. Good luck!

    PS PUMP BRACKETS.jpg

    • Like Like x 1
    • Thanks! Thanks! x 1
  6. RamRod

    RamRod Member

    Messages:
    14
    Likes Received:
    0
    Joined:
    Aug 30, 2018
    Perfect!!! Thanks to everyone so much. It really helps

  7. money pit

    money pit Well-Known Member

    Messages:
    121
    Likes Received:
    17
    Joined:
    Nov 17, 2017
    Does anyone know if these brackets are the same for 70-74? Classic Industries has the brackets for 70-72. I have a 74 360 engine in a 70 Barracuda. Thanks
