3 Nipple Breather

nakabrd

Well-Known Member
Joined
Jul 11, 2013
Messages
74
Reaction score
4

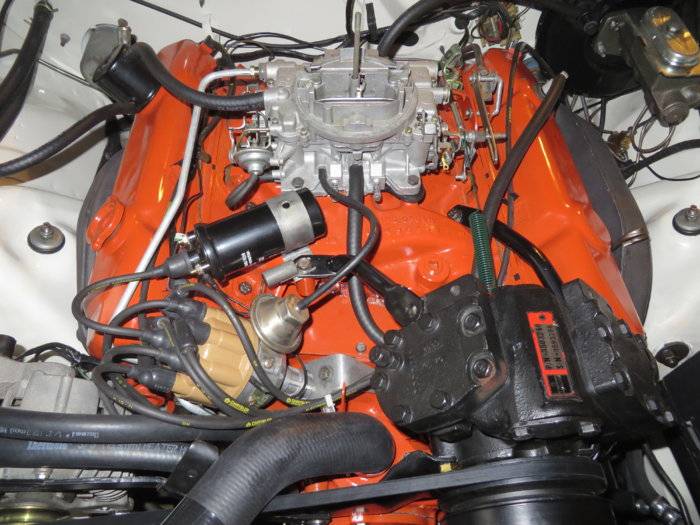

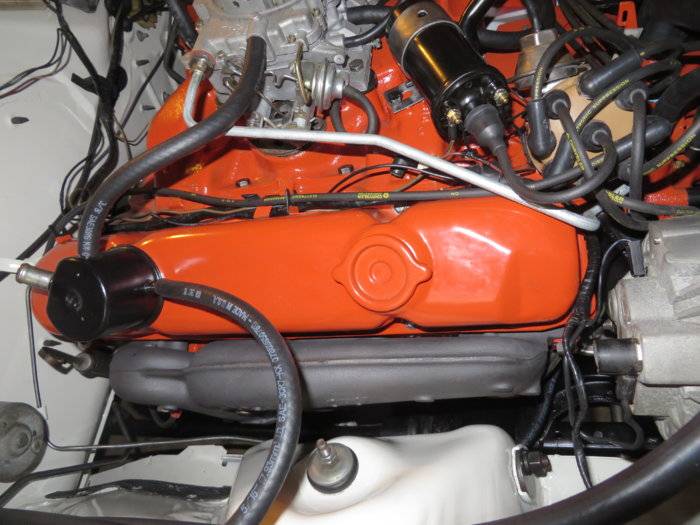

I have an easy question. I have a 3 nipple breather on my Challenger. One nipple goes to the air cleaner, the second goes to a line that runs to a gas tank vent. Where does the third nipple go? Thanks


AUSTA

Well-Known Member
Joined
Apr 16, 2015
Messages
937
Reaction score
501
Location
PERTH WA
If it is an aircon car 1 line goes to the air cond selector as it is vacuum controlled
Sorry that,s the vacuum

Last edited:

nakabrd

Well-Known Member
Joined
Jul 11, 2013
Messages
74
Reaction score
4
The carb line was the one I was forgetting. I've seen it hooked to a 6 pack carb setup, where would it connect to an Edelbrock 4 BBL carb?


quapman

Well-Known Member
Joined
Dec 28, 2008
Messages
878
Reaction score
225
It normally goes to a vent tube on a Holley carb, so I'm not sure on a carb with no vent.


HooToTheCore

Well-Known Member
Joined
Apr 4, 2016
Messages
179
Reaction score
67
Location
Charlottesville, VA
On a Carter AVS 4 bbl, there is a vent tube right above the choke pull off and forward of the fuel line connection.
