440 six pack fuel return/vapor line routing under the hood

[Righty Tighty]

Hello all,

Apologies if this has been covered already, I tried the search function with little success. I have a '74 Barracuda with a 440-6 barrel and I'm looking for info regarding the fuel return and vapor lines. I'm pretty sure I've got the return line figured out -- I'm going to buy the Carquest fuel filter p/n 86041 -- but what about the vapor line? I think I understand the vapor line is mounted to a three nipple breather, but then where does it go?



[Daves69]

This post may interest you.........

OK, where does this go?

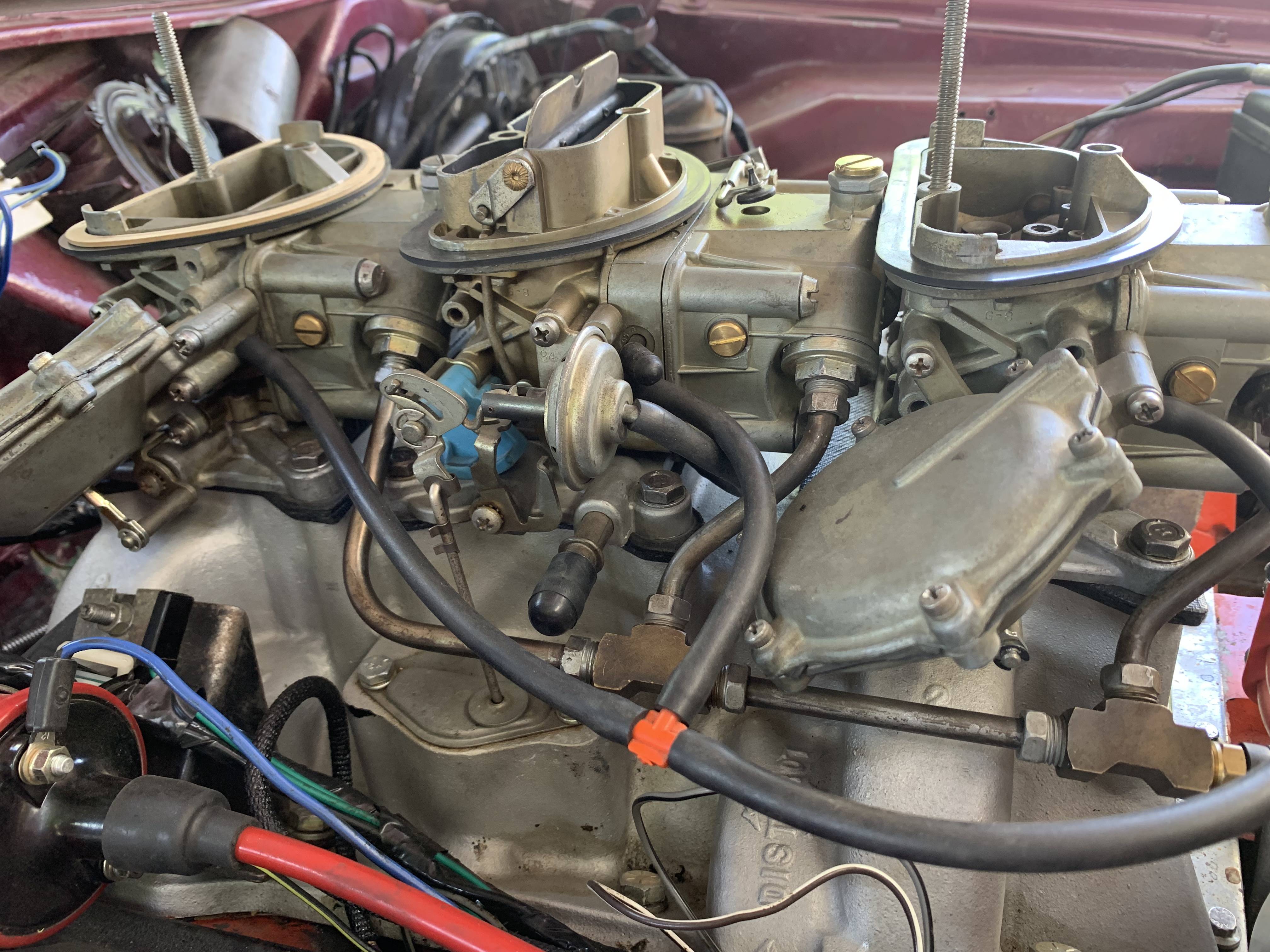

Center carb, top of the fuel bowl, hose comes out, connects to a fuel line and disappears. I'm on my way out of town so don't have time to crawl under...

www.forbbodiesonly.com



[Righty Tighty]

Ahh, thanks a bunch! I had forgotten that some center carbs had the vent and some don’t. Mine are from 1969, so the center does not have the vent. I think that answers my question.



[Daves69]

....Mine are from 1969, so the center does not have the vent.....

Curious........

Not running PCV?

What distributor do you have?



[Righty Tighty]

I'm not running PCV yet... I do plan on getting the PCV connected, but I've had my share of issues just getting the engine tuned since buying the car, so the PCV hasn't been a priority.

Car came with an older Mopar electronic distributor, swapped in a new Summit Racing SUM-851008 billet distributor. Should've kept the old Mopar distributor, but it's too late.
