SOLD 70-71 Challenger Factory Locking Gas Cap with Original Key

Status
Not open for further replies.

340challconvert

Well-Known Member
Joined
Feb 13, 2011
Messages
5,177
Reaction score
2,707
Location
Parsippany, NJ
Rating - 100%
3   0   0
Contact seller

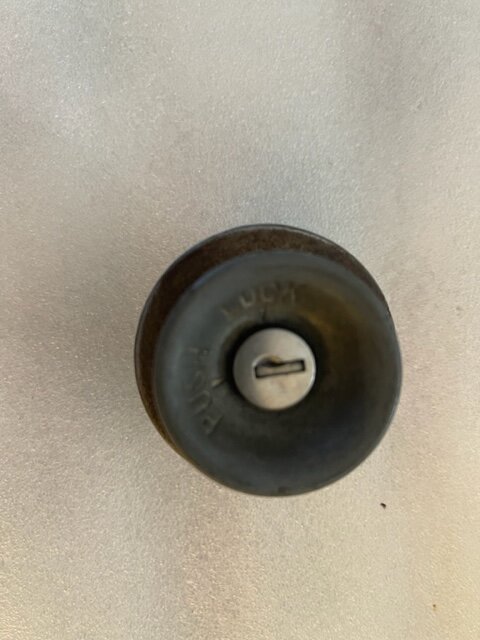

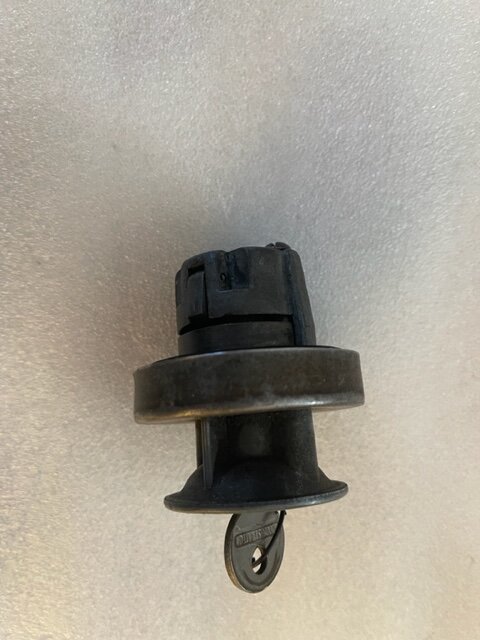

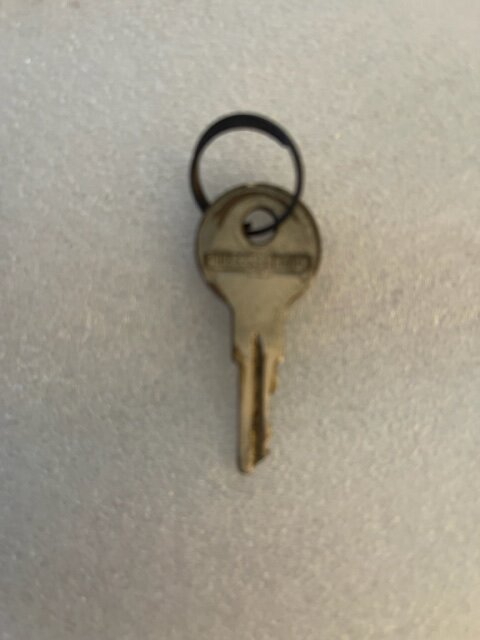

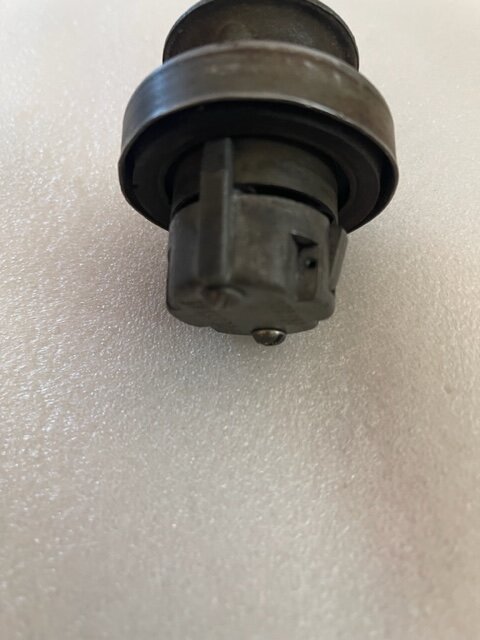

70-71 Challenger Factory Locking Gas Cap with 1 Original Key

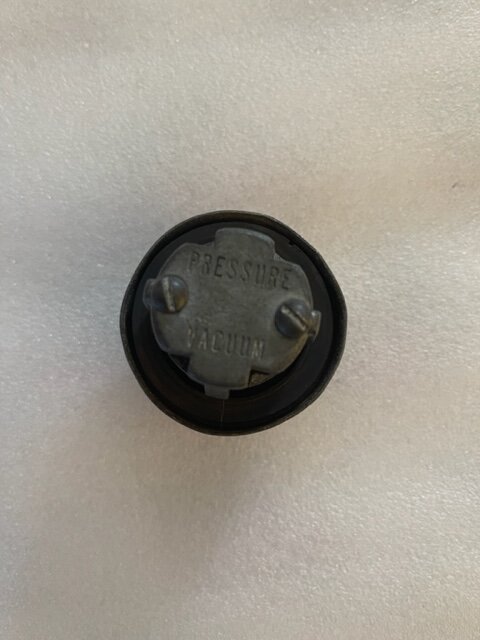

Hard to find original locking gas cap (Pressure Vacuum Model)
Obviously RARE
Needs exterior clean up
In excellent working order; was tested for locking and proper function
Key turns freely and lock push button locks when in locking mode.

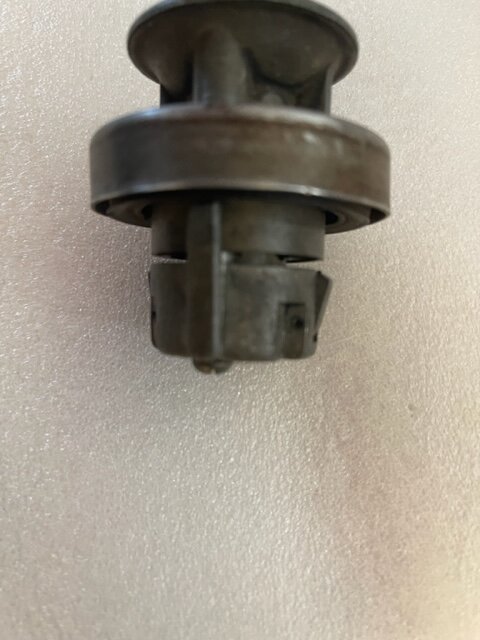

Side locking teeth move freely
Was never disassembled and was in my storage for 40 years
Gasket in good condition
Came with my now long gone 1971 Challenger 383 vert.

$350 plus shipping
Thanks for looking
Phil













340challconvert

Well-Known Member
Joined
Feb 13, 2011
Messages
5,177
Reaction score
2,707
Location
Parsippany, NJ
Rating - 100%
3   0   0
1970 Challengers w/o N95 had "NOT VENTED" gas caps

1970 Challengers with N95 had "PRESSURE/VACUUM" gas caps.

N95 was E.C.S. - evaporative control system - basically mandatory in CA only "California Emissions

All 1970 Challengers built in California and All 1971 Challengers on used the Pressure/Vacuum cap

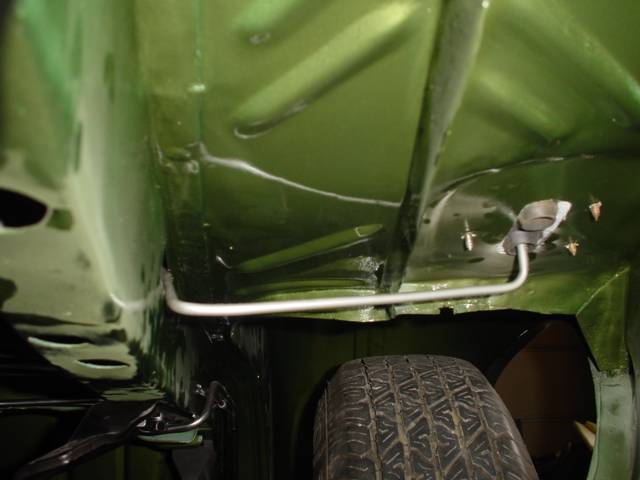

I was told that this cap could be used on a 1970 Challenger as long as it is vented through the frame.

Visually, the Not Vented and Pressure Vacuum caps look identical but have different gaskets

Last edited:

floyd

Well-Known Member
Joined
Mar 18, 2012
Messages
272
Reaction score
148
Rating - 0%
0   0   0

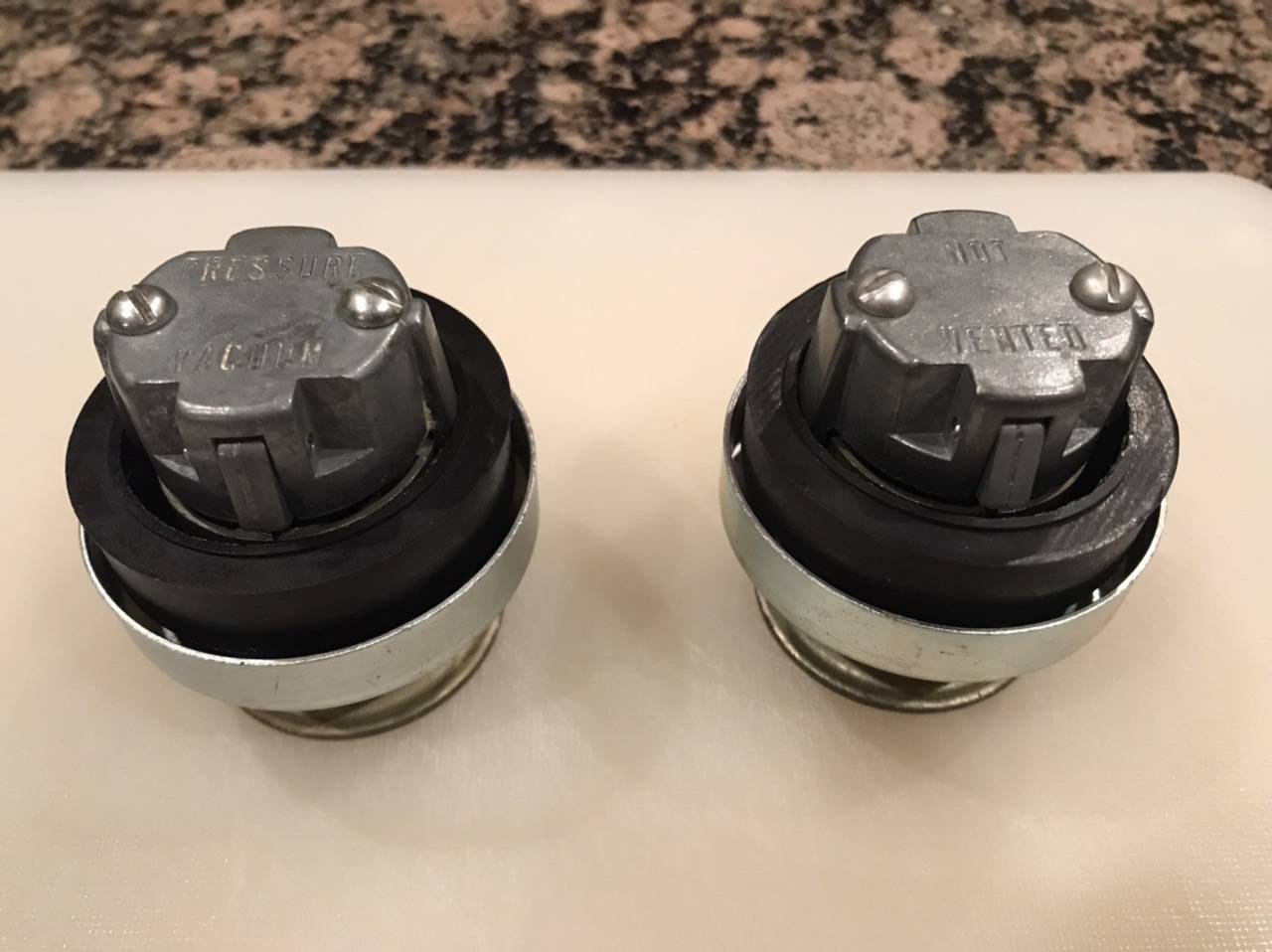

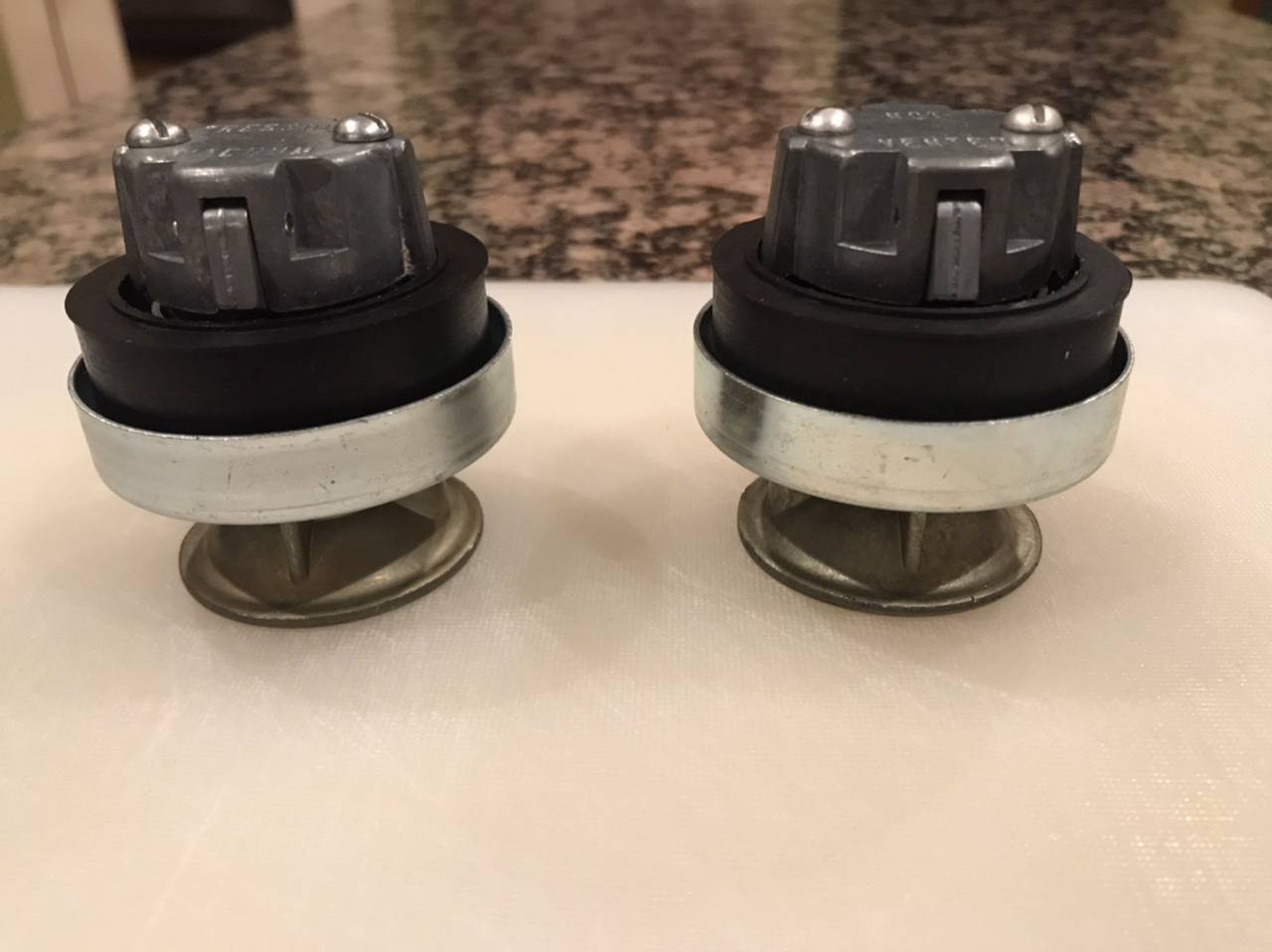

I don’t think I can agree with the gaskets being different between the two caps. Here’s some pics of NOS versions of each.





floyd

Well-Known Member
Joined
Mar 18, 2012
Messages
272
Reaction score
148
Rating - 0%
0   0   0

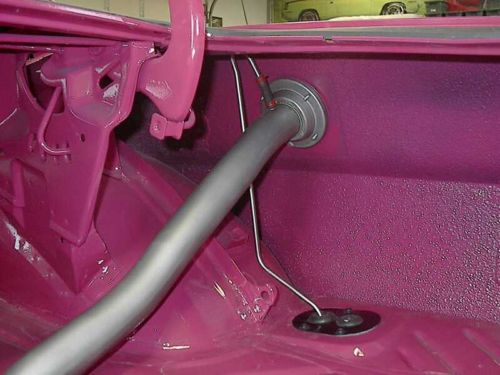

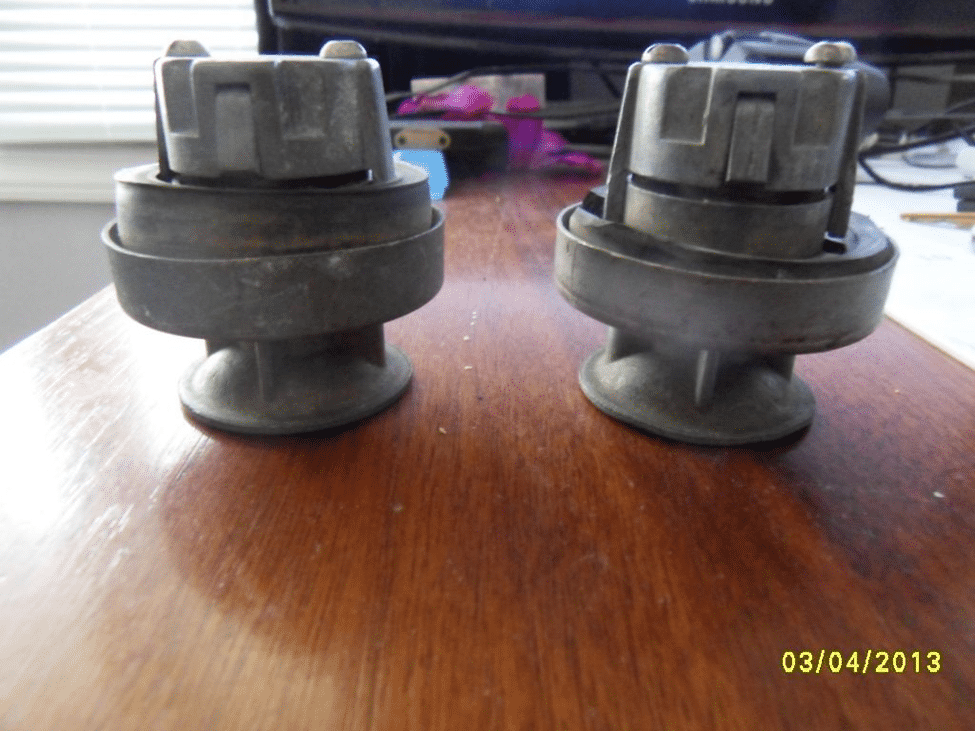

Also, the wide “splines” on the side of the cap are unique for 1970 to match the 1970-only fill tube (top of this pic). I don’t know if the 70 CA ECS cars had a 70-style fill tube or if they used the later 71-4 style tube. If they had the 70-style tube that would mean there’s a pressure vacuum cap that has the wide spline as well.



340challconvert

Well-Known Member
Joined
Feb 13, 2011
Messages
5,177
Reaction score
2,707
Location
Parsippany, NJ
Rating - 100%
3   0   0
floyd
I appreciate your thoughts on this.
Strange, I also have two other NOS pressure vacuum locking gas caps
The cap on am selling came from my 1971 Challenger vert/ 383 I bought in 1975 that I removed before I sold the car in the late 70's.
I am going to check the gaskets and splines on the other NOS caps that I have.


ZippyZoo

Well-Known Member
Joined
Oct 20, 2018
Messages
54
Reaction score
22
Location
Denver, CO
Rating - 0%
0   0   0
FWIW, the locking gas cap that came new on my '71 Challenger is Pressure/Vacuum and has the larger rubber gasket shown in floyd's post.
