70 Challenger Big mods

Member Restorations

  1. SNKEBIT

    SNKEBIT Active Member

    Messages:
    28
    Likes Received:
    11
    Joined:
    Jul 11, 2015

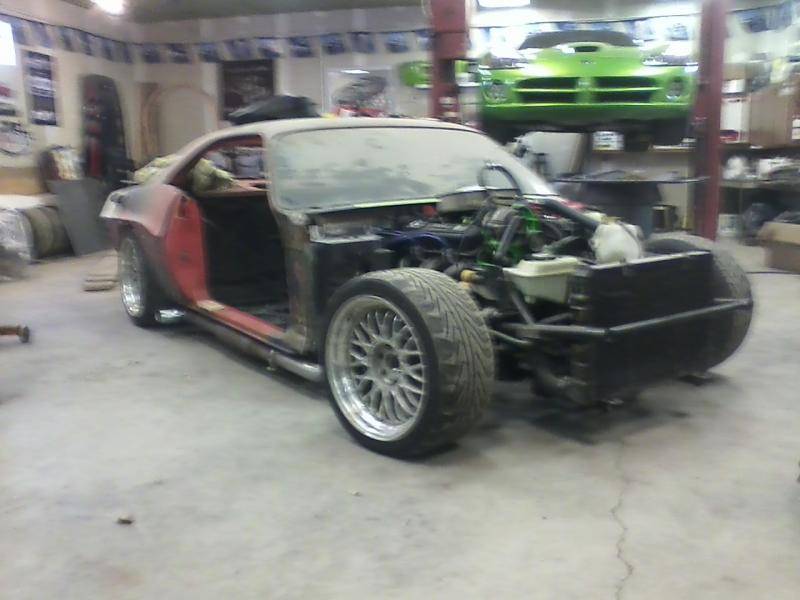

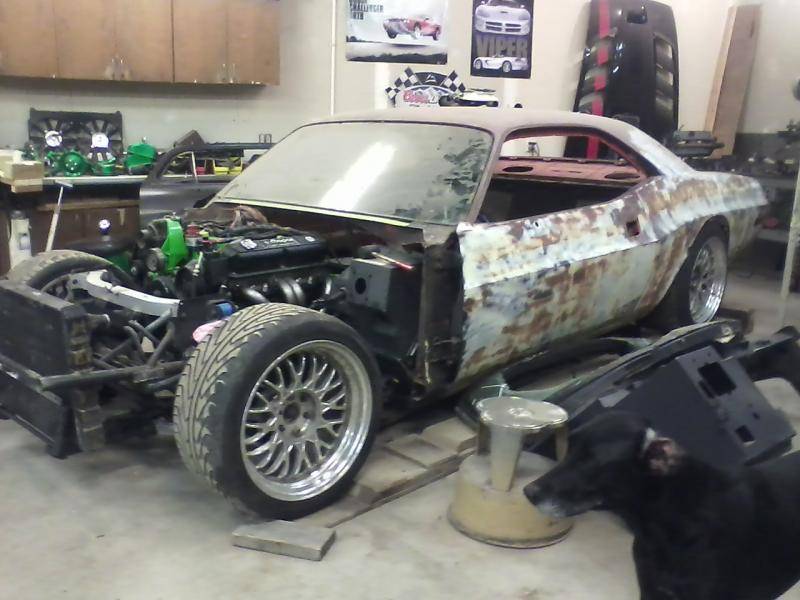

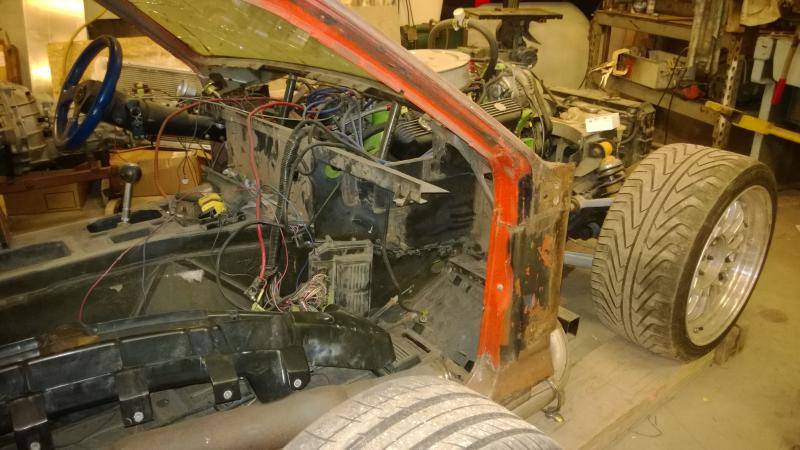

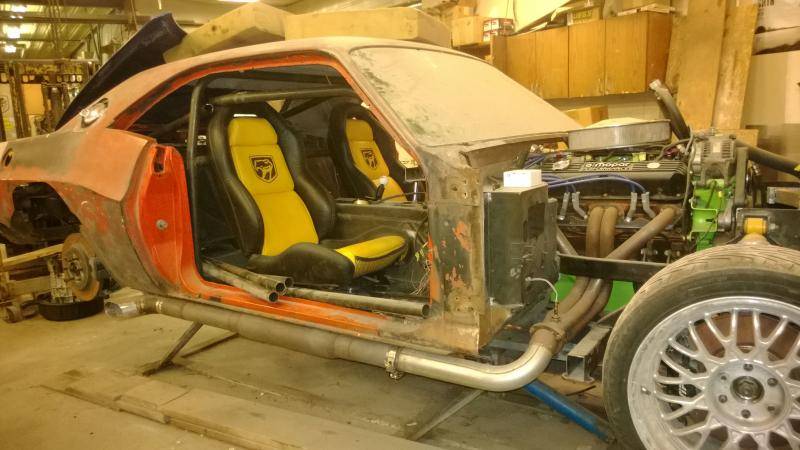

    Here's some pics of my Challenger project that is on hold because of the 67 Cuda I am building on FABO. I came to a stopping point last year because I needed to find quarters and fenders for the car. I have since gotten a good deal on both so now it's just waiting for room in the shop.
    I will leave the details out to see if some of you guys can figure out what I did. :icon_cool:







    • Like Like x 2
  2. 74chlngrTT5.9

    74chlngrTT5.9 Well-Known Member

    Messages:
    278
    Likes Received:
    22
    Joined:
    Feb 27, 2013
    Location:
    SoCal
    What front clip did you graft on that?

  3. 72chally440

    72chally440 Well-Known Member

    Messages:
    105
    Likes Received:
    22
    Joined:
    Mar 7, 2013
    Location:
    San Bernardino County, Ca
    I'm guessing he dropped the chally body over a chevrolet or other full frame chassis of some type with alot of custom fab work. It is Frankenstein.

  4. js29

    js29 Well-Known Member

    Messages:
    671
    Likes Received:
    148
    Joined:
    Aug 5, 2012
    Location:
    lee center ny 13363
    Note 6 lugs on the front wheel, my guess is a flip up front end will be used.

  5. RUNCHARGER

    RUNCHARGER Well-Known Member

    Messages:
    133
    Likes Received:
    42
    Joined:
    Aug 16, 2013
    Car needs two more cylinders.

    Sheldon

  6. 74chlngrTT5.9

    74chlngrTT5.9 Well-Known Member

    Messages:
    278
    Likes Received:
    22
    Joined:
    Feb 27, 2013
    Location:
    SoCal
    That included in a long list... my 2c

  7. SNKEBIT

    SNKEBIT Active Member

    Messages:
    28
    Likes Received:
    11
    Joined:
    Jul 11, 2015

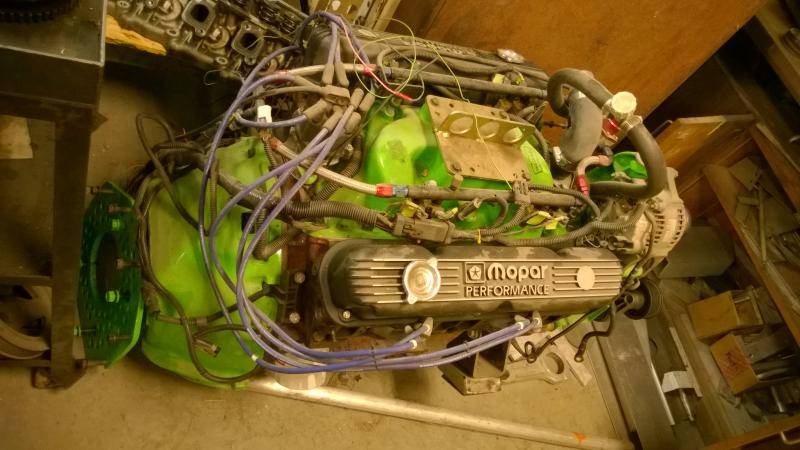

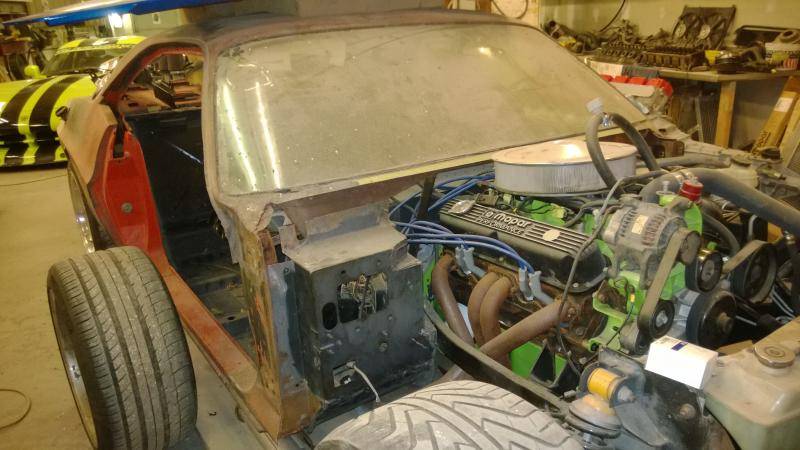

    I will have to get some more pics of the suspension parts. From the rear also. I have had people ask why it doesn't have 2 more cylinders in it. Cuz. lol The engine is a 69 340 with a complete fuel injection system fitted from a 92 Dakota, runs mint. Has an adapter plate and a T-56 6 speed from a Viper.

    Any more guesses? :)

    Oh, and no brand X parts were used in the building of this car.

  8. moparleo

    moparleo Well-Known Member

    Messages:
    5,176
    Likes Received:
    795
    Joined:
    Oct 17, 2011
    Location:
    So. Cal. Riverside area Moreno Valley
    After looking at the pictures, my guess would have been a Dakota or Durango R/T, injected 5.9 but I kept looking at the different guesses and you took part of the wind out of my sales. The 6 lug wheels were the give away. For Pike's Peak or what ?

  9. DetMatt1

    DetMatt1 Well-Known Member

    Messages:
    6,305
    Likes Received:
    1677
    Joined:
    May 13, 2009
    Location:
    Metro Detroit
    Whatever it is it looks damned impressive!

  10. plumgtx

    plumgtx Well-Known Member

    Messages:
    74
    Likes Received:
    1
    Joined:
    Mar 24, 2015
    nice project, cant wait to watch!

  11. SNKEBIT

    SNKEBIT Active Member

    Messages:
    28
    Likes Received:
    11
    Joined:
    Jul 11, 2015
    O.K. I'll spill the beans. I had a 70 340 Challenger I bought many years ago for parts. It was really rusty so I never thought about "saving" it. Time goes on, it's sitting out back in the weeds next to a wrecked Viper frame......... I walk by one day a light bulb comes on. So, one nite sitting at the computer I start looking up dimensions, etc. The floor pan width of the E-body is the same width as the Viper. The Challenger is 14" longer than the Viper. I had enough frame parts to put a lengthened frame together and sit the Challenger body on it.
    A lot of guys told me to put a Viper engine in it but I already had the 340 freshly rebuilt and wanted to see if I could get the F.I. system from a junked Dakota to work well enough to track the car. Surprisingly, runs really well for the bigger cubes. Might have to up the injector size a little.
    When I get it back into the shop, I will take a bunch of pics of all the mods done to the body. Finally sourced some new quarters and front fenders to finish the body transformation. Now, I just need more time.:headbang:

    • Like Like x 1
  12. SNKEBIT

    SNKEBIT Active Member

    Messages:
    28
    Likes Received:
    11
    Joined:
    Jul 11, 2015
    Found a really rusty, ratted out 73. Gonna use it for a few sheet metal pieces I need and pretty much scrap the rest. Now I'm all antsy to get the Chally back in the shop!!!!:icon_super:

  13. Cazbah362

    Cazbah362 Well-Known Member

    Messages:
    216
    Likes Received:
    26
    Joined:
    Feb 3, 2012
    SNKEBIT, I really like this and the concept, keep the updates going. I like the SB, 5 speed fuel injection idea, I bet this thing will tour very nice.

    • Like Like x 1
  14. challenger6pak

    challenger6pak Well-Known Member

    Messages:
    3,743
    Likes Received:
    742
    Joined:
    Feb 27, 2011
    Looking forward to seeing more of this one.

  15. SNKEBIT

    SNKEBIT Active Member

    Messages:
    28
    Likes Received:
    11
    Joined:
    Jul 11, 2015
    Finally picked up the parts chally, man, it's bad. lol Not gonna be much to pick apart, few good thing yet tho...

  16. SNKEBIT

    SNKEBIT Active Member

    Messages:
    28
    Likes Received:
    11
    Joined:
    Jul 11, 2015

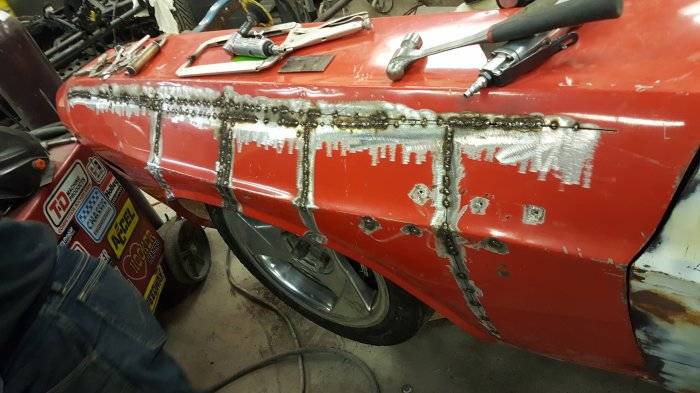

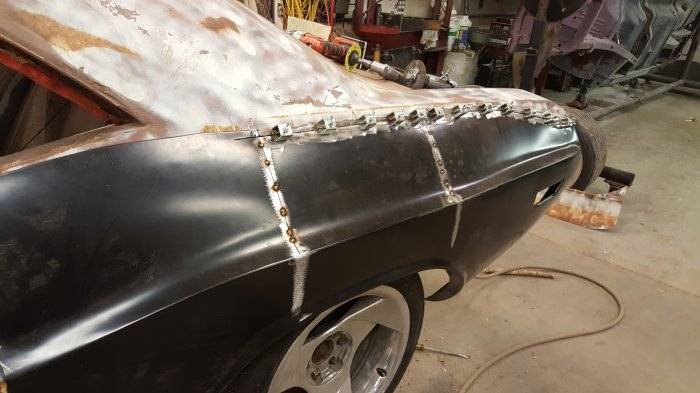

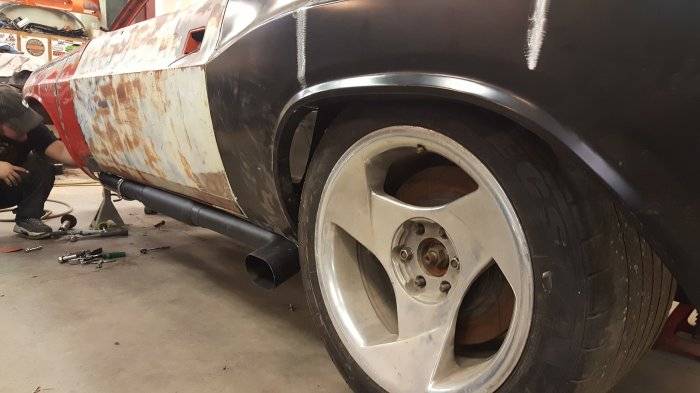

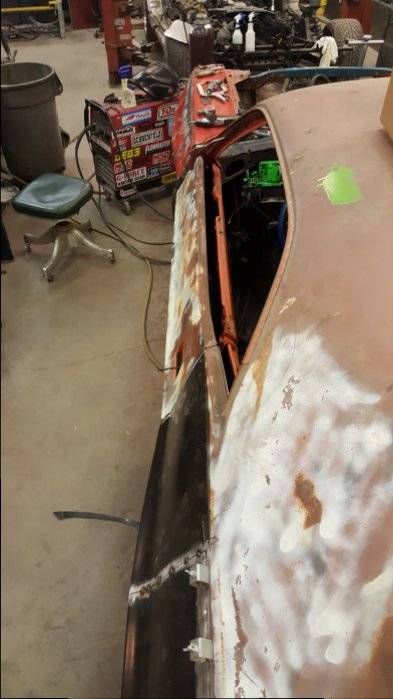

    Well, it took a while but Challenger is back in shop. Traded it to my future son in law for an enclosed trailer. I will never have time to finish it. Still in the family tho!!!! The kid is old school tho and fits right in with this project. So I'm teachin him how to build a hotrod. lol Here we are giving the fenders and quarters some bulge so the Viper wheels fit and turn under weight. A little more involved than the TA cars of the 70's but I like the look and the S-I-L loves it!!! 20170129_213540.jpg 20170130_161842.jpg 20170129_213447.jpg 20170129_213505.jpg
    This last shot you can see the metal we had to add to get the distance needed for clearance. Still a lot of welding and grinding to go!!!!!!!!!!! He will be a pro by the time this one is done. :)

    • Like Like x 1
  17. mpdlawdog

    mpdlawdog Well-Known Member

    Messages:
    97
    Likes Received:
    18
    Joined:
    Apr 29, 2015
    Location:
    marsyville, ohio
    WOW...watching this one! keep us posted and updated!!

    • Like Like x 1
  18. SNKEBIT

    SNKEBIT Active Member

    Messages:
    28
    Likes Received:
    11
    Joined:
    Jul 11, 2015

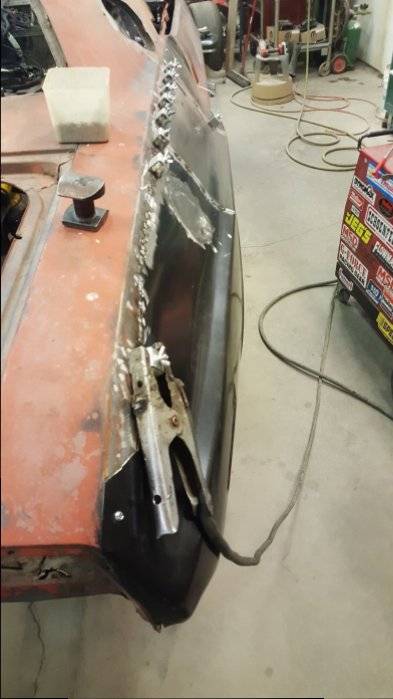

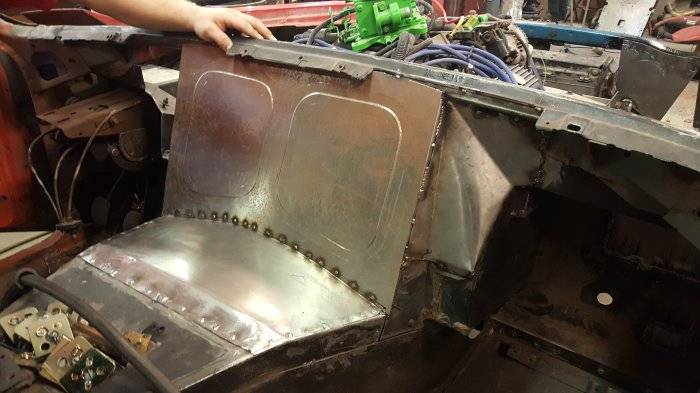

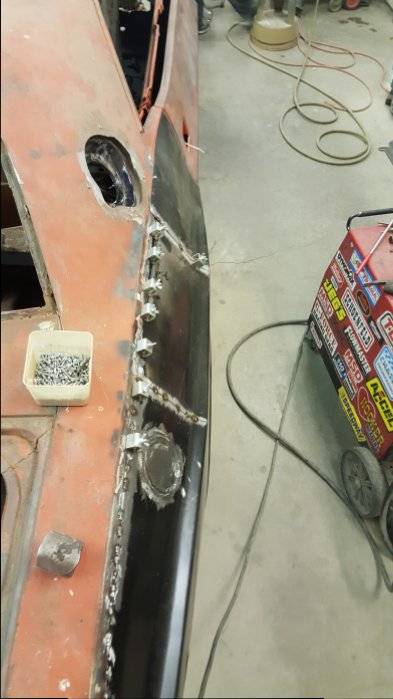

    Did some 20170201_164700.jpg 20170201_164649.jpg 20170202_150030.jpg work on the right quarter. Also did some sheet metal work on the firewall.

    • Like Like x 1
  19. SNKEBIT

    SNKEBIT Active Member

    Messages:
    28
    Likes Received:
    11
    Joined:
    Jul 11, 2015

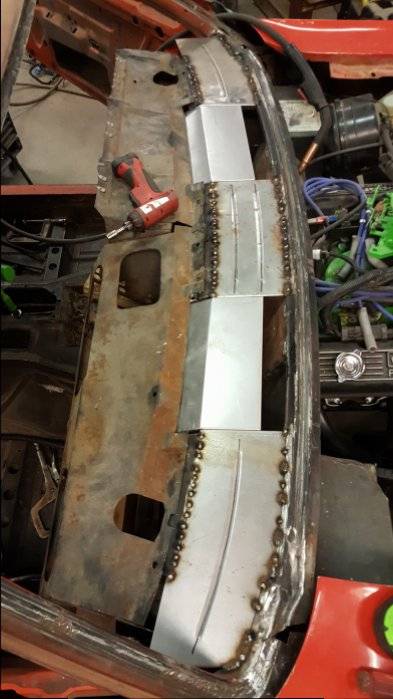

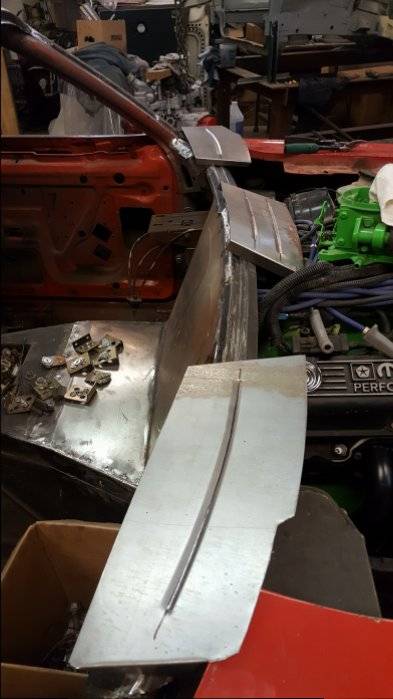

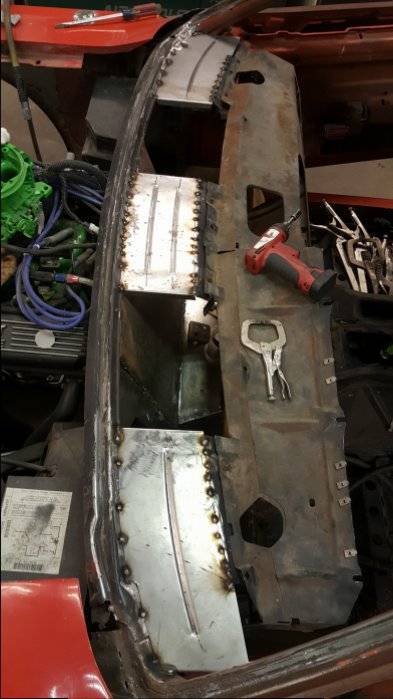

    Worked on the dash today. Had to extent it towards the pass compartment about 6". Fabbed up some fill pieces to get that result. Lots of welding and grinding needed yet to clean it up. The Viper frame positions the driver about 6" back in the pass compartment. No back seat. LOL 20170204_122811.jpg 20170204_170039.jpg 20170204_181706.jpg

  20. SNKEBIT

    SNKEBIT Active Member

    Messages:
    28
    Likes Received:
    11
    Joined:
    Jul 11, 2015

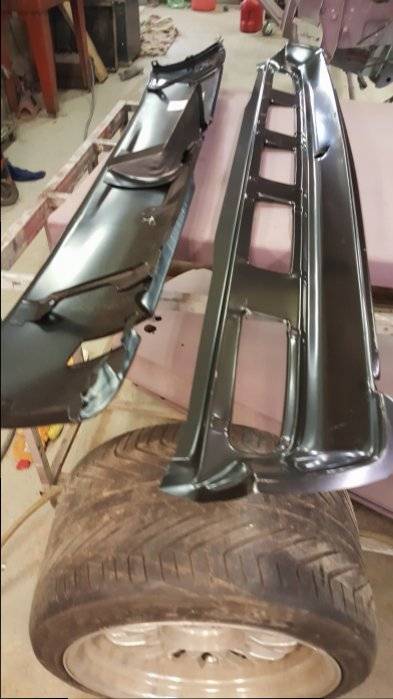

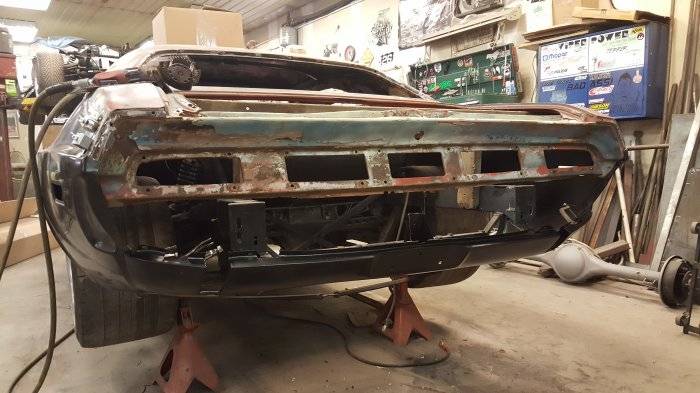

    Got some new parts for the Challenger. The rear panels were either rusted away or in such bad shape we decided to replace them. They are cheap Taiwan stuff but we are doing so many modifications that making these fit will be easy. lol 20170206_134003.jpg The original light panel has been straightened and bondo'ed too many times! 20170206_161320.jpg Here you can see how close the rear bumper brackets for the Viper frame came to the Challenger tail panel. The iper rails are 3" shorter than the Challenger. We are going to make custom fill pieces here to reach the tail panel using 16 gauge sheet metal so it will be nice and strong to attach the bumper. We are thinking the bumper will be flushed out with the body.

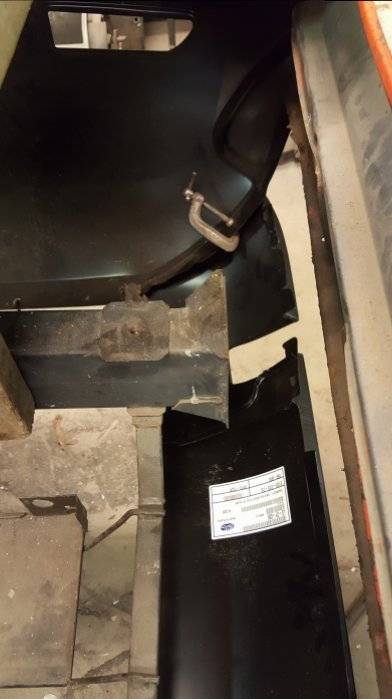

    20170206_161340.jpg How do you like our fender braces? :)

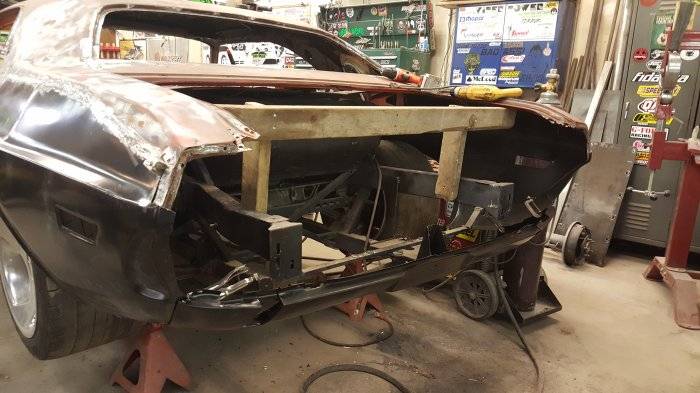

    20170206_172025.jpg Will install tail light panel in the morning. Then have to fab up the filler piece between the tail light panel and the valence. Also have to fill the original bumper bracket cutouts. They will no longer be needed.
