70 Challenger prep for Hellephant tips

Performance Upgrades

  1. Paul113

    Paul113 New Member

    Messages:
    4
    Likes Received:
    0
    Joined:
    Jan 1, 2019
    Im looking to go for it and put the 426 Hemi Hellephant in my 70 Challenger. What other frame stiffening or body mods do you all suggest to accept all this new power, already have the frame stiffeners installed. Thanks

  2. DrEamer

    DrEamer Well-Known Member

    Messages:
    113
    Likes Received:
    34
    Joined:
    Nov 3, 2017
    Location:
    Oregon
    First if all, welcome to the forum. Please be sure to show us pictures of your car! Since you have sub frame connectors, the other options are torque boxes, radiator core support and inner front fender braces. All the parts can be bought at US Car Tools, or XV Racing Products LLC. I prefer the XV front fender braces, and dealing with them if you have a problem, but XV does not make toque boxes. You also might want to talk to XV since they make a complete front and rear suspension to help handling all that power.

  3. mmissile

    mmissile Well-Known Member

    Messages:
    864
    Likes Received:
    143
    Joined:
    Dec 26, 2013
    Location:
    Macomb County Michigan
    Depends on what you're gonna do with the car. Just that simple.

  4. AUSTA

    AUSTA Well-Known Member

    Messages:
    531
    Likes Received:
    146
    Joined:
    Apr 16, 2015
    Location:
    PERTH WA

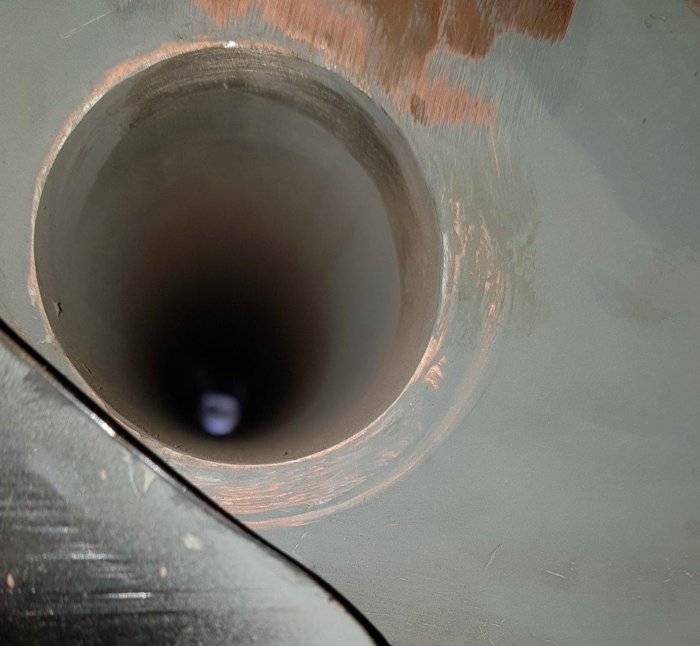

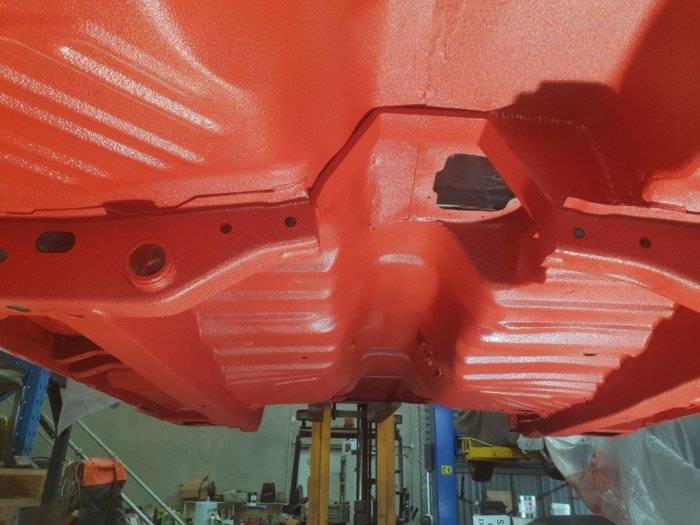

    I used US Car tool kit also fitted 2.5 inch tubing in rockers (good Fit) sealed the rockers then done a 3/4 back fill the with structural epoxy also had to widen the tunnel for a Tremec fitted a 1/2 tool steel brace to the top.
    too handle the new Ritter 426

    TUBING FRONT (1).jpg

    TUBING REAR (1).jpg

    Magnum 6 speed with stiffening (1).jpg

    TOP BRACE (1).jpg

    • Like Like x 3
  5. aussiemark

    aussiemark Well-Known Member

    Messages:
    786
    Likes Received:
    205
    Joined:
    Nov 29, 2014
    Location:
    Perth Western Australia
    That is some fine craftsmanship there Brian, that car will be as ridged as a tank.

  6. Paul113

    Paul113 New Member

    Messages:
    4
    Likes Received:
    0
    Joined:
    Jan 1, 2019
    Thanks Brian! Any chance I could get some more detail photos? Thanks

  7. Mrb3

    Mrb3 Member

    Messages:
    9
    Likes Received:
    1
    Joined:
    Dec 4, 2017

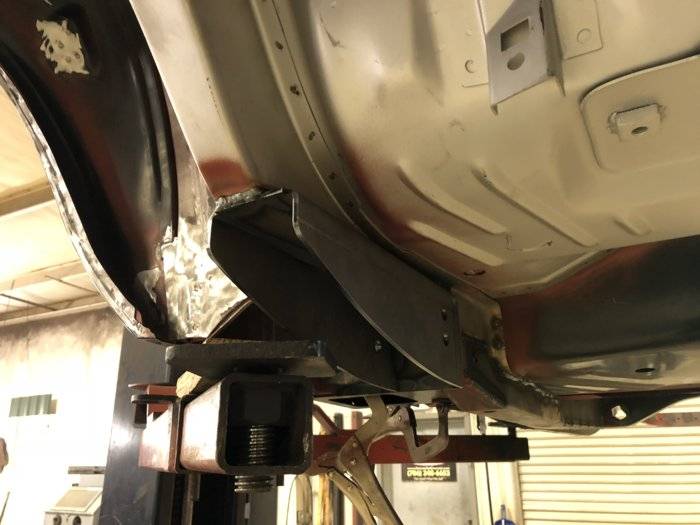

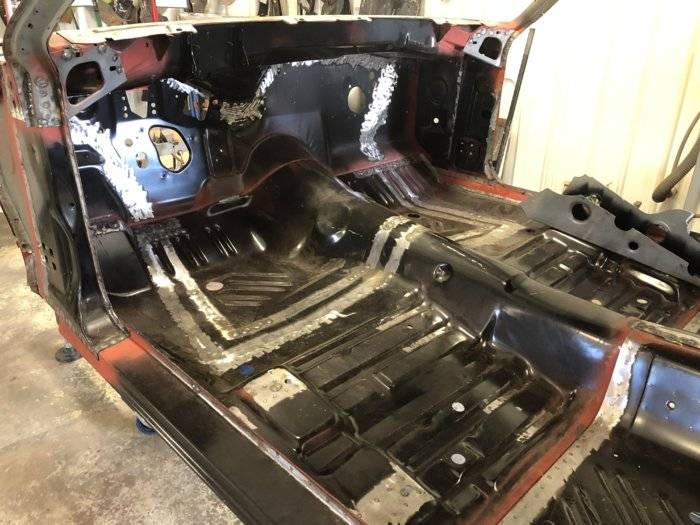

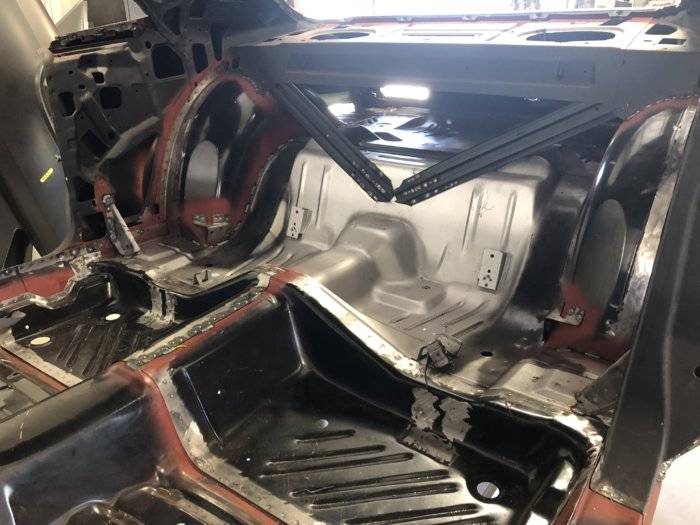

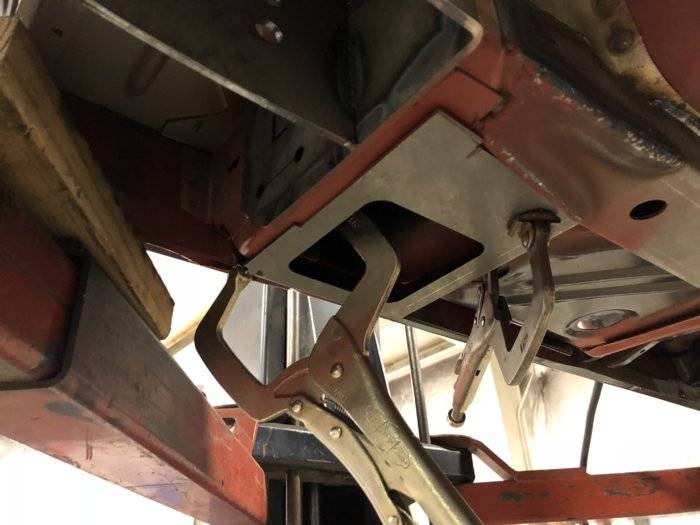

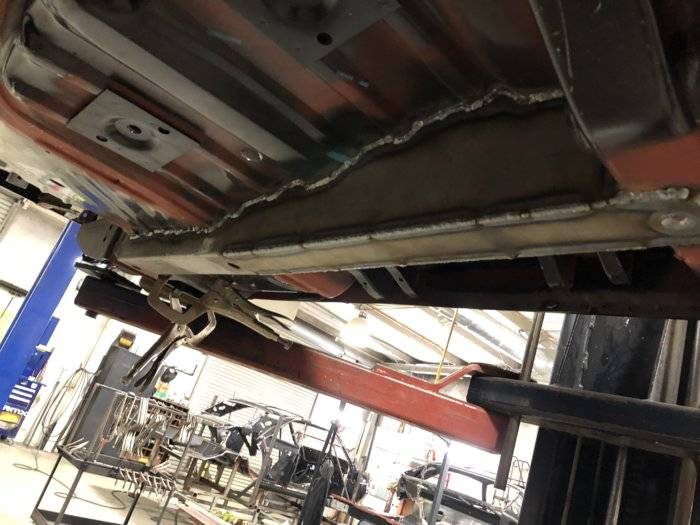

    I just put the 426 gen 3 hemi in my 70, I went with RMS front suspension, and US car tool mini tubs and frame stiffening . If your going to do it, do it right the first time,

  8. Paul113

    Paul113 New Member

    Messages:
    4
    Likes Received:
    0
    Joined:
    Jan 1, 2019
    Brian, dumb question. What is the 2.5” tubing for? Is it exhaust? Thanks.

  9. Mrb3

    Mrb3 Member

    Messages:
    9
    Likes Received:
    1
    Joined:
    Dec 4, 2017
    IMG_0472.JPG IMG_0473.JPG IMG_0474.JPG IMG_0475.JPG IMG_0492.JPG IMG_0493.JPG IMG_0472.JPG IMG_0473.JPG IMG_0474.JPG IMG_0475.JPG IMG_0492.JPG IMG_0493.JPG IMG_0494.JPG IMG_0472.JPG IMG_0473.JPG IMG_0474.JPG IMG_0475.JPG IMG_0472.JPG IMG_0473.JPG IMG_0474.JPG IMG_0475.JPG IMG_0492.JPG IMG_0493.JPG IMG_0494.JPG IMG_0495.JPG 49058146_2230230563653863_6329183920440999936_n.jpg 49234259_2230230513653868_5206123309103579136_n.jpg IMG_0492.JPG IMG_0475.JPG IMG_0474.JPG IMG_0473.JPG IMG_0472.JPG IMG_0472.JPG IMG_0473.JPG IMG_0474.JPG IMG_0475.JPG IMG_0492.JPG IMG_0493.JPG IMG_0494.JPG IMG_0495.JPG 49058146_2230230563653863_6329183920440999936_n.jpg 49234259_2230230513653868_5206123309103579136_n.jpg 49234259_2230230513653868_5206123309103579136_n.jpg 49058146_2230230563653863_6329183920440999936_n.jpg IMG_0495.JPG IMG_0494.JPG IMG_0472.JPG IMG_0473.JPG IMG_0474.JPG IMG_0475.JPG IMG_0492.JPG IMG_0493.JPG IMG_0494.JPG IMG_0495.JPG 49058146_2230230563653863_6329183920440999936_n.jpg 49234259_2230230513653868_5206123309103579136_n.jpg IMG_0472.JPG IMG_0473.JPG IMG_0474.JPG IMG_0475.JPG IMG_0492.JPG IMG_0493.JPG IMG_0494.JPG

  10. moparleo

    moparleo Well-Known Member

    Messages:
    4,605
    Likes Received:
    441
    Joined:
    Oct 17, 2011
    Location:
    So. Cal. Riverside area Moreno Valley
    Looks like a bad case of camera stutter......Car is coming along fine .

  11. Mrb3

    Mrb3 Member

    Messages:
    9
    Likes Received:
    1
    Joined:
    Dec 4, 2017

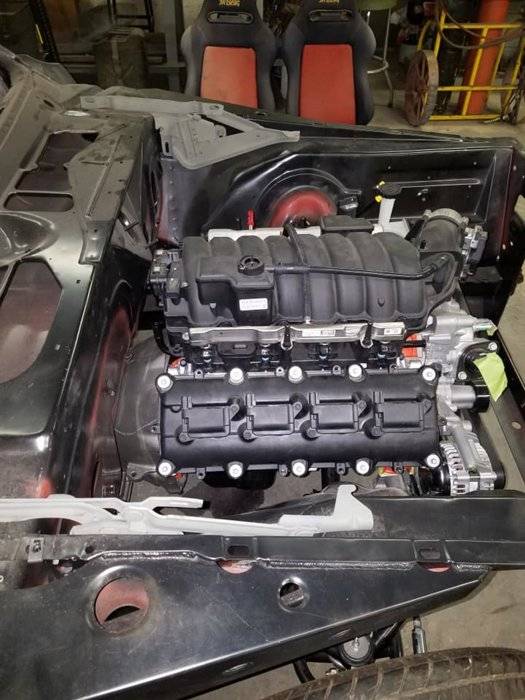

    sry about the pics, have no idea what happen, I finally got the wiring and gas tank, no to mock it up, its a 426 crate engine, 727 trans, goiong to add a whipple on it, should be around 1000 hp when done

  12. Mickie Lulu

    Mickie Lulu New Member

    Messages:
    4
    Likes Received:
    2
    Joined:
    Jan 9, 2019
    Fantastic car/work!
    The "V" behind the rear seat needs to be tied to the package tray and then to the floor in the corners. There is a lot of flex in that part of the car that gets overlooked by most.

    • Like Like x 1
  13. Mrb3

    Mrb3 Member

    Messages:
    9
    Likes Received:
    1
    Joined:
    Dec 4, 2017
    Ok, thank you the help.
