70' Dana 60

1OhioMopar

Member
Joined
Feb 25, 2018
Messages
10
Reaction score
0

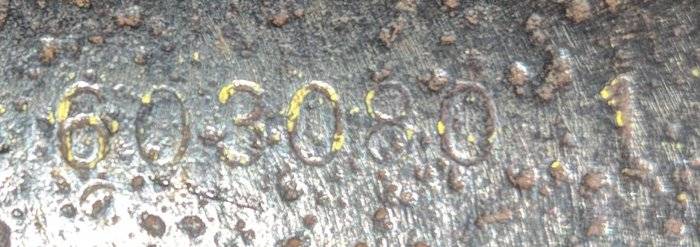

I picked this up today, I may end up selling it when another guy gets back to me about a B body dana he has. Is there any interest on here for this unit I have? The BOM# is 603080 -1

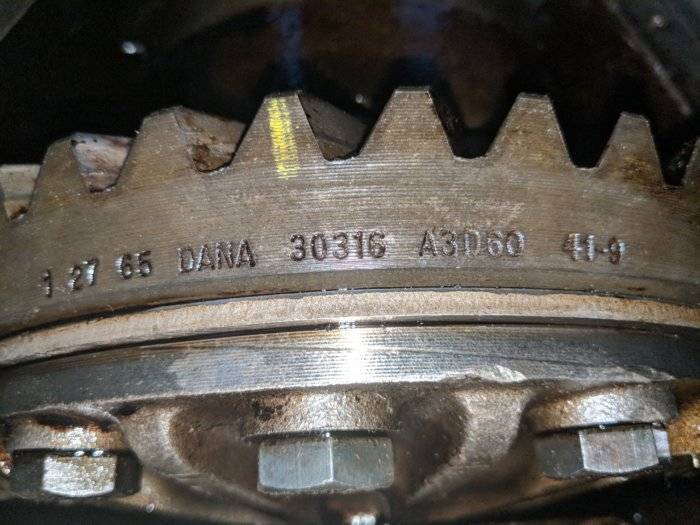

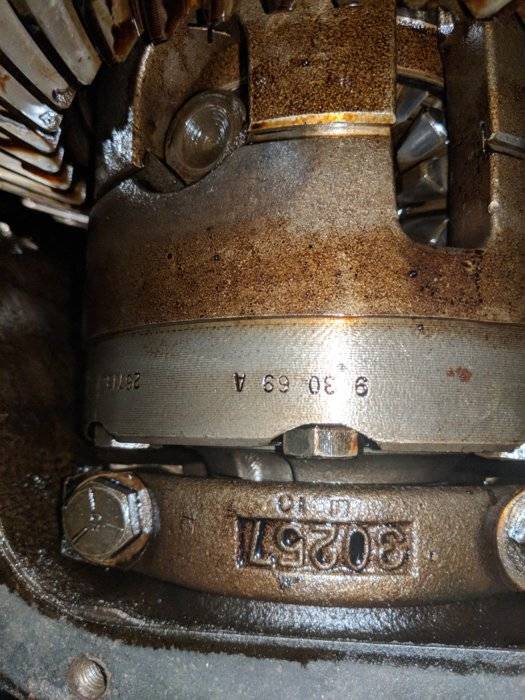

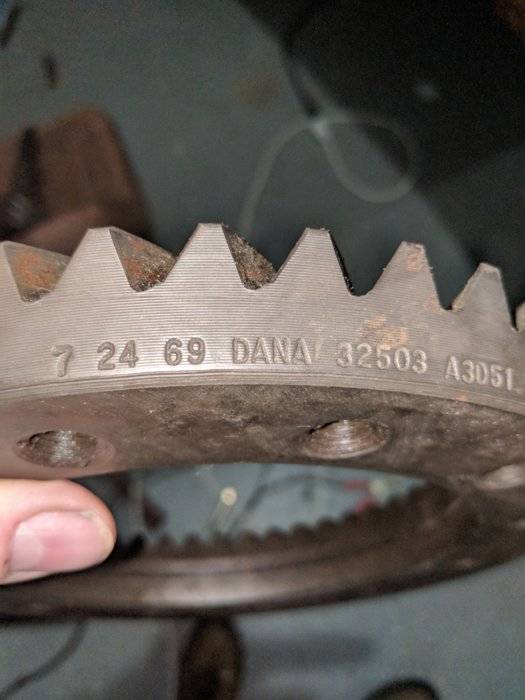

It currently has a 4.56 gear with ring gear spacer on the standard posi. I have a 7/24/69 3.54 gear to put in it. the current posi is 9/30/69









aussiemark

Well-Known Member
Joined
Nov 29, 2014
Messages
1,196
Reaction score
321
Location
Perth Western Australia
That diff carrier is different to the 4.10 or 3.54 ratio so if you plan on running 3.54 you will need the standard type diff carrier the one used for 4.56 or higher numerical ratio is part # 1929772 I don't know the part # for the other one.

Last edited:

1OhioMopar

Member
Joined
Feb 25, 2018
Messages
10
Reaction score
0
aussiemark, the carrier is the original for the 3:54 gears. They are running a spacer between the ring gear and posi on the 4:56 to make up the difference.

Jeff


hemix

Member
Joined
Sep 22, 2015
Messages
15
Reaction score
4
Location
oregon

1OhioMopar

Member
Joined
Feb 25, 2018
Messages
10
Reaction score
0

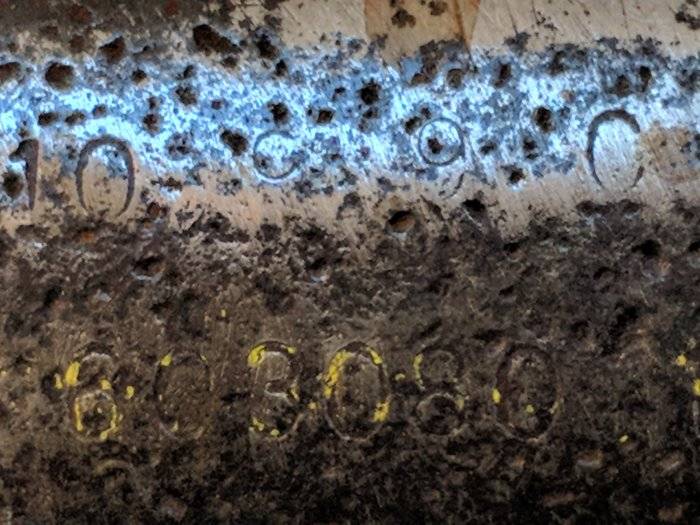

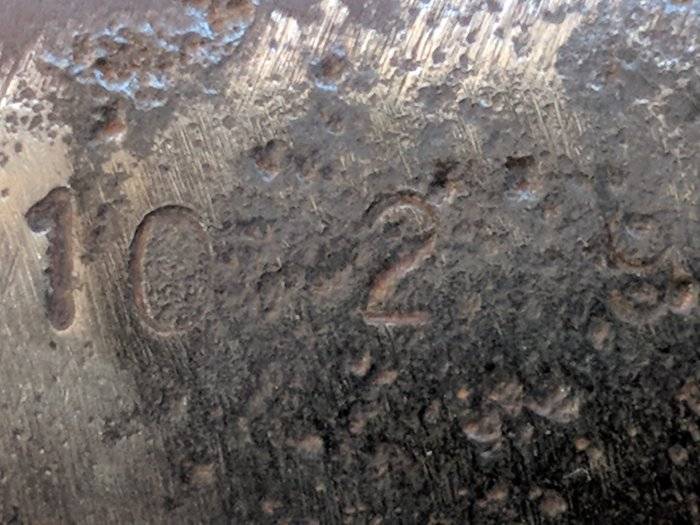

On the one above the BOM# the 3 is turned sideways. So I see 10/2/9 and 10/3/9

Jeff


1OhioMopar

Member
Joined
Feb 25, 2018
Messages
10
Reaction score
0

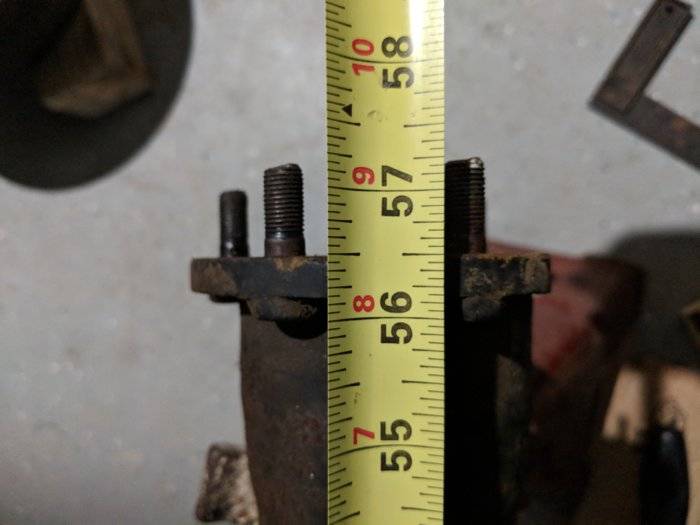

Here is a housing measurement. This is as close as I can get to 56 31/64" with this carpenter measuring devise. LOL. It has original housing ends. The only modifications I see are long studs, green bearings and the perches relocation.

Jeff





1OhioMopar

Member
Joined
Feb 25, 2018
Messages
10
Reaction score
0

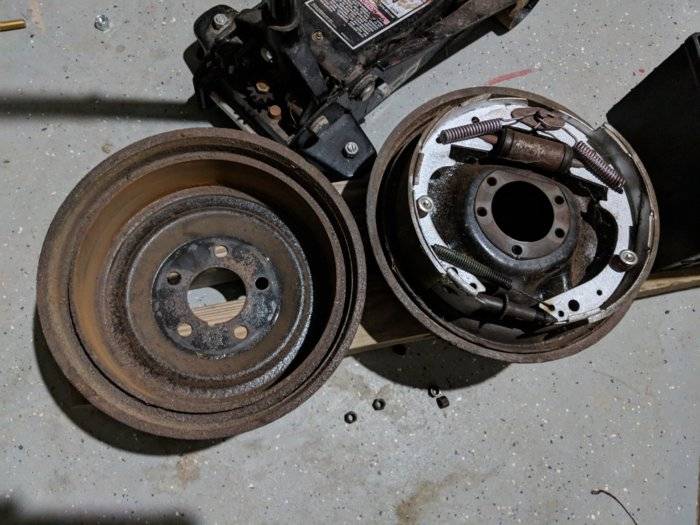

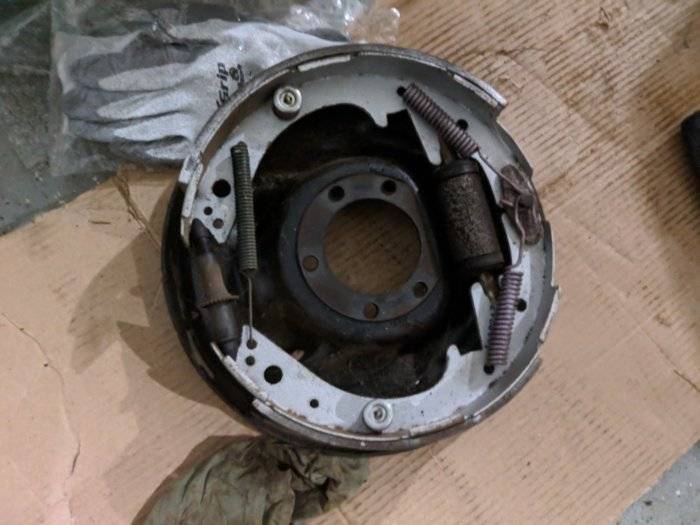

It has a full set of 11" drum brakes that have very little use on them. The backing plates are in great shape.





R/T E&B

New Member
Joined
Nov 21, 2017
Messages
3
Reaction score
0
