70 survivor cuda

JD 63

Member
Joined
Oct 23, 2020
Messages
12
Reaction score
5
Location
Alberta Canada

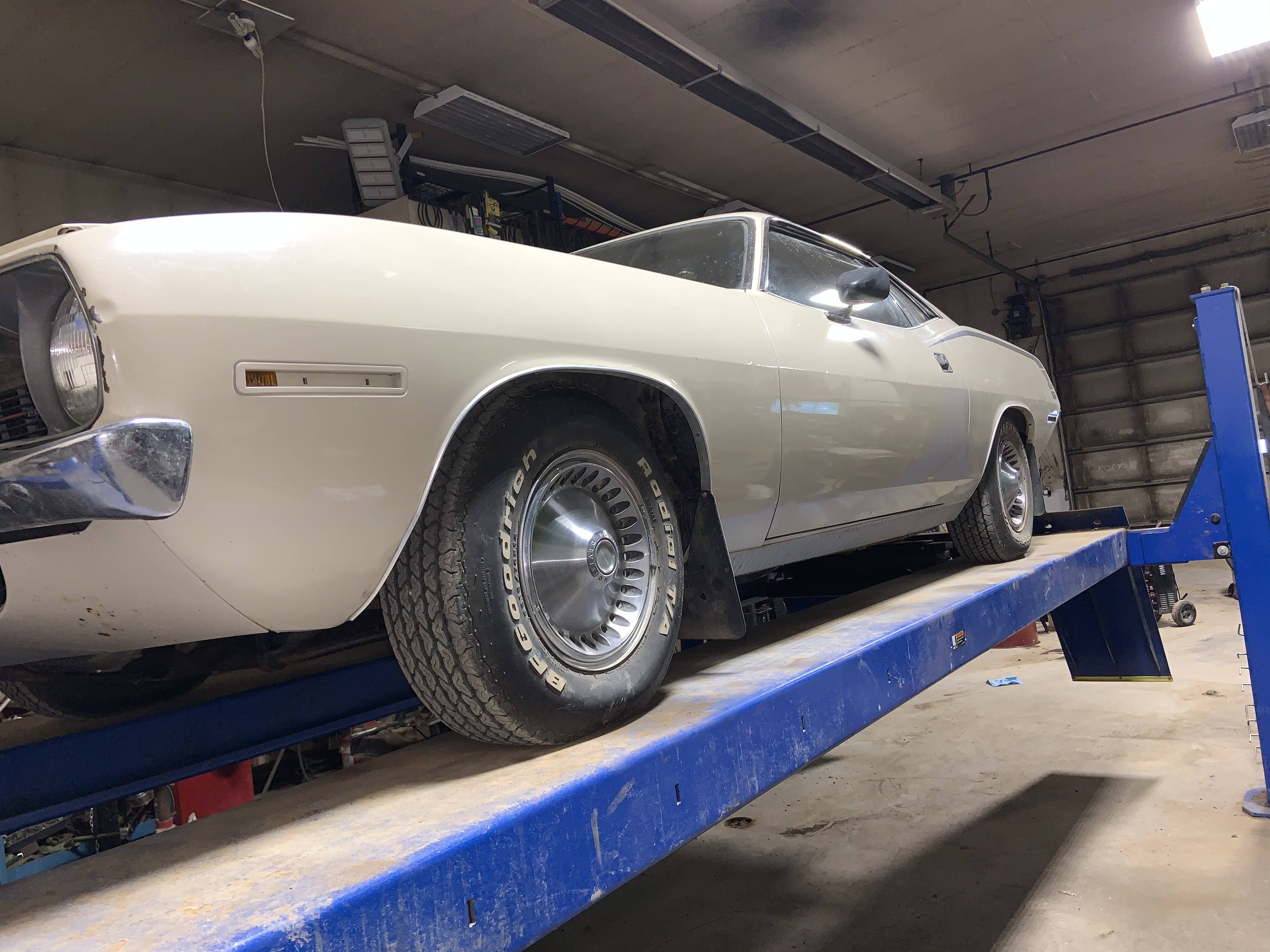

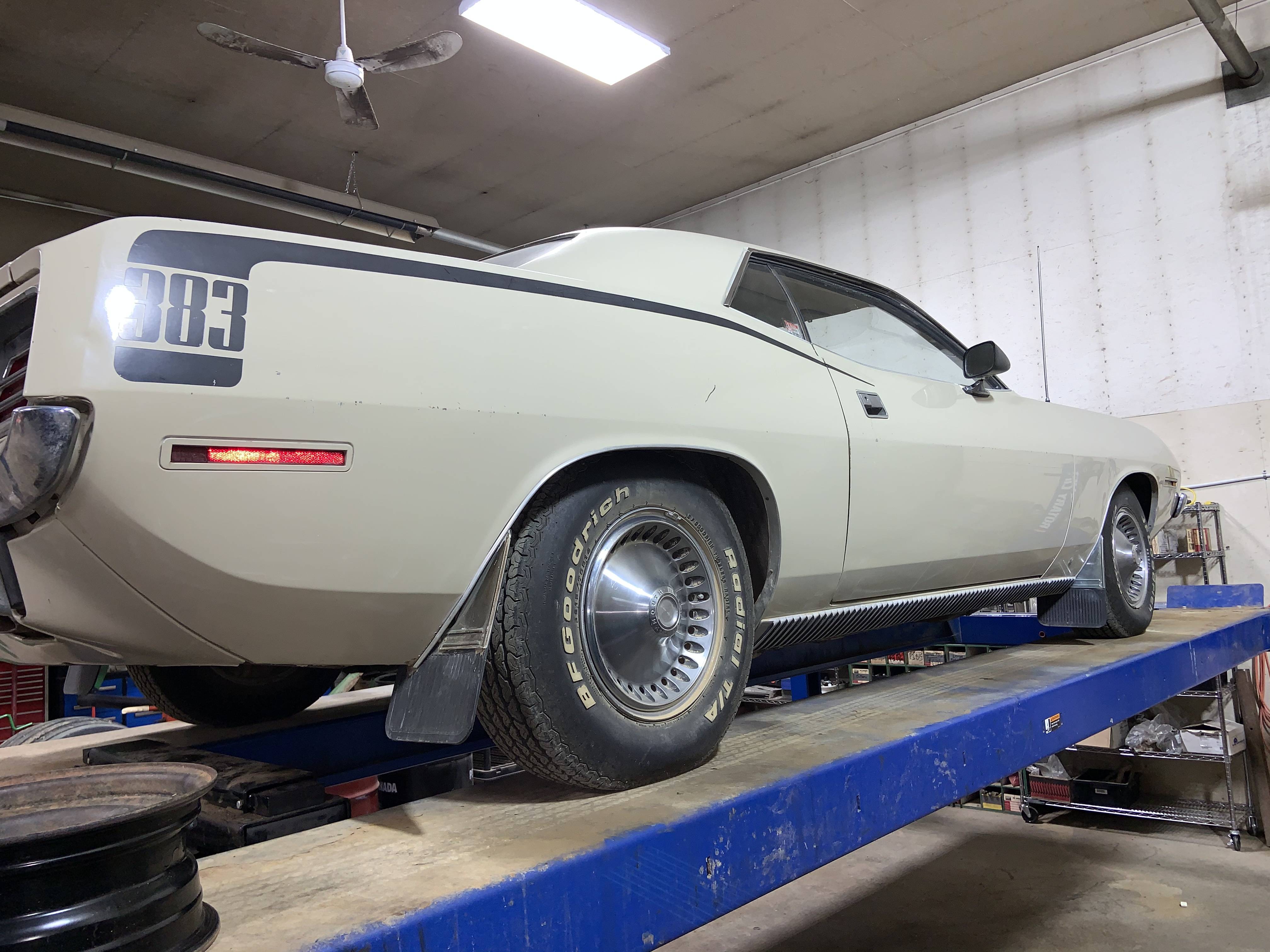

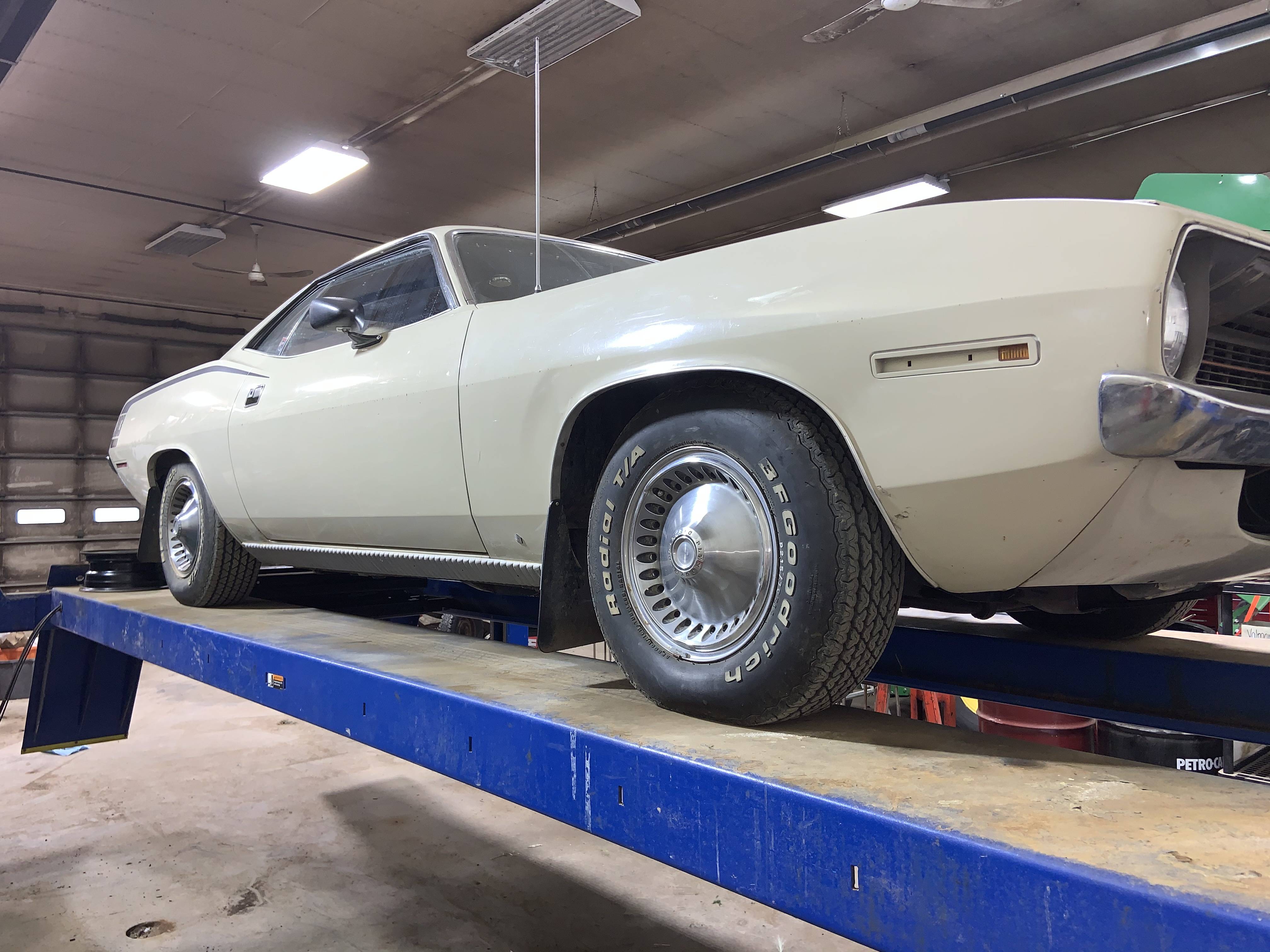

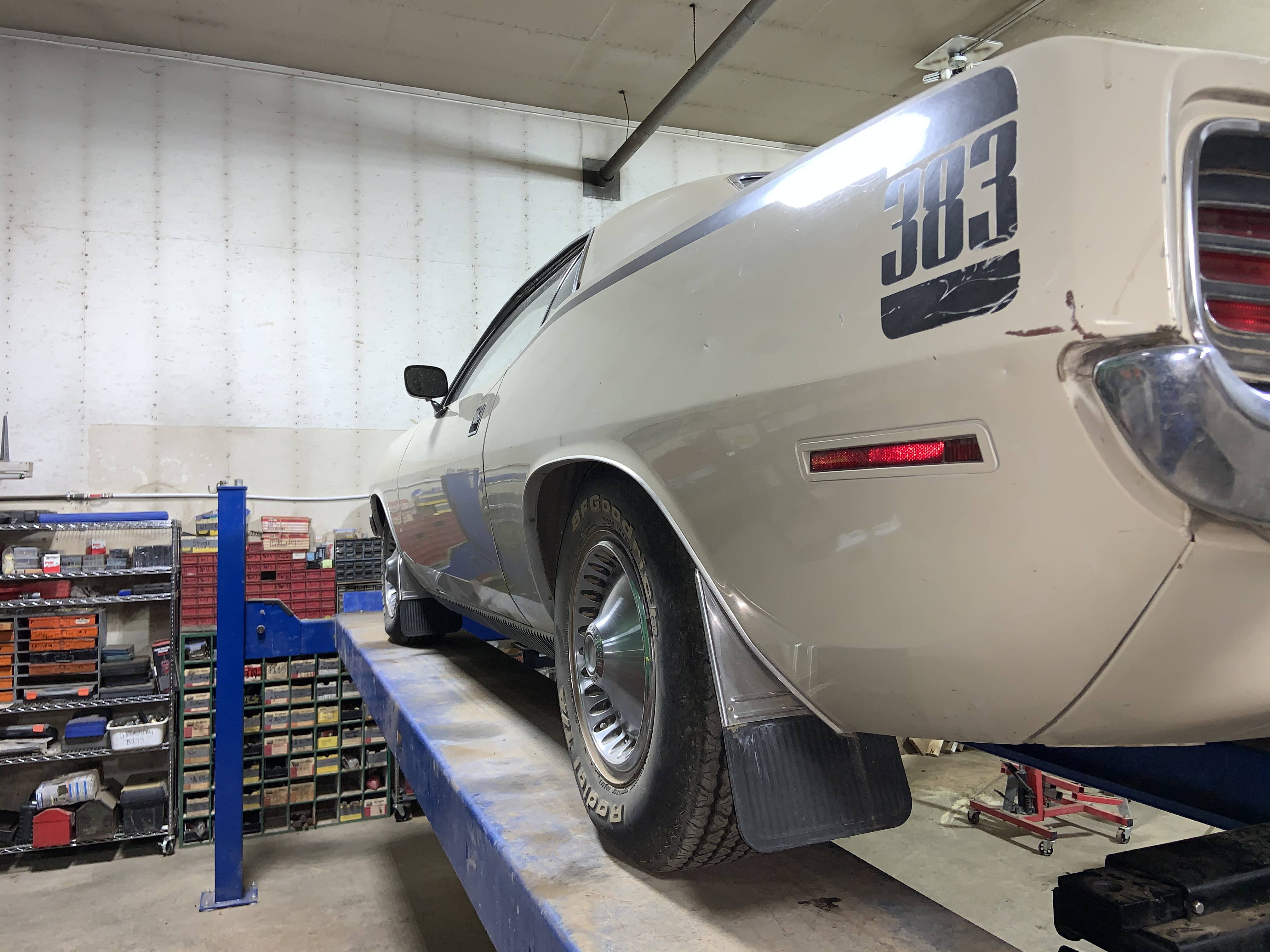

I have a survivor 1970 cuda and I was wondering what I can do to it before it looses survivor status.
The body is rust free mostly dent free except for rock chips and mall door dents.
It has a replacement Carter carburetor not its factory Holley and aftermarket mirrors.
It needs shocks,mufflers and resonators, I would like to put new brakes in it and water pump and do a rad rebuild and the front seats need recovered before I start driving it.
It doesn’t seem to have had many wrenches on it, so how far can I go before I loose survivor status and effect it’s selling price.













Cuda Hunter

Well-Known Member
Joined
Dec 28, 2008
Messages
2,980
Reaction score
1,032
Location
high mountains Colorado
Replace the mufflers, resonators and shocks with NOS.
Keep the old parts in a box.
Brakes, simply need to be done. Buy nos.
Radiator has to be removed and recored but the original will go back in.
Have the water pump rebuilt. If the part can be fixed then fix it at all costs to keep it a survivor.
Seats aren't that surprising. Are they so bad that they can not be removed and restitched?
Don't touch that paint! It looks awesome!!

Can you load some pics of the interior, trunk and fender tag please?


MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
496
Reaction score
383
JD,
You have not posted in awhile. Have you looked thoroughly for a broadcast sheet? I know you are missing the fender tag and have already checked the rear seat back but did you check the bucket seat backs or above the dash glove compartment insert? On a rare occasion, sheets have been found under the carpet as well.
Good luck, Los Angeles-built cars are less likely to have a broadcast sheet hidden away.

As for your questions...
If your goal is to keep this car as original as possible in all of its factory patina glory, then photograph everything before any changes and save everything you take off. Replacing most items such as shocks, mufflers/resonators, and safety items such as brakes are not going to hurt the car's status as long as you replace them with NOS or quality repro parts.
A replacement water pump for a 383 is not of great concern for value. Stash away the old one.
The radiator can be recored by Glen-Ray Radiator for a reasonable price.
New Legendary bucket seat covers would be preferred over ripped/torn originals as well.
I remember you needed to replace the aftermarket mirrors. Did you get a pair of factory chrome or painted mirrors yet? Is the aftermarket passenger's mirror hiding original Rivnuts to confirm the car came with a mirror on the passenger side? It looks like the aftermarket mirrors may have holes that could be an issue if the factory mirror bases do not cover them.

Your BS23N0E134463 car is going to draw a lot of interest at a car cruise or show. Cleanup, preservation, and select replacements/repairs for safety and drivability are all it really needs.


JD 63

Member
Joined
Oct 23, 2020
Messages
12
Reaction score
5
Location
Alberta Canada
It’s been a busy few yrs I’m wanting to get it gone through this winter so I can do some reliable cruising next summer


JD 63

Member
Joined
Oct 23, 2020
Messages
12
Reaction score
5
Location
Alberta Canada

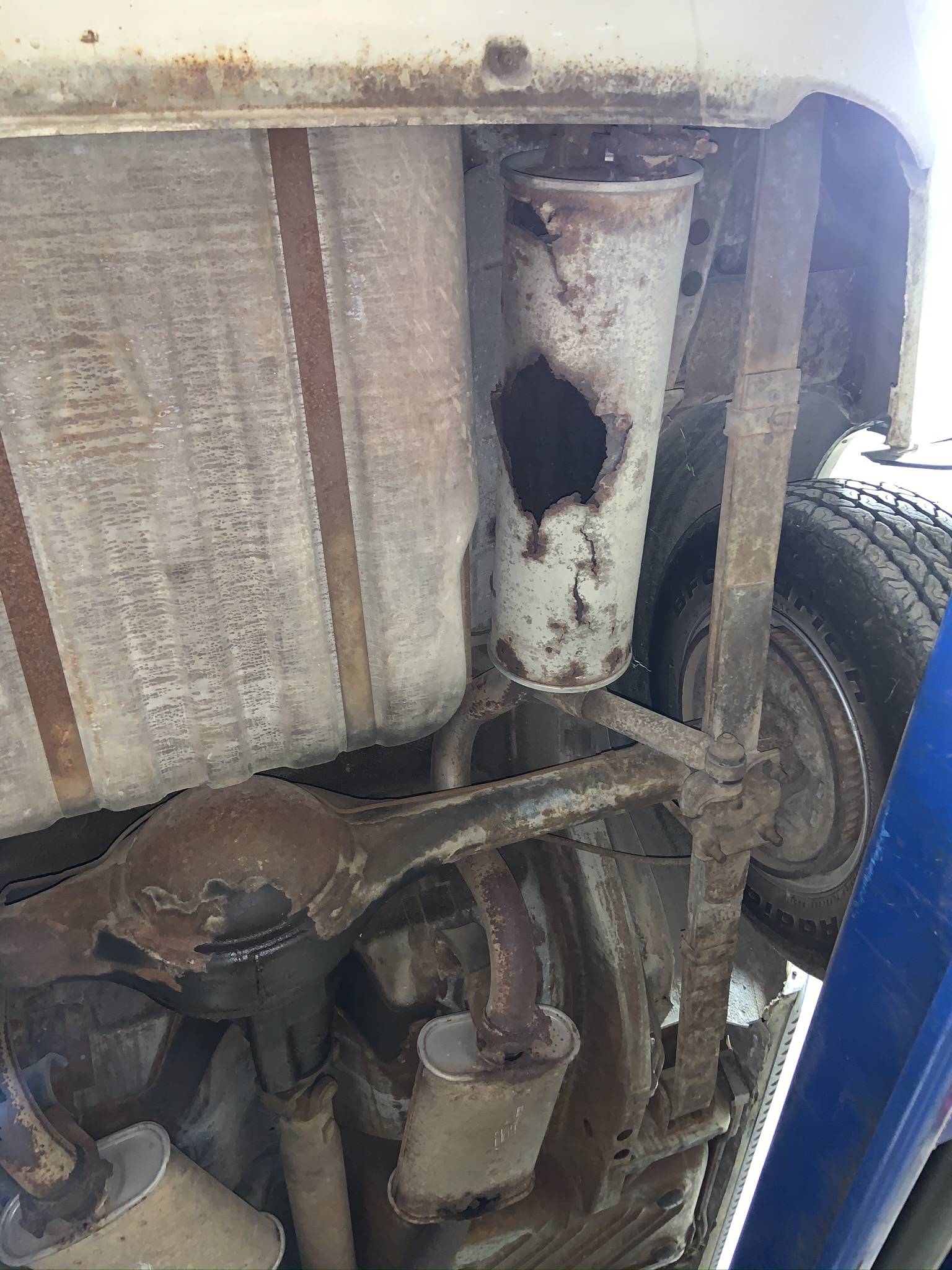

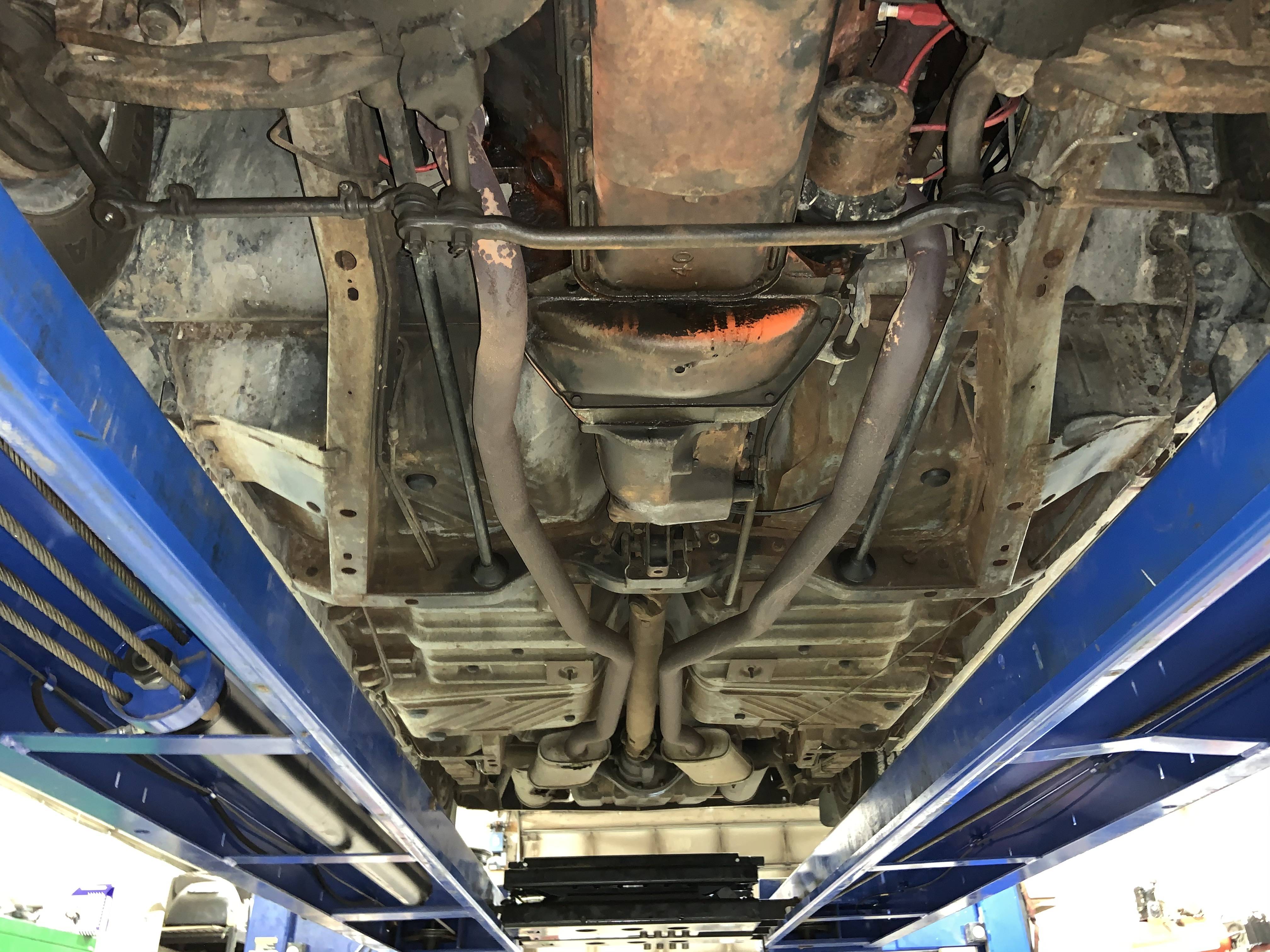

Here are pictures of my exhaust that needs replacing, would you leave the original piping and just change the rear section, the resonator and muffler have the Chrysler numbers on them.
The rear diff needs to be resealed to clean it up and I’ll rebearing it at the same time, is there anything I should look for while it’s out? Any tricks to keep the teeth timed?
I can stumble through the diff rebuild but If there’s any alberta Canada Chrysler guys on the forum that could direct me to a good mechanic that can do a professional job on the differential let me know Thanks









moparlee

Well-Known Member
Joined
Jul 25, 2011
Messages
2,899
Reaction score
1,206
Location
Mid Michigan

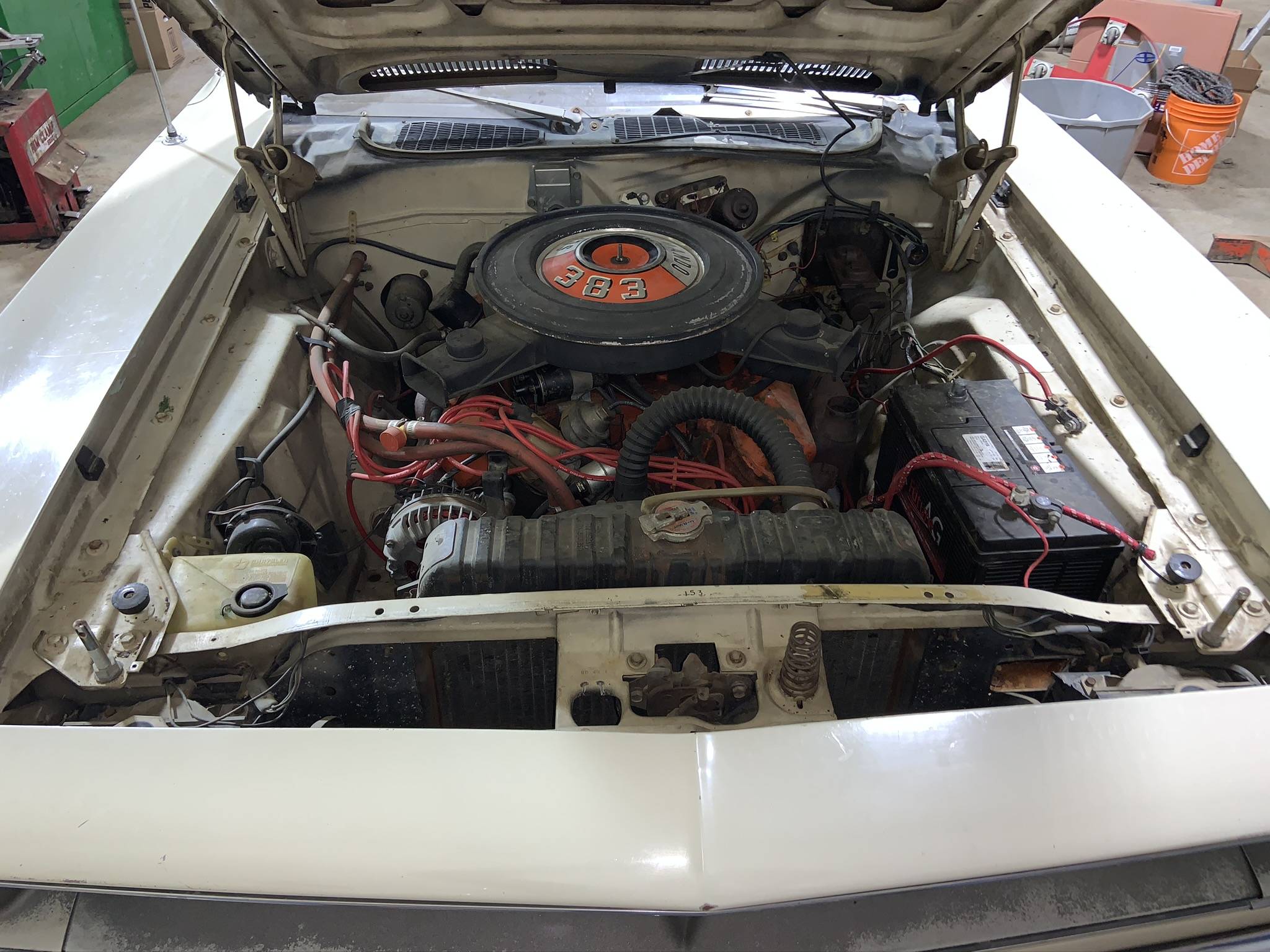

Lots of things in the engine bay are not what you would see on a survivor car. Replace the heater hoses, radiator hoses, radiator cap and overflow hose, plug wires, and battery cables with correct ones. Needs a battery hold down bracket.


JD 63

Member
Joined
Oct 23, 2020
Messages
12
Reaction score
5
Location
Alberta Canada
Yes I need to track this stuff down. Thanks for pointing all that out I’m sure there’s more of that. It didn’t become my brother’s until the late 70s so I don’t know it’s history and need to get this stuff back to original,so it’s good that you point it all out as I would consider some of this as original.
Where is a good site to get plugs wires and wire holders, rad hoses and cap
Thanks for the help


moparlee

Well-Known Member
Joined
Jul 25, 2011
Messages
2,899
Reaction score
1,206
Location
Mid Michigan
Yes I need to track this stuff down. Thanks for pointing all that out I’m sure there’s more of that. It didn’t become my brother’s until the late 70s so I don’t know it’s history and need to get this stuff back to original,so it’s good that you point it all out as I would consider some of this as original.
Where is a good site to get plugs wires and wire holders, rad hoses and cap
Thanks for the help
Check out Roseville Mopar Parts in Michigan. There are also others.
Home | Roseville Moparts

There are some suppliers in Canada but I don't recall the names. Maybe someone else will chime in.


70SunFun

Well-Known Member
Joined
Sep 1, 2018
Messages
205
Reaction score
54
Location
West Mifflin, PA
Replace the mufflers, resonators and shocks with NOS.
Keep the old parts in a box.
Brakes, simply need to be done. Buy nos.
Radiator has to be removed and recored but the original will go back in.
Have the water pump rebuilt. If the part can be fixed then fix it at all costs to keep it a survivor.
Seats aren't that surprising. Are they so bad that they can not be removed and restitched?
Don't touch that paint! It looks awesome!!

Can you load some pics of the interior, trunk and fender tag please?
I agree with Cuda Hunter. It's only original once.


Raycuda

Well-Known Member
Joined
Feb 21, 2018
Messages
67
Reaction score
47
Location
Florida
Does anyone know if just touching up the scrapes and chips and then having a paint correction hurt the survivor status. It would still be more than 90% original paint.


JD 63

Member
Joined
Oct 23, 2020
Messages
12
Reaction score
5
Location
Alberta Canada

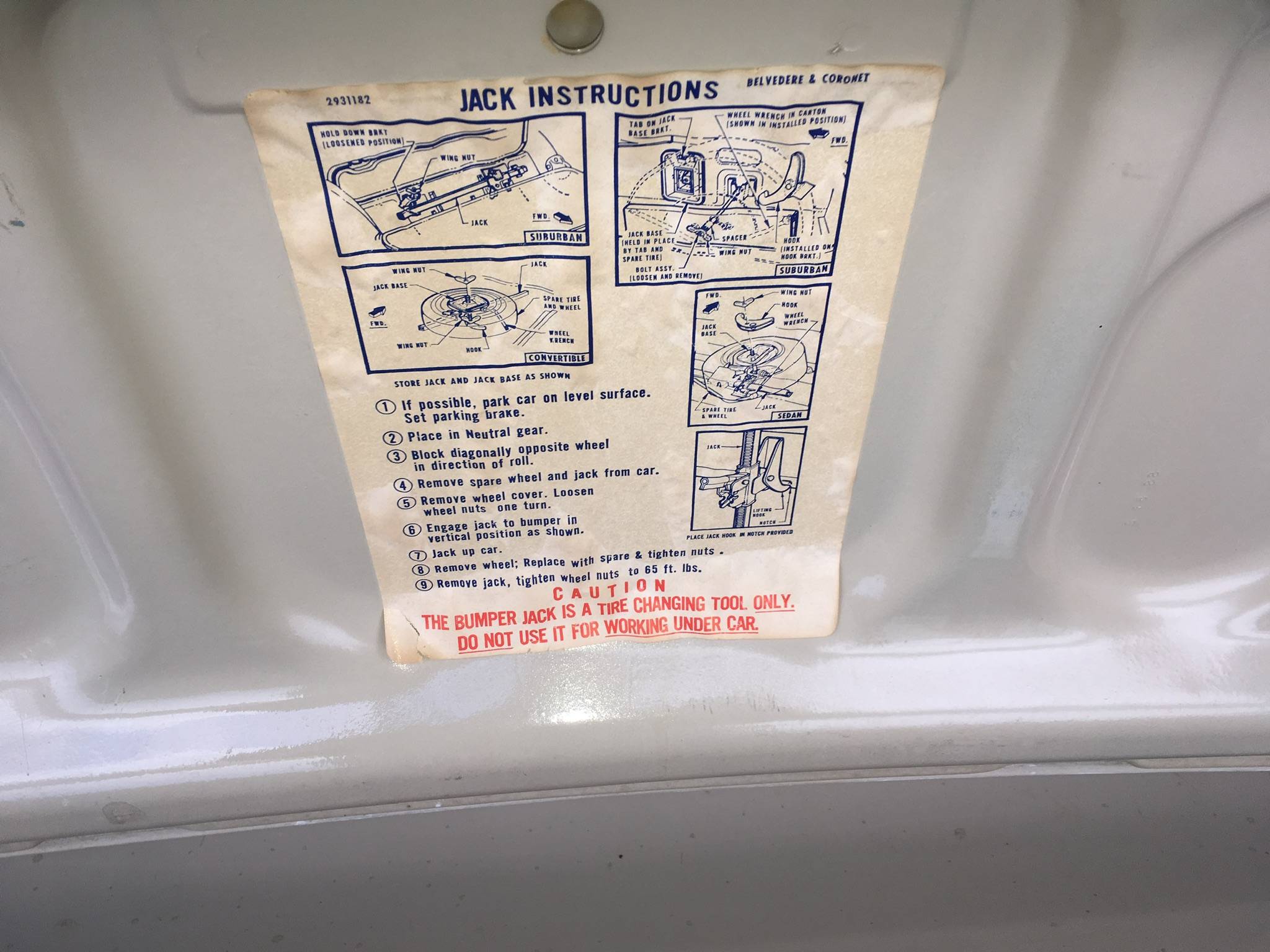

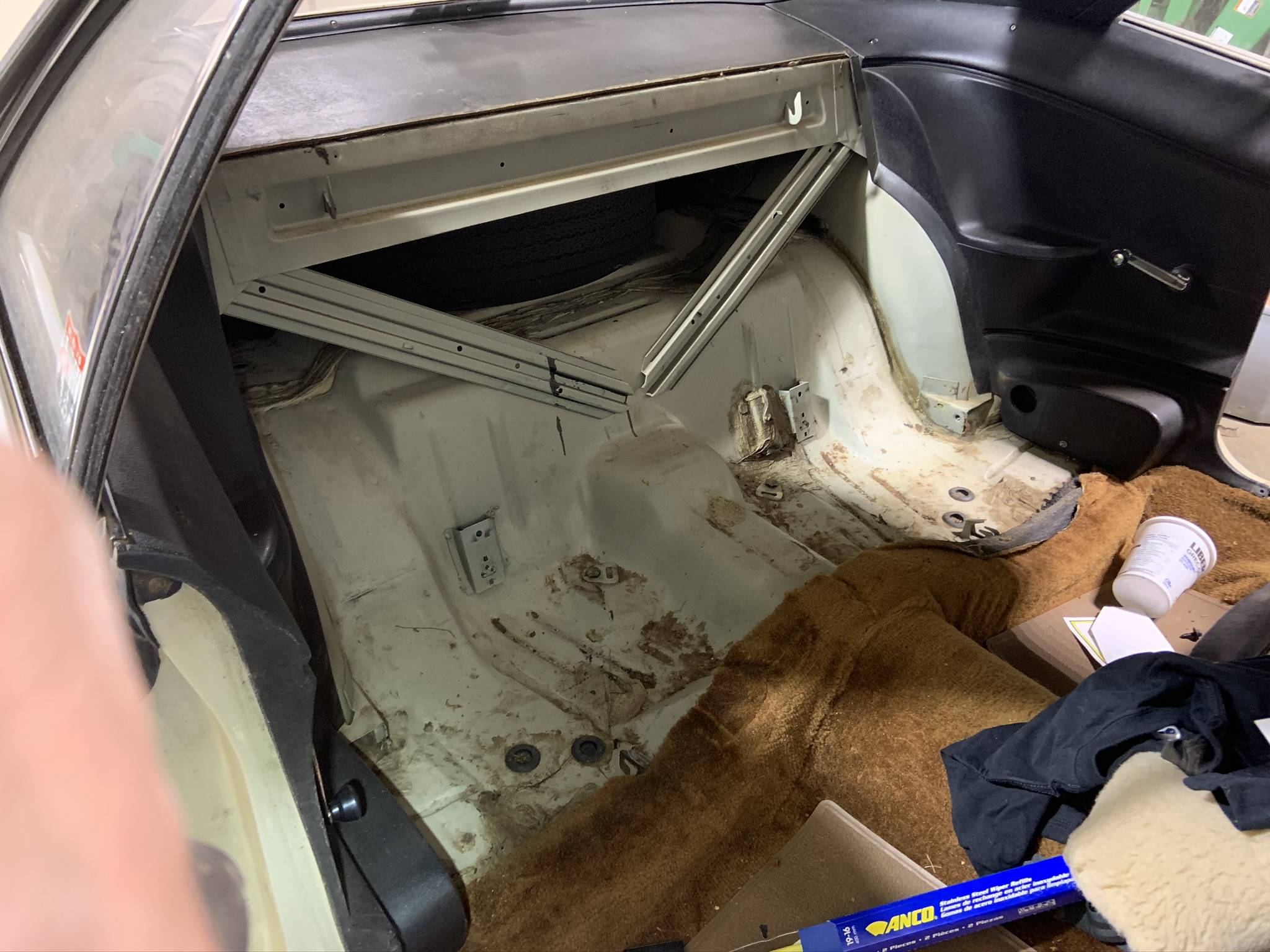

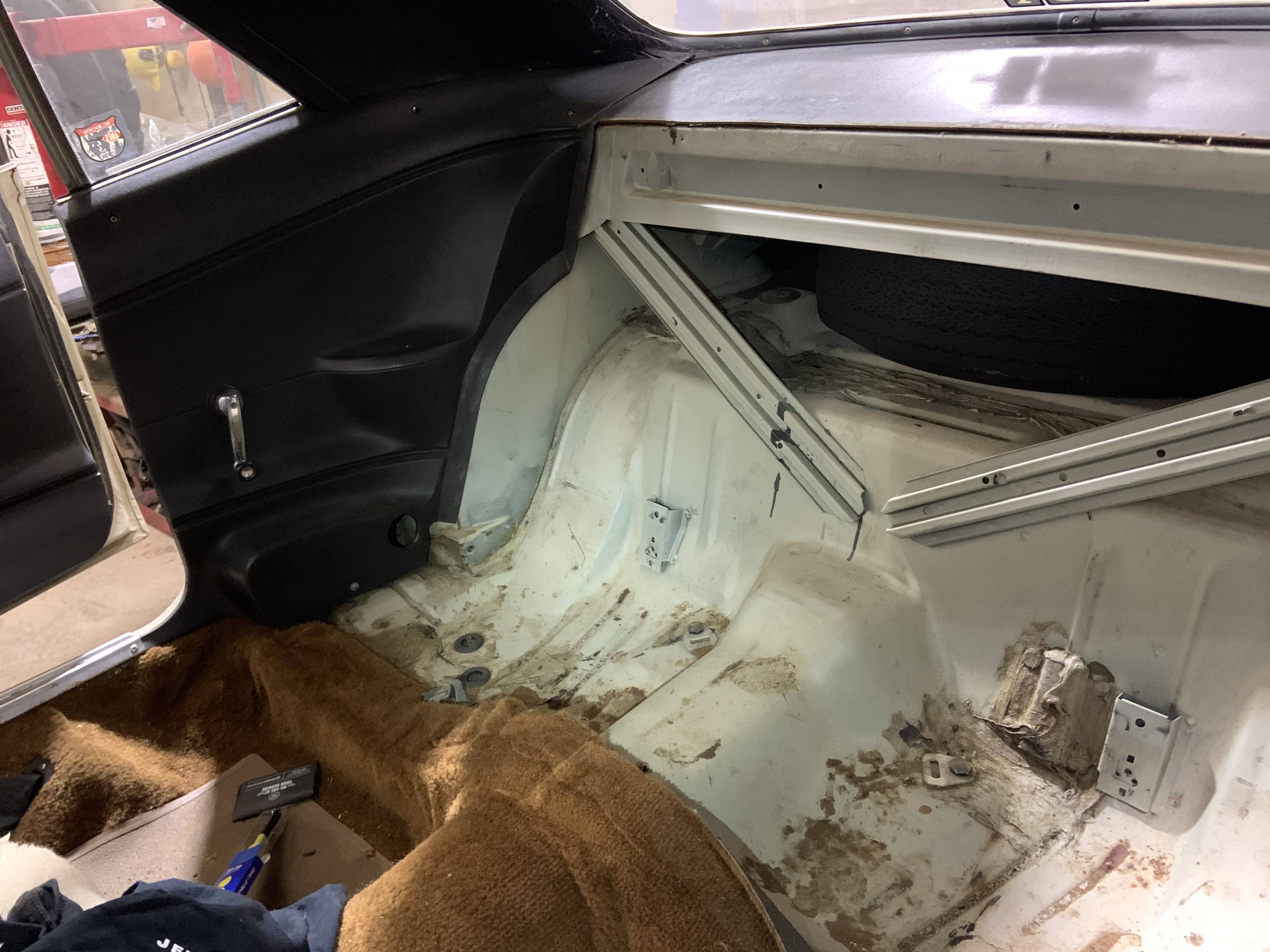

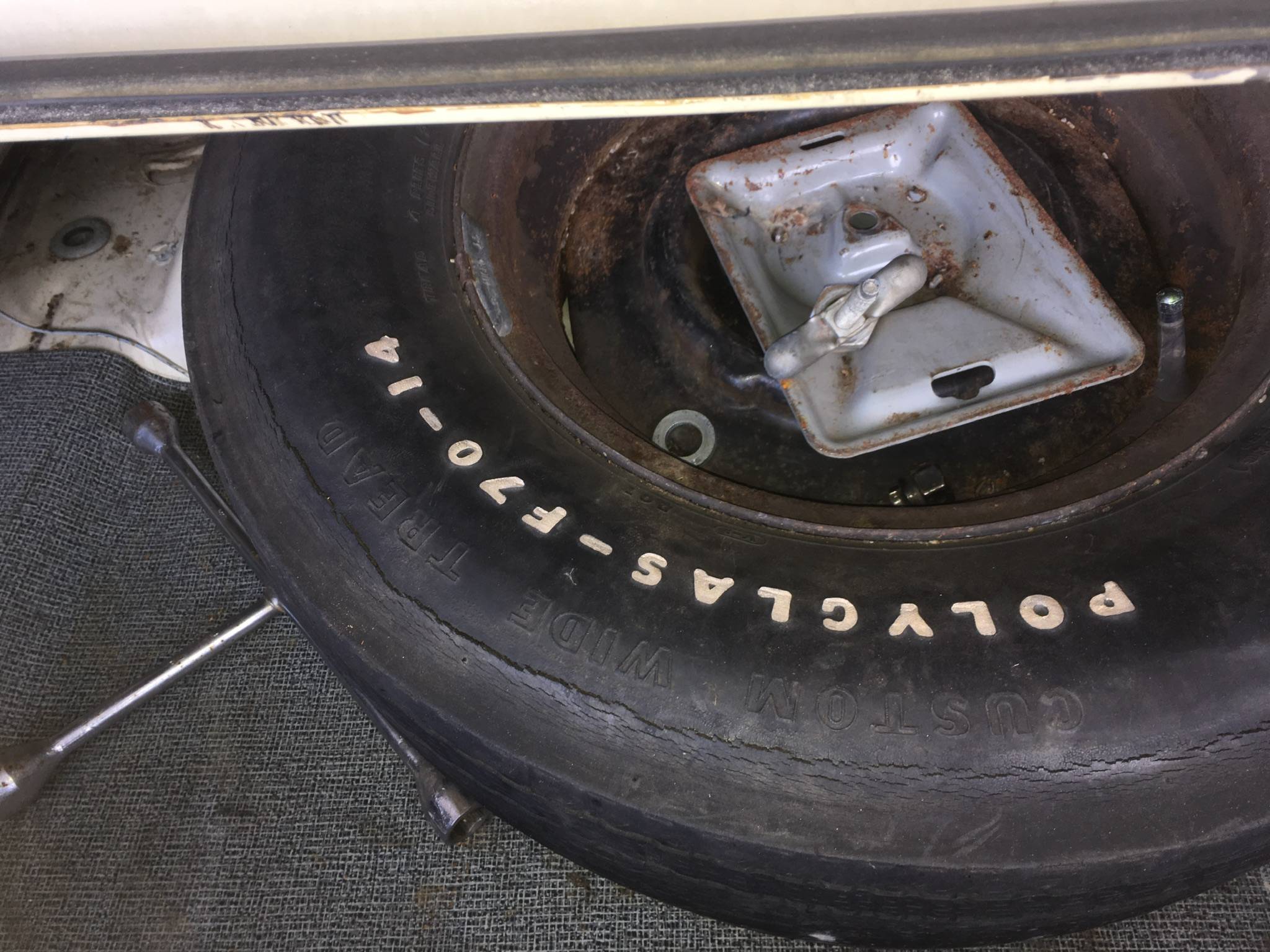

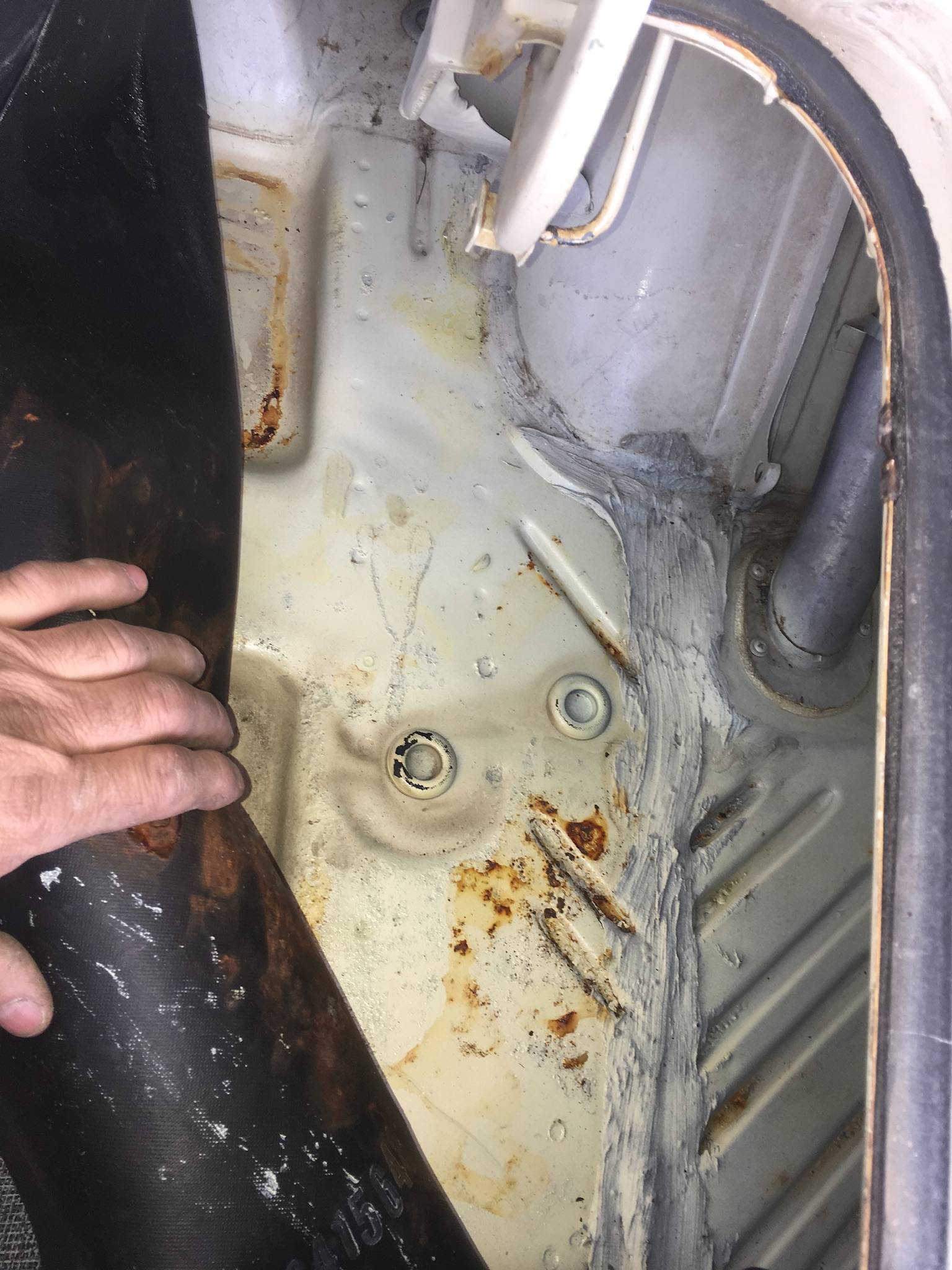

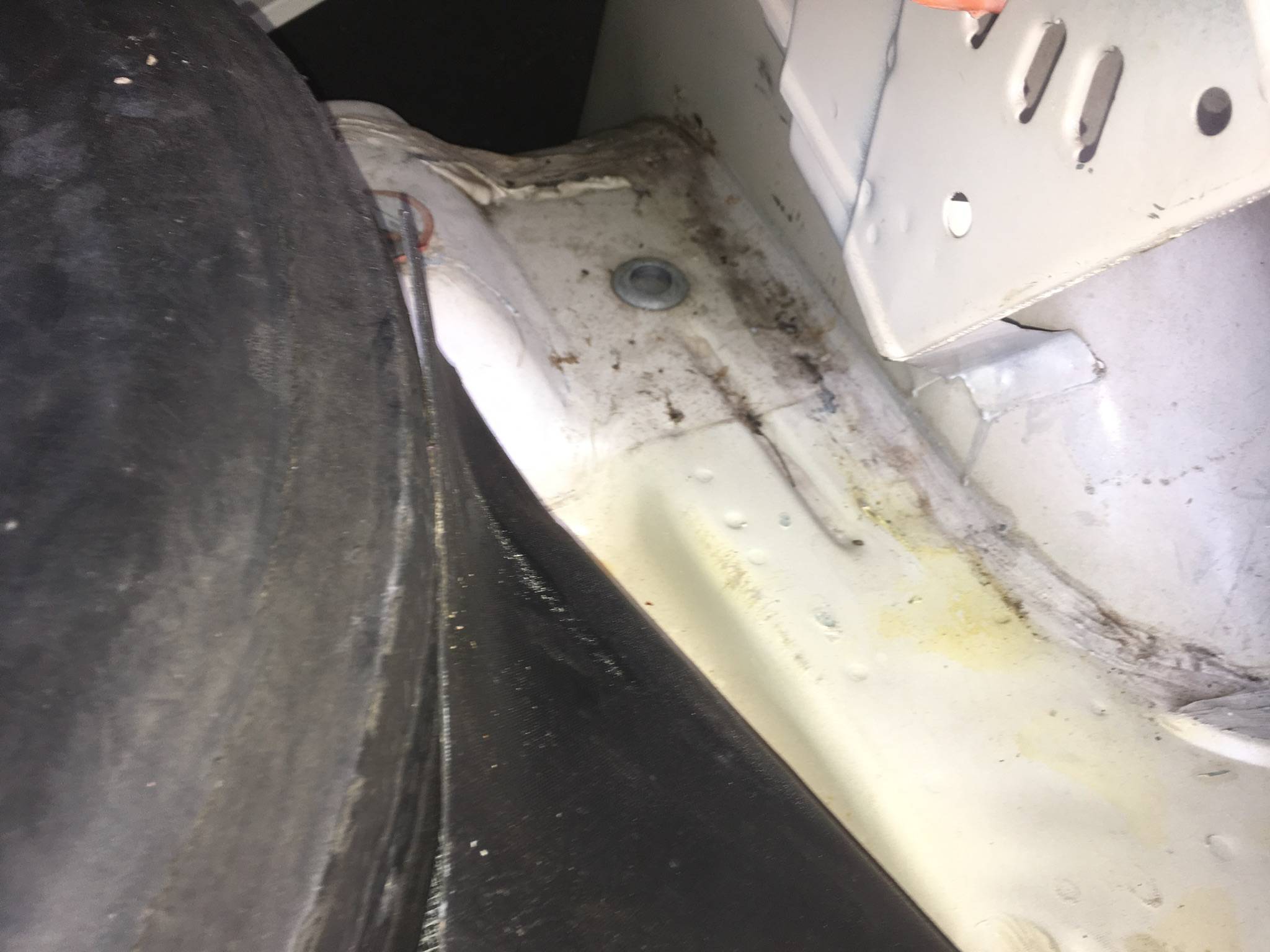

Here’s some trunk and rear seat pictures that Cuda Hunter asked for, I’ll get more pictures at a later date, the fender tag was removed and misplaced and is currently and most likely lost😣













70SunFun

Well-Known Member
Joined
Sep 1, 2018
Messages
205
Reaction score
54
Location
West Mifflin, PA
If you're concerned about getting a fender tag, Backeast reproduces them. Since your car is pretty original you might want to take pictures of the options that are on the car. Contact Backeast and tell them your situation on the mostly original car but the fender tag is missing/misplaced. They might reproduce a tag for you with your pictures as proof of options and the car's originality. I've heard that some people have tried to add options that didn't come on their car from the factory so they could get those options put on the reproduced tag. A lot of changes and added options can happen to a car over 50+ years. Backeast can advise you. You've got a really nice mostly original 'Cuda!


gzig5

Well-Known Member
Joined
May 10, 2018
Messages
393
Reaction score
131
Location
Mequon, WI
I'd fix the exhaust and drive it without fixing anything else. Definitely leave the paint and body alone. IMO the less it is messed with or "corrected", the better. But I'm sure opinions will vary. If you want to put a bunch of miles on or start playing around, get another car that is less original if you don't want to affect resale. It's your car though, do as you see fit. Tunnel ram would look cool sticking out of the hood...


moparlee

Well-Known Member
Joined
Jul 25, 2011
Messages
2,899
Reaction score
1,206
Location
Mid Michigan
I'd fix the exhaust and drive it without fixing anything else. Definitely leave the paint and body alone. IMO the less it is messed with or "corrected", the better. But I'm sure opinions will vary. If you want to put a bunch of miles on or start playing around, get another car that is less original if you don't want to affect resale. It's your car though, do as you see fit. Tunnel ram would look cool sticking out of the hood...
I would have to disagree. Tires, entire brake system, and coolant system including radiator, water pump, and hoses probably need to replaced/repaired before you drive anywhere.


gzig5

Well-Known Member
Joined
May 10, 2018
Messages
393
Reaction score
131
Location
Mequon, WI
I would have to disagree. Tires, entire brake system, and coolant system including radiator, water pump, and hoses probably need to replaced/repaired before you drive anywhere.
that goes without saying about any car that is intended to go on the road. I thought we were discussing restoration not getting it ready to drive.


moparlee

Well-Known Member
Joined
Jul 25, 2011
Messages
2,899
Reaction score
1,206
Location
Mid Michigan
that goes without saying about any car that is intended to go on the road. I thought we were discussing restoration not getting it ready to drive.
Well you said, "I'd fix the exhaust and drive it without fixing anything else."


toolmanmike

Super Moderator
Staff member
Joined
Jan 18, 2009
Messages
222
Reaction score
111
Location
Iowa
Fix what needs to be fixed. Survivor to me means it hasn't been restored. Until you restore it it will remain a "survivor" in my eyes regardless of what has been repaired on the car. In it's lifetime it could have had the exhaust repaired, a new water pump, alternator, battery or the like. It would still be considered a "survivor" even with some new or rebuilt parts installed. It doesn't need to be 100% original to be a survivor.


heminut

Well-Known Member
Joined
Dec 28, 2008
Messages
701
Reaction score
529
Location
Deming, New Mexico
Fix what needs to be fixed. Survivor to me means it hasn't been restored. Until you restore it it will remain a "survivor" in my eyes regardless of what has been repaired on the car. In it's lifetime it could have had the exhaust repaired, a new water pump, alternator, battery or the like. It would still be considered a "survivor" even with some new or rebuilt parts installed. It doesn't need to be 100% original to be a survivor.
THAT right there!^^^^
