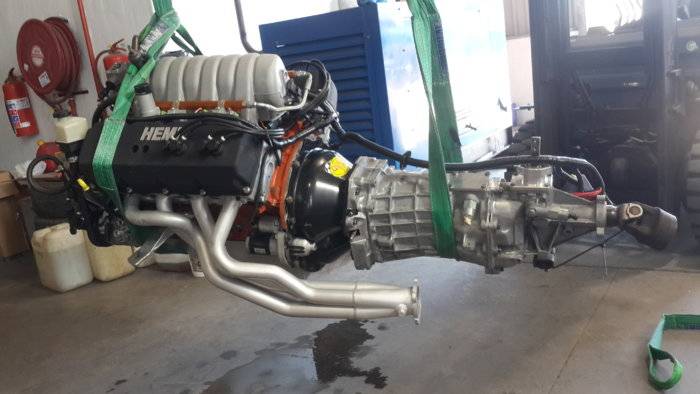

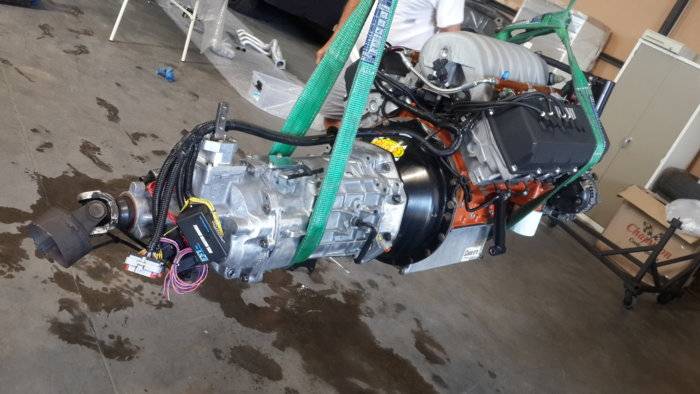

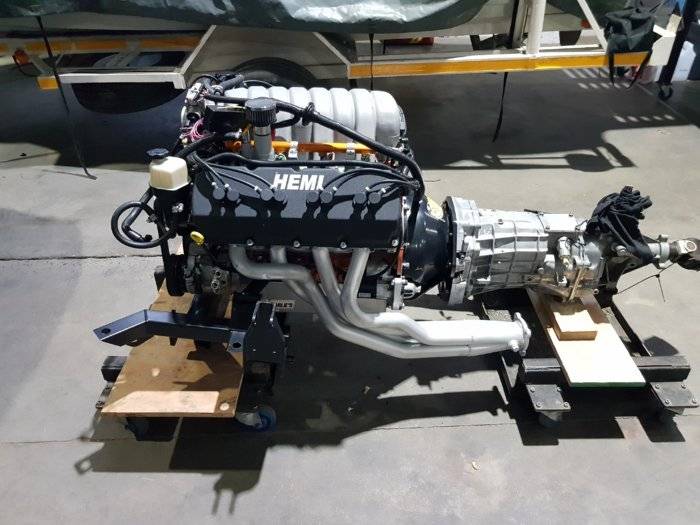

    I have a 71 Barracuda with a 6.1 Hemi and T56 Tremec 6 speed Manual gearbox. Can anyone assist with the Reverse lock out sensor and other connections from the gearbox to ??? wiring diagram. I have Dakota gauges, Megasqirt Gold 3 ECU with GPS speed sensor. T56 6 speed B.jpg T56 6 speed C.jpg T56 6 speed A.jpg T56 6 speed B.jpg T56 6 speed C.jpg T56 6 speed A.jpg

    • Like Like x 1
  2. rolling_thunder

    rolling_thunder Well-Known Member

    Messages:
    63
    Likes Received:
    13
    Joined:
    Mar 2, 2014
    on the T-56 family you usually have a
    1) Reverse light switch - kinda self explanatory, one wire gets 12v, the other wire runs to the reverse lights to power them when the switch is triggered

    2) Neutral Safety Switch - Can bypass it if you're running the factory clutch switch on the pedals or you can wire it in lieu of the factory switch - would just be a one wire ground to one side and a wire up to the starter relay ground terminal

    3) Reverse lockout - You can wire it in parallel with your brake light switch (will activate it when you brake) or you can simply leave it disconnected. It is a little spring so make it easier to get into reverse but you can shift to reverse without it being activated without much effort.

    4) Skip Shift solenoid - F*CK this thing... don't need it - don't wire it. Dumb thing

  3. JohnP

    JohnP Member

    Messages:
    24
    Likes Received:
    3
    Joined:
    Jul 23, 2018
    Location:
    Durban, South Africa
    Thanks so much for the information as this really helps me set this all up. I will try to get to it this week. Have a good day.

  4. JohnP

    JohnP Member

    Messages:
    24
    Likes Received:
    3
    Joined:
    Jul 23, 2018
    Location:
    Durban, South Africa
    Thank you for the info. All done and running great. Did a short trial run and hoping to have a longer run this week.
