Another TKX swap but with a Hemi.

Bstoker87

Well-Known Member
Joined
Apr 10, 2022
Messages
129
Reaction score
46
Location
Colorado
My uncles have asked me to swap their 70 Cuda, not a numbers car but a beautiful car to start with.


Mopar Nut

Well-Known Member
Joined
Aug 10, 2014
Messages
1,350
Reaction score
1,033
Smart going with the TKX, beautiful Cuda.


todd383

Member
Joined
Oct 27, 2011
Messages
21
Reaction score
5
I did the tkx swap in my challenger, and love it! No cutting! And easily handles the 600 plus ft lb tq


Bstoker87

Well-Known Member
Joined
Apr 10, 2022
Messages
129
Reaction score
46
Location
Colorado

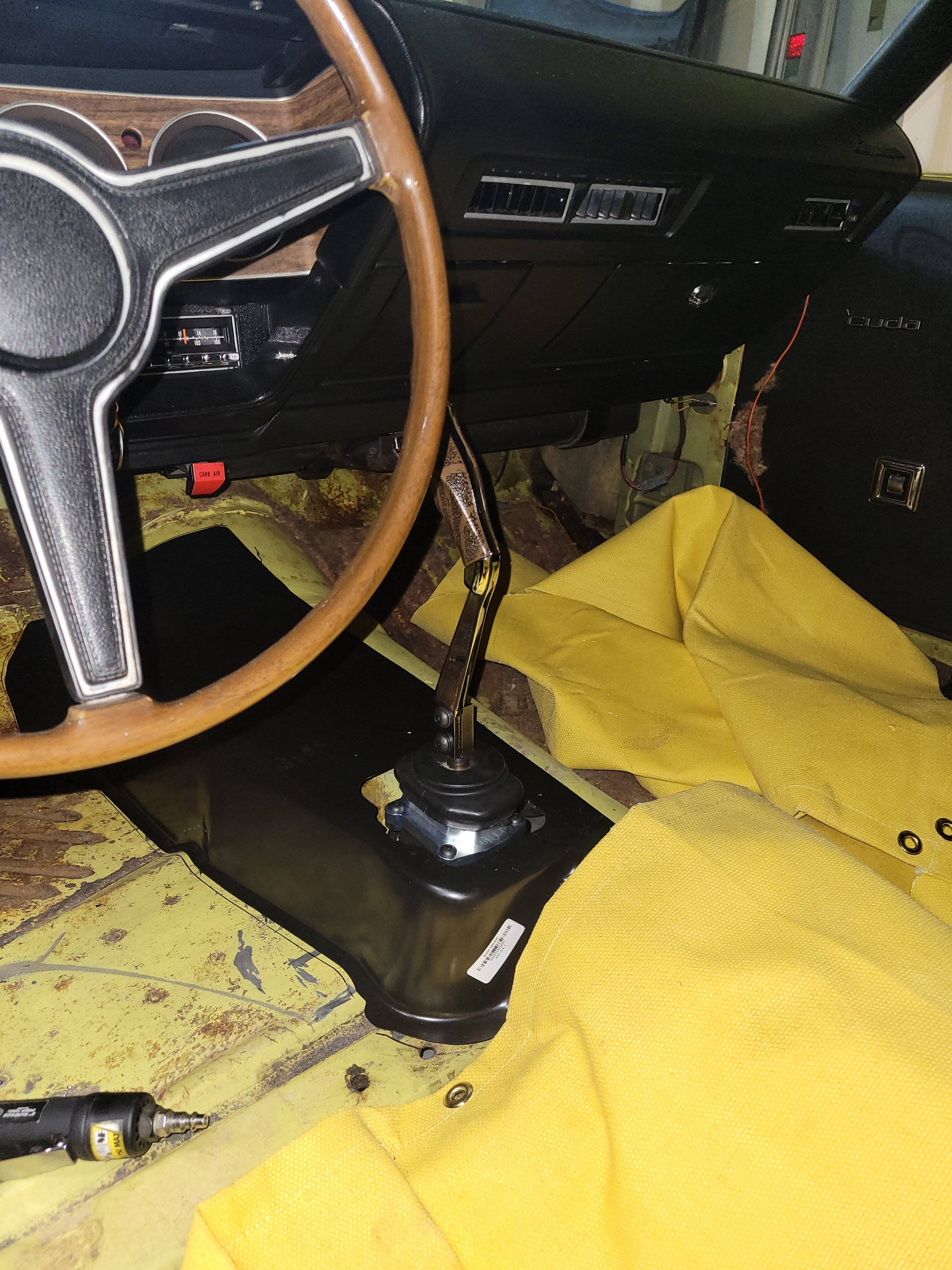

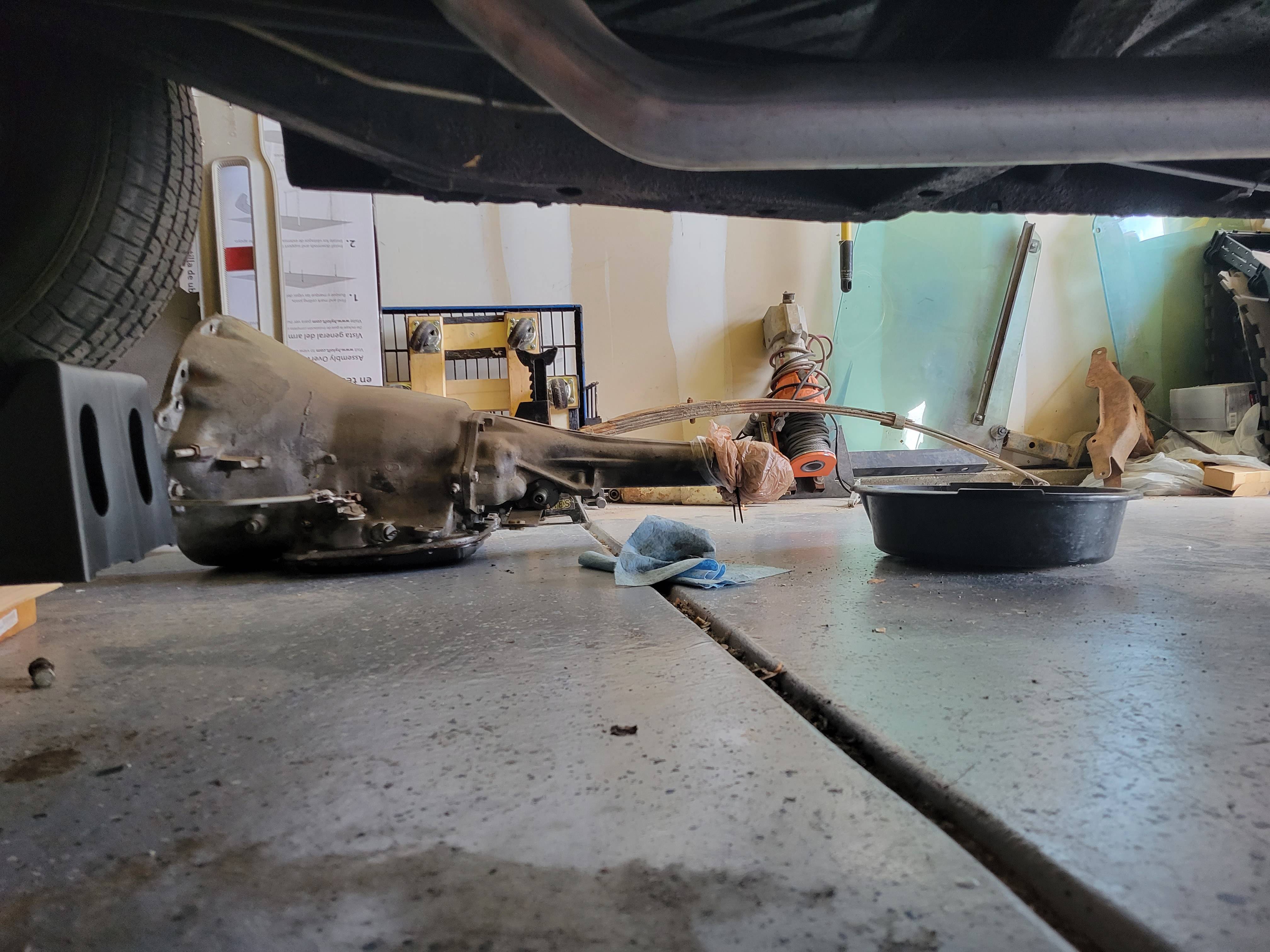

Taking my time I was able to get pretty much everything auto out of the car and started cutting the floor, hope to have the test fit done by the end of the weekend.

Anyone looking for auto parts?



larry4406

Well-Known Member
Joined
Sep 17, 2022
Messages
56
Reaction score
29
Location
Northern VA
When I cut my floor like yours to add the hump, I found that the floor remnant over the cross member was not welded to the cross member. I add some plug welds to fix it.


Bstoker87

Well-Known Member
Joined
Apr 10, 2022
Messages
129
Reaction score
46
Location
Colorado

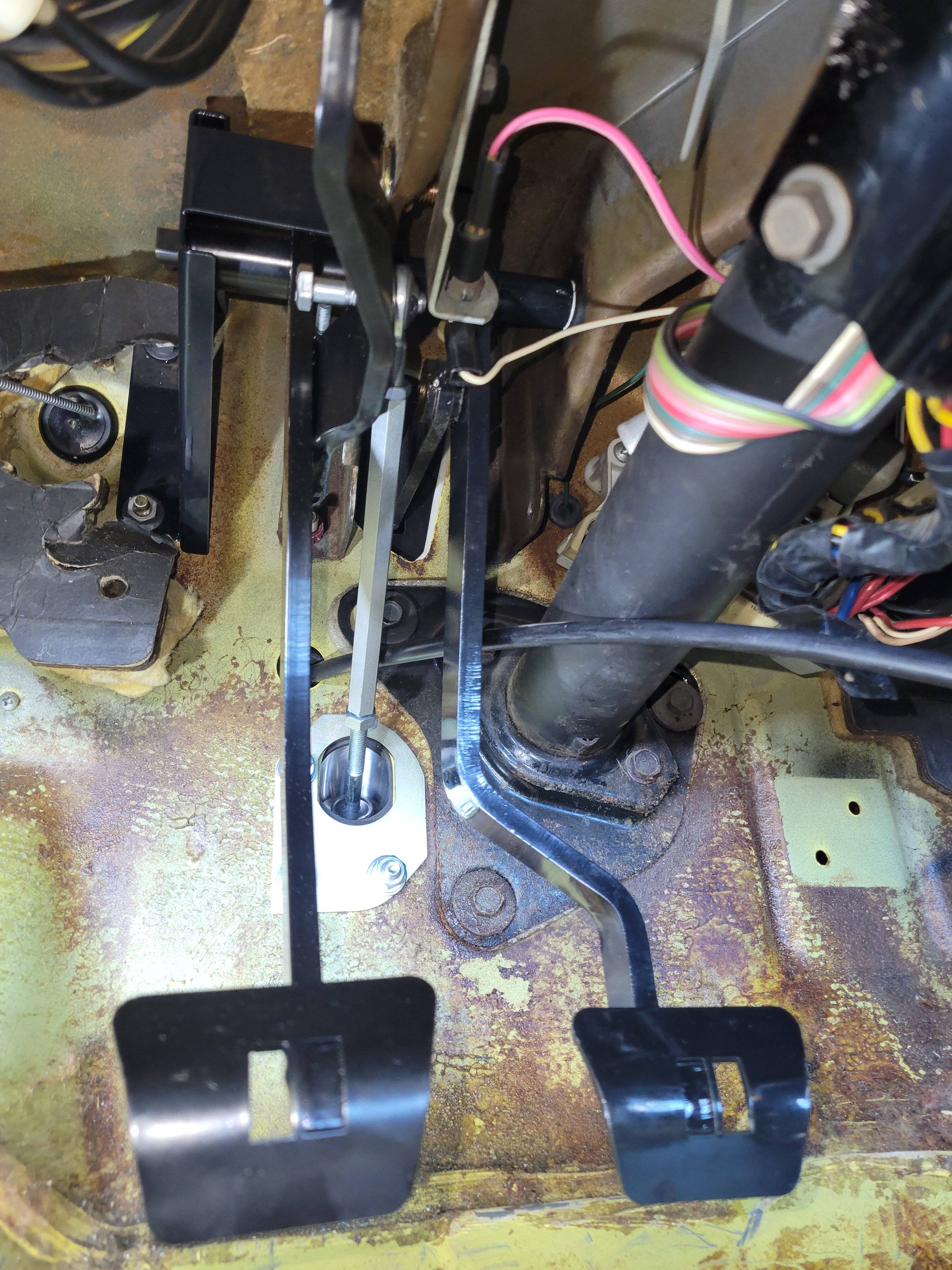

So in the rough/test fitting stage but coming along, I'll start removing parts this afternoon and start final measurements and adjustments to this kit.

As a side note, this is the second SST TKX I've dealt with in the last couple months and both shifter assemblies have had to had the mounting holes drilled out.




Bstoker87

Well-Known Member
Joined
Apr 10, 2022
Messages
129
Reaction score
46
Location
Colorado
Nice work.

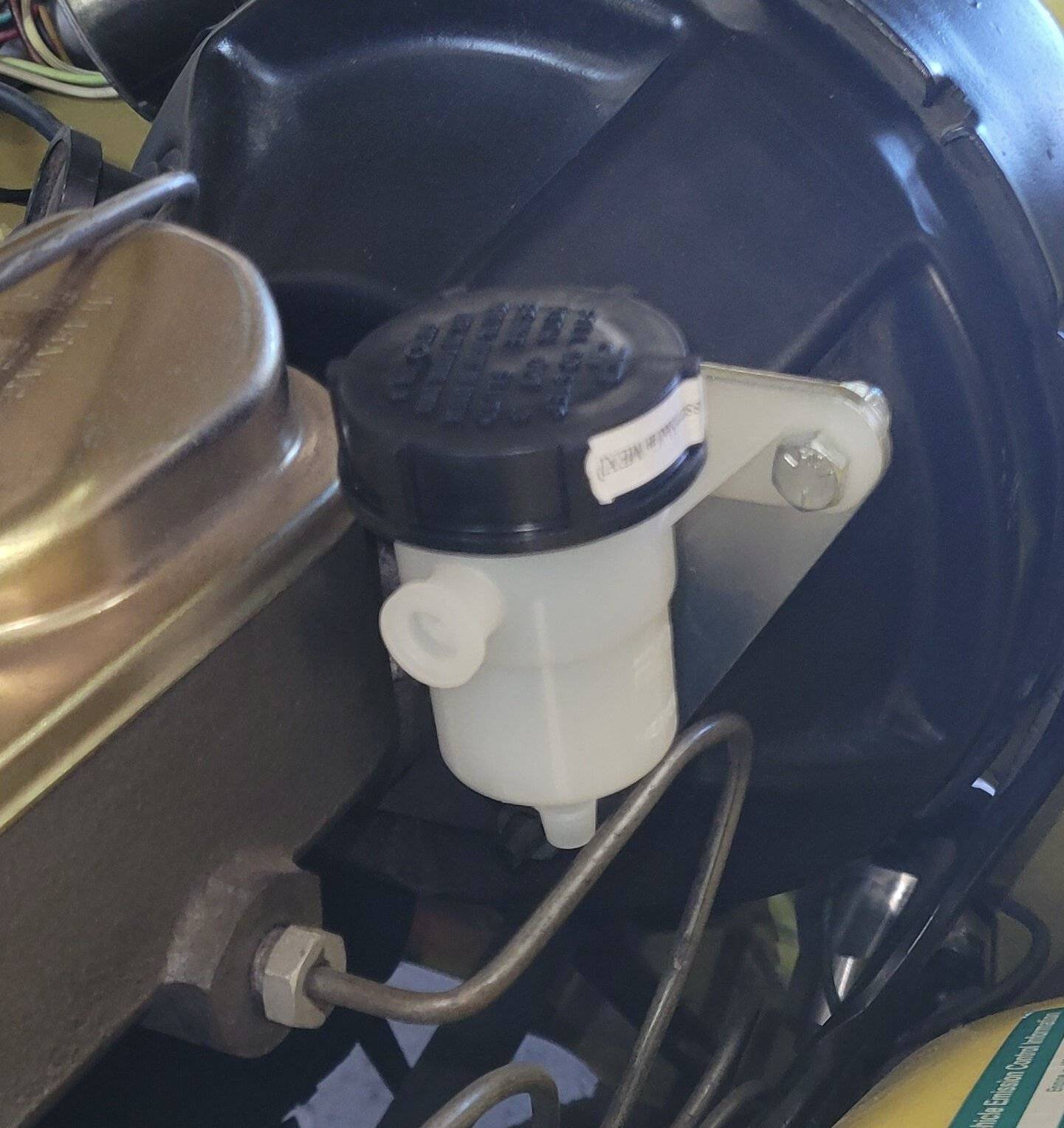

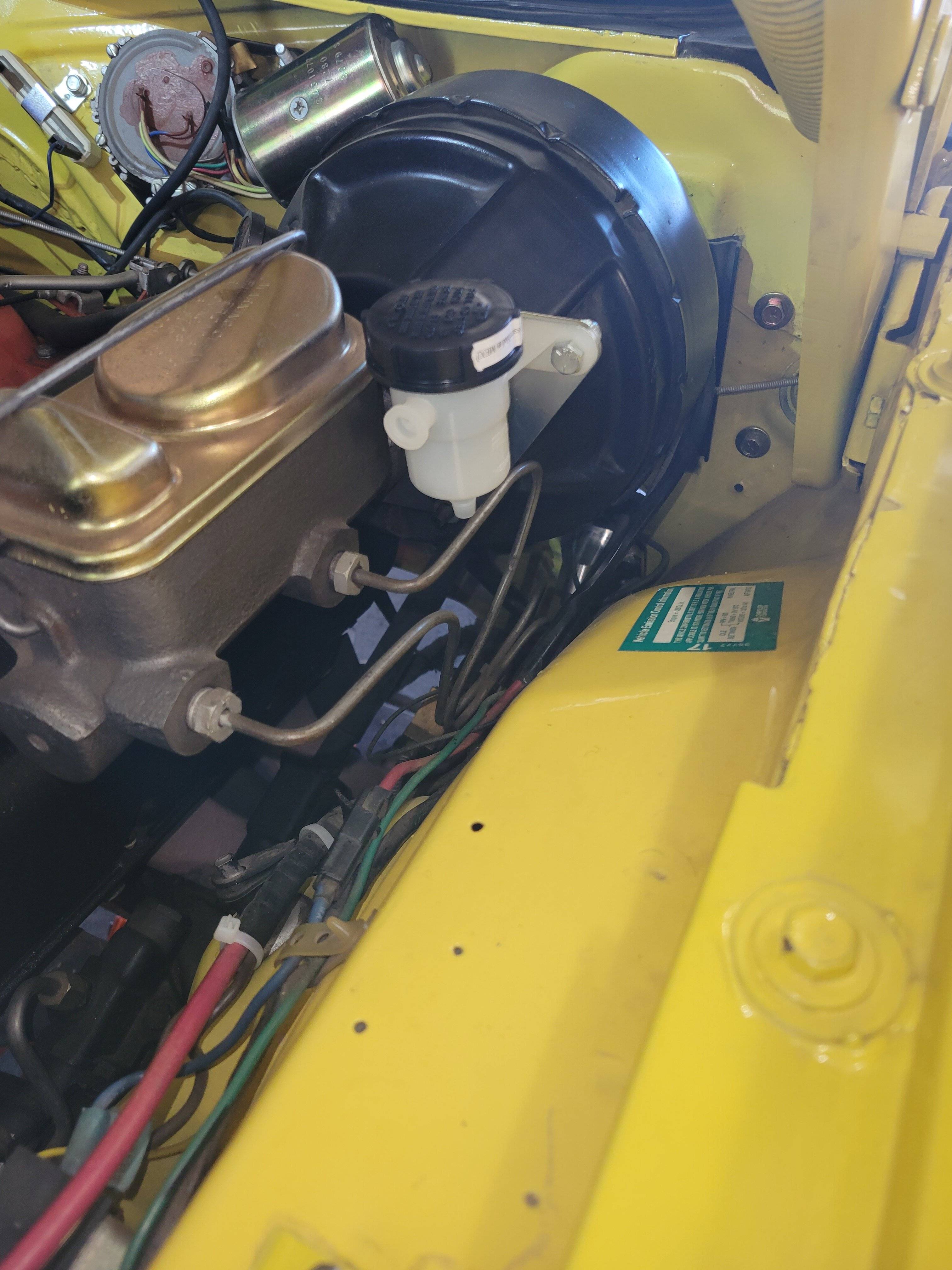

Did you make that bracket for the reservoir?
That was a SST part but im going to be making one for my car since I'm doing the same swap but with a different clutch hydraulic kit that didn't come with that bracket.


Mopar Nut

Well-Known Member
Joined
Aug 10, 2014
Messages
1,350
Reaction score
1,033
That was a SST part but im going to be making one for my car since I'm doing the same swap but with a different clutch hydraulic kit that didn't come with that bracket.
OK I just saw my bracket’s there too, I ordered the SST kit.


Bstoker87

Well-Known Member
Joined
Apr 10, 2022
Messages
129
Reaction score
46
Location
Colorado
OK I just saw my bracket’s there too, I ordered the SST kit.
I'm using a full SST kit on this car, my car is only using their transmission with shifter assembly and i pieced the test together.

Like i stated earlier I've had to open the holes on the bolt on shifter assembly so it doesn't put a bind on the transmission case when fully bolted down.


moparlifer

Well-Known Member
Joined
Mar 3, 2022
Messages
54
Reaction score
15
Location
San Francisco, CA
I'm using a full SST kit on this car, my car is only using their transmission with shifter assembly and i pieced the test together.

Like i stated earlier I've had to open the holes on the bolt on shifter assembly so it doesn't put a bind on the transmission case when fully bolted down.
I'm doing the SST kit as well and found the bolt holes in the shifter adapter needed to be reamed quite a bit to bolt-up.


Bstoker87

Well-Known Member
Joined
Apr 10, 2022
Messages
129
Reaction score
46
Location
Colorado
Painted the clutch master reservoir bracket and the clutch master inside firewall bracket black.

Called up SST and ordered the driveshaft.

I'll start welding the transmission tunnel in tomorrow.


Bstoker87

Well-Known Member
Joined
Apr 10, 2022
Messages
129
Reaction score
46
Location
Colorado

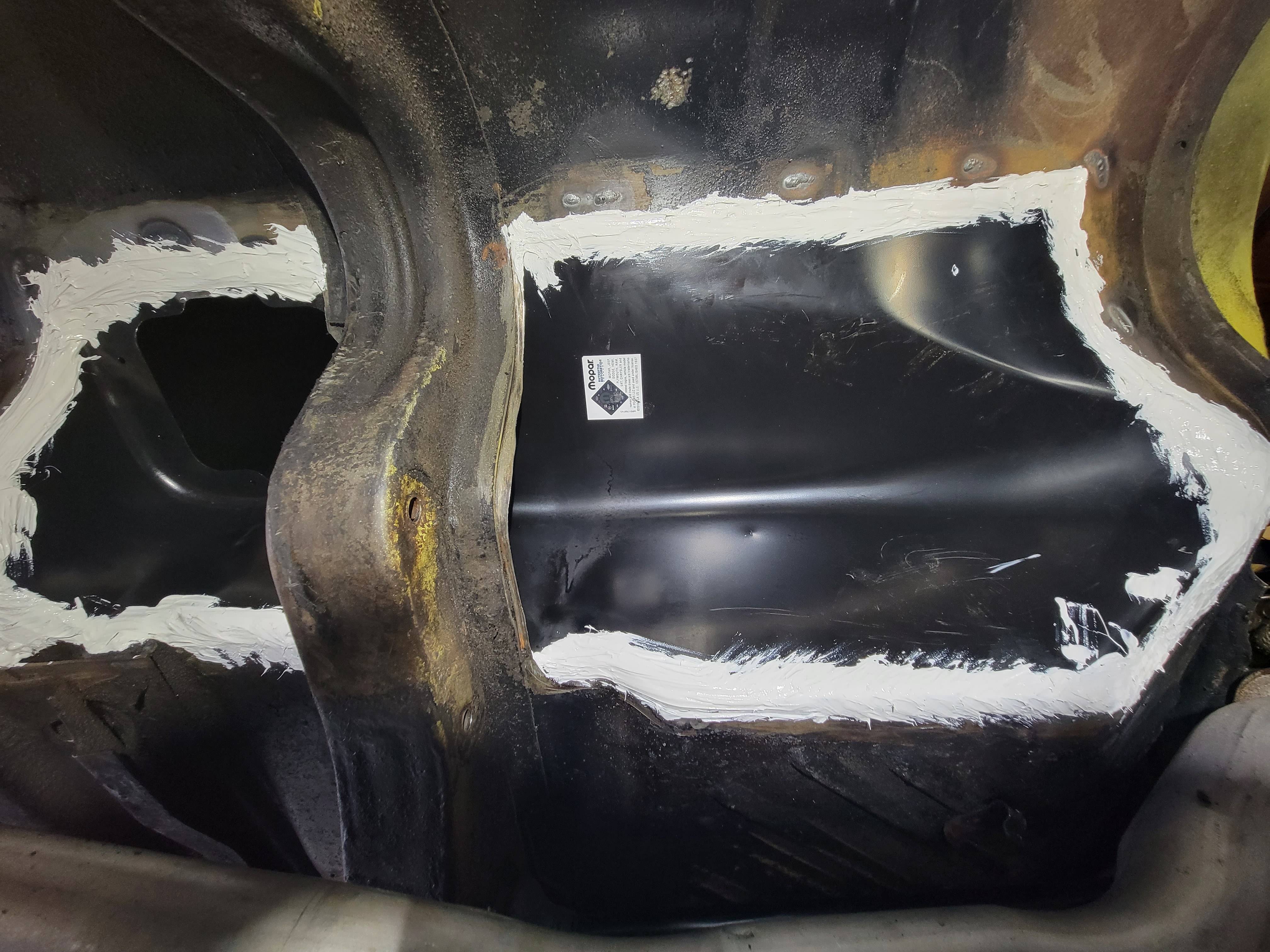

Tunnel welded and seam sealed, stated trimming the center console and decided to make a custom front bracket rather then take apart the stock auto shifter bracket



Bstoker87

Well-Known Member
Joined
Apr 10, 2022
Messages
129
Reaction score
46
Location
Colorado

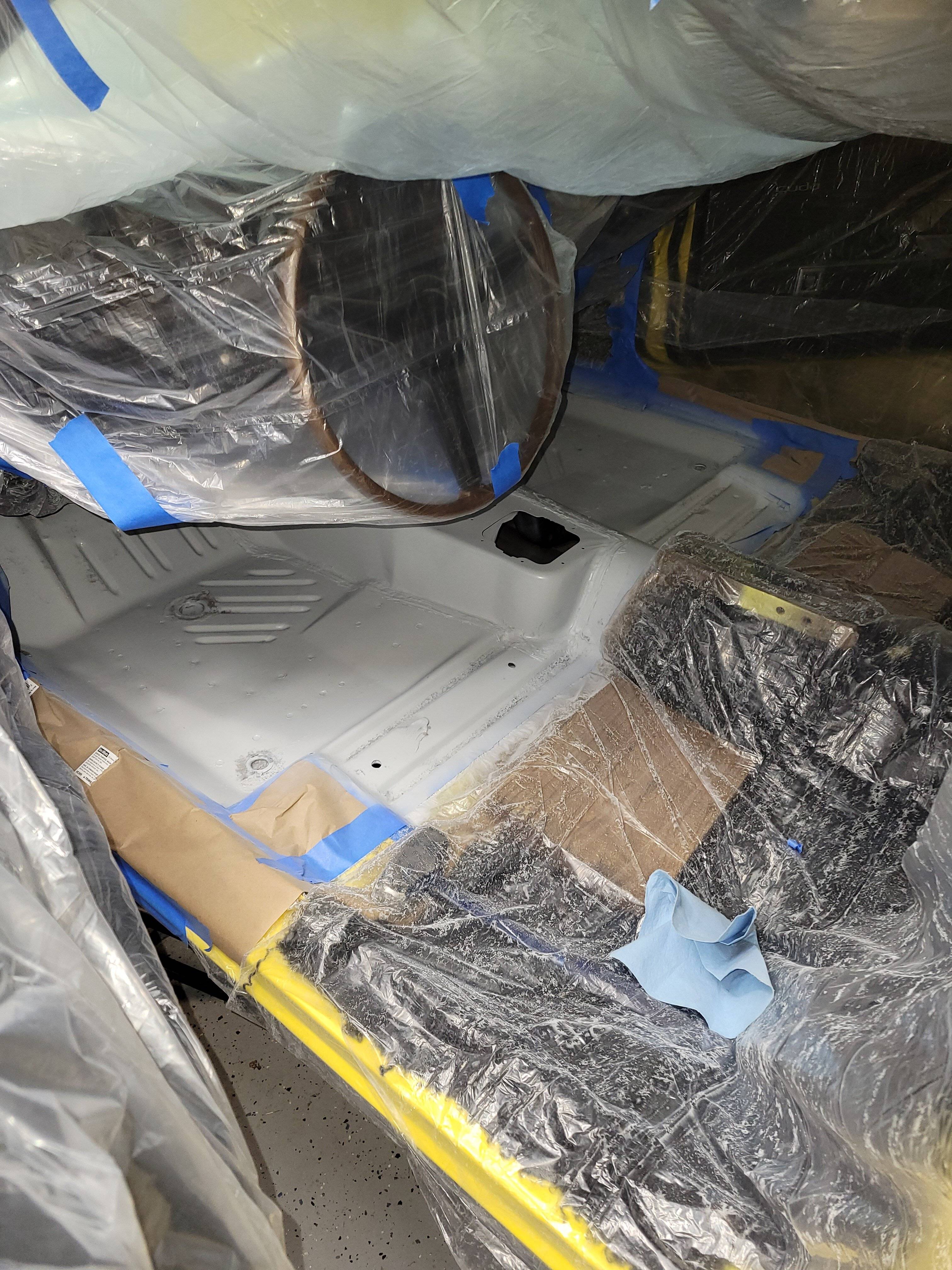

Center console front bracket made, got the surface rust on the floore wire wheeled and treated, re-sprayed the front floor pan lemon twist yellow and did under coating to seal the bottom of the car.


Bstoker87

Well-Known Member
Joined
Apr 10, 2022
Messages
129
Reaction score
46
Location
Colorado
After triple checking the bellhousing housing runout and talking to SST I ordered .007 offset dowls, had fun tonight getting one out and will work on the other side tomorrow night.


Mopar Nut

Well-Known Member
Joined
Aug 10, 2014
Messages
1,350
Reaction score
1,033
What dial indicator do you have to check the run out?


Bstoker87

Well-Known Member
Joined
Apr 10, 2022
Messages
129
Reaction score
46
Location
Colorado
What dial indicator do you have to check the run out?
I have 2 that were used but found it i don't trust the one i recieved from Summit due to the guage face being able to move after its locked down.

With that, i ended up making a base for my harbor freight guage that bolts to the crank, worked great.


Mopar Nut

Well-Known Member
Joined
Aug 10, 2014
Messages
1,350
Reaction score
1,033
I have 2 that were used but found it i don't trust the one i recieved from Summit due to the guage face being able to move after its locked down.

With that, i ended up making a base for my harbor freight guage that bolts to the crank, worked great.
Good idea.
