Anyone reproduce door handle bumper stop?

[themechanic]

The rubber stops on my 70 door handles is worn down causing the handle to rest below the lock surface. Does anyone like Detroit Muscle Technologies reproduce the rubber stops?



[rklein71]

I have looked and have not found a source. I was thinking about the little rubber stops in the door frame of steel doors as a possibility.



[themechanic]

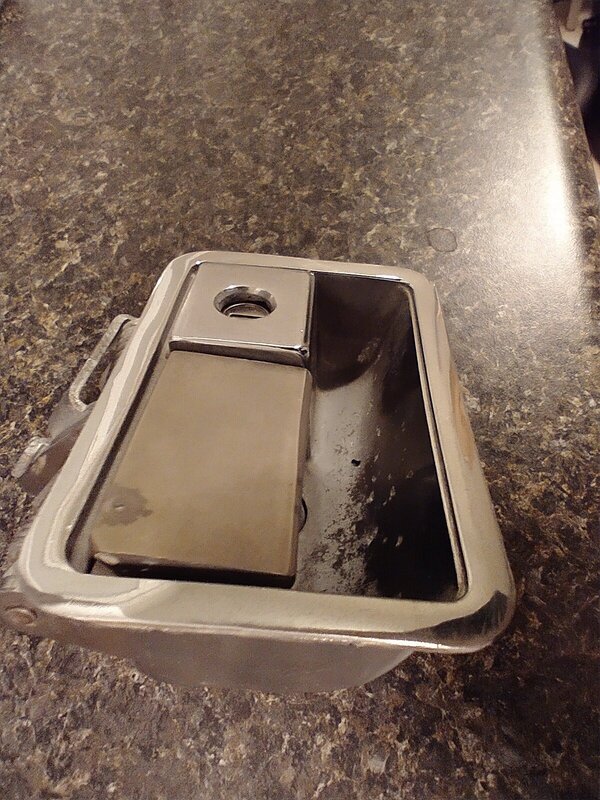

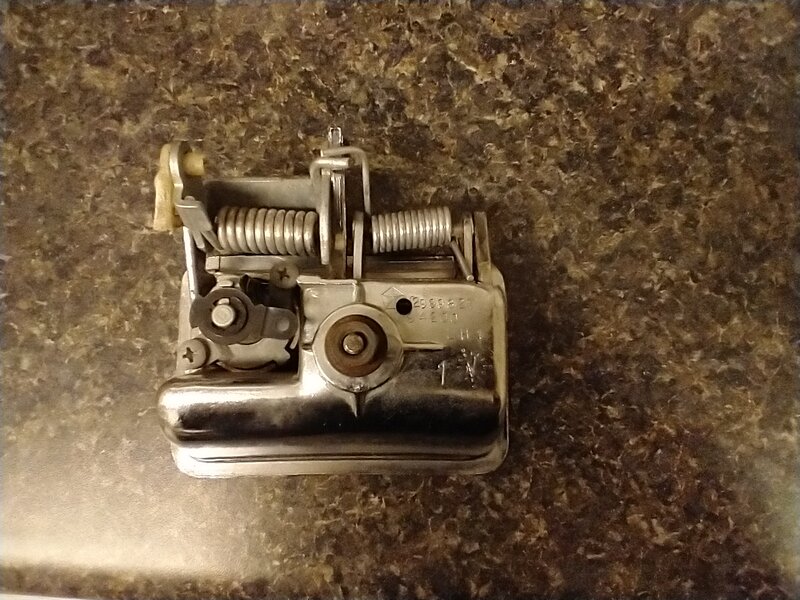

Here's some photos of the parts.



[themechanic]

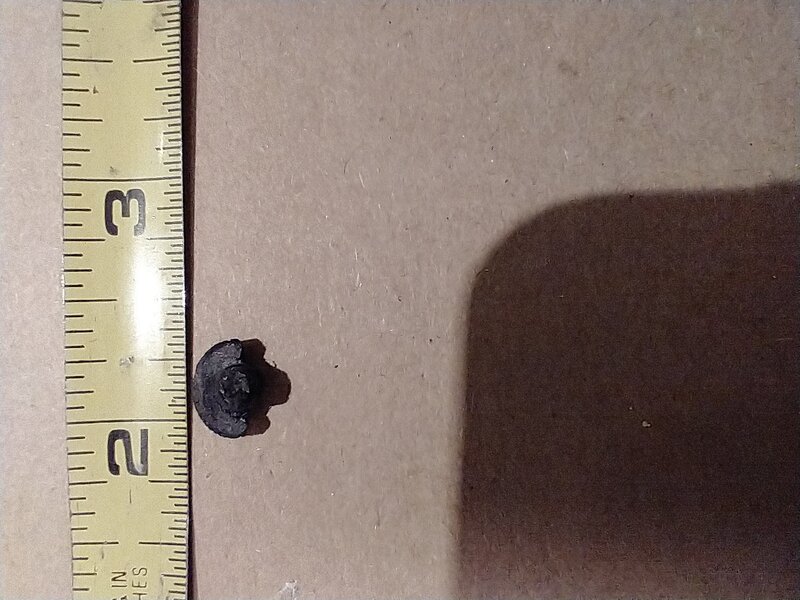

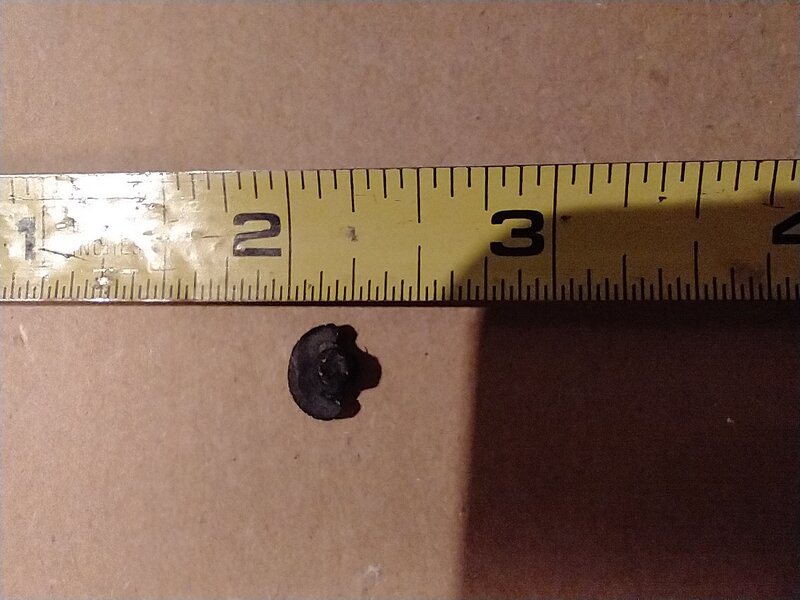

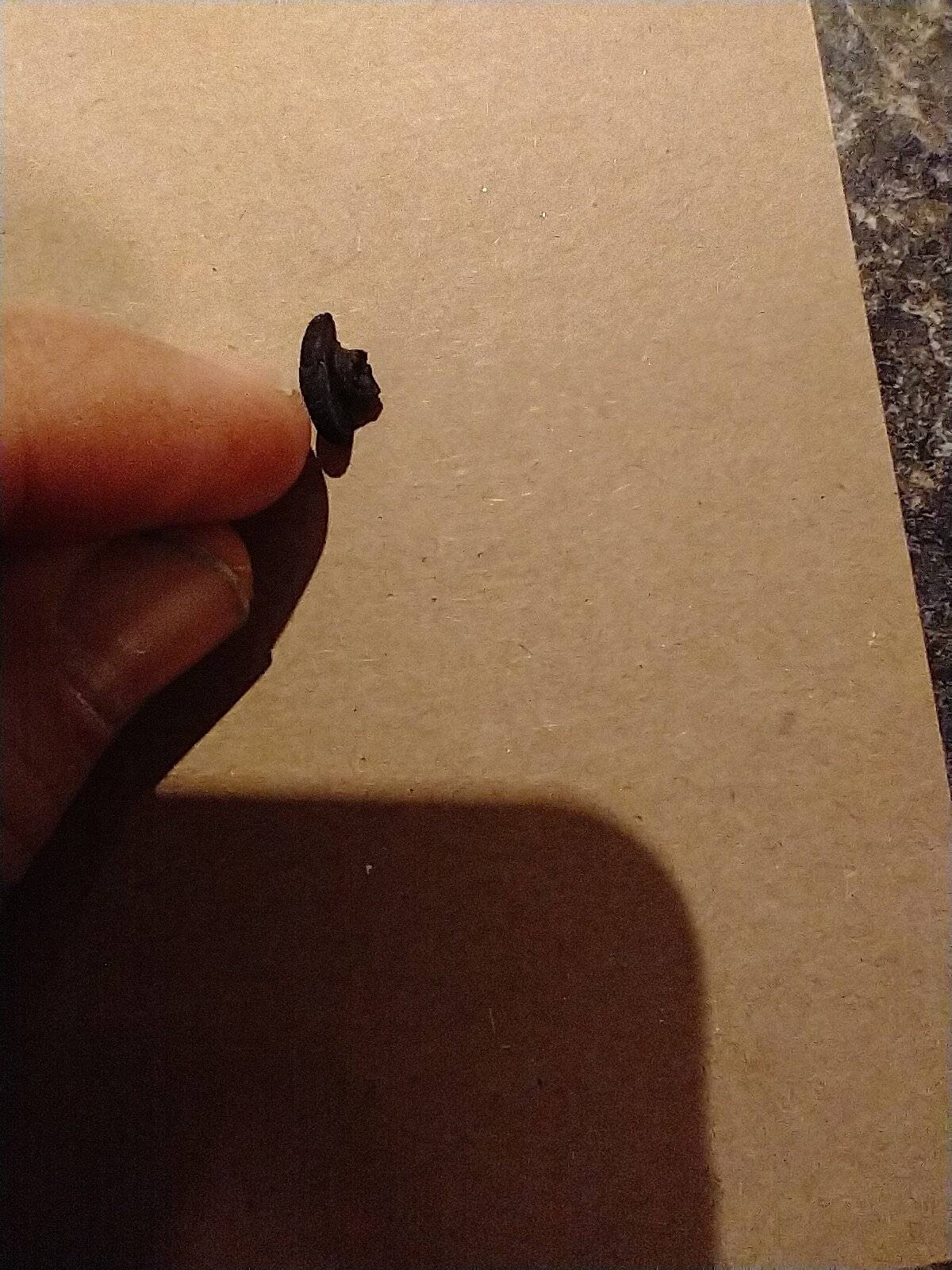

The handle hole diameter is about .165-.169 inches. The old bumper is .375” diameter and .145” tall but has been squished over time and is now too short. The tail that goes into the hole is about .165”. In fact, I would say all my measurements are on the small side considering shrinkage and deformation over time. The hole in the handle is correct.



[themechanic]

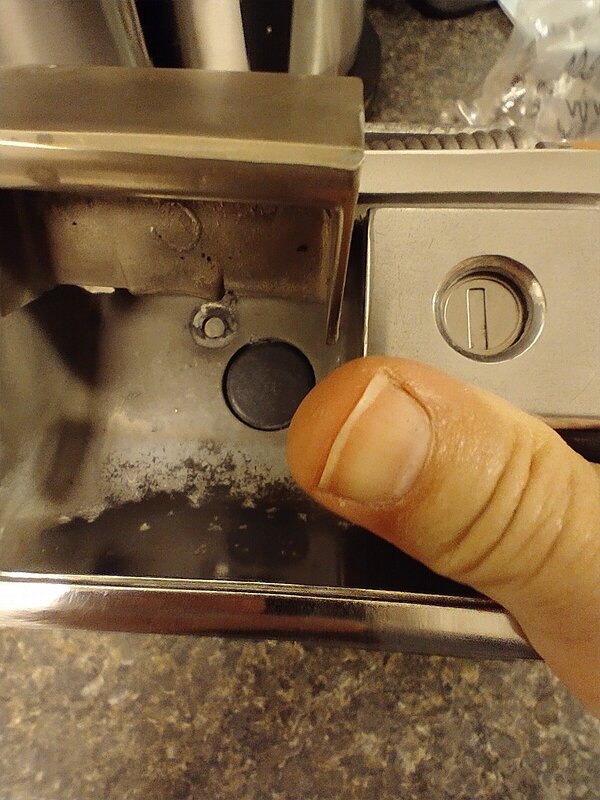

I ordered a complete Body Bumper Kit from Detroit Muscle Technologies (DMT) BBK7W and found this bumper in the kit will work for the door handles. It fits snug in the hole but is maybe .030" too tall. I will install them and order replacements for the kit. They will probably compress enough over time to align the top of the handle to the lock surface.

Mopar Bumper 70-76 Glove Box 2218683​

Item Description

DMT 1pc glove box bumper

1973 73 1974 74 1975 75 1976 76 Dart, Dart Sport, Demon, Duster, Scamp, Swinger, Valiant

1970 70 1971 71 1972 72 1973 73 1974 74 AAR, Barracuda, Challenger, Cuda, TA

Also fits........

1984-1985 Dodge 600, Aries, Charger, Omni, Rampage

1984-1989 Fifth Avenue, Diplomat

2001-2003 Caravan, Town & Country, Voyager

2006-2008 Pacifica

Very distinctive pointy shape - as show in picture .35"T x .33"DIA - fits .187" hole

Duplicated from NOS samples.

Mopar part# 2218683

Material
Firm EPDM rubber bumpers like OEM

Mopar Bumper A Body 73-76, E 70-74 Glove Box 2218683

Detroit Muscle Technologies, LLC Mopar restoration gaskets

www.detroitmuscletechnologies.com
