B body to E body rear-end swap

Steering / Suspension

  1. carpoor

    carpoor New Member

    Messages:
    4
    Likes Received:
    0
    Joined:
    Oct 30, 2018
    I've been told that a rear-end out of a 66-67 B body will fit in an E body and give you an additional 3" total clearance for tires/wheels. Has anyone tried this? I am not sure if this would require relocation of the springs or just relocation of spring pads on the differential.

  2. moparleo

    moparleo Well-Known Member

    Messages:
    4,605
    Likes Received:
    441
    Joined:
    Oct 17, 2011
    Location:
    So. Cal. Riverside area Moreno Valley
  3. gzig5

    gzig5 Active Member

    Messages:
    43
    Likes Received:
    6
    Joined:
    May 10, 2018
    Location:
    Mequon, WI
    That's the story I've heard. I pick up a 66 B body rear at the swap meet and once the project progresses far enough I'll get the offset brackets, move the pumpkin and brakes over and slap it in. Any B body from 62-70 will work with the spring relocation to 44" from 46", but the 65-67 give you the narrowest drum to drum package, which may or may not be important depending on your wheel offset. The spring location determines how wide you can go.

  4. moparleo

    moparleo Well-Known Member

    Messages:
    4,605
    Likes Received:
    441
    Joined:
    Oct 17, 2011
    Location:
    So. Cal. Riverside area Moreno Valley

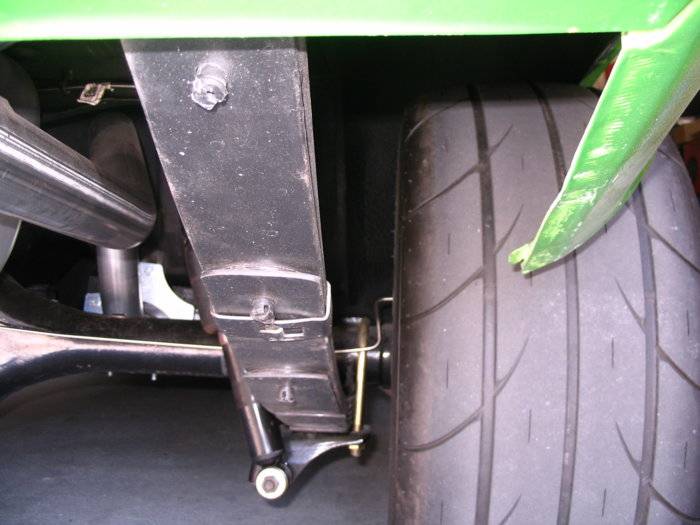

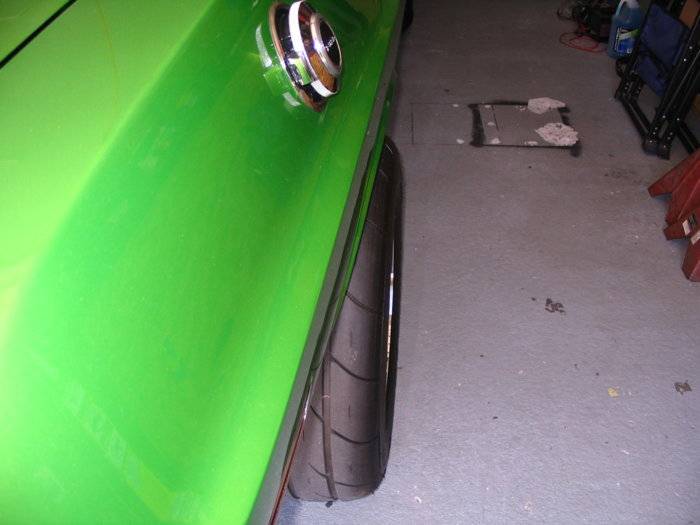

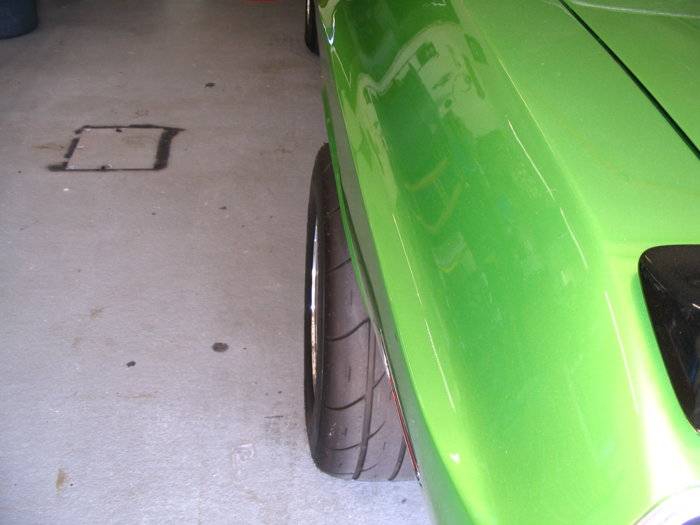

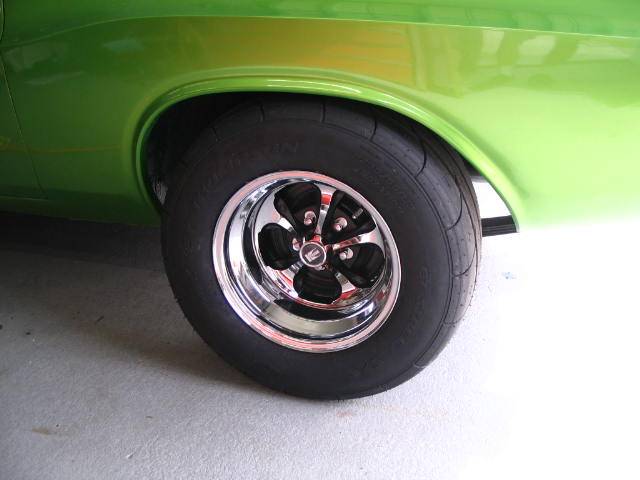

    It looks like according to the chart I sent you, There is only a difference of a little more than 2 inch between the drum to drum measurement. 67 B-body D to D 59 1/2" and E-body D to D 61 5/8". You can get more clearance using more positive offset rims for a lot less trouble. Offset spring hanger are required for the most clearance between the inner fender and outer lips.

  5. carpoor

    carpoor New Member

    Messages:
    4
    Likes Received:
    0
    Joined:
    Oct 30, 2018
    Thanks for the reply. I may be trying to fix something that doesn't need it. This is my first E body so I know nothing about wheel and tire fitment. I want to run Cragar SS deep dish wheels on the rear. My previous experience with this was on a 72 Duster. I had to run air shocks to get it to stop cutting the tires and I couldn't have riders in the back seat.

  6. gzig5

    gzig5 Active Member

    Messages:
    43
    Likes Received:
    6
    Joined:
    May 10, 2018
    Location:
    Mequon, WI
    A bodies have less room for big tires.

    It's a balance between tire width, diameter, and wheel backspace. A 275 wide 50 or 60 series tire should fit with the correct offset on the wheel on the stock rear. I think a 305 wide will fit with the narrower B body rear end. I've seen where a guy was running a 315 rear with the stock wheel wells, but the wheel offset has to be perfect. There are offset calculators that help figure out what clearances will be but you need to measure your car to know what you have for clearance and if it is the same on both sides. On my car the rear end is offset to the driver side about 1/4" so if you are really tight that can make a difference. I currently have 255/70-15 on the rear on a 15x8 wheel with 4" backspacing. That's a 29" tall tire and it really fills the wheel well and I need to slightly roll the driver side fender lip. I have at least 1 1/2" space to the spring though so a 275 would fit easily with the right wheel spec. I will go to a 60 series next year but that was the tire that was mounted on the used wheels when I got them.

  7. carpoor

    carpoor New Member

    Messages:
    4
    Likes Received:
    0
    Joined:
    Oct 30, 2018
    I appreciate your input. I currently have the rearend out of the car to clean, encapsulate, and undercoat the underside. The wheels I want to use, Cragar SS with 8" width and 4.5" back spacing, will fit on the original differential/spring set up but I can't get a measurement on the wheel wells for a while.

  8. Mopar okie

    Mopar okie Member

    Messages:
    15
    Likes Received:
    0
    Joined:
    Jan 7, 2019
    I have 2 Challengers I put a B body rear under, you have to use off set spring hangers front and rear, the B rear is about 2" narrower than the E body. DC has the hangers, the front offset hangers are too long, had to heat and move over, I built a set of fronts. It can be done.
