Sorry if this should be in the brake section I figured it was more general. Can someone please tell me what line goes to each letter. It’s in my 72 cuda manual brakes. I cannot find any information on that type valve most are the Cnc aluminum not the cast like this one. Thank you in advance
Brake line information
- Thread starter Joemoy29
- Start date
David DiMartino
Active Member

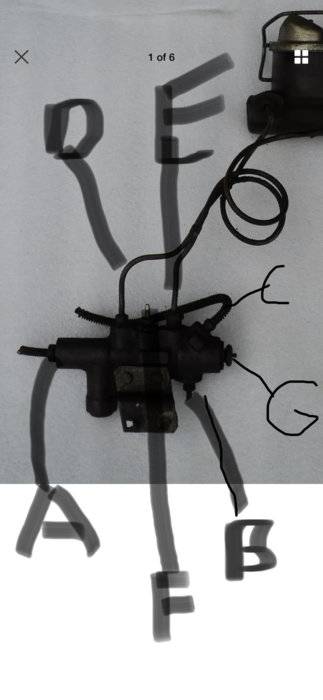

First, this part is oriented with G to the top and B to the rear when installed.
A - brake line to rear of car
B - brake line to front right
C- brake line to front left
D - brake line to front of master cylinder
E - brake line to rear of master cylinder
F - wire for brake warning light
G - no connection
I could have D & E reversed since they kind of spiral next to each other, but this is based on the pre-tear down photos of my 73 Cuda
Hope it helps
Dave D
A - brake line to rear of car
B - brake line to front right
C- brake line to front left
D - brake line to front of master cylinder
E - brake line to rear of master cylinder
F - wire for brake warning light
G - no connection
I could have D & E reversed since they kind of spiral next to each other, but this is based on the pre-tear down photos of my 73 Cuda
Hope it helps
Dave D
