Fan Clutch 71 Cuda

[fishpwr]

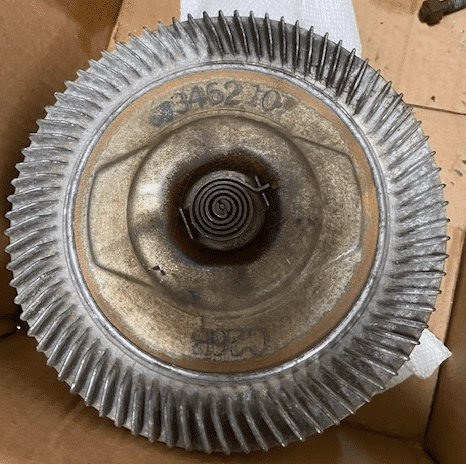

I'm at the point for installing the Fan Clutch onto my 383 engine (71' Cuda- A/C car). When I got the car, the fan clutch was missing. I have a fan clutch off a 71' Charger 383 AC car, part number 3462107. I can't find any documentation on what I need, anyone know what came on 71 Cuda's 383 with AC? Many thanks!!!



[ZippyZoo]

According to an older (First Edition) Galen Glovier Part & Castings Numbers Book there were several fan clutches which could have been used. 3462107 would be correct for '70-'71 A,B,C,E bodies with 383 A/C. Is 7.25" diameter and thermal.



[moparleo]

Numbers restoration or just information ?

Store - All Reproduction Parts | Tonys Parts

www.tonysparts.com

https://www.e-bodies.org/Resources/Mopar_Parts_Catalog/1970_1971_Parts_Catalog.pdf
