Fouled plugs 70 cuda 440 6bbl

castlegar

New Member
Joined
Mar 5, 2021
Messages
4
Reaction score
5
Location
Castlegar
If I have a fouled plug on 70 cuda 440-6 is the sound of a misfiring engine very loud and obvious?


fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
1,486
Reaction score
683
Location
Arkansas
What are you hearing… like knocking/ tapping? Really need some more descriptive details.

Last edited:

Juan Veldez

Well-Known Member
Joined
Jan 1, 2011
Messages
248
Reaction score
27
Location
Nor Cal
If I have a fouled plug on 70 cuda 440-6 is the sound of a misfiring engine very loud and obvious?
I recommending cleaning the plug and switching with another one that reads tan (good). Check for corrosion/proper contact on the spark plug wire on that fouled plug. Run it for a while. Check both plugs. If the new location for the plug is fouled, it's a bad spark plug. If it reads foul in the same cylinder as before, it's probably a bad wire/connection. Process of elimination and no money spent yet. Some may say once a plug is fouled, it's a throw away, but I've cleaned and re-used them in the past without an issue. Good luck.


moparleo

Well-Known Member
Joined
Oct 17, 2011
Messages
5,870
Reaction score
1,031
Location
So. Cal. Riverside area Moreno Valley
Are you a new owner of this car ?
Do you have a more detailed description of what exactly you mean ?
Any specifics on the engine specs ? Any recent mods done ?
Clearer info makes it easier to give a better guess.

Last edited:

tonysrt

Well-Known Member
Joined
Mar 12, 2017
Messages
358
Reaction score
70
Do you have a stock ignition with points? Make sure both sets of points are set right. Think about an upgrade to a hotter spark via coil, or even Mopar electronic ignition if not done already.


70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
886
Reaction score
633
Location
Western Washington
To answer your question as to whether it is "loud" or not depends on several issues such as how many plugs are fouled and how loud your exhaust is.

Is most cases a fouled plug (1 of them) will manifest itself as an engine miss wherein the engine is not running smoothly. If you are watching it, the engine will appear to rock abnormally as it is running. If you are listening to it, you will hear it stumble. Under acceleration it will be sluggish.


castlegar

New Member
Joined
Mar 5, 2021
Messages
4
Reaction score
5
Location
Castlegar

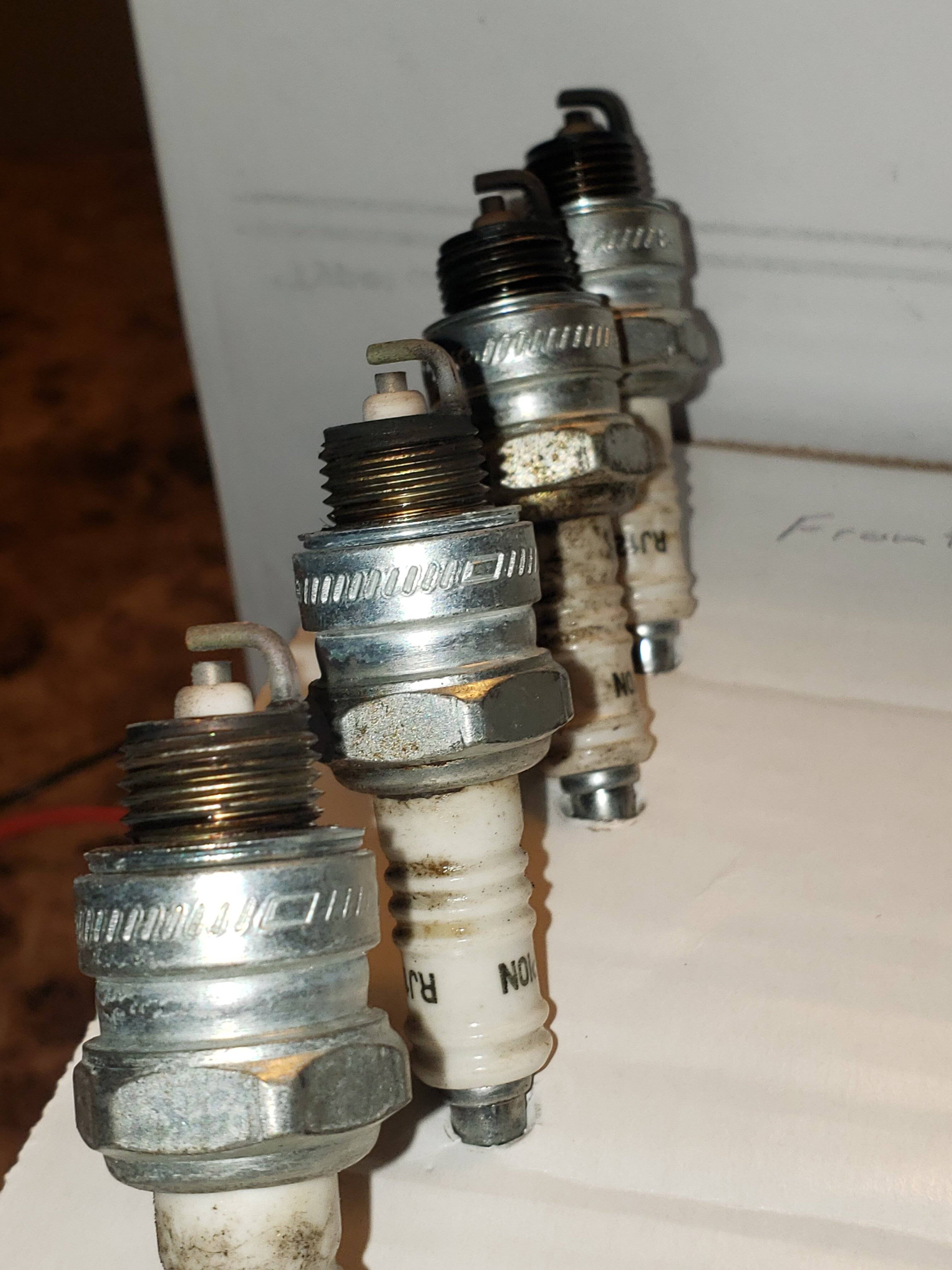

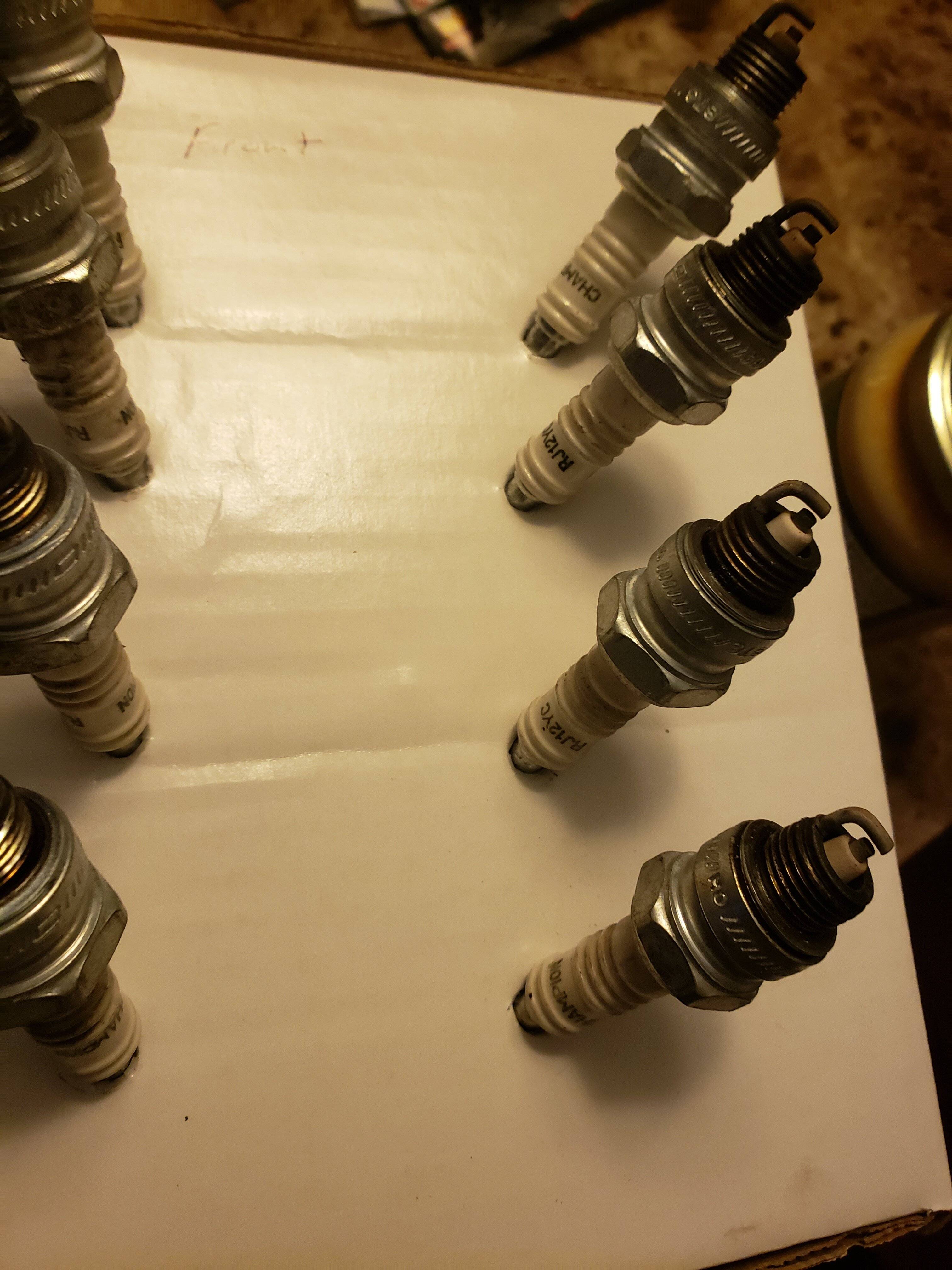

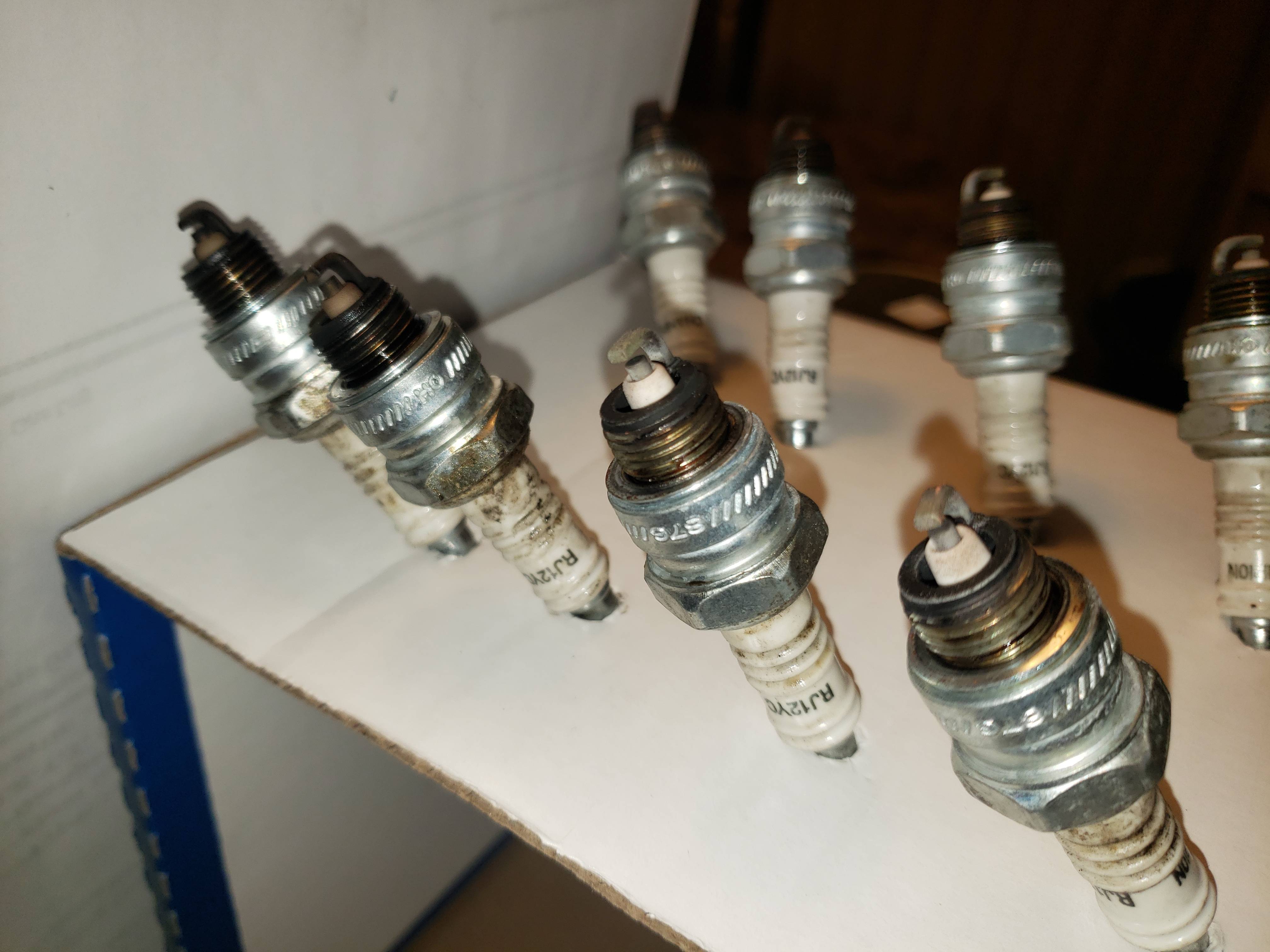

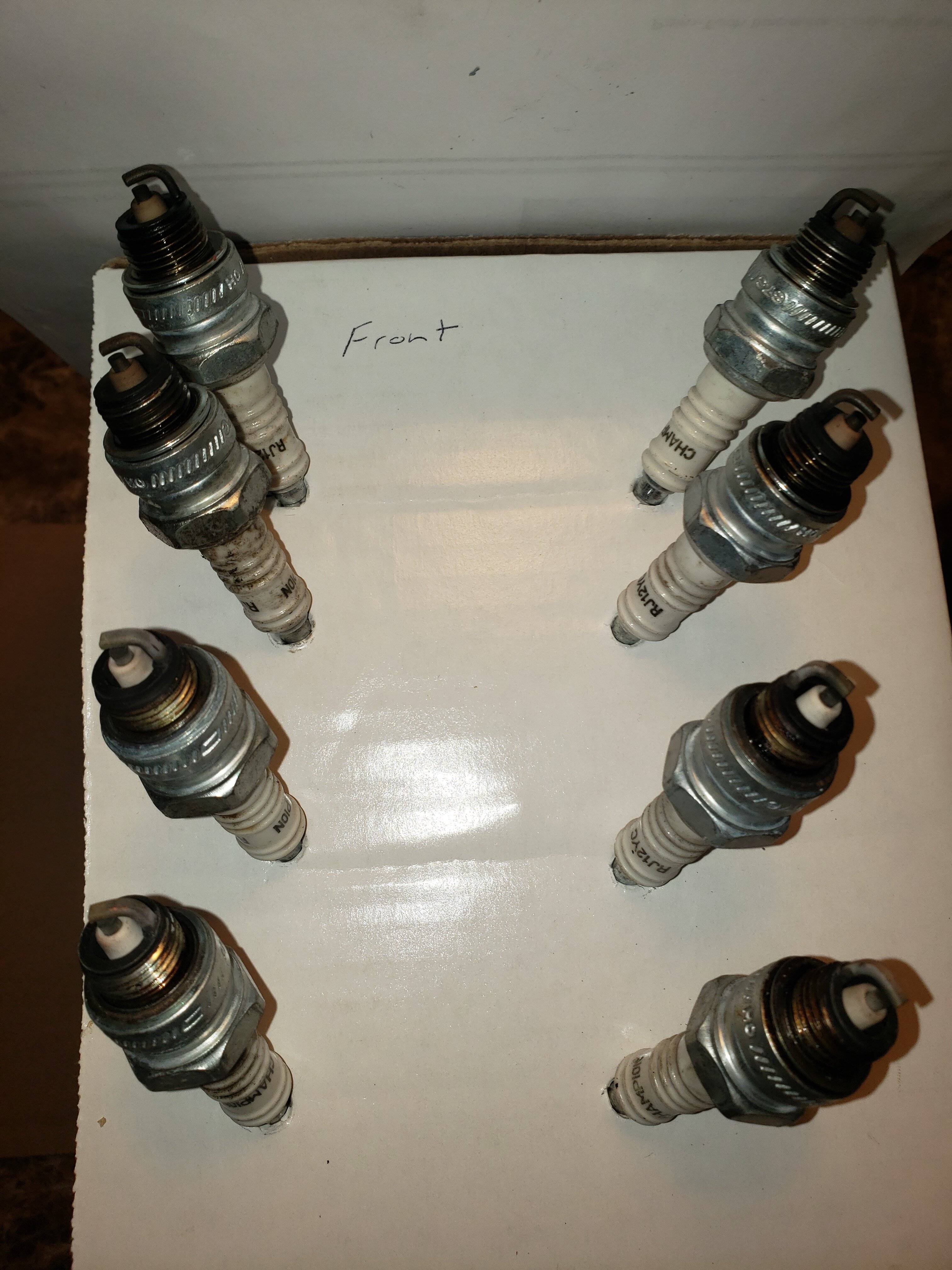

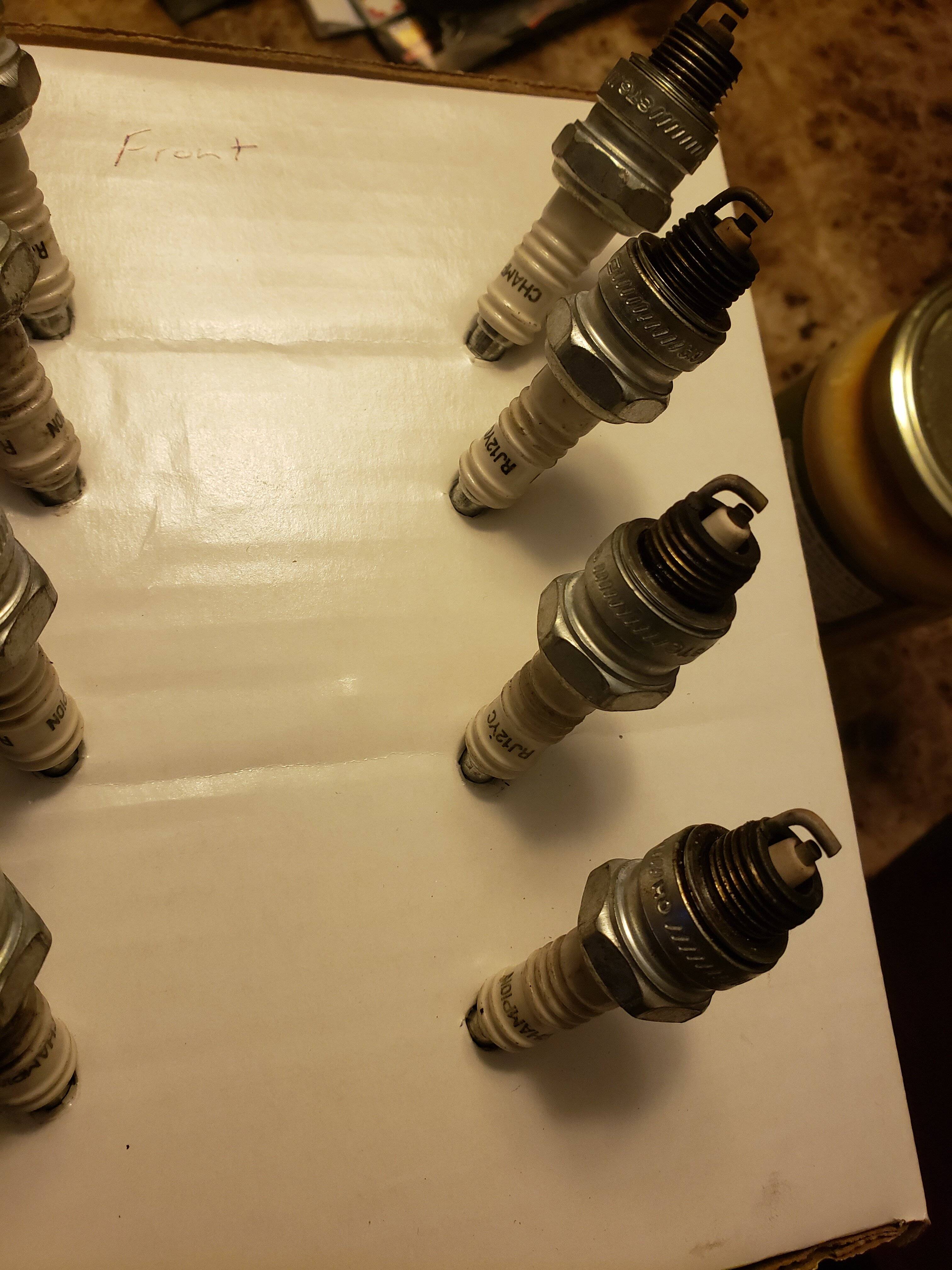

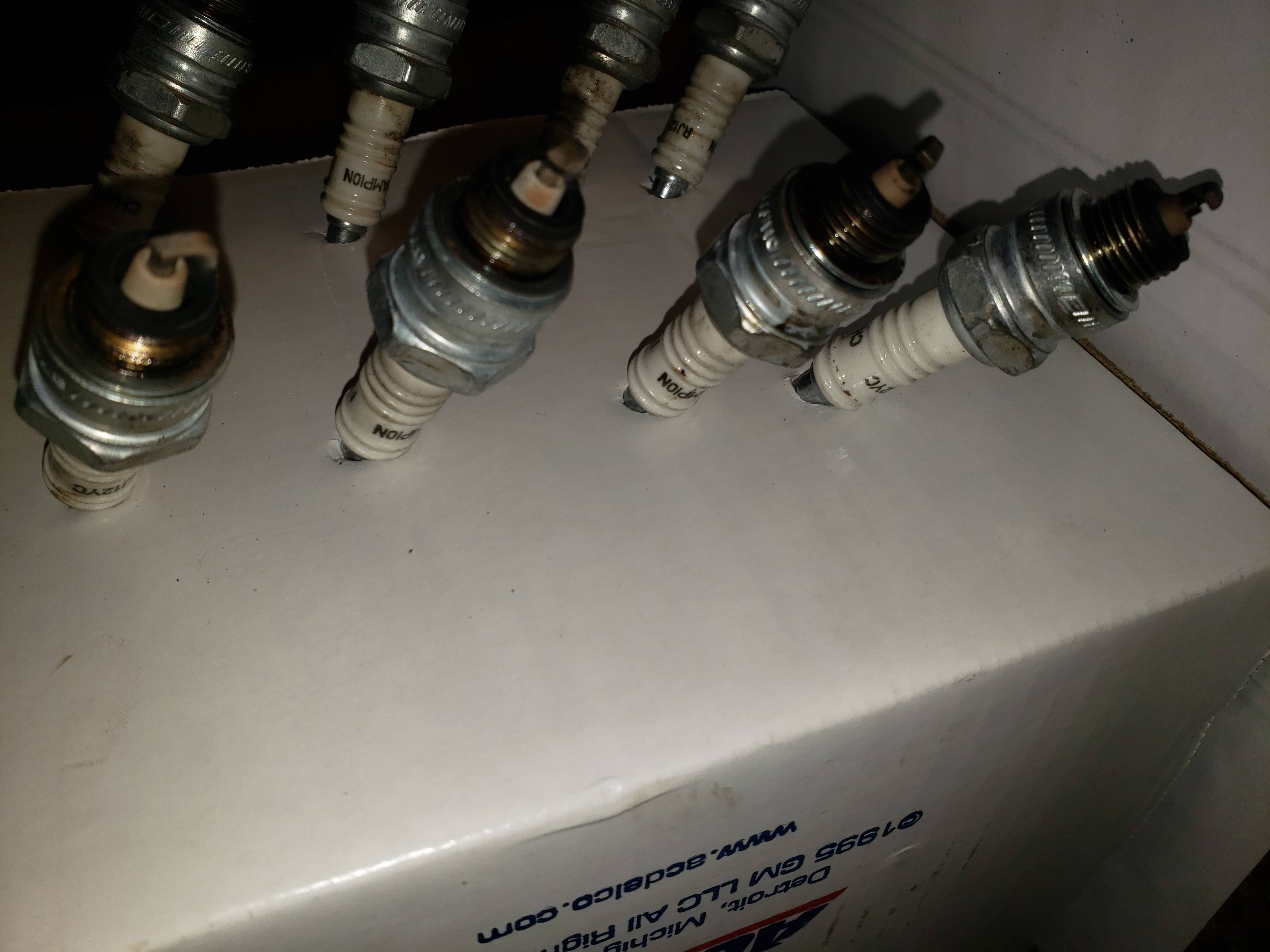

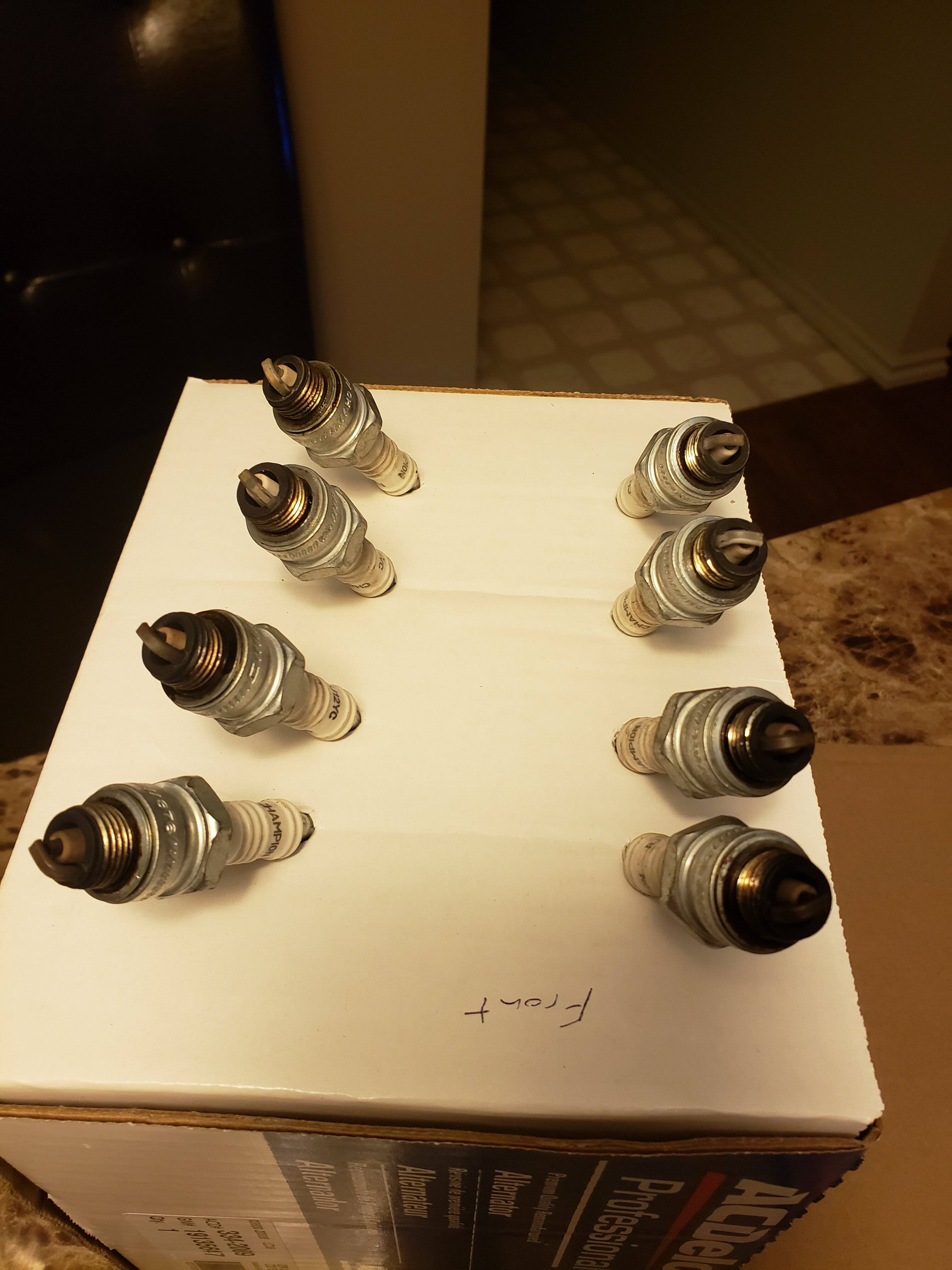

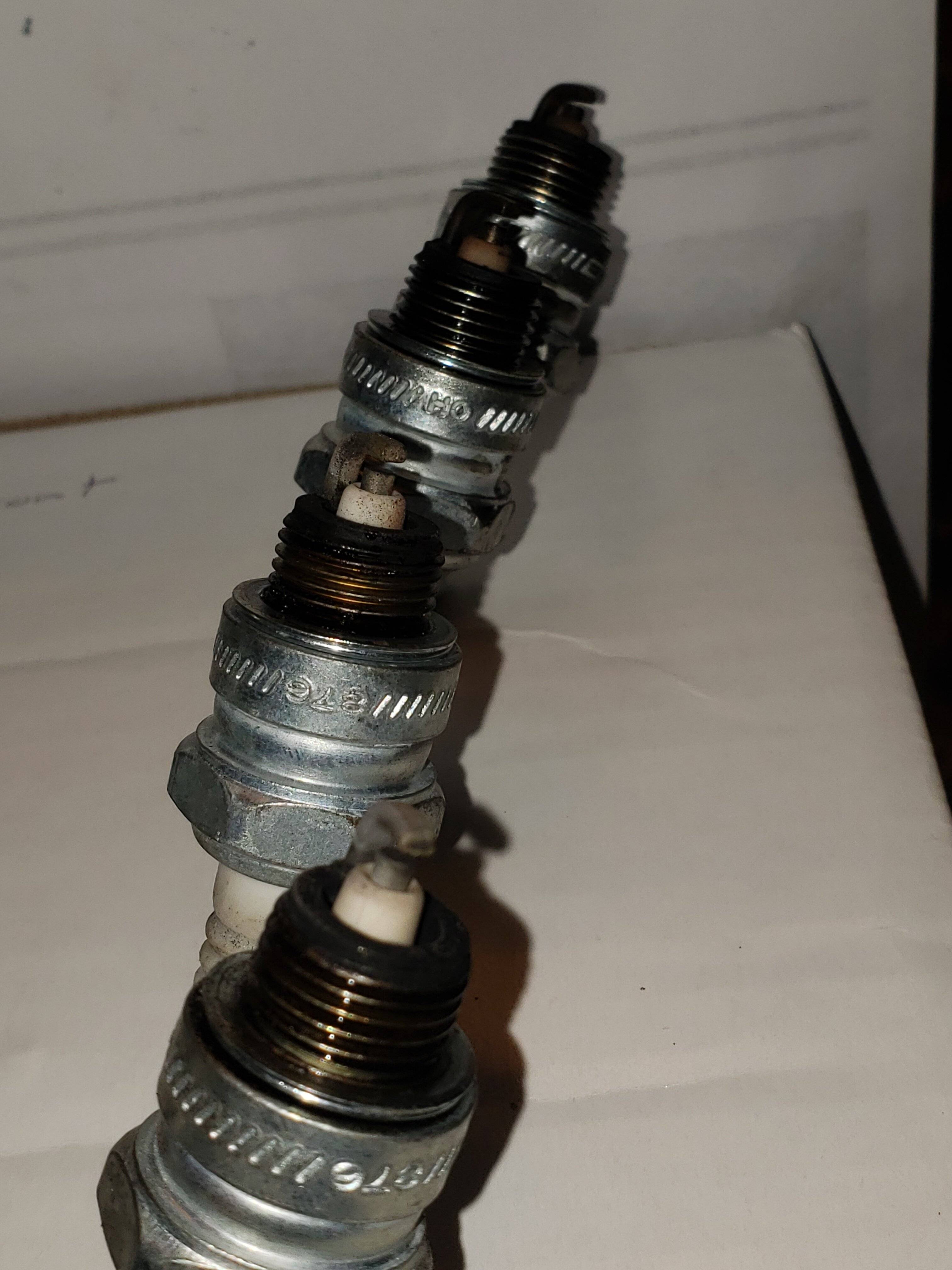

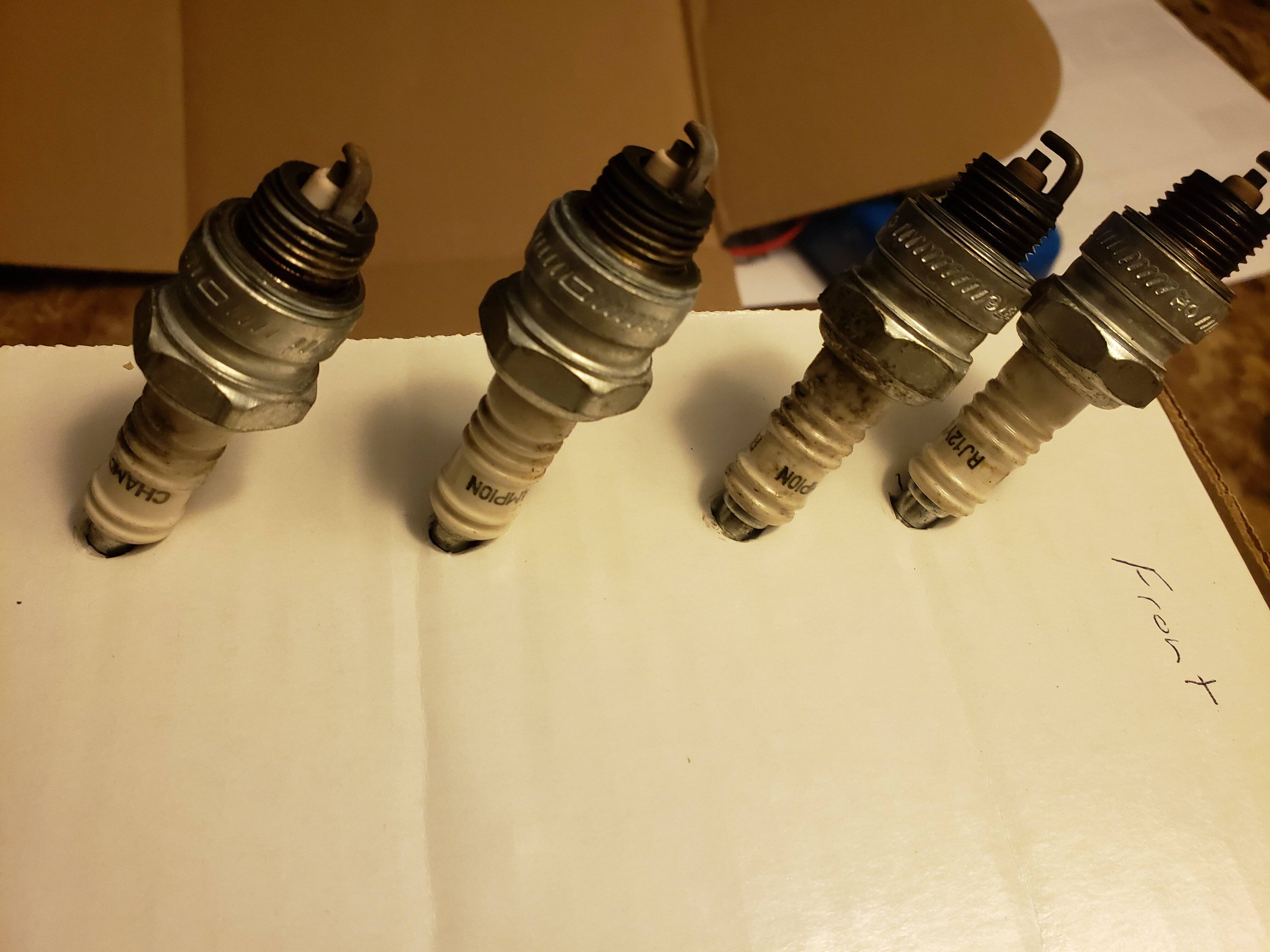

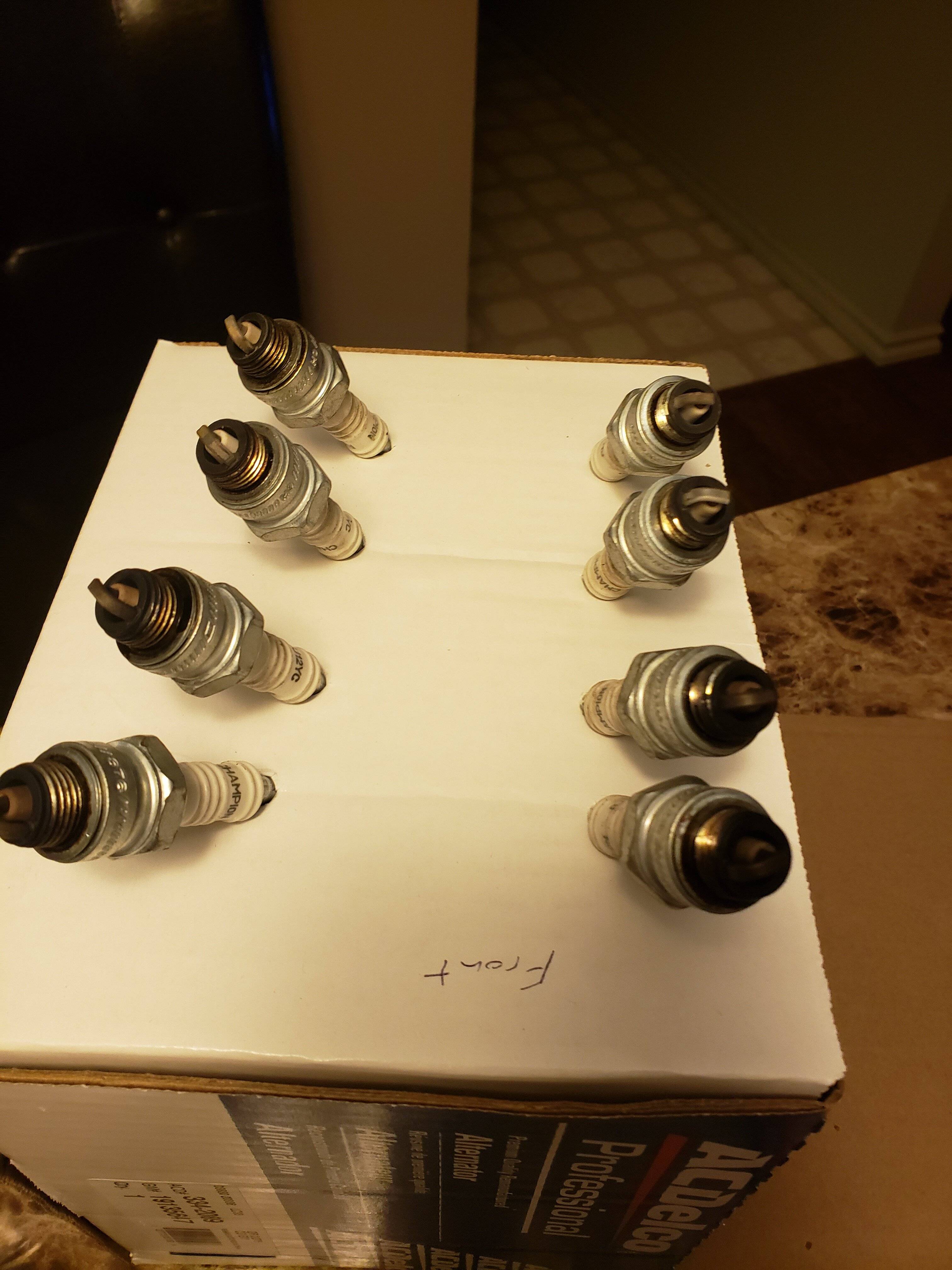

Front drivers plug was wet with gas and second from front had little smell of gas. How can I fix this one cylinder? Here's pics. Anyone else see anything I should be concerned with?


Attachments

  • 20210915_220155.jpg
    1.2 MB · Views: 9
  • 20210915_220141.jpg
    1.3 MB · Views: 9
  • 20210915_220136.jpg
    1.1 MB · Views: 7
  • 20210915_220046.jpg
    1 MB · Views: 6
  • 20210915_220044.jpg
    1.1 MB · Views: 7
  • 20210915_215924.jpg
    3.1 MB · Views: 3
  • 20210915_215904.jpg
    3.1 MB · Views: 3
  • 20210915_215742.jpg
    1.5 MB · Views: 4
  • 20210915_215719.jpg
    898.8 KB · Views: 5
  • 20210915_215701.jpg
    989.6 KB · Views: 10

rklein71

Well-Known Member
Joined
Feb 27, 2015
Messages
720
Reaction score
304
Location
Amarillo Texas
I had a 440+6 in a 69 Barracuda and had problems fouling the plugs. Would run great one day like crap the next. I did not have a good body to engine ground, junkyard ground strap cleared up my plugs immediately. Moral of the story, a weak spark, for whatever reason can cause headaches in tuning.


70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
886
Reaction score
633
Location
Western Washington
Many 6 packs run "fat" and plug fouling is relatively common unless you can really dial in the carb set. It takes some time and experience to get them sorted but its work the effort. A good O2 gauge is very helpful in the process.


moparleo

Well-Known Member
Joined
Oct 17, 2011
Messages
5,870
Reaction score
1,031
Location
So. Cal. Riverside area Moreno Valley
He said that 1 plug was wet... that is why I suggested that he swap that plug, restart and check it again. If same hole is wet, ignition.

New parts don't always work properly. Verify by this simple test.

Last edited:

castlegar

New Member
Joined
Mar 5, 2021
Messages
4
Reaction score
5
Location
Castlegar
New plugs, cables and cap . And its running as good as when I got it in January.
