Front Brake Line Routing

Dean N

Member
Joined
Mar 5, 2021
Messages
16
Reaction score
3
Location
San Mateo, CA
I know there have been threads in the past regarding correct routing, but does it matter if complete correctness is not the goal? Other than the obvious, what is the difference? Is there anything that mandates one path versus the other? For an entire new system, can I just pick one and go with it?

I ask because I am starting with an empty engine bay and have no idea what the car came with, and see no evidence (to me) of how they may have once been. Are the mounting tabs for the hose/line transition an indicator?

TIA!

Dean
1972 'Cuda 340


moparleo

Well-Known Member
Joined
Oct 17, 2011
Messages
6,926
Reaction score
1,707
Location
So. Cal. Riverside area Moreno Valley
Brake line routing is dependent on what parts might be in the path of the lines. Best to know exactly what options will be installed on the firewall and such before you buy your lines. Power brakes ? booster, disc or drum, a/c, p/s, etc...???


fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
2,237
Reaction score
1,126
Location
Arkansas
Id check the FSM first. Tube Technologies or Inline Tube possibly could help ( if you buy something) with a diagram. I would route them as it came stock unless it’s going to be a drag car. Pretty straight forward with all the parts. JMO


70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
1,260
Reaction score
975
Location
Western Washington
On an E body (actually most 70's Mopars) its pretty evident where the line goes across the firewall, the only "tricky" part is where it goes around the opening for the steering column. I am sure there are pictures online showing them.


Chryco Psycho

Well-Known Member
Joined
Dec 28, 2008
Messages
4,400
Reaction score
2,038
Location
Panama
What year , it makes a difference , in 70 the calipers used a line that threaded right into the caliper pointing the lines rearward to the clips on the frame inside the wheelwell, you can use different calipers so the lines can be set up differently .


Dean N

Member
Joined
Mar 5, 2021
Messages
16
Reaction score
3
Location
San Mateo, CA
My apologies, but I left off a crucial element in my post. By "correct routing", I was referring to the option of the stock routing with the front lines going over the frame or under the frame.

moparleo, gotcha.

fasjac, what are you referring o with FSM? Some sort of service manual?

70chall440, yep, I found lots of good photos.

Chryco Psyco, it is a 72 'Cuda.



70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
1,260
Reaction score
975
Location
Western Washington
For me, I usually route the lines through the UCA access panel on the back side of the hole to allow full access of the hole for UCA work. I am not a fan of running the lines under the frame; I know the factory did it but if I am making them I have a choice. I also reuse the "spring" that goes over the line when it is outside of the engine compartment.


fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
2,237
Reaction score
1,126
Location
Arkansas
My apologies, but I left off a crucial element in my post. By "correct routing", I was referring to the option of the stock routing with the front lines going over the frame or under the frame.

moparleo, gotcha.

fasjac, what are you referring o with FSM? Some sort of service manual?

70chall440, yep, I found lots of good photos.

Chryco Psyco, it is a 72 'Cuda.

Yea, the factory service manual. Be careful where you go under the frame ( where ever that may be) because of smashing one closed should you not have the clearance.


fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
2,237
Reaction score
1,126
Location
Arkansas
My apologies, but I left off a crucial element in my post. By "correct routing", I was referring to the option of the stock routing with the front lines going over the frame or under the frame.

moparleo, gotcha.

fasjac, what are you referring o with FSM? Some sort of service manual?

70chall440, yep, I found lots of good photos.

Chryco Psyco, it is a 72 'Cuda.

Under the frame up front like factory I think is fine. I’ve seen some run them under the trans cross member that could be exposed to a speed bump or whatever. That’s why I mentioned the factory routing is not a bad thing. You just don’t want the lines to be the first thing that hits a low spot along the side of the car. JMO


Attachments

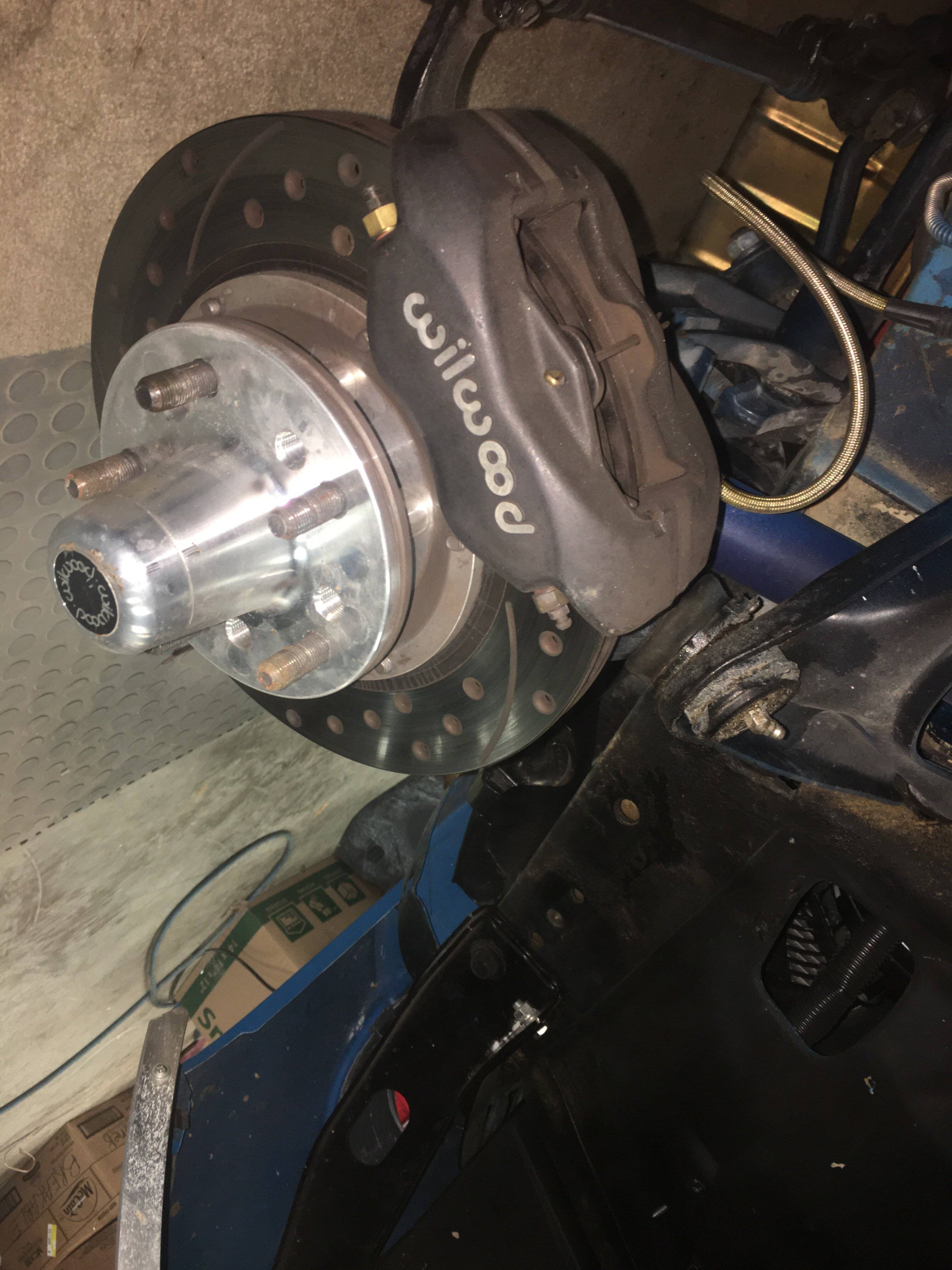

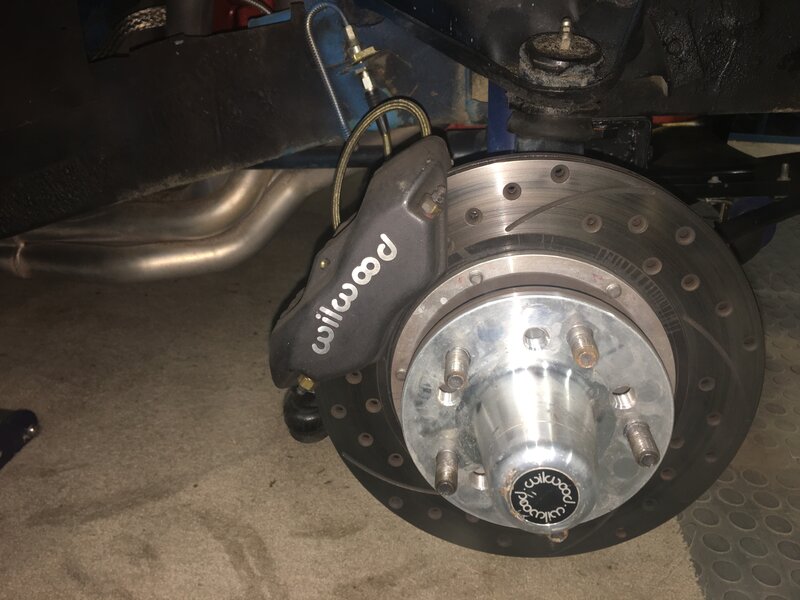

  • 412BA43C-DE09-4138-BCBE-821D0AF4820E.jpeg
    715.8 KB · Views: 146
  • 13A99254-3A9D-423D-A64E-9290FBCF9F9F.jpeg
    969.9 KB · Views: 167
