70 cuda what other gauge cluster options are out there? dakota digital looks good. use painless wiring or stock harness? thanks


Chryco Psycho

Well-Known Member
Joined
Dec 28, 2008
Messages
2,617
Reaction score
665
Location
Panama
Wow there is a lot to this , you have to decide what you like for gauges , digital or analog , size , dual gauges with different functions L & R or Top & Bottom etc , if the stock wiring is good use it , all you need is switched power from the Tri plug behind the dash or the black regulator feed wire to power all the gauges . Painless is just a name ,it is not painless to install so I would stick with stock if possible .


70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
336
Reaction score
177
Location
Western Washington

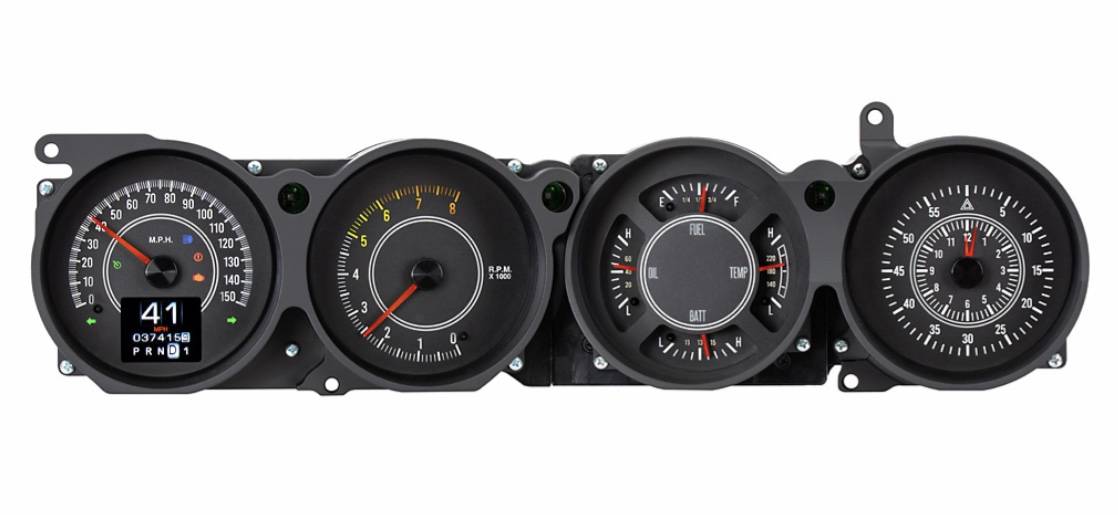

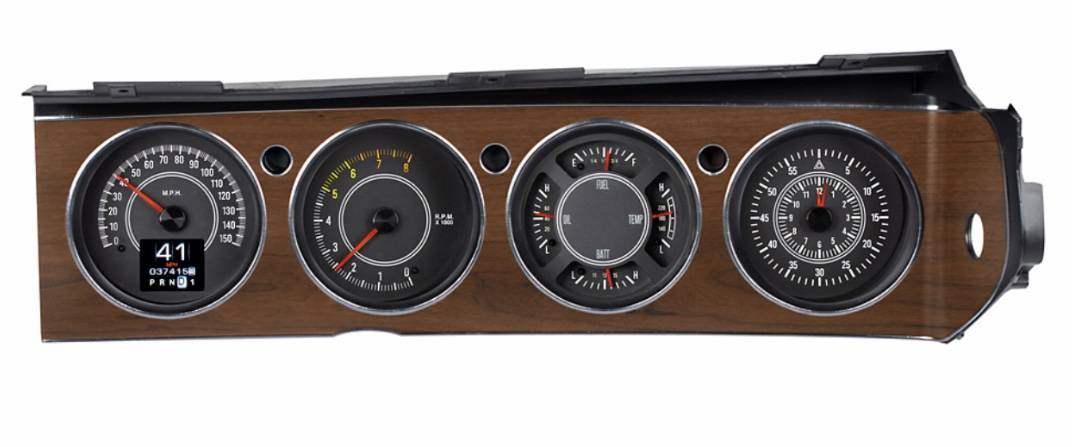

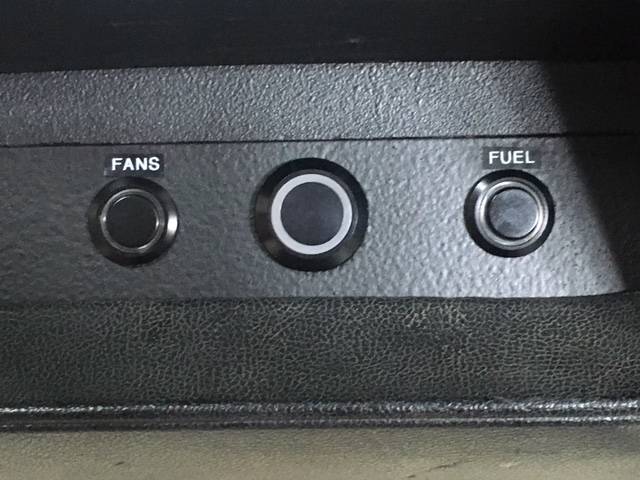

As for options it comes down to this; stock "base" gauges, stock rallye gauges, Dakota Digital RTX, HDX, or VHX. or something custom. I have used the stock rallye gauges for years and still have a set in my 70 Challenger RT. When I built my Cuda I wanted something "different" but this was before DD came out with theirs. My first attempt was to use Auto Meter gauges, I was going to use the 5" speedo and tach and 2 1/16 gauges for temp, oil, volts and fuel.

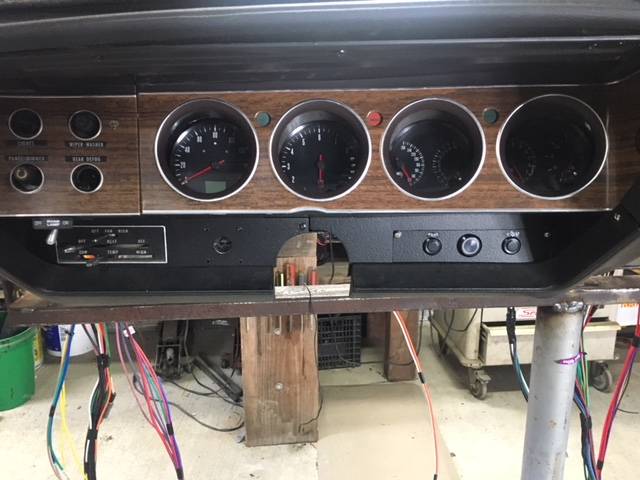

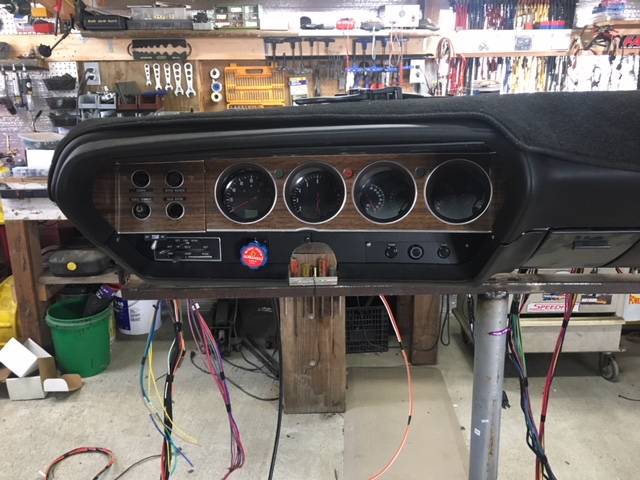

I made a bezel and proceeded to fit it to the dash frame, around that time I discovered Speedhut and changed directions completely. I ended up using 4 Speedhut gauges; speedo, tach and then 2 5" gauges (each with 2 gauges inside them). This allowed me to make a support plate and then use a factory bezel so it looks somewhat factory. It was a lot of work as each gauge is it a slightly different angle.

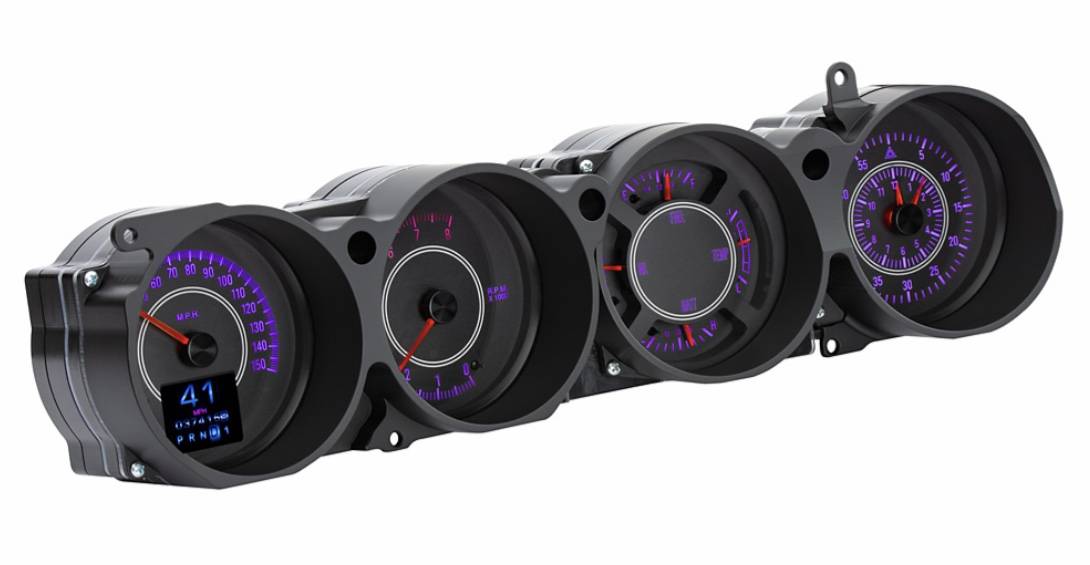

Around this time DD came out with their first E body gauge set and a buddy of mine ordered one for his 73 Cuda. He lives in AUS so he had them shipped here and i got to really look at them. His set was custom made as he didn't like the font on the original set (the VHX design). He loves them but I have to say I really like the Speedhut gauges as well. If I were doing another custom E body I would probably opt for the RTX set bc they look like the original rallye design.

As to the wiring, obviously the stock gauges need a stock harness or one similar however anything aftermarket can be wiring into whatever harness you have. I believe that the DD set comes with its own harness bc it has its own controller.

What to do with depends on what you want and how much you want to spend.


Drivun

Well-Known Member
Joined
Apr 4, 2018
Messages
61
Reaction score
34
Location
Atlanta GA

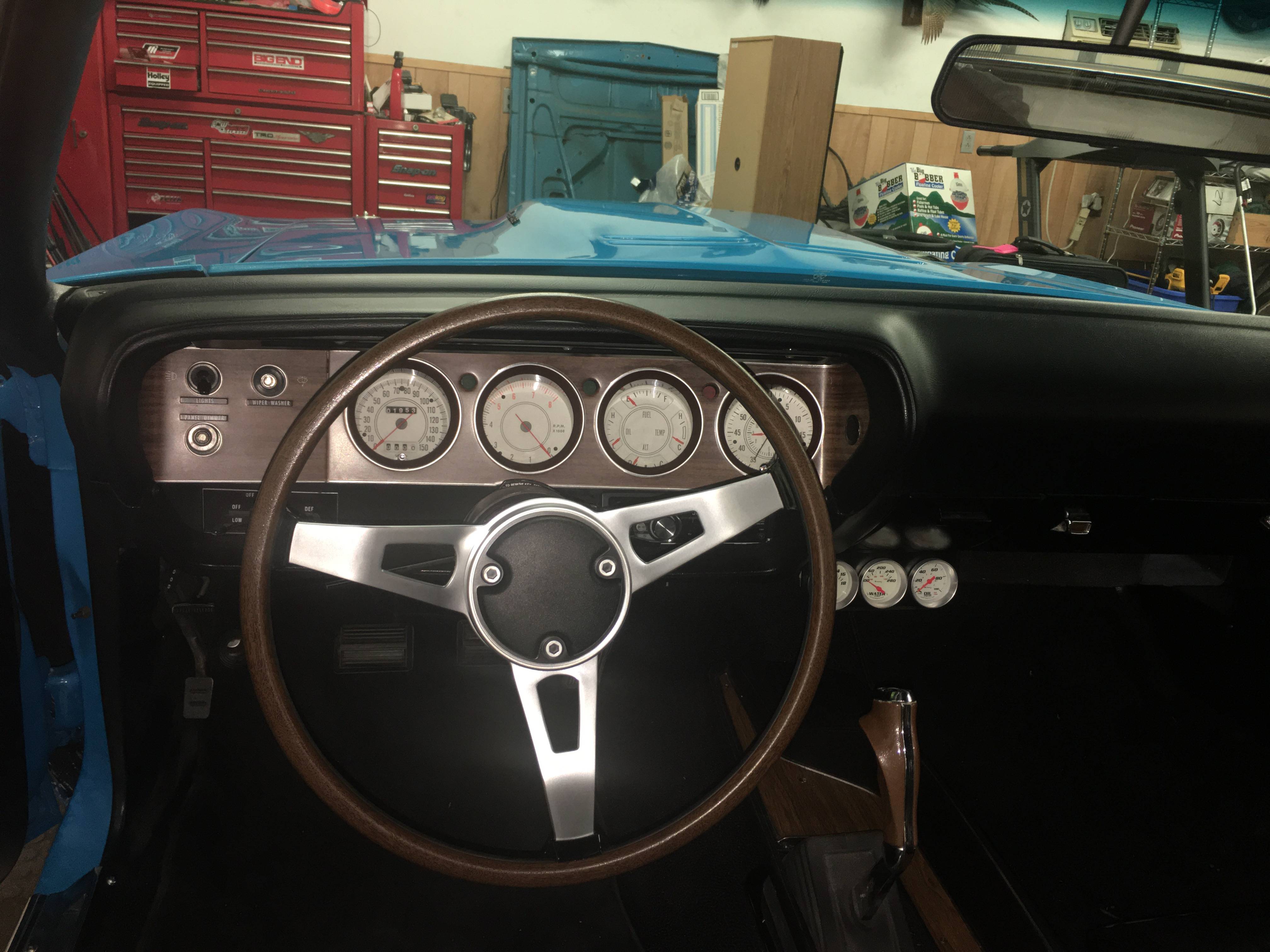

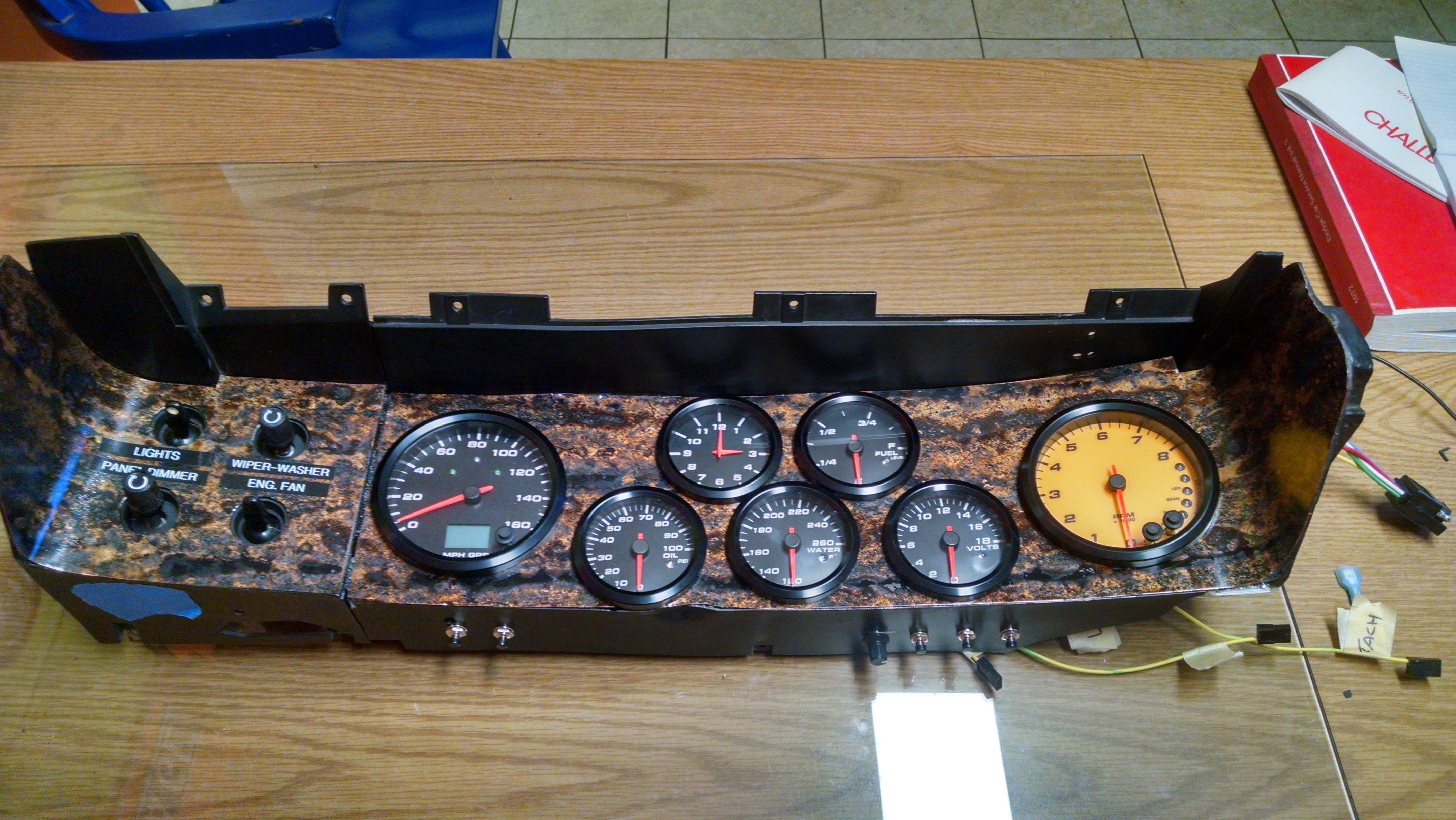

Didnt seem like a lot of choices out there for my Challenger, and I wanted something different, so modded a broken rallye dash panel to take Speed Hut gauges mounted in a copper veneer sheet panel. If I did again Id downsize the 5 center gauges.
Steve


Mopar Nut

Well-Known Member
Joined
Aug 10, 2014
Messages
590
Reaction score
476
I ordered the RTX series for my Charger, but looking at the RTX for the Cuda looks sweeter.



fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
1,147
Reaction score
413
Location
Arkansas
I sent my cluster to Redline, obviously wanted the white faces. Changed tachyon 8k and the rest of the upgrades. Just sending really so you can see the gauge color change. I like it but, 12 years later I’d leave em black.



marks ebody

Well-Known Member
Joined
Feb 27, 2015
Messages
105
Reaction score
13
Location
Ventura California
I just put a Dakota digital non-rallye for a client. I’m not saying it’s a walk in a park but it was fun to put in. I did have to modify the original wiring. I don’t think I would go with an aftermarket wiring set up. Everything goes into a controller and then into it to the Dakota digital dash, all the sensors come with it.


NoCar340

Well-Known Member
Joined
May 25, 2014
Messages
209
Reaction score
137
Location
Upper MI
I bought Speedhut gauges and built a custom cluster to replace the OE "Pong" dash in my '82 Imperial.

For my Challenger, though, I barfed up the coin for a factory Rallye dash. Then I vomited a little more cash to have it restored and recalibrated. Unable to spit up any more money, I was forced to poop greenbacks when a friend produced a gorgeous '72 Rallye cluster from beneath his workbench that had been there since 1975 and offered it to me. Now I don't know which I want to use... the restored one is perfect, but the OE one has just the "right" hint of fade to the original lettering.

Either way, to my eye nothing looks better in an E-body than the factory Rallye dash... and there's nothing worse than digital gauges, especially the factory nonsense in my Imperial.

Side note about the Speedhut stuff: It's insanely thin and easy to mount. Better yet, for a minor fee you can have your gauge faces done in any font you desire. I found one online called "Square721" that's a dead ringer for the factory J-body gauge/dash lettering, and had my gauges done with it. I just e-mailed them the font file and paid something like $60 extra.


marks ebody

Well-Known Member
Joined
Feb 27, 2015
Messages
105
Reaction score
13
Location
Ventura California
82 imperial now that car is cool !!!
I remember working on that car at a dealership and I leave the door open for 15 minutes and the battery go dead because it had so many friggin dome lights.


NoCar340

Well-Known Member
Joined
May 25, 2014
Messages
209
Reaction score
137
Location
Upper MI
82 imperial now that car is cool !!!
I remember working on that car at a dealership and I leave the door open for 15 minutes and the battery go dead because it had so many friggin dome lights.
Thanks! I love 'em, but all my friends think I'm nuts.

I bought an '81 in the early '90s. None of the interior lights worked. I replaced every single one--there are a lot, like 20-something if you include the dash, doors, etc.--only to have them all blow instantly when I started the car with the door open. There was a dead short in one of the field wires, and it was putting out nearly 20V at idle... I guess that explained the acid smell on the drive home. 🤔 😄

I went with a custom cluster because the '82 will be everything the original should've been, and then some: HP EFI engine, buckets/console, manual transmission, etc. while retaining all the luxury touches. All the OE plastic woodgrain is being replaced by real mahogany veneers. It's a very long-term project.

Pardon the temporary hijack, but so few people seem to like those cars. We now return to our regular E-body madness!


MGD7038

Member
Joined
Sep 30, 2017
Messages
12
Reaction score
9
Location
Arizona
I just put a Dakota digital non-rallye for a client. I’m not saying it’s a walk in a park but it was fun to put in. I did have to modify the original wiring. I don’t think I would go with an aftermarket wiring set up. Everything goes into a controller and then into it to the Dakota digital dash, all the sensors come with it.
Sir. I’m trying to install the Dakota Digital VHX gauges in my non Rallye 74 Challenger. I’m having figment issues with the factory gauge cluster bezel fitting over the new gauges. Do you have any suggestions on how you got the bezel to fit over the gauges and to line up with the bezel to left for the lights and wipers? Any help would be greatly appreciated!


marks ebody

Well-Known Member
Joined
Feb 27, 2015
Messages
105
Reaction score
13
Location
Ventura California
For the two I put in they just went in really easy it was a non-ralley bezel set.
if it’s a rally Dash instrumentation they are a bitch to put in.
Maybe you could take some pictures, and post them


MGD7038

Member
Joined
Sep 30, 2017
Messages
12
Reaction score
9
Location
Arizona
For the two I put in they just went in really easy it was a non-ralley bezel set.
if it’s a rally Dash instrumentation they are a bitch to put in.
Maybe you could take some pictures, and post them
I’ll get some pictures this evening.


MGD7038

Member
Joined
Sep 30, 2017
Messages
12
Reaction score
9
Location
Arizona

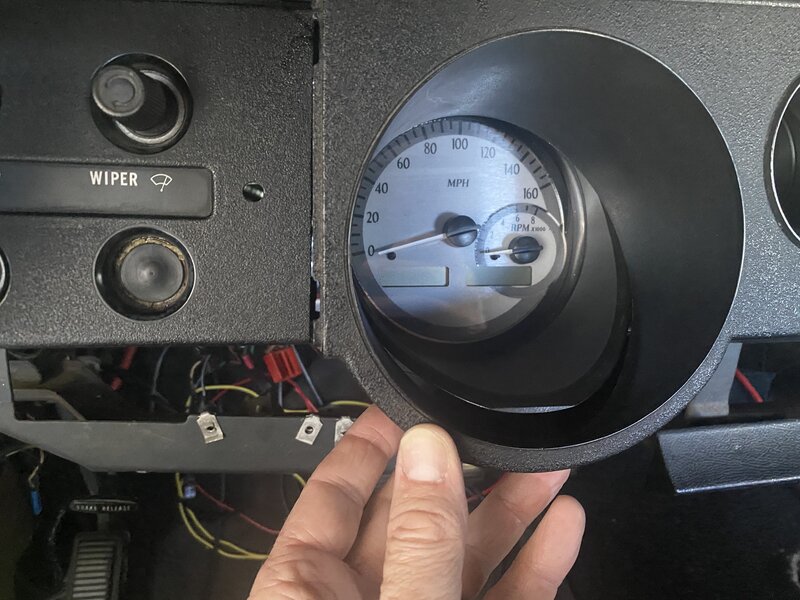

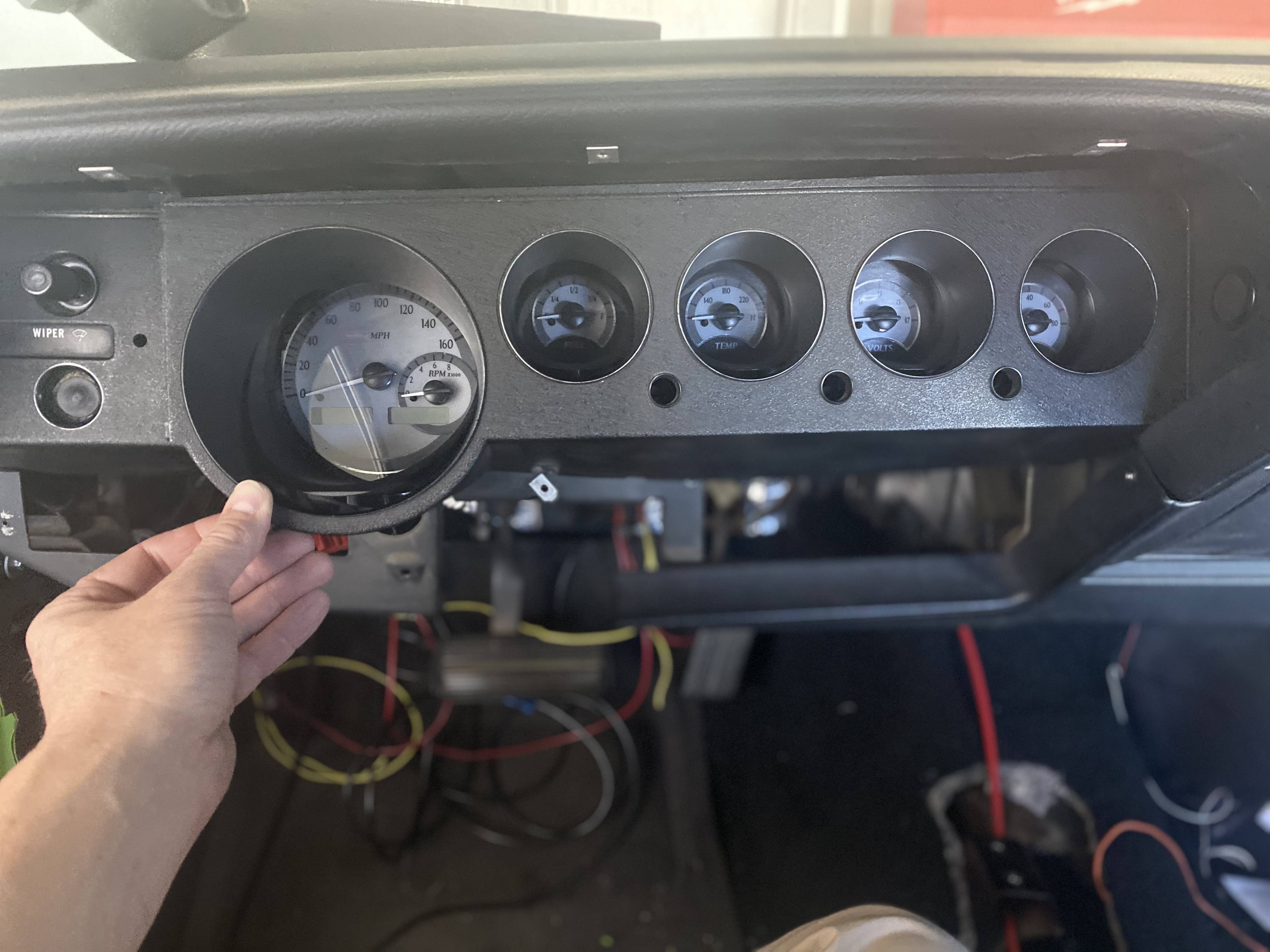

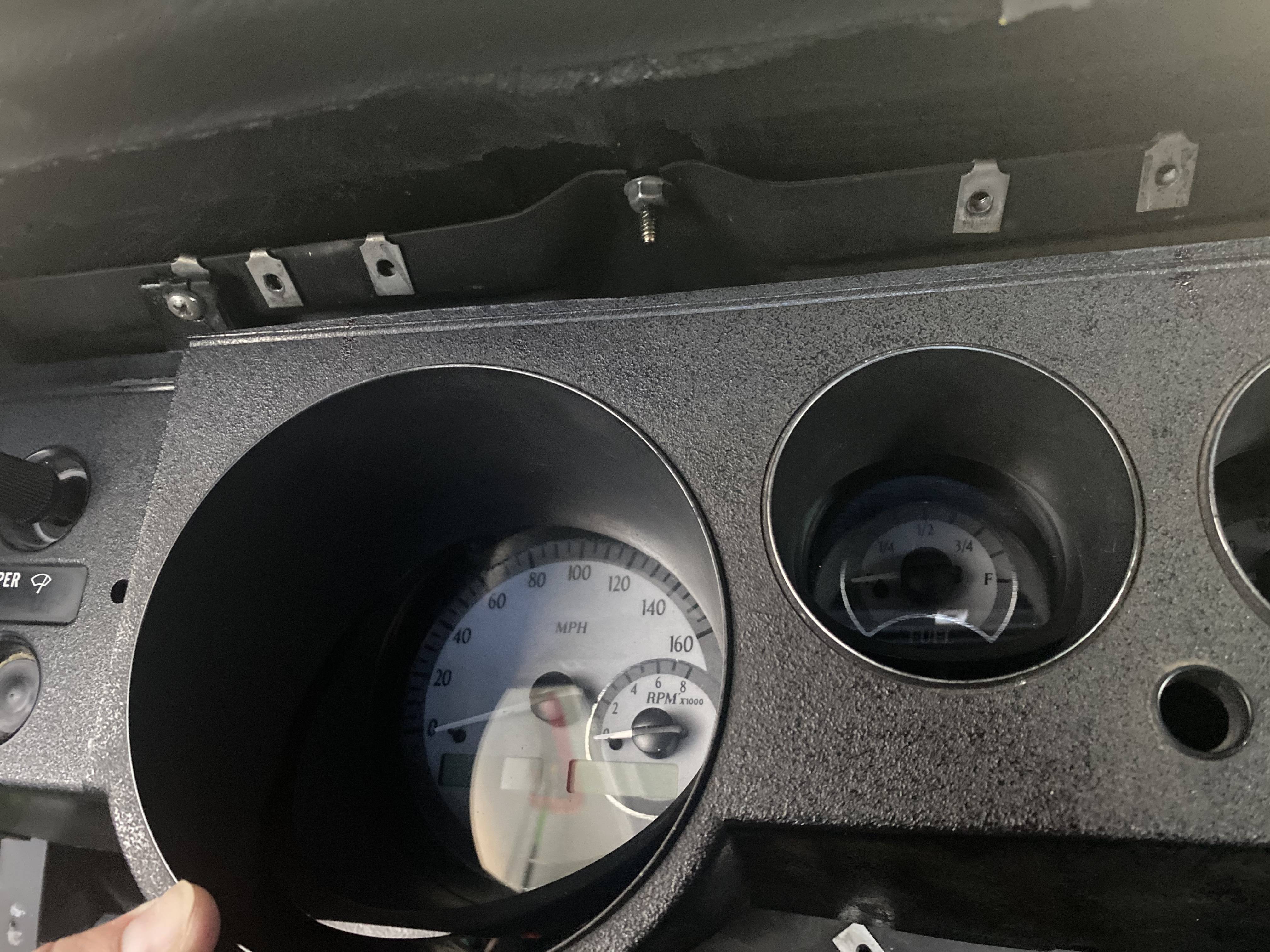

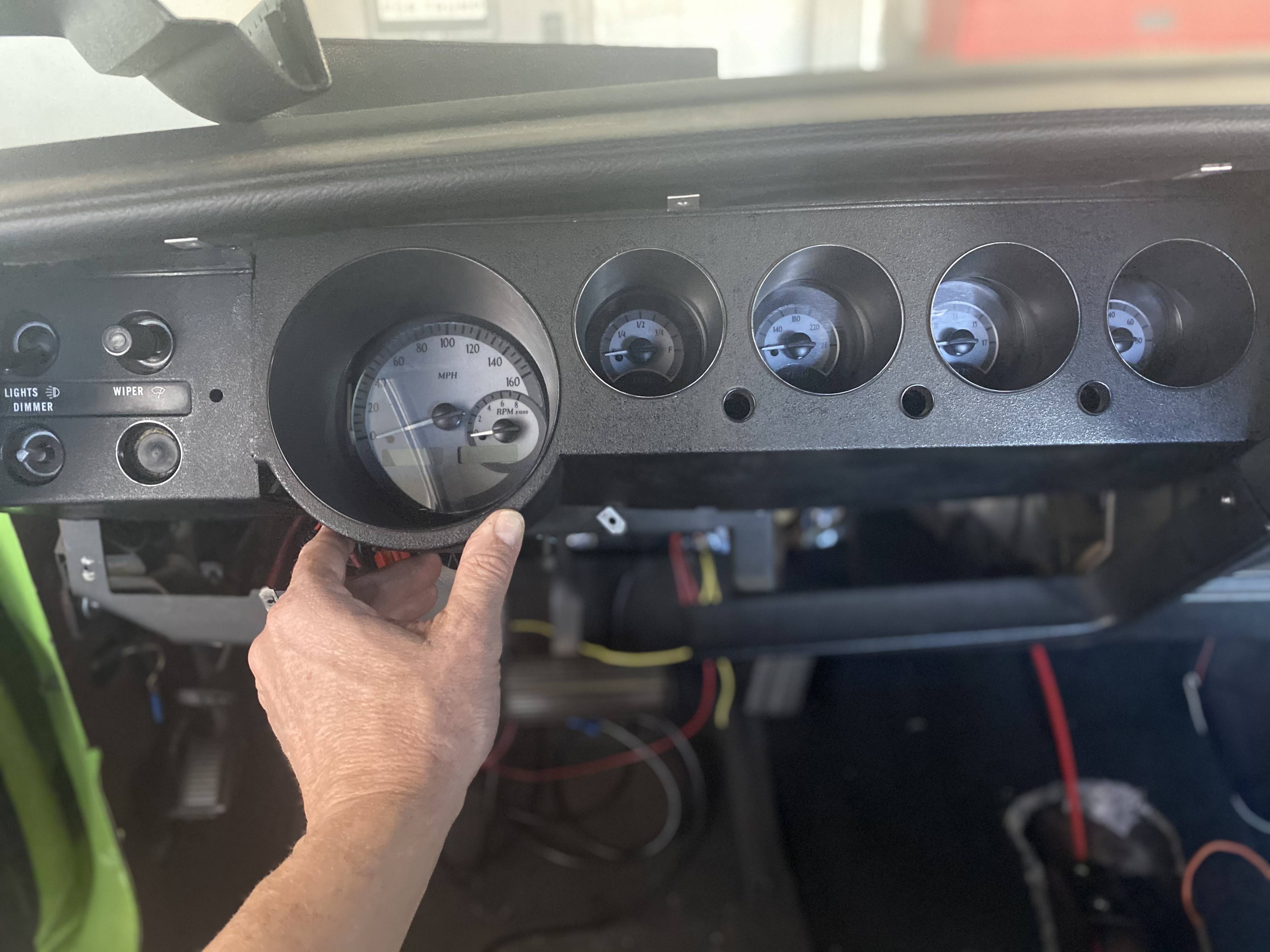

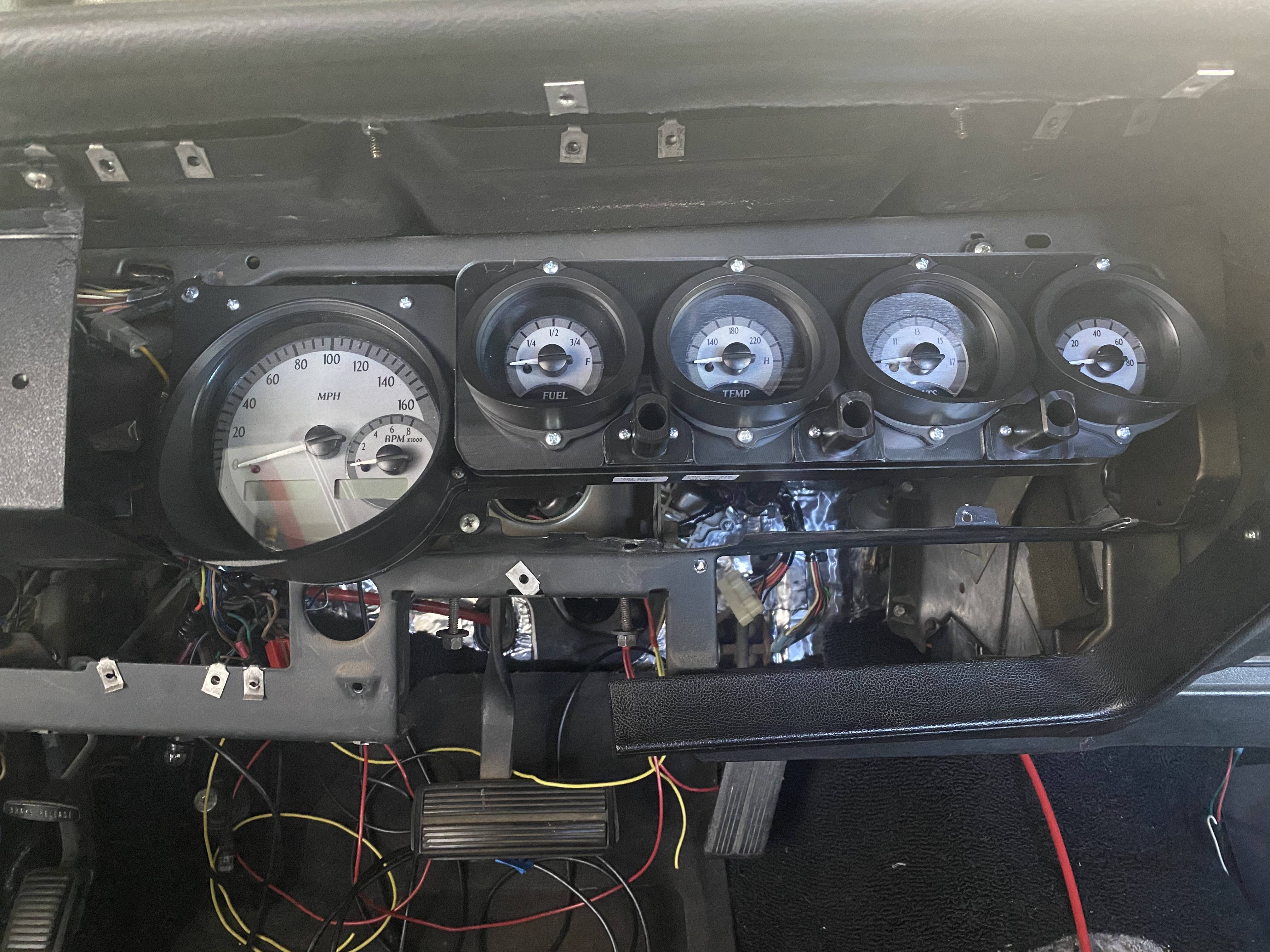

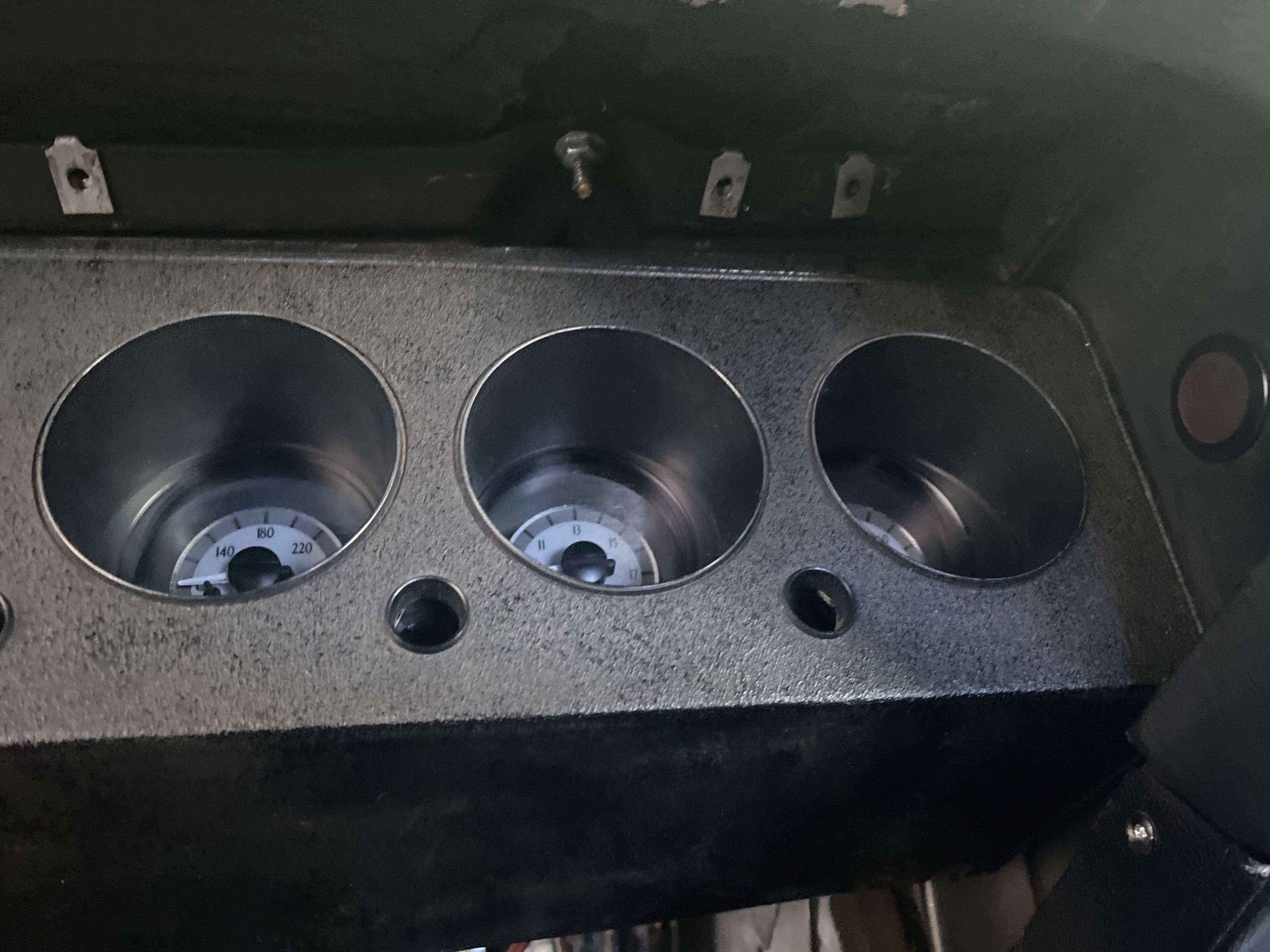

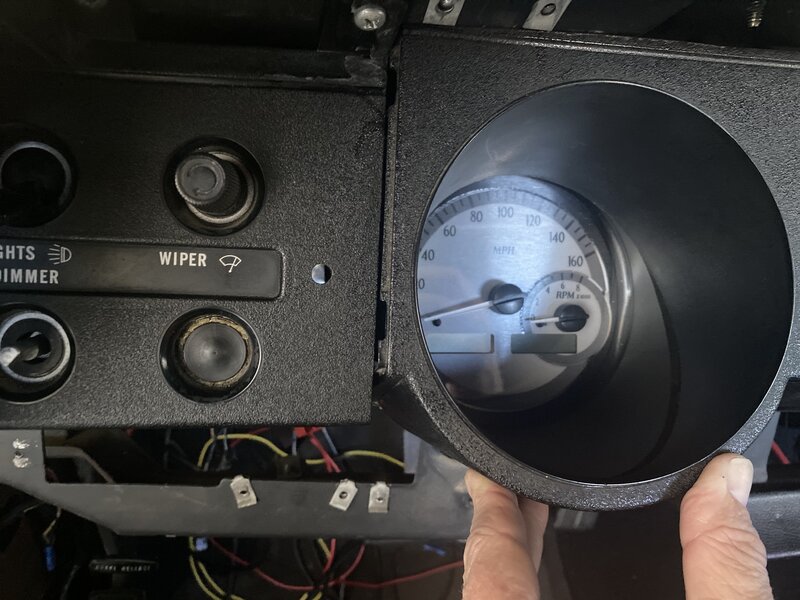

Here are the photos. The first is the gauge cluster bolted in where the factory ones were. The next show how the bezel fits over them by lining up the grove along the face. I did something dumb and trimmed the top of my bezel as a solution and that allowed the bezel to fit against the gauges but it opened a whole other can of worms. And it still doesn’t fit right. I ordered a new bezel to replace the one I trimmed ($100 lesson). It seems the gauges need to be recessed another half inch or so. I appreciate any advice you may have.


Attachments

  • 0CD3659C-8ECC-44CB-A034-F63CF89999E0.jpeg
    3.5 MB · Views: 14
  • 605ED8AD-70D3-46E1-A24B-C1DB6FEBAC56.jpeg
    3.6 MB · Views: 16
  • 696D2A48-D841-4F71-88AF-837A80EBFCA0.jpeg
    4 MB · Views: 9
  • 0E27F7DE-E088-41B5-905E-5A2C84FF34CD.jpeg
    2.6 MB · Views: 11
  • A666CEEF-0A10-4566-A7C6-6191D9609B20.jpeg
    3.9 MB · Views: 11
  • 7C63EAE5-2FDC-4C18-B8E5-F54100FE14BD.jpeg
    3.7 MB · Views: 10
  • FF3639C8-AE05-450E-9701-F28DAFBFE2CA.jpeg
    2.5 MB · Views: 14

marks ebody

Well-Known Member
Joined
Feb 27, 2015
Messages
105
Reaction score
13
Location
Ventura California
The piece that you have bolted to the main frame of the dash (switch Bazel)you need to take that loose (no screws in it )and put it on the after you put the other piece on


marks ebody

Well-Known Member
Joined
Feb 27, 2015
Messages
105
Reaction score
13
Location
Ventura California

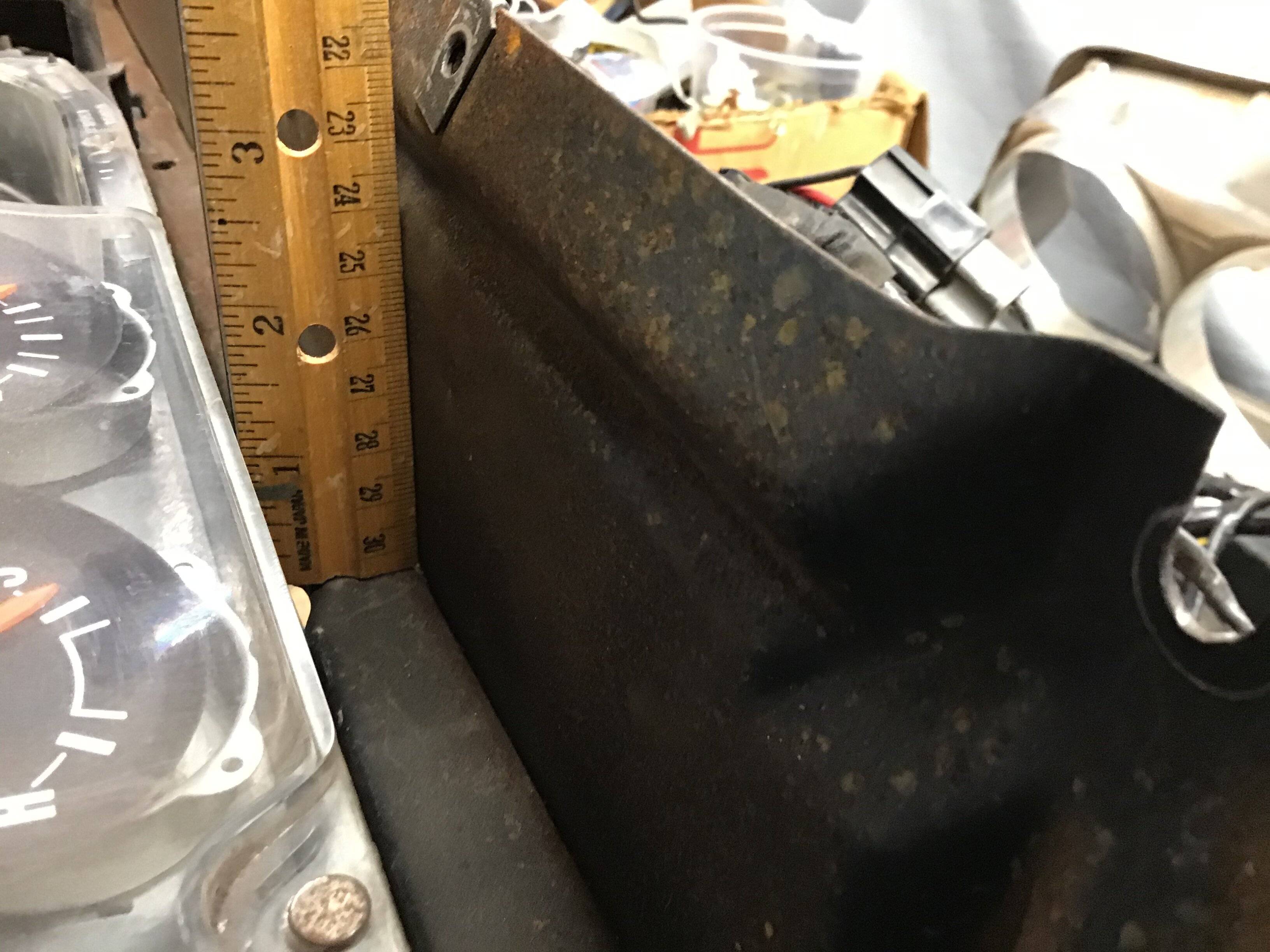

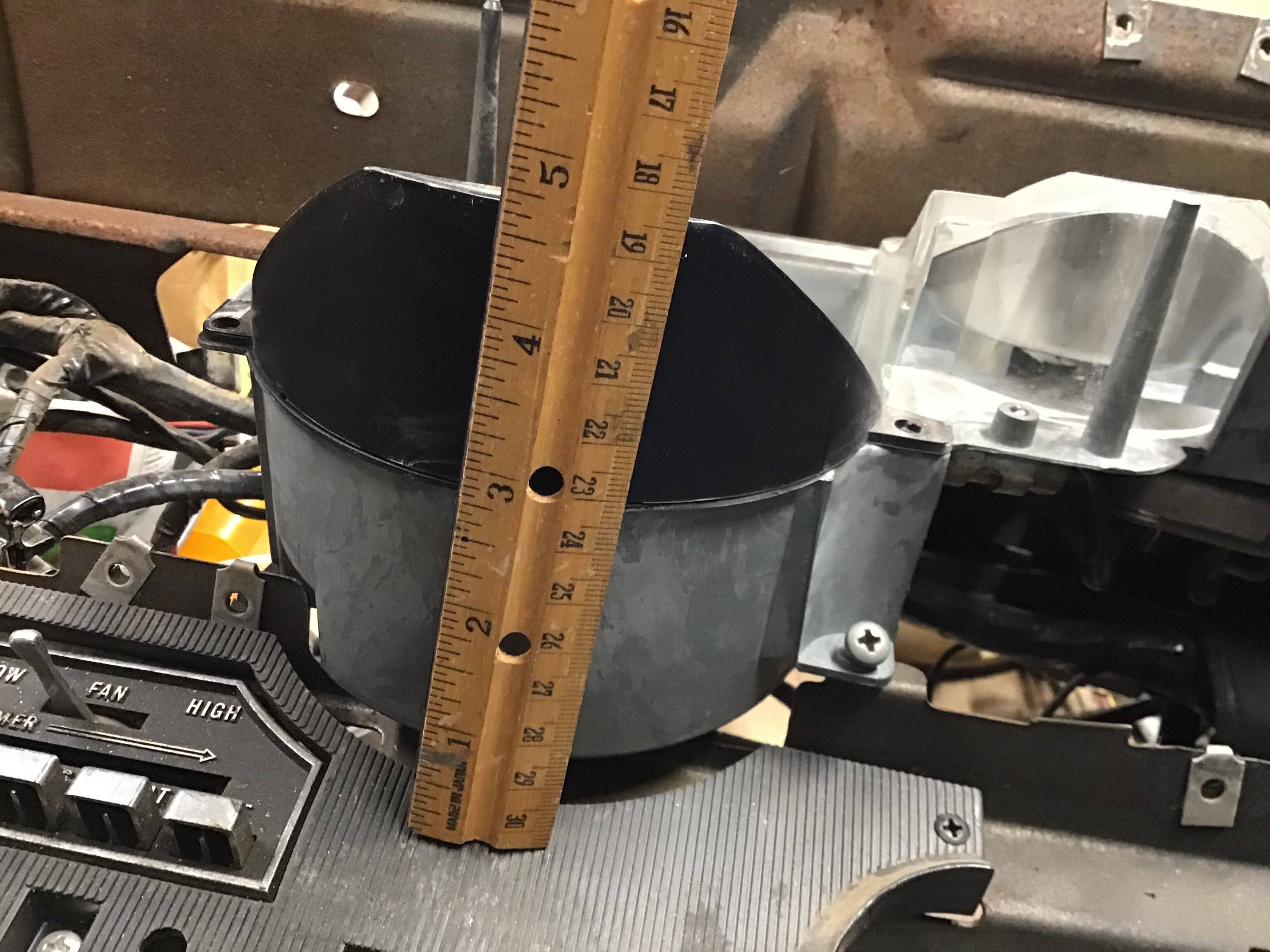

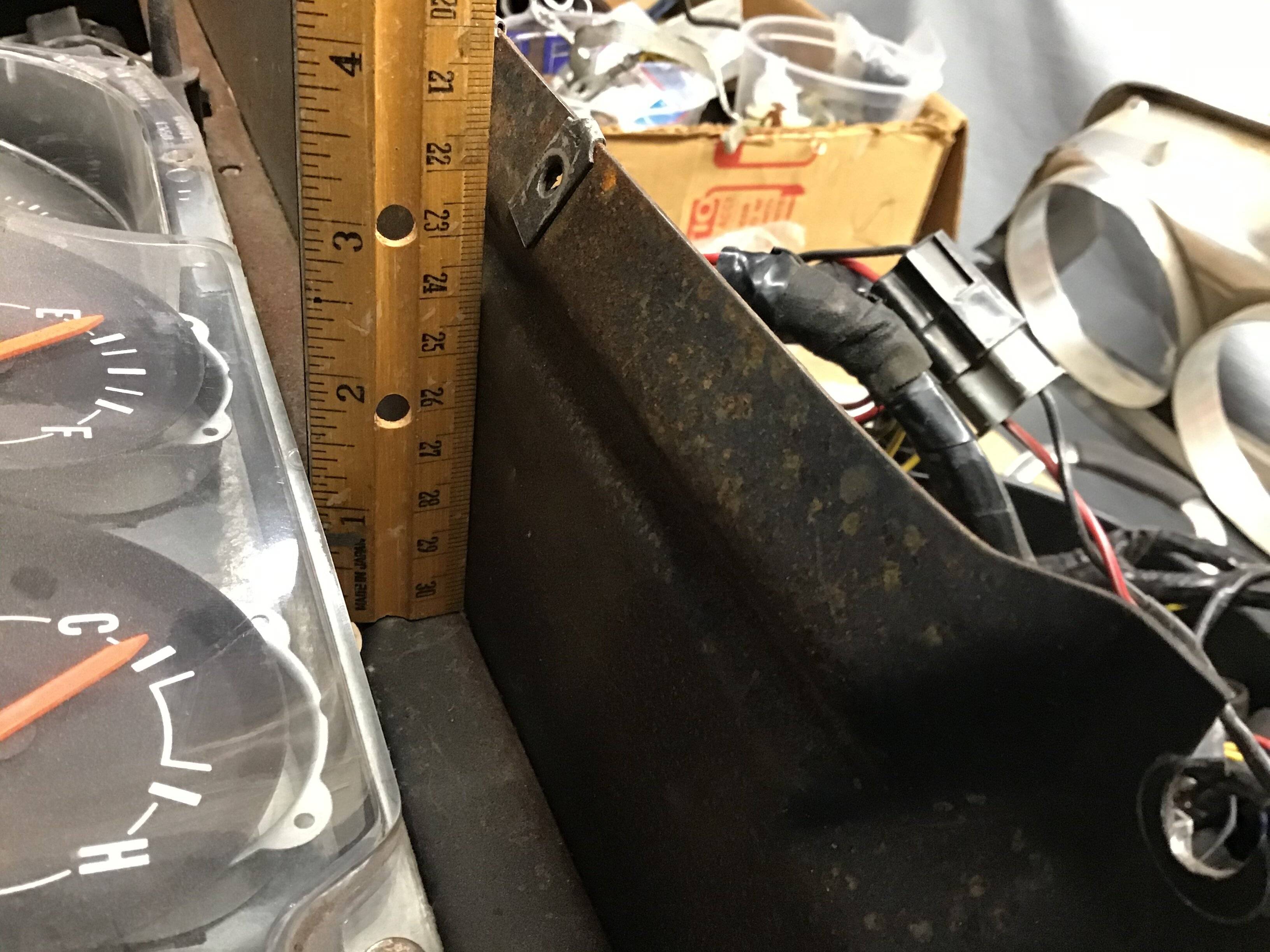

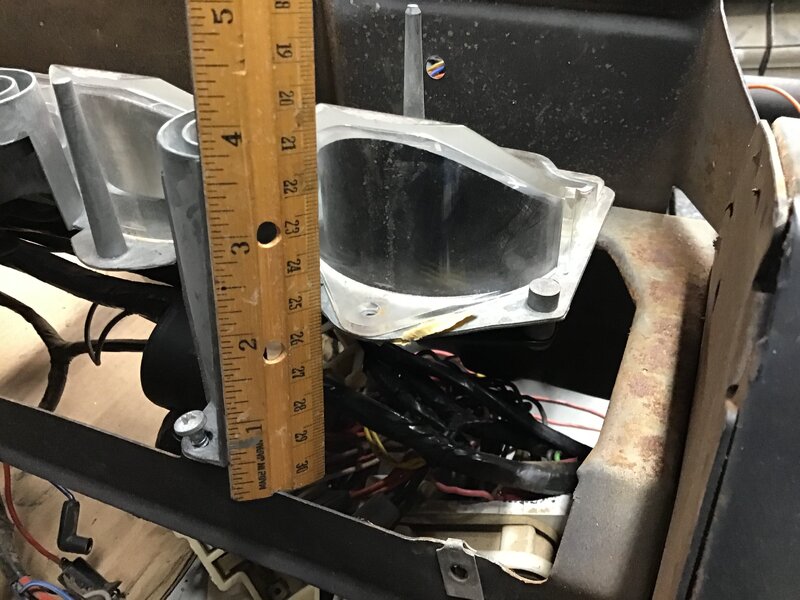

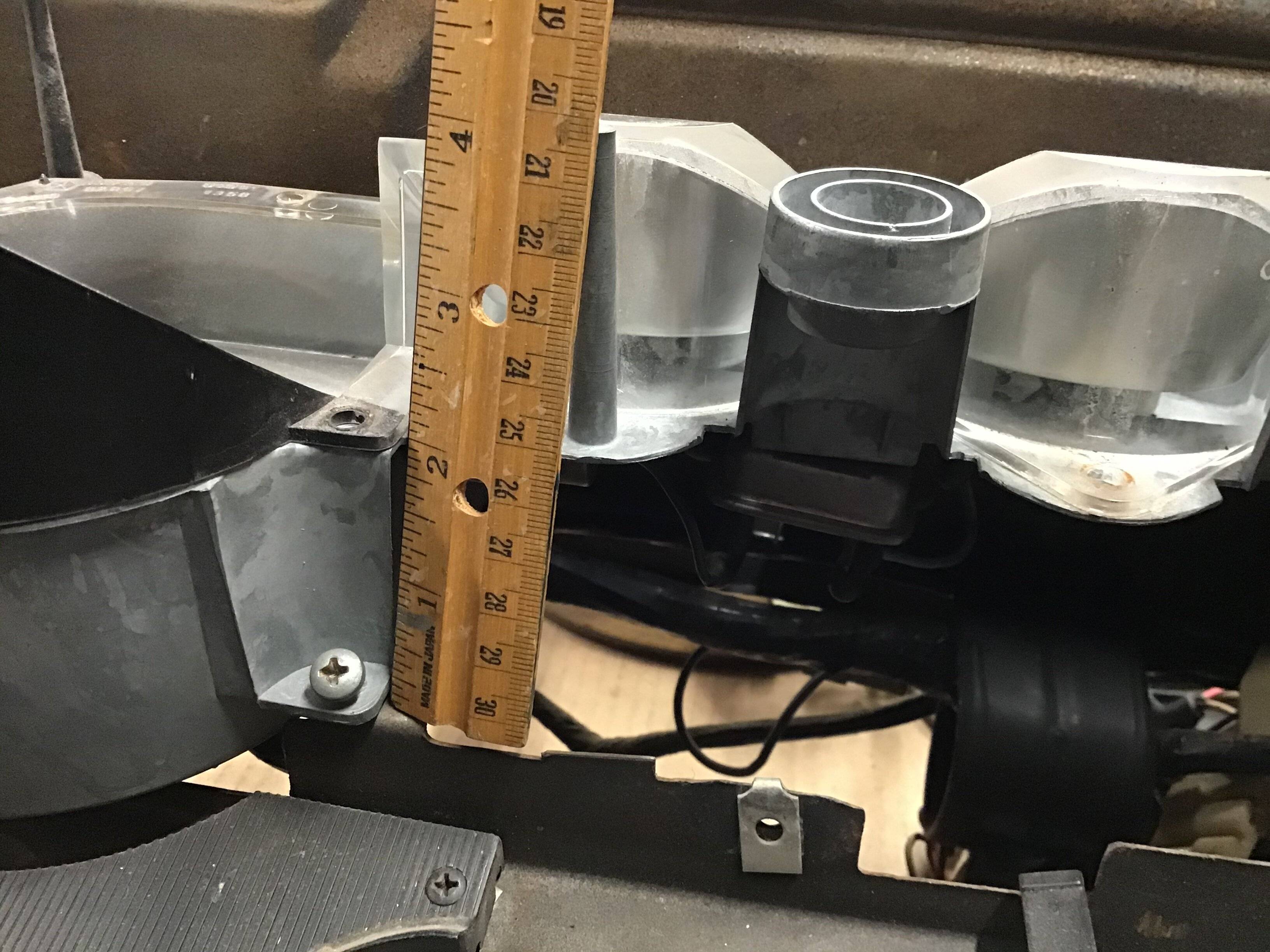

I measured with a stock gauge assembly in the frame maybe you can measure and match it.
