    All, I'm finding out that the big yellow book doesn't show me everything to satisfy my OCD. I'm replacing the package tray pad which is self explanatory to do.

    I do have a question about the jute backing behind the rear backseat. does the pad go on the trunk side of the backing board or the interior side?

    i am also trying to replace my stereo but there seem to be some hidden screws for me to access it? where can i get a diagram for the dash that'll show said screws?

    Thanks.

  2. moparleo

    moparleo Well-Known Member

    Messages:
    4,683
    Likes Received:
    458
    Joined:
    Oct 17, 2011
    Location:
    So. Cal. Riverside area Moreno Valley
    Interior side, otherwise nothing to keep the jute together. It is sandwiched between the seat and divider particle/ hard board. Just like the package tray. Jute between the steel tray and the hard board cover.

  3. moparleo

    moparleo Well-Known Member

    Messages:
    4,683
    Likes Received:
    458
    Joined:
    Oct 17, 2011
    Location:
    So. Cal. Riverside area Moreno Valley
    The factory radio is mounted with 2 screws that are threaded into the bottom of the radio itself. After market radios, on your own. No factory mounts.

  4. Grady Cain

    Grady Cain Well-Known Member

    Messages:
    739
    Likes Received:
    389
    Joined:
    Mar 22, 2014
    Location:
    NW Connecticut

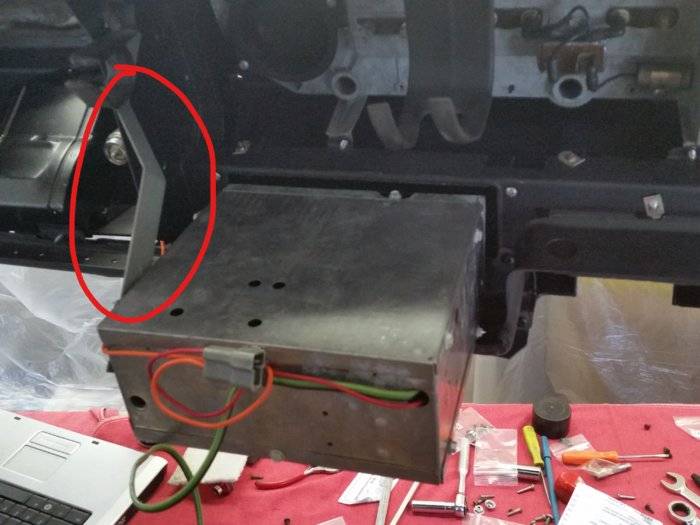

    There is also a side support arm that is attached to the radio (at least there should be)...
