WTB map light harness

Status
Not open for further replies.

Sebastian

Well-Known Member
Joined
Jul 22, 2017
Messages
114
Reaction score
7
Rating - 0%
0   0   0
Contact seller
Hi,

I am looking for a map light harness 1970 - it was installed with the A01 light package.

Here is an example:


DetMatt1

Well-Known Member
Joined
May 13, 2009
Messages
7,839
Reaction score
2,060
Location
Metro Detroit
Rating - 100%
5   0   0

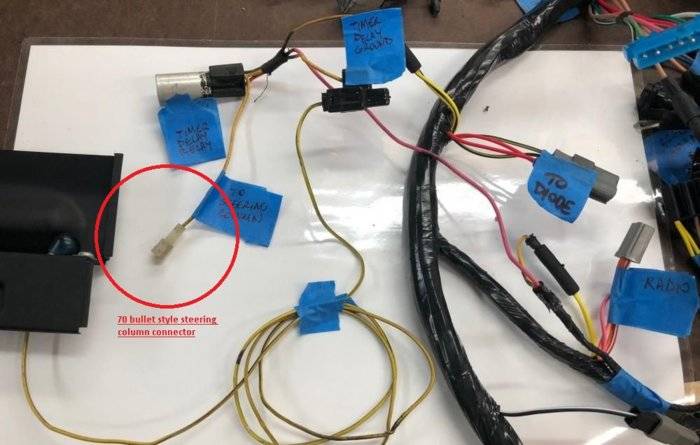

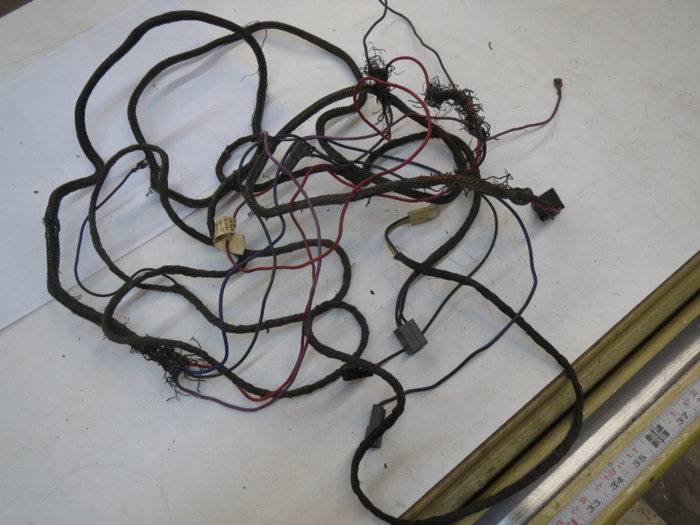

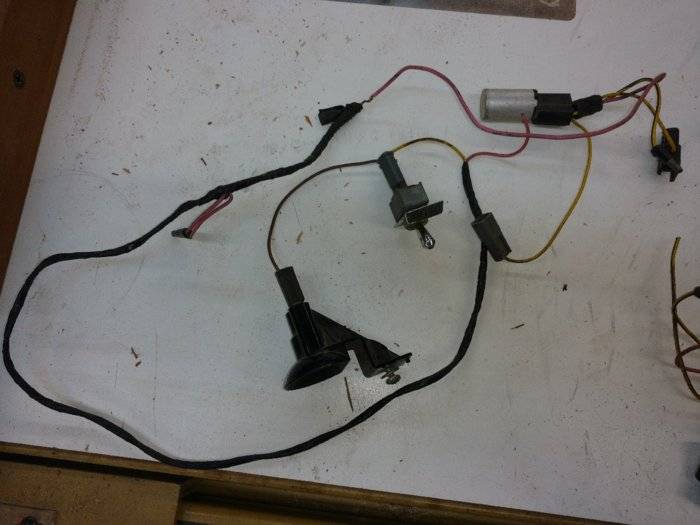

I have this one with some cuts in it but looks to be missing one of the 3 bullet or barrel looking male connectors.
I do have another stash of harnesses that’s currently at a buddies house and I just asked him to check for more.


Sebastian

Well-Known Member
Joined
Jul 22, 2017
Messages
114
Reaction score
7
Rating - 0%
0   0   0
Thanks for checking your stash Matt!
It would be cool if your buddy finds a complete harness.
Otherwise i have to look out for a shop that sells those old type bullet connectors.
I would need some other connectors anyway, because some of mine are damaged.
I have a map light and the light switch at home so i would not need those things necessarily.
The only other helping item would be a (burned) A01 diode because of its connector.


Sebastian

Well-Known Member
Joined
Jul 22, 2017
Messages
114
Reaction score
7
Rating - 0%
0   0   0
Great you found one Matt!
I will pm you.

Your stash is a treasure box, no way to find something like that here in Germany.


Sebastian

Well-Known Member
Joined
Jul 22, 2017
Messages
114
Reaction score
7
Rating - 0%
0   0   0
Now i will post everything harness related that i need no matter if you can help me out with everything - but maybe you have another of those items on hand.

regarding the A01 harness:

Thats your harness with the 71+ standard style steering column connector.
The 70 steering wheel connector is a white bullet like one like that beyond:

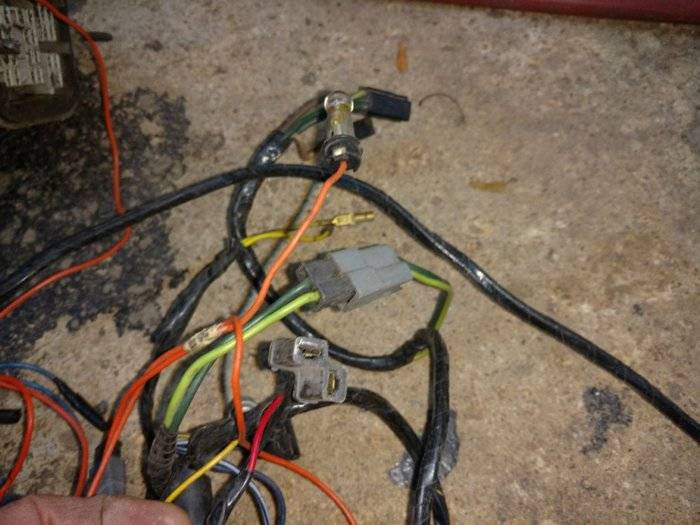

The connector for the buzzer diode is a afaik grey standard t-shaped 2-pin like its used here and there on mopars.
I cant find a better picuture than in post #5

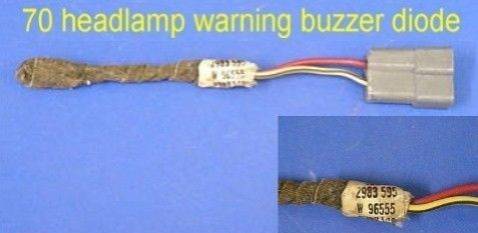

Headlight Buzzer Diagram.jpg_thumb.png


I also need the relay for the A01 harness (its connected to the damaged harness Matt) AND i would also need the other two relays on the picture + the fitting connectors!


Further i am looking for a rear speaker harness

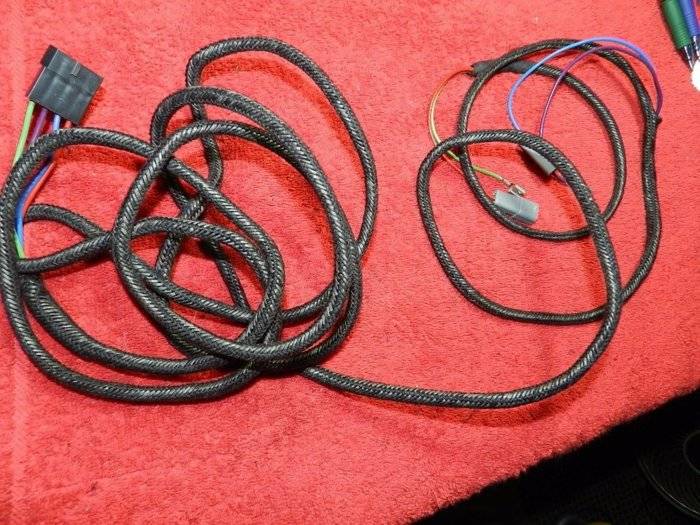

rear speaker.jpg

and a reverse light harness+the light itself


So, that was everything harness related i am looking for even the stuff thats not related to the A01 light package.


DetMatt1

Well-Known Member
Joined
May 13, 2009
Messages
7,839
Reaction score
2,060
Location
Metro Detroit
Rating - 100%
5   0   0

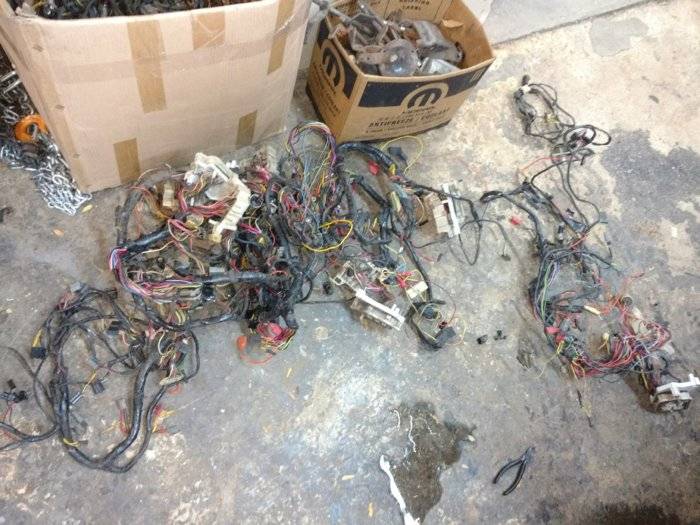

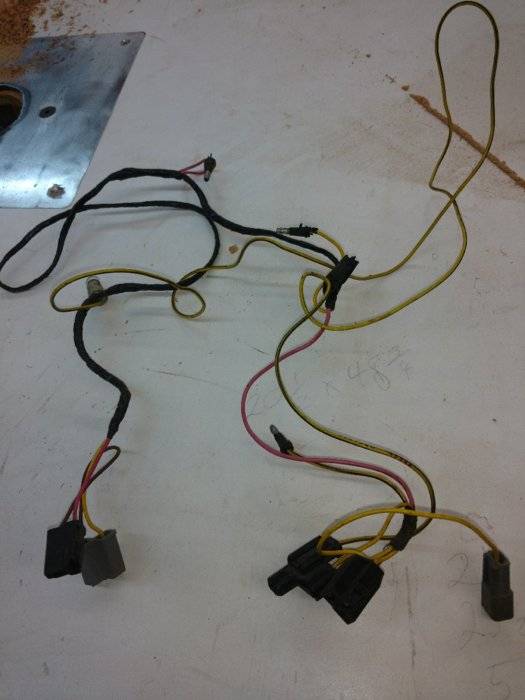

I have this piece which has the time delay relay attached, I’ll see if I can test it.

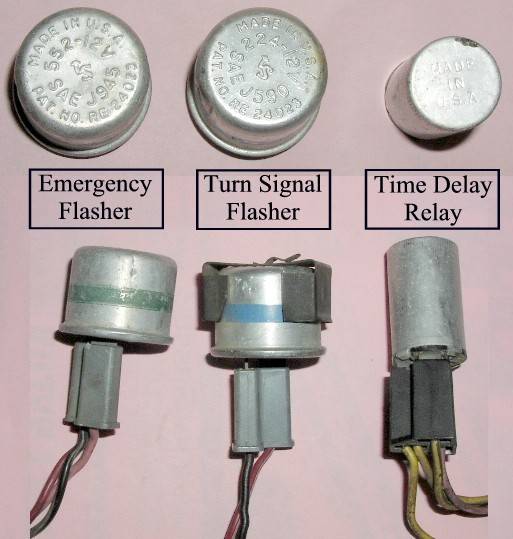

Are you looking for oem signal and flasher relays or will working aftermarket ones work because I have several that I can test.

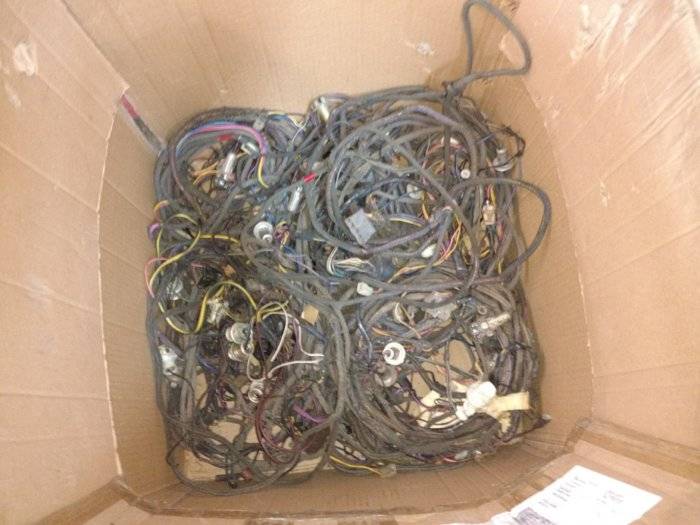

I also have harnesses that still have all the connectors you need still attached. I could cut some of those off or I can make you a good deal on an entire doner harness that’s already damaged or altered. That way you might be able to help some friends or just have some extra stuff for yourself.
Still checking for the rear speaker and reverse harnesses.


Sebastian

Well-Known Member
Joined
Jul 22, 2017
Messages
114
Reaction score
7
Rating - 0%
0   0   0

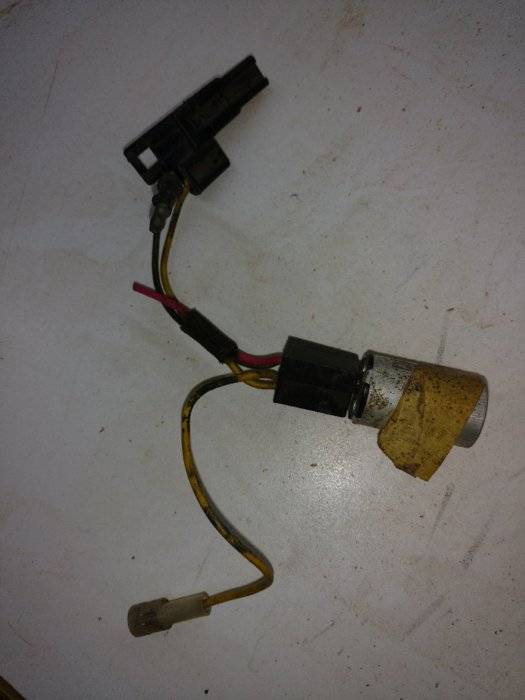

Are you looking for oem signal and flasher relays or will working aftermarket ones work because I have several that I can test.View attachment 54307
My car has modern relays installed and a fully working main harness. My goal is to set it back to factory as far as i can - thats why i am looking for all those harnesses.
The modern relays wont fit in the small mounts under the dash so i was hoping to get some funcional old ones.
I dont know if they are hard to find or expensive - if so i would use the modern ones for now. But would be cool to have some factory ones installed.

I also have harnesses that still have all the connectors you need still attached. I could cut some of those off or I can make you a good deal on an entire doner harness that’s already damaged or altered. That way you might be able to help some friends or just have some extra stuff for yourself.
Still checking for the rear speaker and reverse harnesses.
View attachment 54307

Yes i know what you mean but i dont know if it would be much more expensive to ship that whole harness overseas just to use some connectors.
Indeed i am living in an area where you wont see a lot of mopars - so im kind of a lonely wolf between high class Merdeces and BMW Oldtimers.


DetMatt1

Well-Known Member
Joined
May 13, 2009
Messages
7,839
Reaction score
2,060
Location
Metro Detroit
Rating - 100%
5   0   0

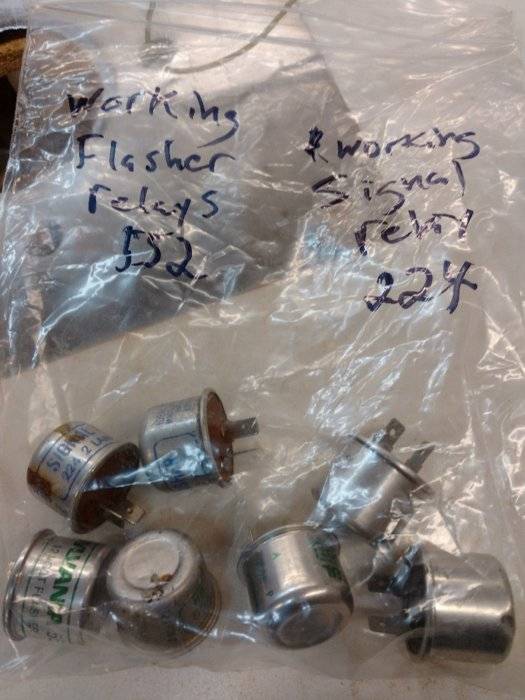

I have these parts store replacements and as of now I’m not sure if I have a working time delay as none of the 3 I have seem to work in my car but that might be a problem in my car. A little troubleshooting will be required and I don’t have much time for that these days.


Sebastian

Well-Known Member
Joined
Jul 22, 2017
Messages
114
Reaction score
7
Rating - 0%
0   0   0
No problem Matt. Either you pic one of the delay relays and i try my luck with it or i buy a new one.
They are still produced.


Sebastian

Well-Known Member
Joined
Jul 22, 2017
Messages
114
Reaction score
7
Rating - 0%
0   0   0

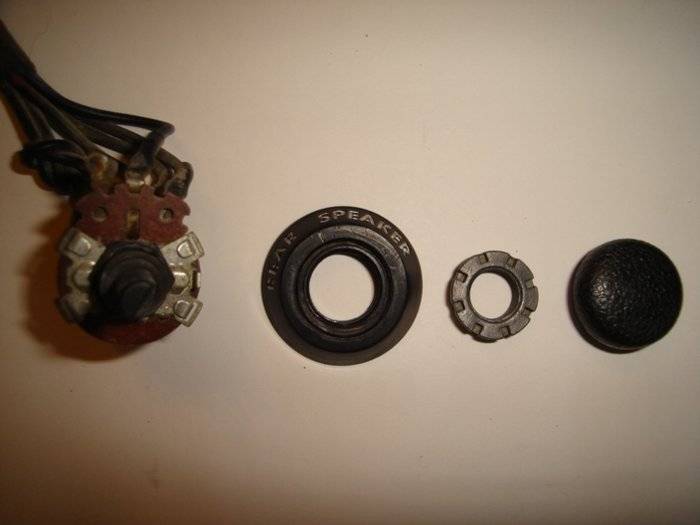

Hey Matt, regarding our pm's - that should be the correct stereo fader harness/knob for a 70 Challenger rallye dash.
I hope i am right.
Please check if its allready on the rear harness which you found.


DetMatt1

Well-Known Member
Joined
May 13, 2009
Messages
7,839
Reaction score
2,060
Location
Metro Detroit
Rating - 100%
5   0   0
Nothing like that on the speaker harness I have but I’m guessing that would be part of the dash harness.


DetMatt1

Well-Known Member
Joined
May 13, 2009
Messages
7,839
Reaction score
2,060
Location
Metro Detroit
Rating - 100%
5   0   0

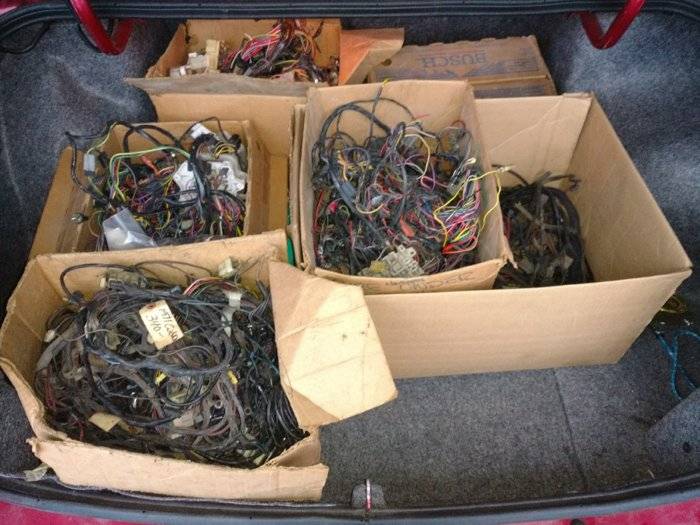

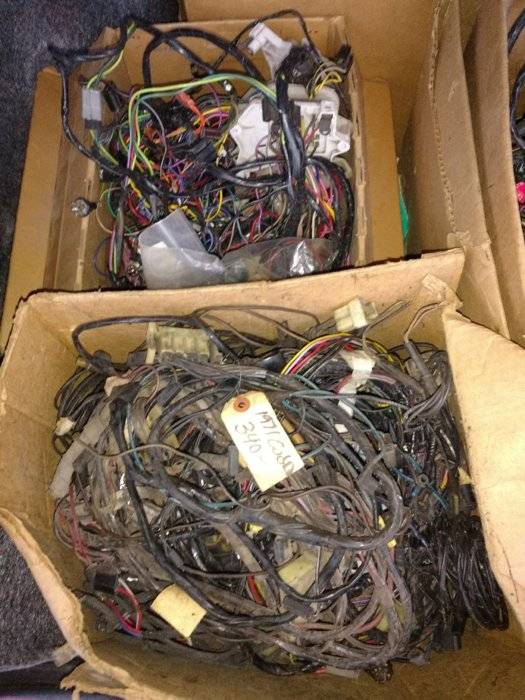

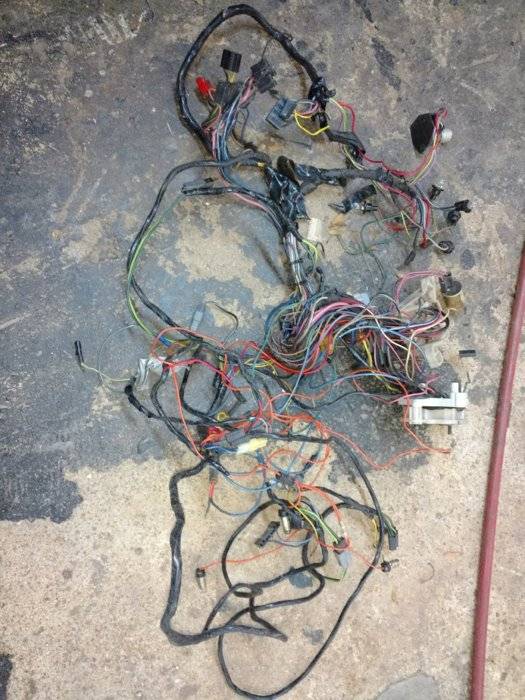

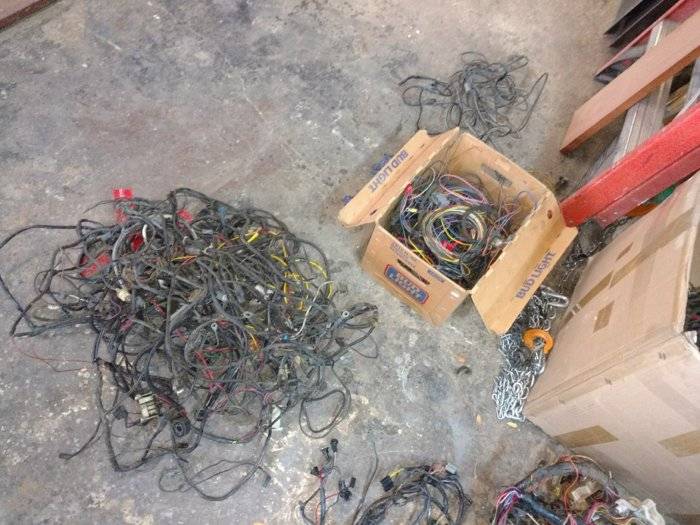

Here’s the rest that I still have to go through so there’s still hope to find the other couple of things you’re looking for.
