Oil Breather 1 vs 3 port for ‘71

ignition1

Well-Known Member
Joined
Nov 4, 2021
Messages
60
Reaction score
25
Location
Hawaii
Which style oil breather is factory equipment for a ‘71 Hemi, 1 vs 3 port?

Or when would a 1 port be used vs a 3 port?




Last edited:

pschlosser

Well-Known Member
Joined
Dec 8, 2022
Messages
545
Reaction score
180
Location
Santa Rosa, California

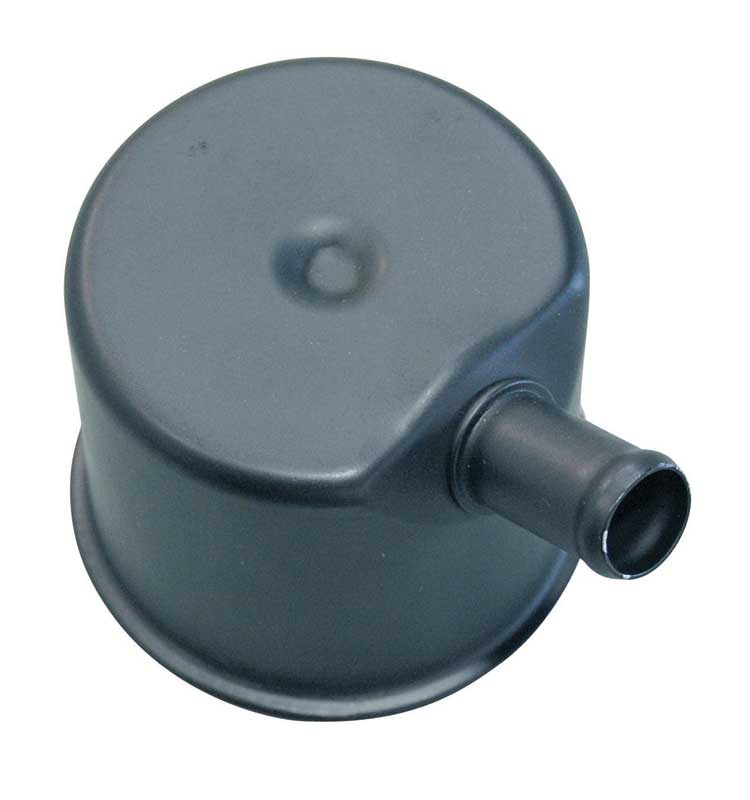

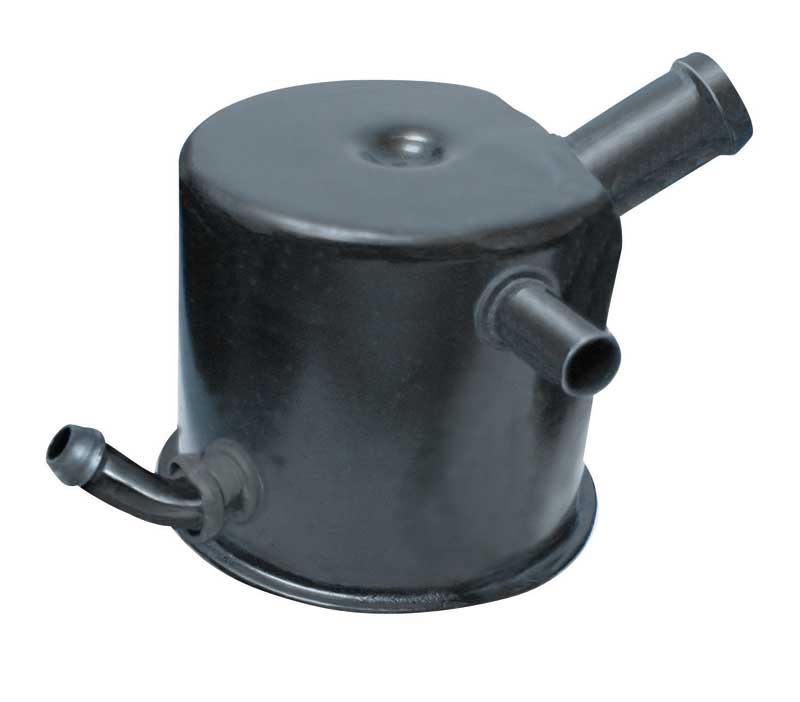

On cars with ECS (Evaporative Control System) aka CAS (Cleaner Air System) the 3-vent cleaner was used. The main one still goes to the air cleaner. But the other two go to carburetor vacuum and fuel tank separator. On cars without this system, the one-vent was used.


ignition1

Well-Known Member
Joined
Nov 4, 2021
Messages
60
Reaction score
25
Location
Hawaii
Would all car ‘70 up be equipped standard with the ECS? Or just say California cars only?


ignition1

Well-Known Member
Joined
Nov 4, 2021
Messages
60
Reaction score
25
Location
Hawaii

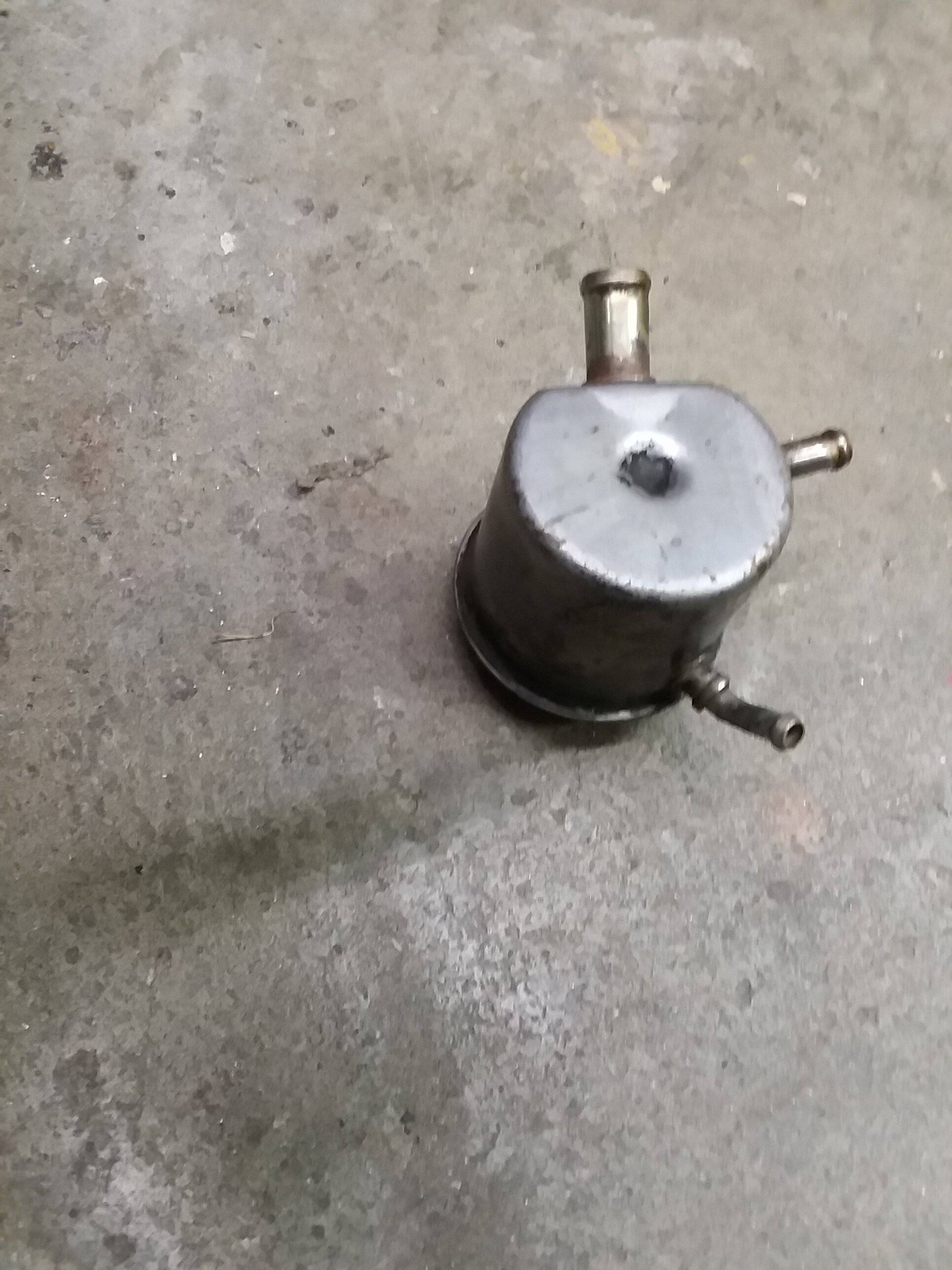

Thank you for the offer, I have both variations at the moment. Unless the 3 port I have doesn’t work I’ll reach out :)
