Passengers door mirror placement

Tirekickertoo

Well-Known Member
Joined
Mar 25, 2014
Messages
168
Reaction score
9
Location
Upstate New York
Hello,
I am looking for a template or measurements to correctly place a factory chrome racing mirror on a 1971 Dodge Challenger passengers door. Anyone have drawings, or measurement's they'd like to share?

Thank you,

Tirekickertoo


challenger6pak

Well-Known Member
Joined
Feb 27, 2011
Messages
4,035
Reaction score
894
The passenger mirror is in the same place as the drivers mirror. For lack of better terms, it is a mirror image.


fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
2,237
Reaction score
1,126
Location
Arkansas
I just unbolted the driver side, measured
from door edge and top edge. Like challenger6pak says, same left or right. The harder part was getting the threaded inserts installed properly.


sheetmetaldan

Well-Known Member
Joined
Jul 22, 2010
Messages
319
Reaction score
12
Location
Acushnet Massachusetts
I just unbolted the driver side, measured
from door edge and top edge. Like challenger6pak says, same left or right. The harder part was getting the threaded inserts installed properly.

How did you install the threaded inserts? I drilled a hole same size as the insert but it never seated into the door. I bought mine from Classic, I ended up using an epoxy to get it to stay put.


fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
2,237
Reaction score
1,126
Location
Arkansas
How did you install the threaded inserts? I drilled a hole same size as the insert but it never seated into the door. I bought mine from Classic, I ended up using an epoxy to get it to stay put.
That may work but, the correct way is to use an insert gun. It’s like doing rivets.
the kit is cheap to buy and, you may need later. The threaded insert is to be used to clamp on each side to the sheet metal leaving a solid anchor to attach the mirror housing. Here’s a quick example of the tool.



fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
2,237
Reaction score
1,126
Location
Arkansas
Don’t know why the add came across “with no special tool”. There may be some like like that but, I used what I call my zert gun. You get the idea though.


gzig5

Well-Known Member
Joined
May 10, 2018
Messages
393
Reaction score
131
Location
Mequon, WI
The special tool makes it faster and easier but it isn't essential. The rivnut can be set with a nut, bolt, and a washer. At least the ones I've used can be. You want the hole to be tight and a light interference fit if you can to get the best grip.


sheetmetaldan

Well-Known Member
Joined
Jul 22, 2010
Messages
319
Reaction score
12
Location
Acushnet Massachusetts
I figured it would crush down like a pop rivit, but when I tried threading in a bolt it bottomed out and didnt crush so I opted for an epoxy sealer. I will pick up the tool and do it right ...I dont need my mirror flying off when i`m headed down the road! Thanks for the help!


fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
2,237
Reaction score
1,126
Location
Arkansas
You may be able to borrow the the tool from Oreillys or another parts store close to you. I wouldn’t buy one if you don’t have to. Chances of needing it again on these cars is slim.


gzig5

Well-Known Member
Joined
May 10, 2018
Messages
393
Reaction score
131
Location
Mequon, WI
I figured it would crush down like a pop rivit, but when I tried threading in a bolt it bottomed out and didnt crush so I opted for an epoxy sealer. I will pick up the tool and do it right ...I dont need my mirror flying off when i`m headed down the road! Thanks for the help!
It should collapse somewhat like a rivet. You thread a bolt in and then hold the bolt and tighten the jam nut to collapse it. You need to pull the threaded shank back towards the head.
One method. Plenty of how to's and videos out there.

But if you can get hold of the real tool, go for it. I would think most body shops should have one.


sheetmetaldan

Well-Known Member
Joined
Jul 22, 2010
Messages
319
Reaction score
12
Location
Acushnet Massachusetts
Glad I went and found the tool for this ($20 Harbor freight.) The epoxy I used to keep the threaded inserts in came right off. I have no doubt my passenger mirror at some point would have fallen right off!


fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
2,237
Reaction score
1,126
Location
Arkansas
Glad I went and found the tool for this ($20 Harbor freight.) The epoxy I used to keep the threaded inserts in came right off. I have no doubt my passenger mirror at some point would have fallen right off!
agreed


MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
496
Reaction score
383

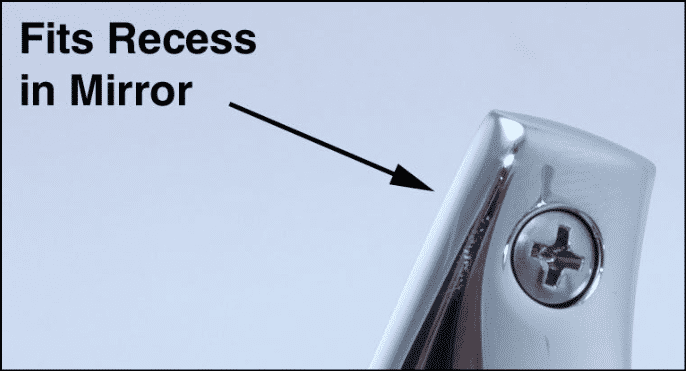

I will look for a RH mirror diagram for measurements on a Challenger to see what I can find.

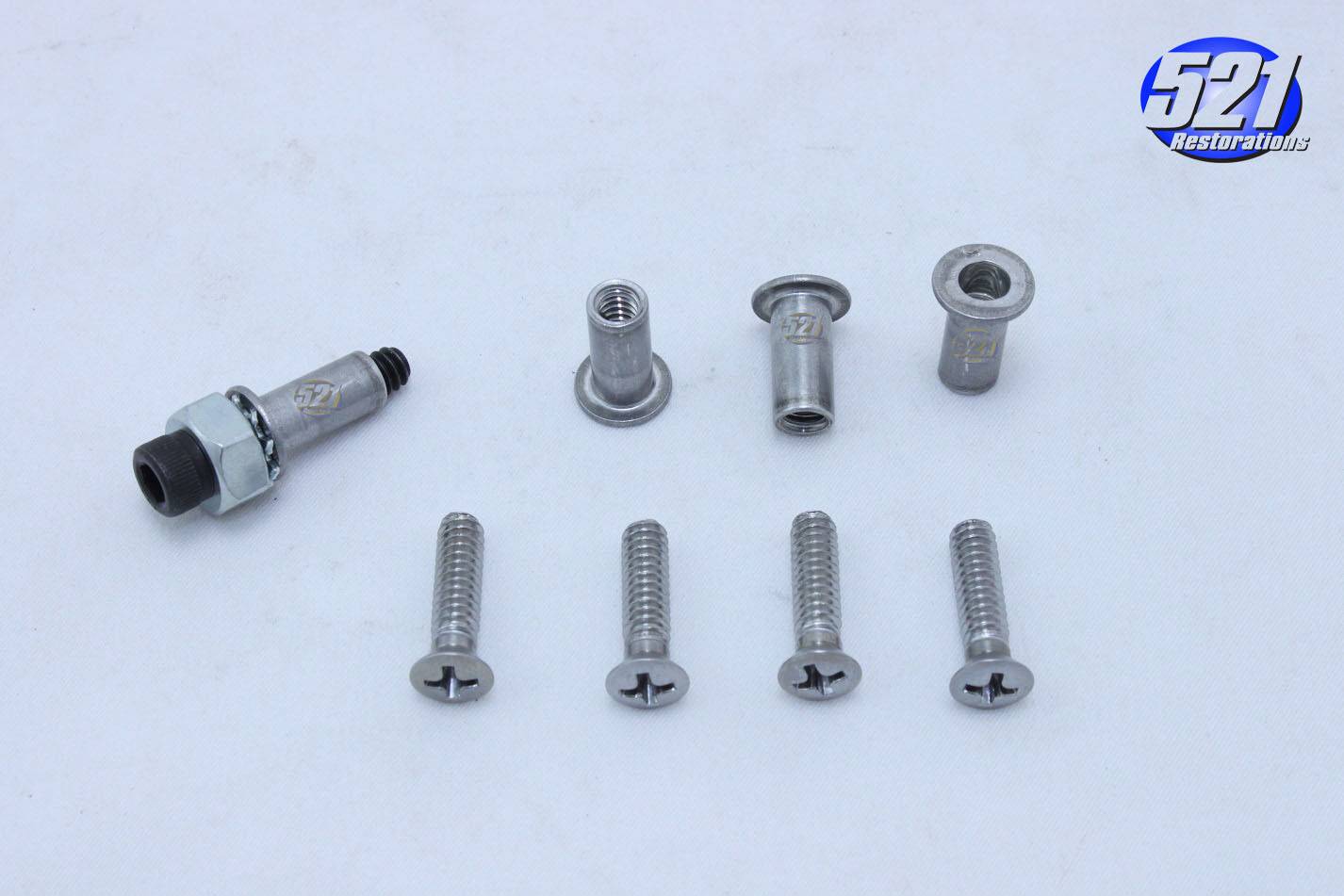

The rivnut tool is best but this kit includes a tool to get it done. First picture is a link.

s-l1600 (5).jpg
