Proportioning valve pictures and diagram needed

Brakes

  1. Tirekickertoo

    Tirekickertoo Well-Known Member

    Messages:
    100
    Likes Received:
    7
    Joined:
    Mar 25, 2014
    Location:
    Upstate New York
    Hello,
    I am looking for proportioning valve pictures and brake line diagrams for a manual disc brake front and rear drum brake 1974 Dodge Challenger. I will be adding this OEM factory system to my car in a few days. I'm not exactly sure which way this valve is suppose to be mounted to the inner fender well or what brake lines connect to which port?

    Thanks in advance for your help,

    Tirekickertoo

  2. azmoparboy

    azmoparboy Well-Known Member

    Messages:
    82
    Likes Received:
    12
    Joined:
    Apr 13, 2012
    Location:
    Chandler AZ

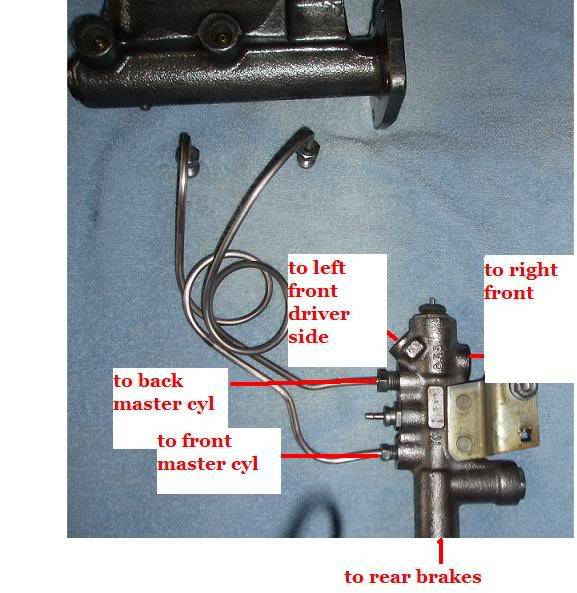

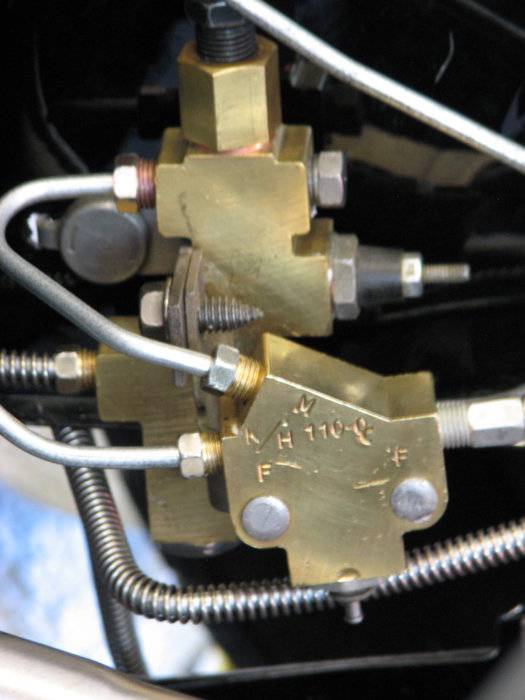

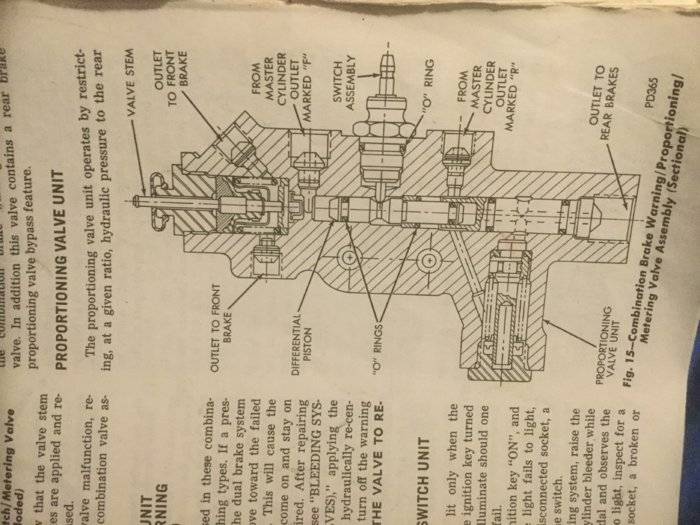

    Hi, I have a 1973 shop manual and here is the view of the valve. I don’t have a view of the lines themselves, but if you’ve ordered and have the correct lines from a reputable line fabricator , your lines should hook up with just a little line adjustment. Hope this helps

    Azmoparboy


  3. 340challconvert

    340challconvert Well-Known Member

    Messages:
    3,034
    Likes Received:
    1602
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ

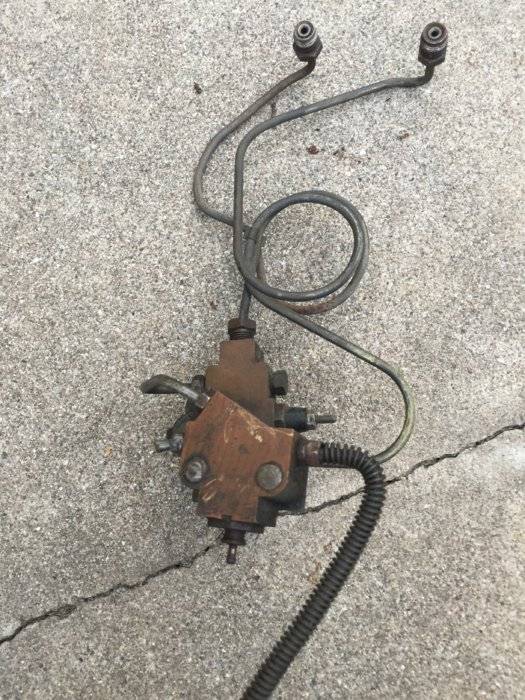

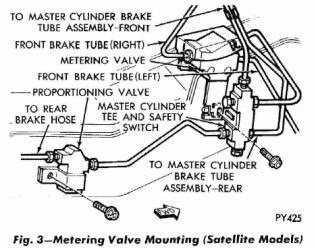

    This is from a Satellite, but layout and line placements should be similar. Hope it helps

    IMG_3267 (1).JPG



  4. Rapidfire

    Rapidfire Member

    Messages:
    24
    Likes Received:
    13
    Joined:
    Aug 7, 2019
    Location:
    Culbertson Nebraska

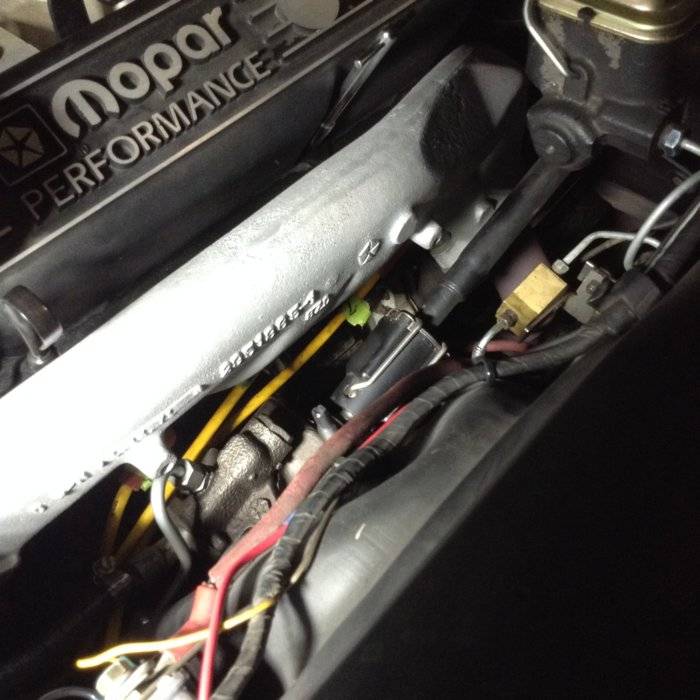

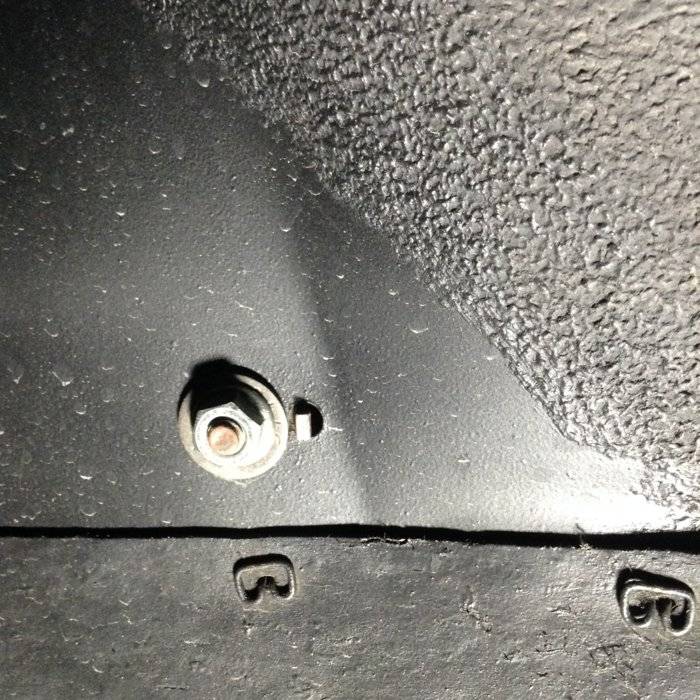

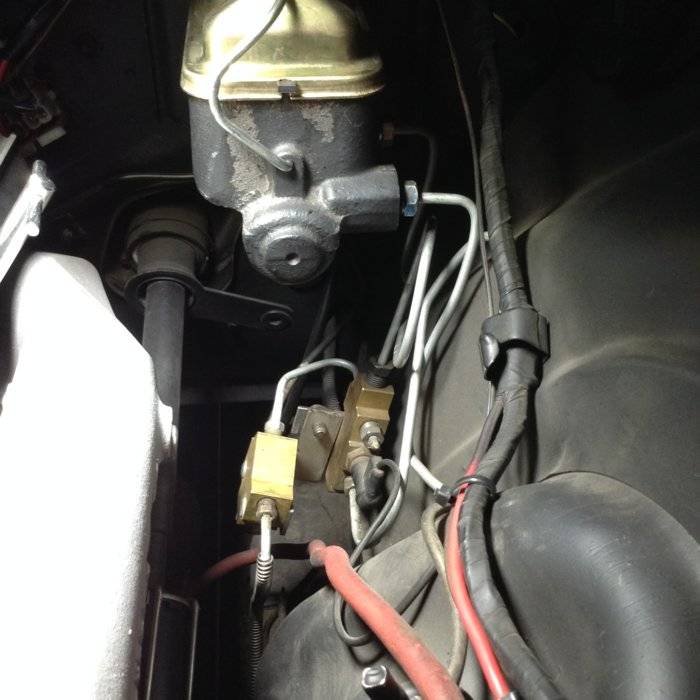

    This is a stock set up on my 70 challenger. It has the manual front disc/rear drum. Should be the same on your 74!?




    • Like Like x 1
