Purpose of Conical Washers

money pit

Well-Known Member
Joined
Nov 17, 2017
Messages
505
Reaction score
62
What is the purpose of the conical washers used on the exhaust manifold? Are they supposed to be on all bolts and studs? Can I use regular flat washers or lock washers? When I bought my engine it didn't have exhaust manifolds. I saw the washers in the service manuals. Thanks


Rat Rod AL

Well-Known Member
Joined
Nov 30, 2020
Messages
311
Reaction score
49
Location
St. James City FL

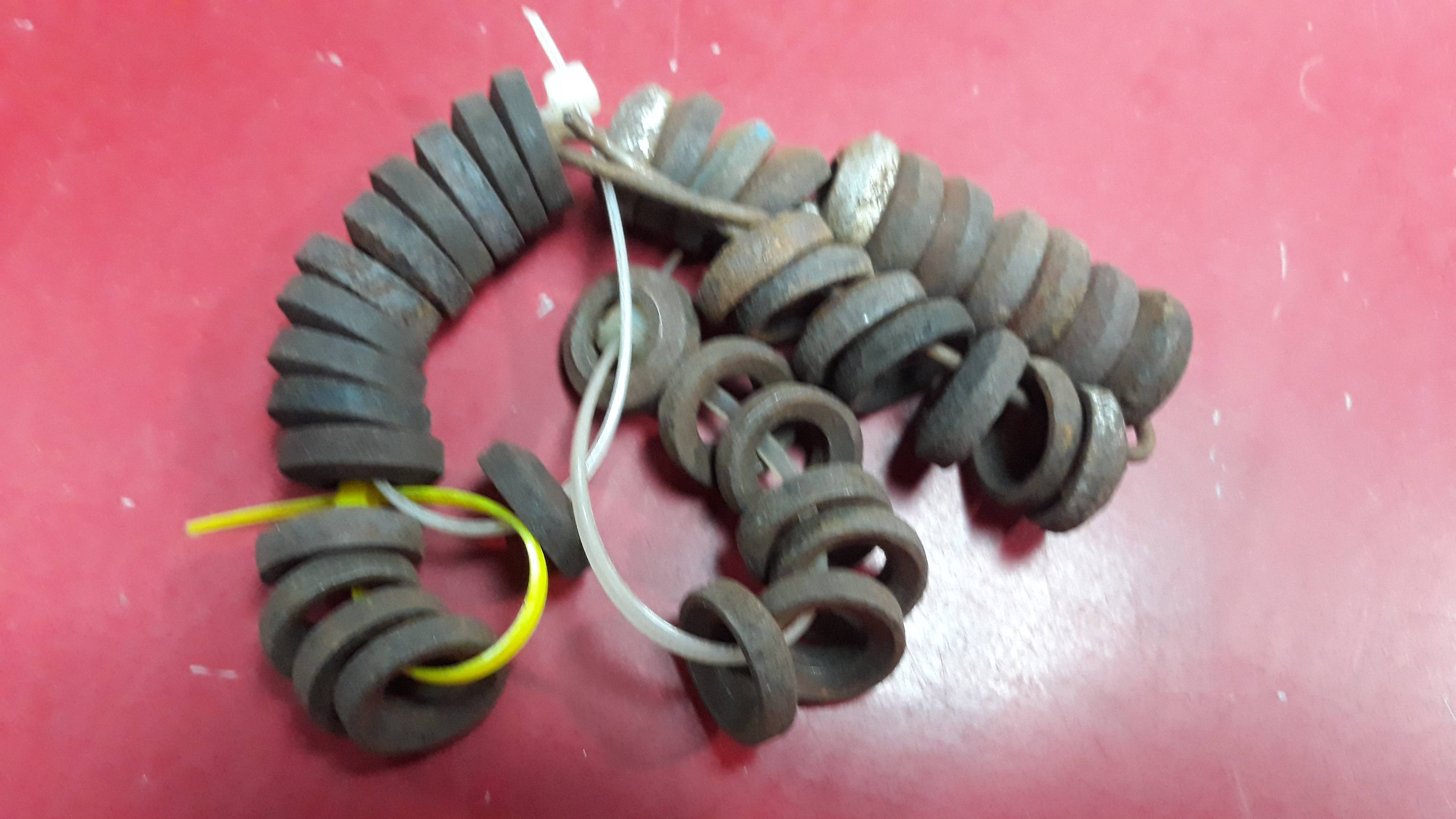

I don't know the answer ,but if it comes down to you needing some I know who has a bunch !


Daves69

Well-Known Member
Joined
Feb 4, 2014
Messages
312
Reaction score
94
Location
ChiWest
Looks like they distribute the clamp force further out from the stud or bolt? Maybe help deter manifold cracking and warpage?


Chryco Psycho

Well-Known Member
Joined
Dec 28, 2008
Messages
4,402
Reaction score
2,043
Location
Panama
They also act as a lock washer , the cone will flatten slightly & help keep it tight as it expands & contracts with heat .


70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
1,260
Reaction score
975
Location
Western Washington
All of the above, additionally due to the dissimilar metals (cast iron and steel), the conical crush washers can take the expansion and contract of heat cycles without loosening.
