Ralley Dash Question

BubbaJ

Active Member
Joined
Jan 17, 2020
Messages
35
Reaction score
10
I am rebuilding a Ralley dash for a 73 Challenger. Can someone tell what is the item on the back of the instrument cluster housing that looks like a condenser and would anyone have a PN for it or lead to acquire one. I know about the voltage limiter.

Thanks


Chryco Psycho

Well-Known Member
Joined
Dec 28, 2008
Messages
4,402
Reaction score
2,043
Location
Panama
It would be a condenser to protect the points from arcing inside the voltage reg , if you go to an electronic reg you do not need the condenser anymore .


Wendell

New Member
Joined
Mar 4, 2019
Messages
1
Reaction score
0

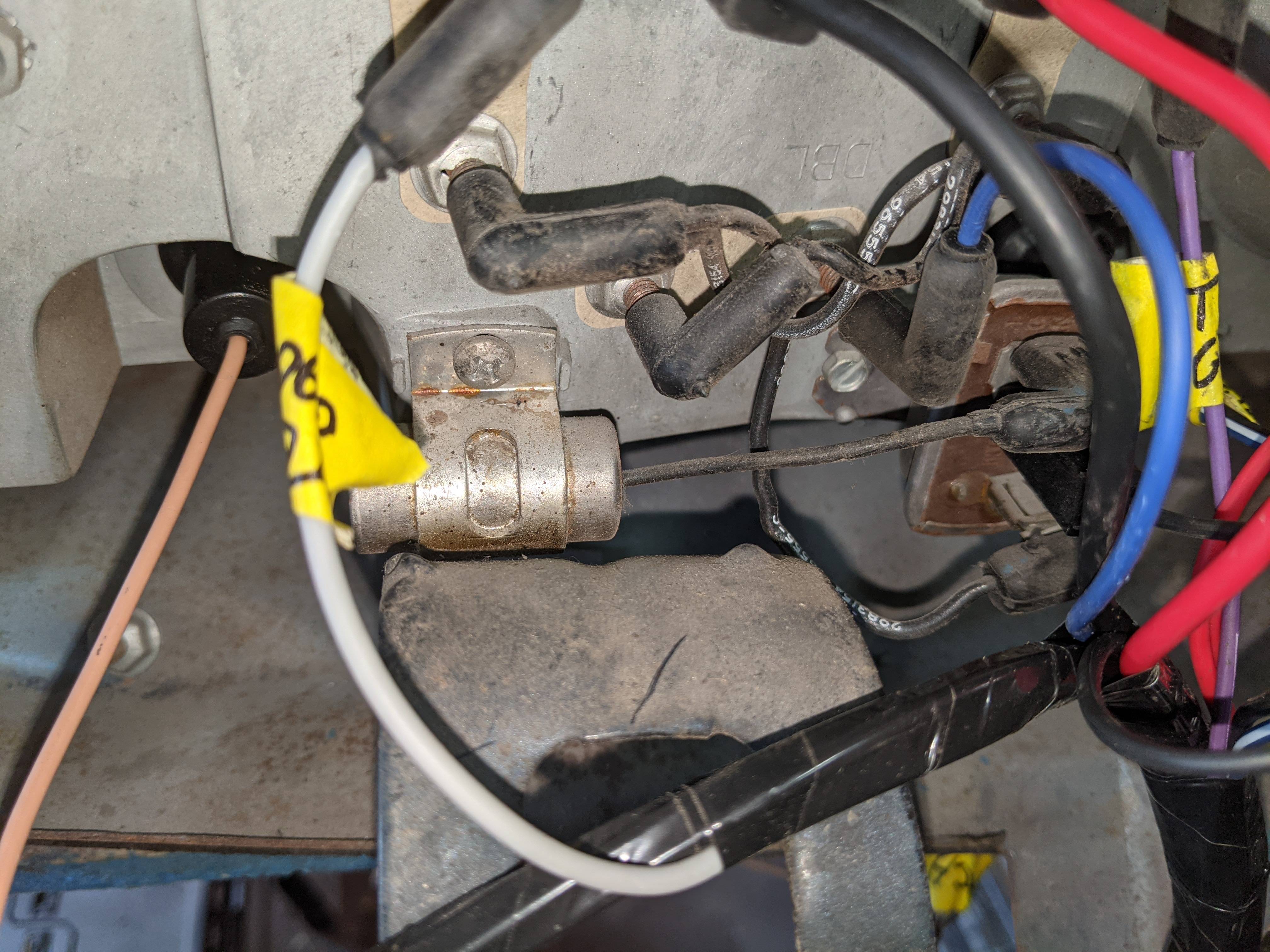

I also had this same question. I am replacing the harness and also run into this condenser. I am running a MSD eltronic distributor and coil. So can I leave this as is or pull it out?


Attachments

  • PXL_20210806_205237599.jpg
    1.1 MB · Views: 126

Chryco Psycho

Well-Known Member
Joined
Dec 28, 2008
Messages
4,402
Reaction score
2,043
Location
Panama
if you are using the factory voltage reg for the dash the condenser protects the points in the reg , if you are using the solid state reg no need for the condenser
