rally wire harness id

Electrical and Ignition

  1. robin93784

    robin93784 Member

    Messages:
    12
    Likes Received:
    0
    Joined:
    May 27, 2017
    could any body help me to determine how to id a rally dash wire harness from a standard dash harness? i have a couple of harnesses to post for sale and i know one of them is from a rally dash but i want to make sure and list it correctly. thank you!!

  2. rklein71

    rklein71 Well-Known Member

    Messages:
    220
    Likes Received:
    41
    Joined:
    Feb 27, 2015
    A rally dash harness has wires for an oil pressure gage, tach, and clock whereas the standard dash has an extra light socket for the the oil pressure idiot light, no tach wires, or clock wire.

    • Like Like x 1
  3. rklein71

    rklein71 Well-Known Member

    Messages:
    220
    Likes Received:
    41
    Joined:
    Feb 27, 2015
    If you are looking to save a few bucks, a standard dash harness can be modified to work with a rally dash. It is what I did. Rod


    • Like Like x 1
  4. paharamia

    paharamia Well-Known Member

    Messages:
    1,837
    Likes Received:
    773
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ

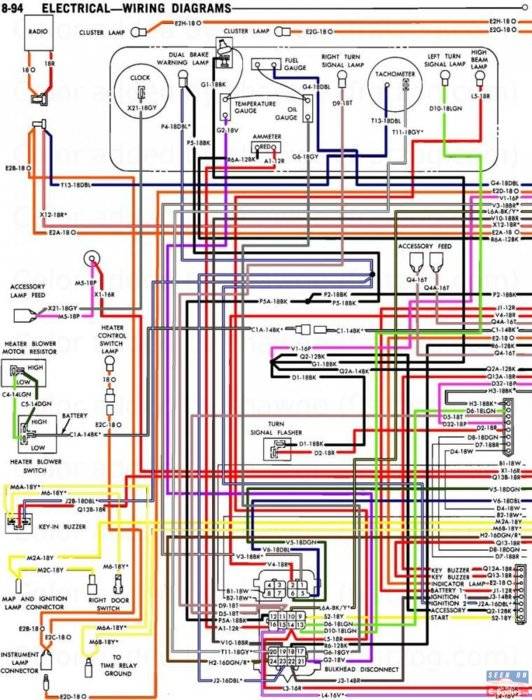

    This could help you trace wires by color.


    Dino2 (1).gif

    • Like Like x 1
  5. robin93784

    robin93784 Member

    Messages:
    12
    Likes Received:
    0
    Joined:
    May 27, 2017
    THANK YOU EVERYONE FOR YOUR HELP!!!!
