Why buy repros made in who knows where when you can have your original, factory hinge cores remanufactured to new operating condition. I will only use authentic, original cores. NO REPROS! Over 15 years of building only Mopar door hinges. Hundreds of sets sold. 100% satisfaction world wide.
I can rebuild your cores, exchange with refundable core charge or Sell outright with no core. Your choice.

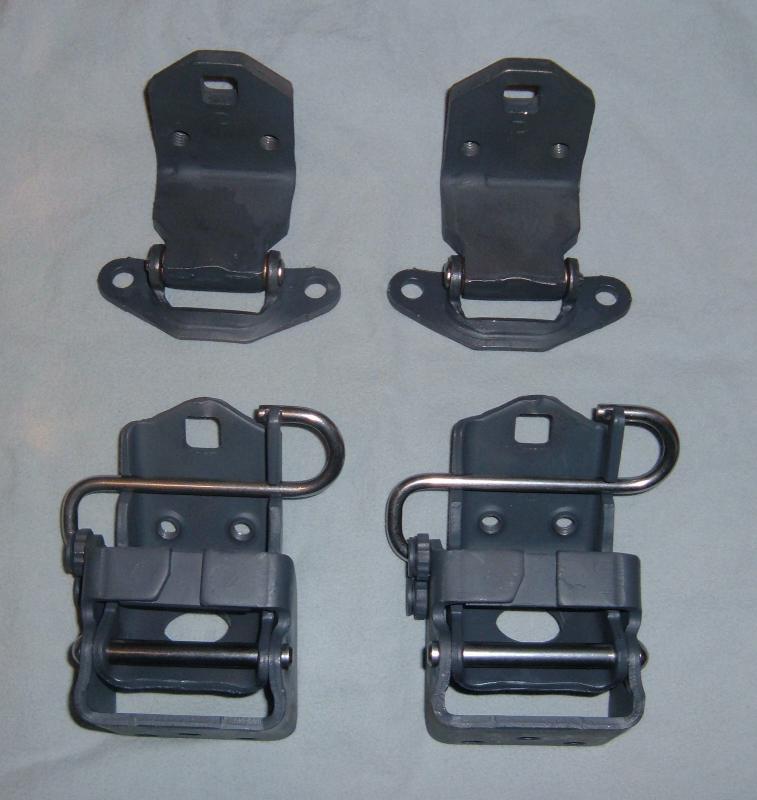

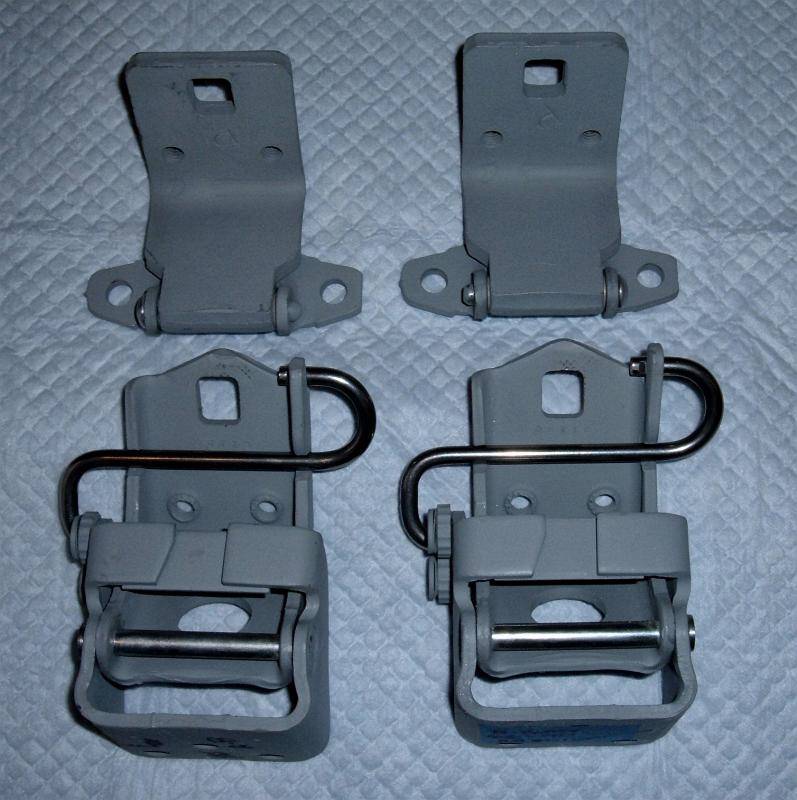

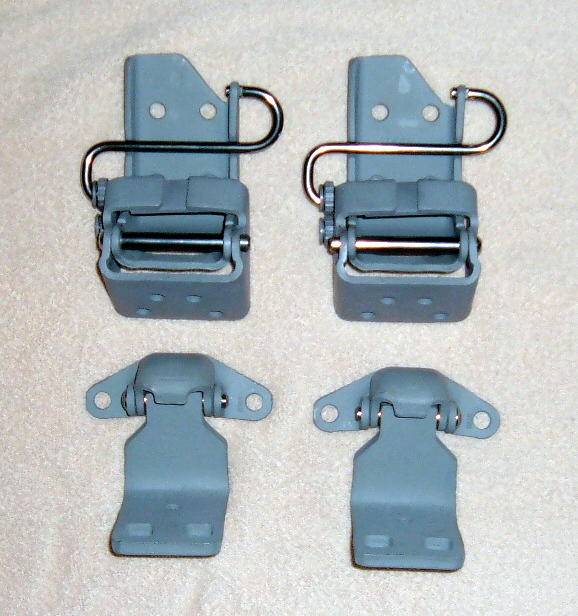

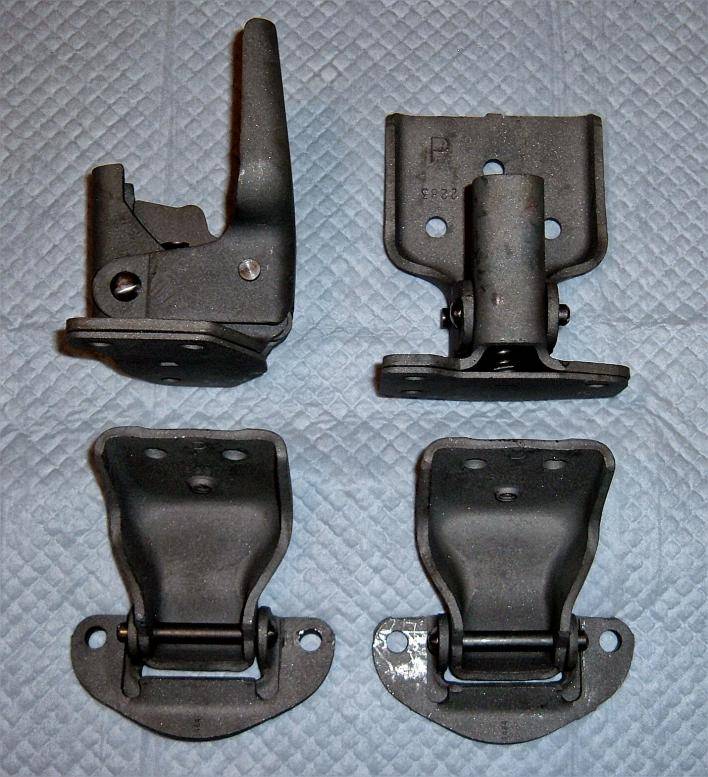

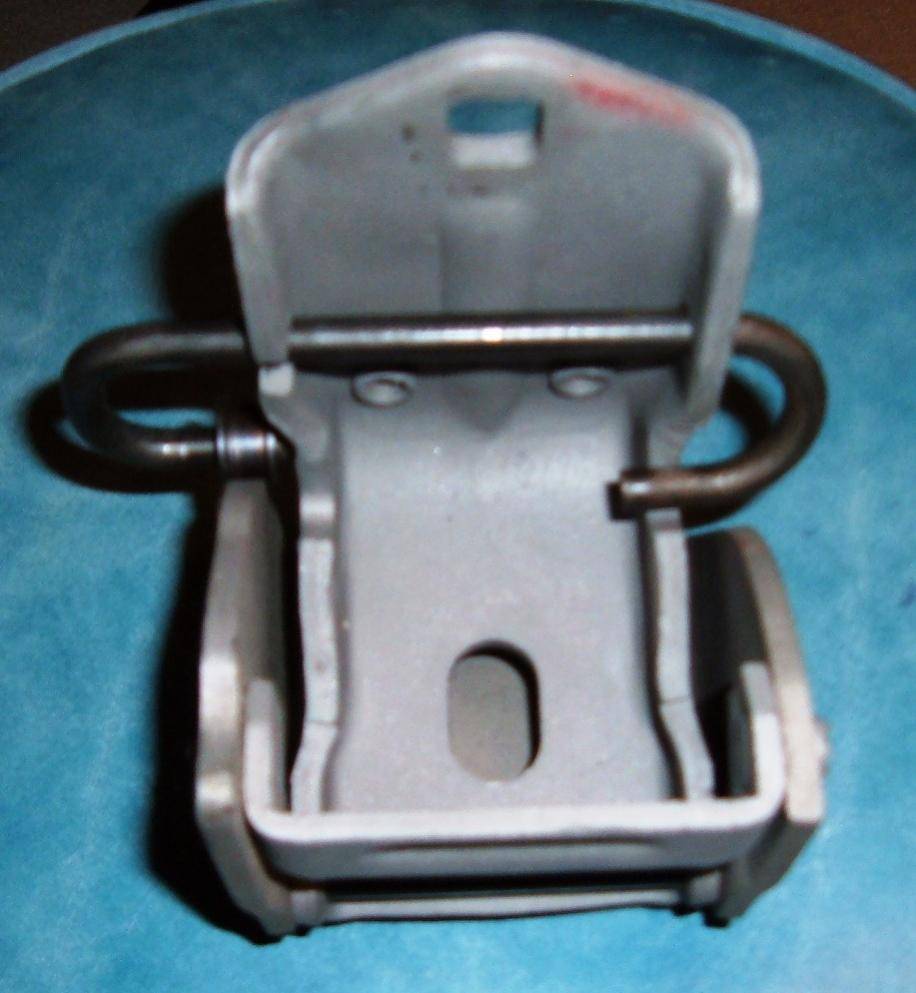

I normally have rebuilt sets in stock for 1967-1978 A-body, 1962-1965 B-body, 1967-1970 B-body, 1971-1973 B-body, and 1970-1974 E-body.
All wearable moving parts replaced with new, US made parts.
Not a pin and bushing kit.
The typical process is :
Complete disassembly, bead blast and inspect for broken, cracked or otherwise damage parts
Minor problems repaired if possible

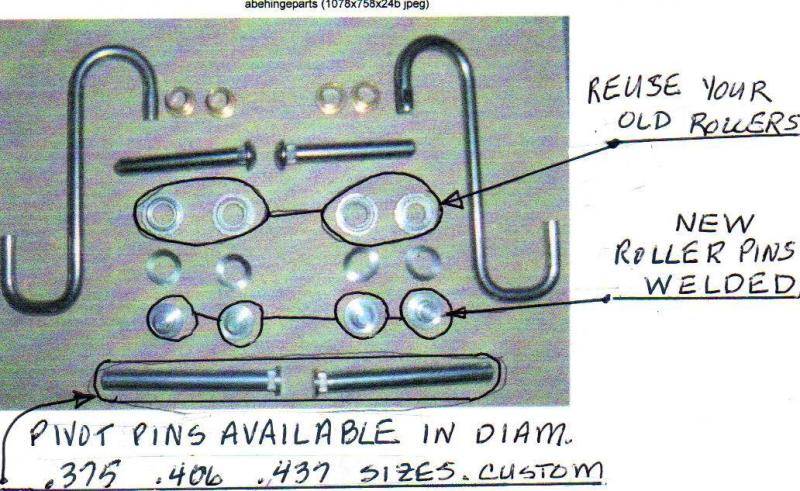

Lower hinge detent rollers and pins removed
New roller pins and washers welded to hinge body
Lower hinge pin holes bored and reamed to fit custom, oversized pivot pins
Primed with Rust-oleum Auto motive primer, compatible with enamel or lacquer
Reassembled with new, dry lubed upper bushings and pins
New dry lubed lower pivot pins and Torsion spring ( S )
All threaded holes chased with a tap
Install instruction reprint from Factory manual
Free tech advice, just PM
FEBO members get a 10% discount off retail pricing.
Volume pricing available for Auto body and restoration shops.
67-78 A-body, 67-70 B-body, 70-74 E-body List price $180.00 plus refundable core.
Discount price $160.00 plus refundable core
62-65 and 71-73 B-body list price $220. plus refundable core charge.
Discount price $ 198.00 plus refundable core.
Refundable core charge $60.00 .
This is for 2 front doors, top and bottom. 4 total hinges.
US Priority Mail shipping to lower 48 is $11.00
Postal money order and PAY-PAL accepted for payment.
Thank you for your business and please PM me with any questions.
Pictures coming.
