Shaker hood 340 air cleaner assembly help needed-

Fuel and Air Systems

  1. Mitch

    Mitch Member

    Messages:
    15
    Likes Received:
    0
    Joined:
    May 25, 2017
    Any advise on these details are welcome-70 Cuda 340 project
    I picked up a converted shaker hood today with trim ring installed ($150 yeah real cheap) and started finding some parts on Ebay (shaker bubble $145 Bubble vents $100) - My car will use a 4 barrel and I been looking at parts diagrams and not seeing much in the details-I an not planning on having a pull cable for air opening type vents and now trying to see what all I need to get this thing up and mounted-so if those in the know can look at my parts list and see if I am missing anything-and not sure how it will all go together this is what I think is needed and how it all goes together-
    -4 barrel flat plate (mounts on carb)
    -Some kind of smaller round air cleaner with top (goes atop 4brl carb against flat plate)
    -Shaker bubble ( mounts to flat plate somehow-but how)
    -Shaker bubble vents
    -Shaker rubber ring-I assume this mounts somehow to the shaker bubble

  2. terrywalker

    terrywalker Member

    Messages:
    17
    Likes Received:
    0
    Joined:
    Aug 31, 2013
    Lets see if I can explain. The shaker base plate mounts on the carb and a wing nut on carb stud clamps it down. The air filter goes on it with the lid and clamps with a wing nut on carb stud. The base plate has an outer ring plate that holds the rubber seal. The shaker bubble bolts to the outer base plate ring. I have photos of my shaker apart on my other computer. I'll post some photos later.
    Terry

  3. Mitch

    Mitch Member

    Messages:
    15
    Likes Received:
    0
    Joined:
    May 25, 2017
    If the bubble bolts to the plate it sounds like to get to the air cleaner you have to unbolt that that bubble rather than wing nuts? What holds the base plate in place is there a ring clamp around the carb under that plate, or is it held in place by the air cleaner wing nut and cap and unless tightened can rotate a bit, or ? The air cleaner what size would that be ( height x width) and is it just sitting on the base plate with a top cap that a wing nut holds it down? Once the bubble is bolted to the base plate does the rubber seal stretch onto that or is it sandwiched between the base plate and bubble that gets bolted together and that holds it in place?

  4. terrywalker

    terrywalker Member

    Messages:
    17
    Likes Received:
    0
    Joined:
    Aug 31, 2013

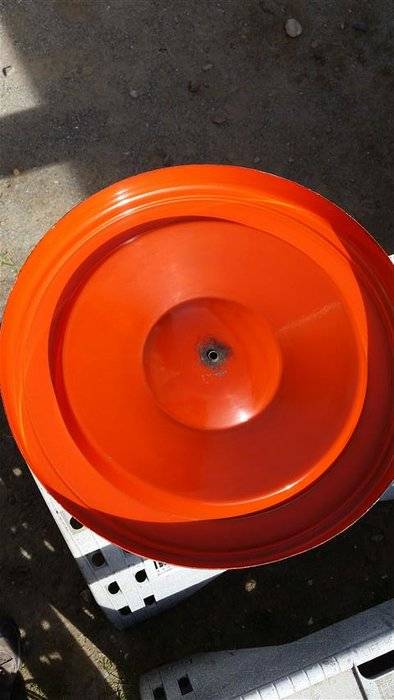

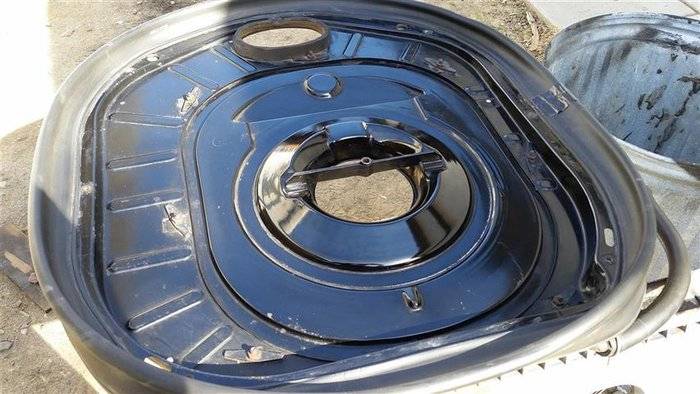

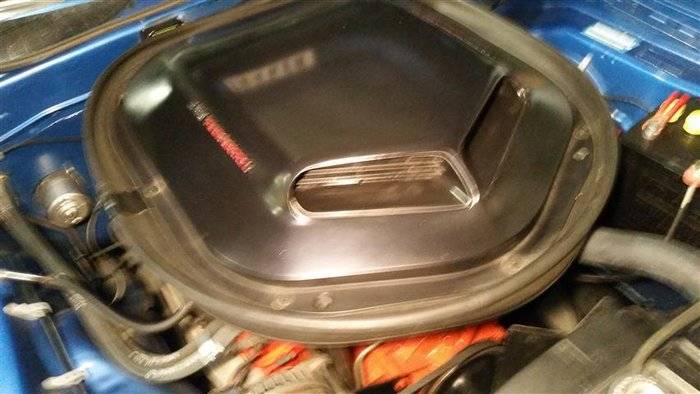

    Here's some photos as promised. The base plate has a bridge over the carb opening that slides down over the carb stud. Install wing nut. Install filter and then air cleaner lid. Wing nut to hold lid in place. Seal is attached to outer base plate ring. You can see shaker bolts to base plate outer ring. Let me know if you need anymore photos.
    Terry

    20150310_112635 (Medium) (Small).jpg

    20150310_114550 (Small).jpg

    20170616_095404 (Small).jpg

  5. terrywalker

    terrywalker Member

    Messages:
    17
    Likes Received:
    0
    Joined:
    Aug 31, 2013

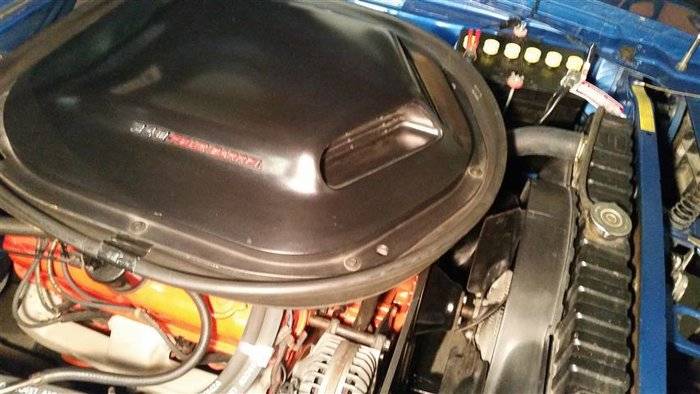

    Sorry for the last pic. I didn't view it from my phone first. Here's a better one.
    Terry

    20170616_100007 (Small).jpg

  6. terrywalker

    terrywalker Member

    Messages:
    17
    Likes Received:
    0
    Joined:
    Aug 31, 2013

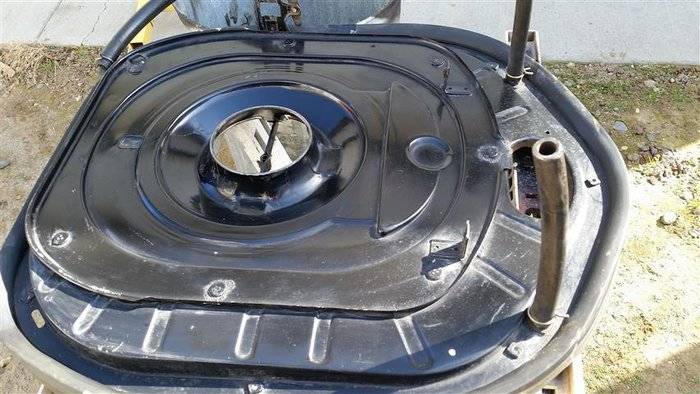

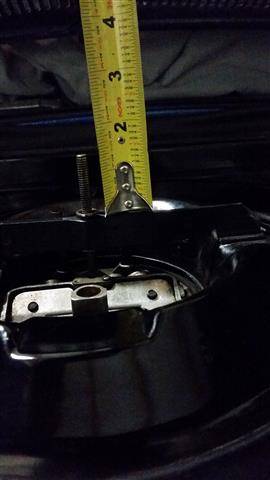

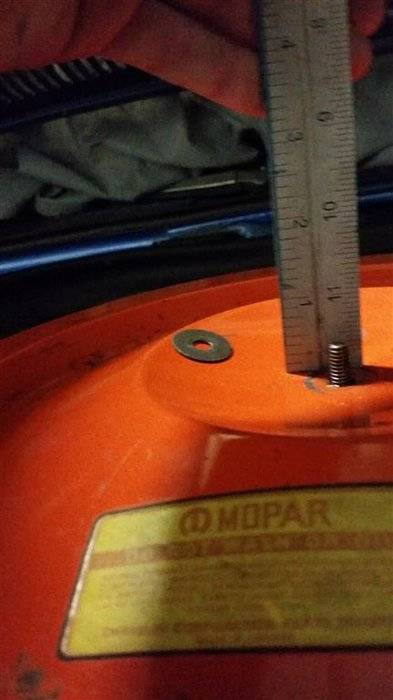

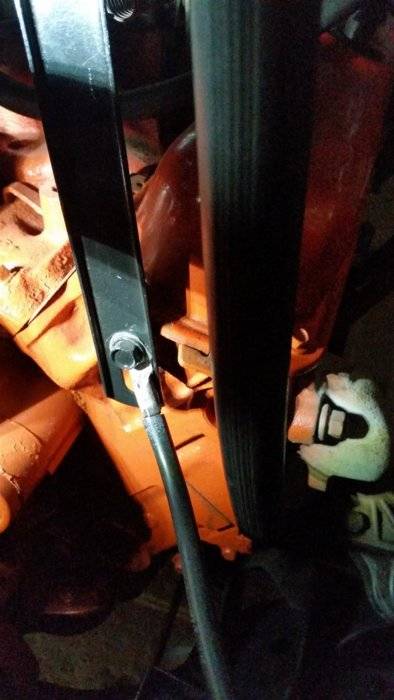

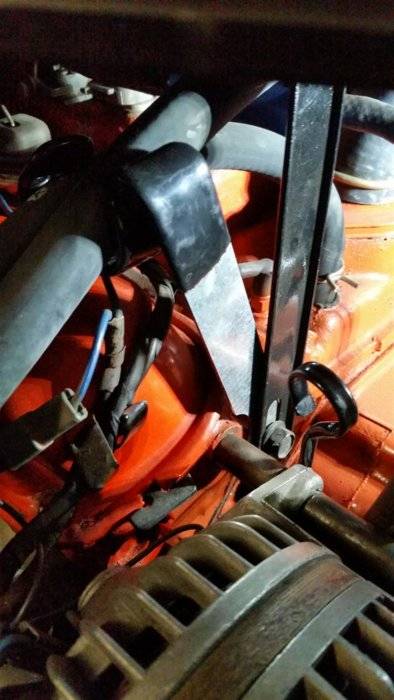

    Here's a couple more photos that may help. Amount of carb stud sticking through the base plate bridge while on carb. Other is amount of stud sticking through filter lid. This has stock Thermo-quad on it. Another shows the baseplate upside down. Note feet at front that attach to engine with legs to support baseplate.
    Terry

    20150310_190212 (Small).jpg

    20150310_191439 (Medium).jpg

    20150310_112602 (Small).jpg

  7. Mitch

    Mitch Member

    Messages:
    15
    Likes Received:
    0
    Joined:
    May 25, 2017
    Great pictures -thanks so much- what size diameter is that orange air cleaner lid or part number and what is the height or part number of the air cleaner itself -

  8. terrywalker

    terrywalker Member

    Messages:
    17
    Likes Received:
    0
    Joined:
    Aug 31, 2013

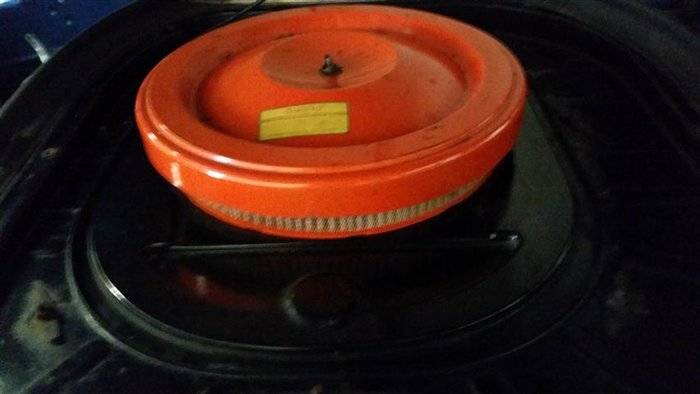

    The lid is probably around 13" in diameter - I've seen repros of these lids are available. There is no air cleaner. Once the baseplate is on carb and wingnut is installed, place air filter element on baseplate and then put lid on top of filter element and wingnut to tighten lid on filter element. The filter element is held in place by the raised lip on baseplate.

  9. terrywalker

    terrywalker Member

    Messages:
    17
    Likes Received:
    0
    Joined:
    Aug 31, 2013

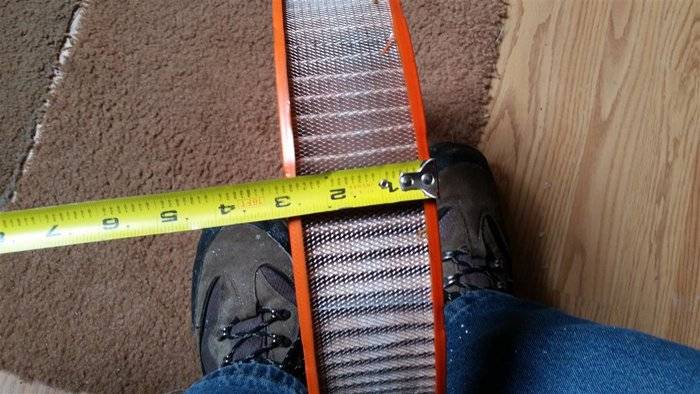

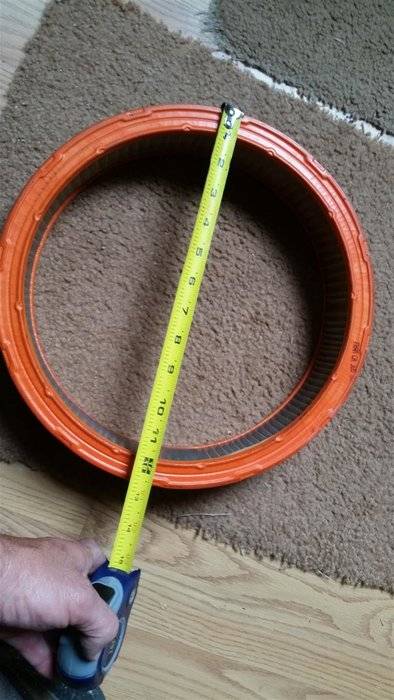

    Ok, took the shaker apart. Lid is about 14" outside diameter. the Filter element is a Fram CA305. About 12-3/4 " outside diameter by 2-3/4" high.

  10. terrywalker

    terrywalker Member

    Messages:
    17
    Likes Received:
    0
    Joined:
    Aug 31, 2013

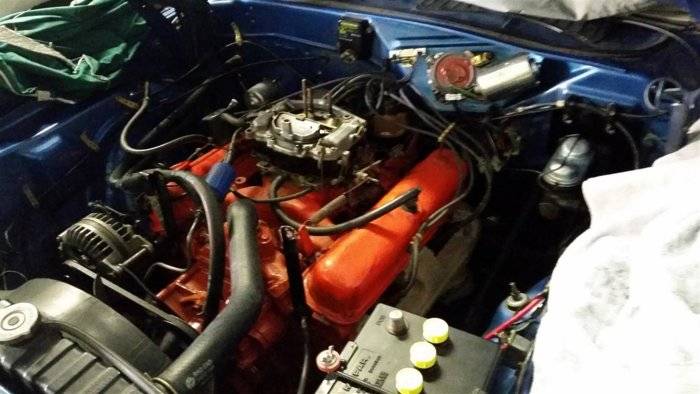

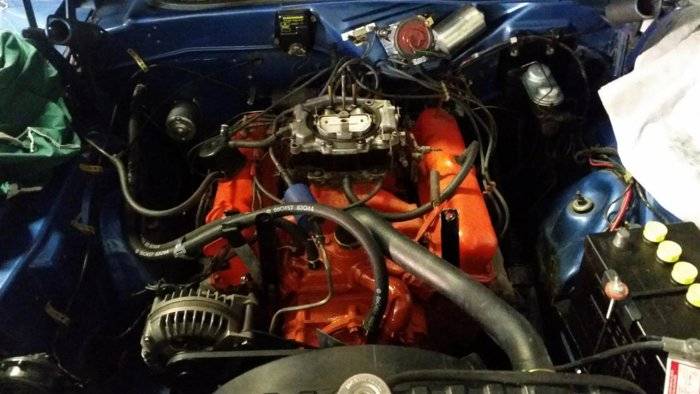

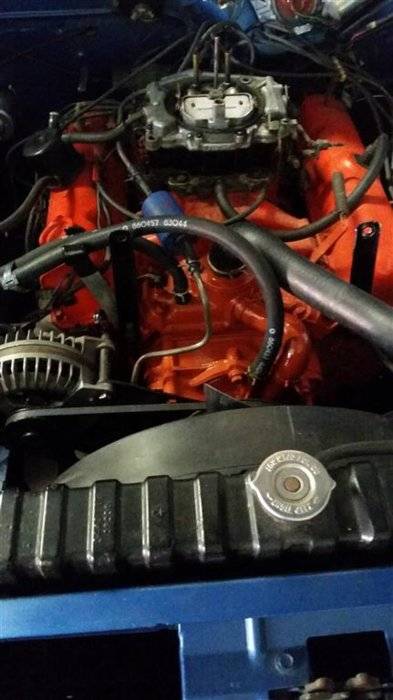

    a few more photos that may help.
    Terry

    20170616_113846 (Small).jpg

    20170616_114414 (Medium).jpg

    20170616_114452 (Medium).jpg

  11. 70CUDA4SPEED

    70CUDA4SPEED Well-Known Member

    Messages:
    90
    Likes Received:
    15
    Joined:
    Oct 4, 2012
    Location:
    Sweden
    Lid and filter are same as Dodge Airgrabber 1970-71.

  12. terrywalker

    terrywalker Member

    Messages:
    17
    Likes Received:
    0
    Joined:
    Aug 31, 2013

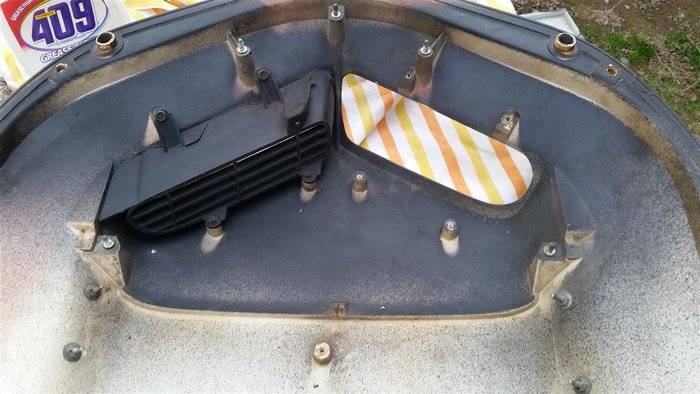

    Here's how the grilles mount to the bubble.

    20150316_174214 (Medium).jpg

  13. Mitch

    Mitch Member

    Messages:
    15
    Likes Received:
    0
    Joined:
    May 25, 2017
    I bought the bubble on ebay and I think its made to order-I hope what I bought has the mounting points for the small vents-otherwsie it may turn into a JB Weld special-
    I also bought vents on ebay from a seller there who seems to specialize in plastic injection molded parts of all sorts-

  14. fk5bird

    fk5bird Well-Known Member

    Messages:
    120
    Likes Received:
    2
    Joined:
    Aug 19, 2014
    I have an original round lid if interested Steve

  15. Mitch

    Mitch Member

    Messages:
    15
    Likes Received:
    0
    Joined:
    May 25, 2017
    ok you have the lid top-how much shipped to 92647? what else you have
