Shaker set Up

KennyCuda

Well-Known Member
Joined
Aug 3, 2020
Messages
239
Reaction score
22
Trying to complete my shaker set up but need all the guts to get it going, Does anyone have any pictures of the set up with the warm and cold air kit on it, Also theres a rod and the cable from the car and another one for the doors i think. Im new to the shaker so any help is appreciated, Also how is it set up on the side of the air cleaner i have the bracket that spins.


KennyCuda

Well-Known Member
Joined
Aug 3, 2020
Messages
239
Reaction score
22
Thanks for the parts info but I'm looking to see how it actually mounts on the shaker. I see no mounting points on my set up. Do these parts all mount to the base plate or the shaker scoop itself. Is there a picture of the components installed on it.


KennyCuda

Well-Known Member
Joined
Aug 3, 2020
Messages
239
Reaction score
22
I also would like to know what size hole is needed for the cable threw the fire wall ?


KennyCuda

Well-Known Member
Joined
Aug 3, 2020
Messages
239
Reaction score
22
The cable coming out of the car does it mount on the top post or bottom of the bracket coming off the side of the base plate


terrywalker

Well-Known Member
Joined
Aug 31, 2013
Messages
383
Reaction score
196
The cable coming out of the car does it mount on the top post or bottom of the bracket coming off the side of the base plate

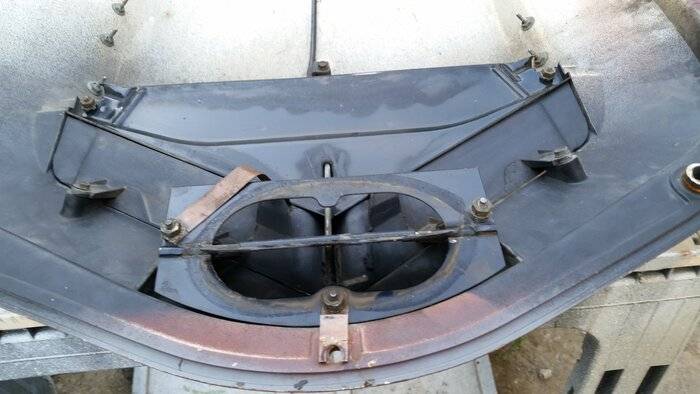

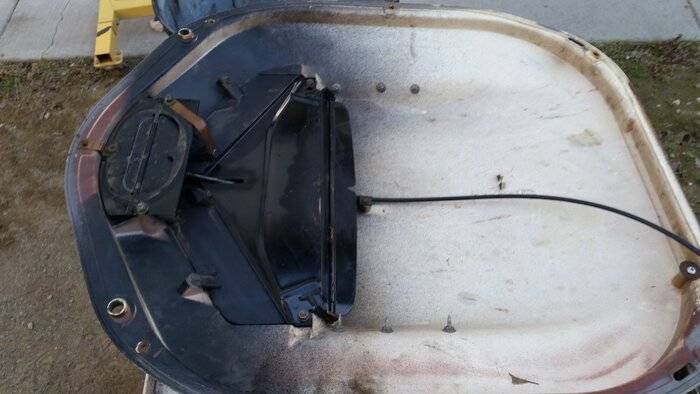

Shaker Air Doors Installed.jpg


Shaker Air Doors 1.jpg

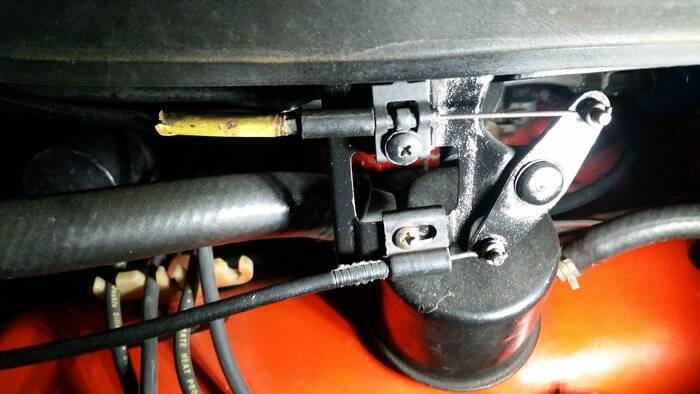

Shaker Cable Pivot.jpg


Here's a few.
Terry


terrywalker

Well-Known Member
Joined
Aug 31, 2013
Messages
383
Reaction score
196
Some more. Cable from shaker doors goes to top post of pivot.
Terry

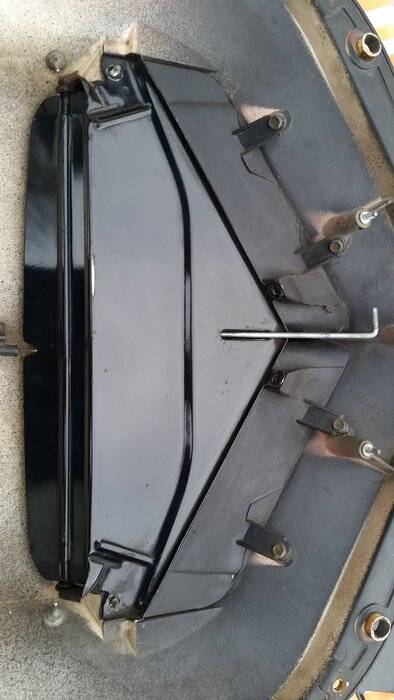

Shaker Cold Air Door 2.jpg

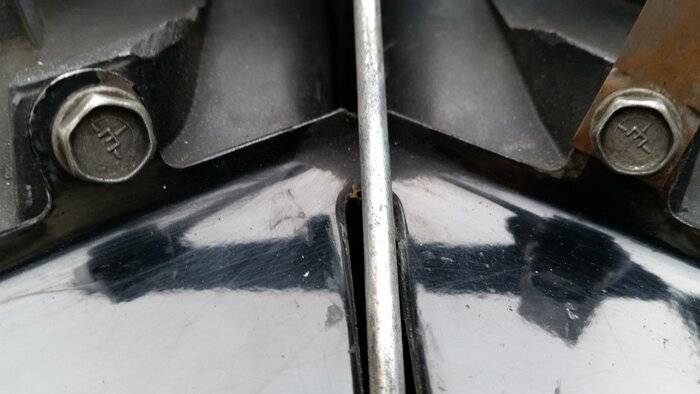

Shaker Grille Bolts.jpg


KennyCuda

Well-Known Member
Joined
Aug 3, 2020
Messages
239
Reaction score
22
That a great thanks so much so the cable from the car is on the bottom ? Is there a small cotter pin that holds the cables on the posts? Would you know what size hole i need to drill to put the cable threw.


terrywalker

Well-Known Member
Joined
Aug 31, 2013
Messages
383
Reaction score
196
That a great thanks so much so the cable from the car is on the bottom ? Is there a small cotter pin that holds the cables on the posts? Would you know what size hole i need to drill to put the cable threw.
No cotter pin or clip holds the cable on. The loop just slips over the post. The cable is so stiff, it doesn't come off posts because of attaching screws are right at the pivot. Mine has been this way for the 48 years I've owned the car. The hole is big enough to accept the cable boot. Unfortunately, I cannot get to the car easily right now as it's covered because I'm painting another car in my shop. Maybe someone else has the size of the hole. The cable from the inside of car is on the bottom. There's a difference in how the cables ends and how they are screwed to the pivot. See the photo.
Terry


terrywalker

Well-Known Member
Joined
Aug 31, 2013
Messages
383
Reaction score
196
Oops, I guess I should attach the photo. It uses a clip to clamp it to the pivot bracket. See previous photo to see the clip.
Terry

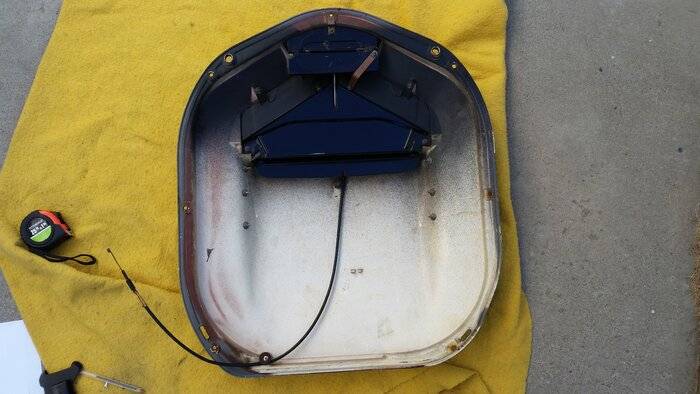

Shaker air door cable.jpg


KennyCuda

Well-Known Member
Joined
Aug 3, 2020
Messages
239
Reaction score
22
Terry your a life saver these pictures should get me threw it on the front smaller duct are those 3 studs that screw into the bubble and then mounts with screws? Looks like it. The cable in the shaker goes from the rod to the side of the base plate is that right. Kenny


terrywalker

Well-Known Member
Joined
Aug 31, 2013
Messages
383
Reaction score
196
Cable goes from air door rod to pivot on side of base plate. Here's another photo of 5 studs in bubble.
Terry

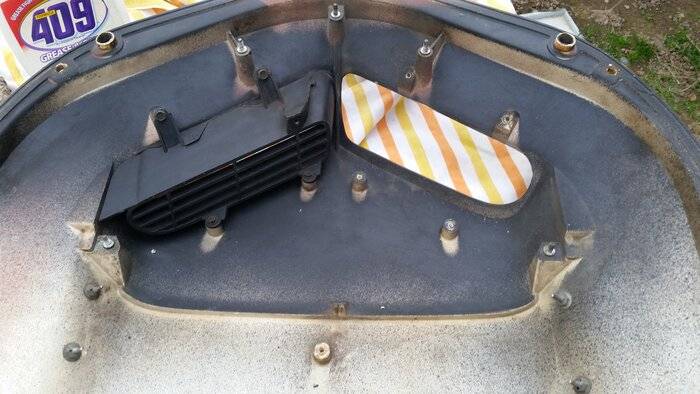

Shaker Grille 1.jpg


KennyCuda

Well-Known Member
Joined
Aug 3, 2020
Messages
239
Reaction score
22
Terry thanks so much wheres the best place for parts year one ?


KennyCuda

Well-Known Member
Joined
Aug 3, 2020
Messages
239
Reaction score
22
Terry is the cable secured in two places onto the scoop ?


terrywalker

Well-Known Member
Joined
Aug 31, 2013
Messages
383
Reaction score
196
Terry is the cable secured in two places onto the scoop ?
You can see the cable is attached in the first two pics I sent with a screw throuvh the bracket molded on cable behind cold air door. The cable is then suppose to sit in the little saddle molded into the scoop and then in the next to last pic I sent, the cable is clamped under the flat washer just before it exits the bubble. A couple of places I know of for parts is www.shakerhood.com and www.tommythechryco.ca


KennyCuda

Well-Known Member
Joined
Aug 3, 2020
Messages
239
Reaction score
22
Terry do you have a picture of the passenger side of your engine compartment where i might be able to see the shaker cable coming threw


KennyCuda

Well-Known Member
Joined
Aug 3, 2020
Messages
239
Reaction score
22

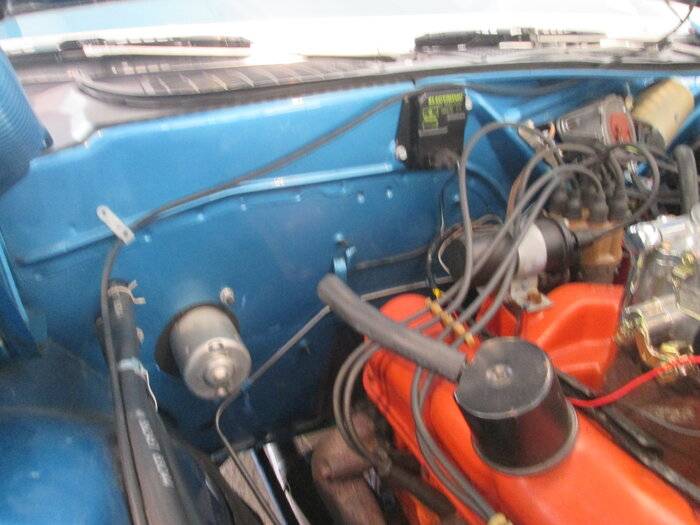

Terry see the 2 dimples on the firewall ( just behind the coil there side by side)i think i use the one on the left as you look at the picture for the cable to go threw. What do you think



terrywalker

Well-Known Member
Joined
Aug 31, 2013
Messages
383
Reaction score
196
Terry do you have a picture of the passenger side of your engine compartment where i might be able to see the shaker cable coming threw
I might have one. It's hard for me to get to the car now as I am painting another car and my 71 is behind the plastic wall and covered up. I'll see.
Terry


KennyCuda

Well-Known Member
Joined
Aug 3, 2020
Messages
239
Reaction score
22
Ok thanks ill figure it out thanks for all your help sorry to be a pest but now i know how to set this up thanks to you
