Splash Shield Question

Bobcat 1970

Well-Known Member
Joined
May 9, 2019
Messages
66
Reaction score
25
Does anyone have the part number and vendor for the inner splash shields for '70 model, the plastic ones below the frame on both drivers and passenger sides? There are two on each side I presume, mine has only the mounting tabs left as I can remember years ago when a teenager, I probably broke them off, lol,,,being 64 now, I cant exactly remember except they were there at one time,,,,


Chryco Psycho

Well-Known Member
Joined
Dec 28, 2008
Messages
4,402
Reaction score
2,043
Location
Panama
I think you are talking about the rubber shields along the frame rail , call Roseville moparts , they have them new


Bobcat 1970

Well-Known Member
Joined
May 9, 2019
Messages
66
Reaction score
25

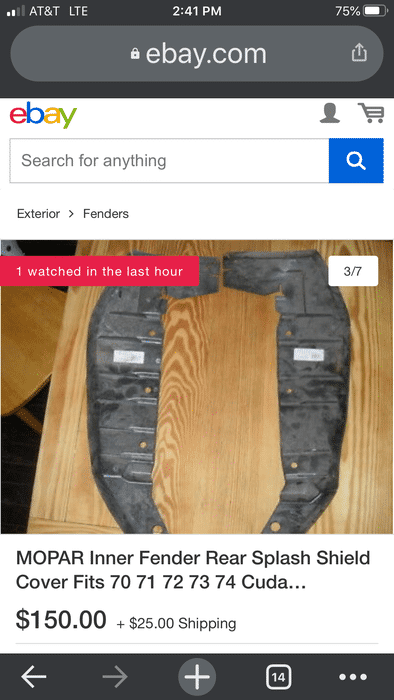

Yes, I think they are hard plastic, mount under frame rail, Year One calls them inner fender splash shields,,they only list them as a set, trying to contact Year One now,,they are on both sides but I don't know if there are two per side or two total, need more help,,drivers side has the original in place but passenger side crumbled when trying remove so didn't remove drivers until replacements found. So, is there two or four of them?


Chryco Psycho

Well-Known Member
Joined
Dec 28, 2008
Messages
4,402
Reaction score
2,043
Location
Panama
I would still contact Roseville , I was thinking of the inner fender shields behind the control arm , those are hard plastic , I don't have a source for those but Roseville will likely have them or know where to get them


Chryco Psycho

Well-Known Member
Joined
Dec 28, 2008
Messages
4,402
Reaction score
2,043
Location
Panama
I was thinking of the rubber ones behind the control arms , those are hard plastic , I would still Contact Roseville , they will likely have them or will know where to get them .


Chryco Psycho

Well-Known Member
Joined
Dec 28, 2008
Messages
4,402
Reaction score
2,043
Location
Panama

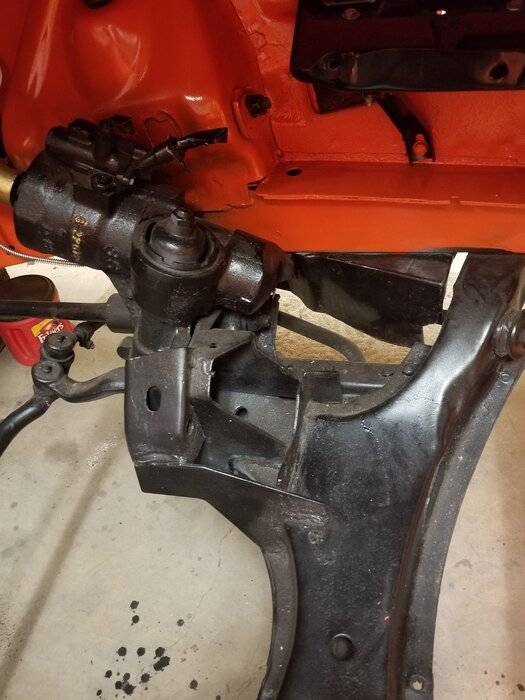

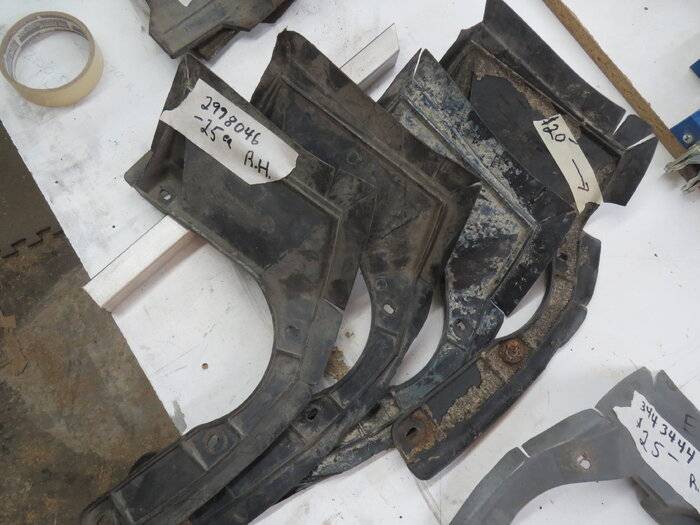

you can see them in the picture above , they sit inside the strut rod tucked into the K frame


fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
2,238
Reaction score
1,126
Location
Arkansas
I know which ones your talking about. I need them on my car as well. Thanks Chryco!


fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
2,238
Reaction score
1,126
Location
Arkansas
I’m gonna need some as well because, mine doesn’t have any on the lower side. Only the shields at the rear fenders. It’s a fair weather car but, I have to have them. Bobcat was first, no hurry here but, looking now.


Bobcat 1970

Well-Known Member
Joined
May 9, 2019
Messages
66
Reaction score
25
Someone here sent me a email with the parts and vendor but that was like a year ago and now I can't find it or remember where I filed it,,may have been Roseville so I'll contact them, thanks guys IF I find them, I'll share with all,,


Bobcat 1970

Well-Known Member
Joined
May 9, 2019
Messages
66
Reaction score
25
Found them,, K Member splash shields,,,thanks for the help and hope this helps yall as well,


fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
2,238
Reaction score
1,126
Location
Arkansas
Did all E bodies have these? And do you know who the vendor is?
Thanks


Bobcat 1970

Well-Known Member
Joined
May 9, 2019
Messages
66
Reaction score
25
Don’t know if all has them, know mine does and I’m second owner since 74 and was in a garage from 71 till I bought in storage,,Vietnam causality family didn’t wanna sell, came see us, my dad said I make payments it was mine,,and I agreed but never made the first one, he was in auto accident 28 days later claiming his life,,thats reason I never parted with it after all these years even though I did barn it for 33 years,,,I will post vendor info soon as I verify they exist,,thanks


moparlee

Well-Known Member
Joined
Jul 25, 2011
Messages
2,899
Reaction score
1,206
Location
Mid Michigan

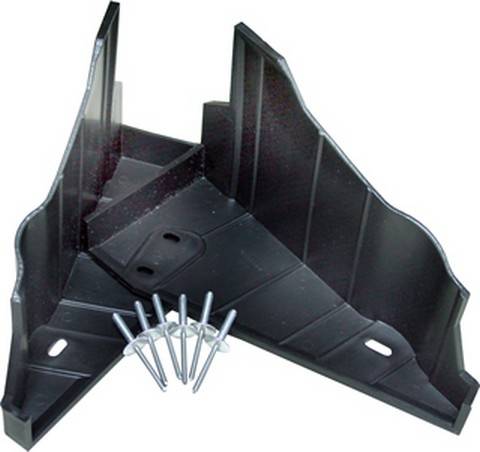

Found them,, K Member splash shields,,,thanks for the help and hope this helps yall as well, View attachment 74903
Those are correct, one on each side under the frame rails. I believe all years had them.
There is also an additional long plastic shield probably 16" long on the drivers side under the frame well towards the starter. I don't have a picture handy at the moment.

Last edited:

fasjac

Well-Known Member
Joined
Dec 27, 2019
Messages
2,238
Reaction score
1,126
Location
Arkansas
I bet it was standard equipment. I’m on the hunt. I could not find them in the repair manual in body and frame. Didn’t search long.
