Standard Dash Clock Wiring

SFEbody

Well-Known Member
Joined
Jan 31, 2016
Messages
1,039
Reaction score
348
Location
Los Angeles CA.
Put a standard dash clock in my dash and wondering if anyone knows how to hook it up, It appears there is one black wire and I assume it connects to the amp gauge negative? Then how does it get power and how is it adjusted once hooked up? Any help is much appreciated.

Brian


68bee

Well-Known Member
Joined
Mar 16, 2013
Messages
111
Reaction score
10
Location
Huntington, NY
Put a standard dash clock in my dash and wondering if anyone knows how to hook it up, It appears there is one black wire and I assume it connects to the amp gauge negative? Then how does it get power and how is it adjusted once hooked up? Any help is much appreciated.

Brian

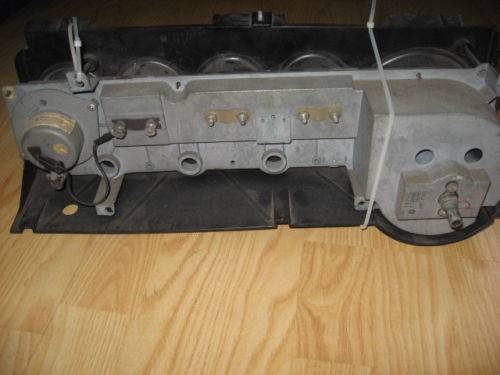

Just the one wire it is grounded through the dash. Here is a picture. You adjust it by pulling down the knob and turning either left or right for forward or back.

AAR cuda clock.jpg


SFEbody

Well-Known Member
Joined
Jan 31, 2016
Messages
1,039
Reaction score
348
Location
Los Angeles CA.
Thanks. I see that what is the (1) wire connected to? and how do you set the time on this type of clock?


rklein71

Well-Known Member
Joined
Feb 27, 2015
Messages
1,154
Reaction score
521
Location
Amarillo Texas
The redneck way would be to disconnect the battery and wait for the exact time the clock indicates and hook the battery up. :lol:


sixpactogo

Well-Known Member
Joined
Mar 4, 2017
Messages
308
Reaction score
75
Location
Eau Claire, Wisconsin
Put a standard dash clock in my dash and wondering if anyone knows how to hook it up, It appears there is one black wire and I assume it connects to the amp gauge negative? Then how does it get power and how is it adjusted once hooked up? Any help is much appreciated.

Brian
There is no negative wire on the amp gauge. They are both positive. The clock shown in the picture is missing the stem and knob for adjusting the clock. It goes down through the hole in the plastic housing.


moparlee

Well-Known Member
Joined
Jul 25, 2011
Messages
2,899
Reaction score
1,206
Location
Mid Michigan
The FSM shows the clock wire connecting to the ammeter terminal with the black wire. The ammeter has two terminals, one with a red wire and one with a black wire.


SFEbody

Well-Known Member
Joined
Jan 31, 2016
Messages
1,039
Reaction score
348
Location
Los Angeles CA.

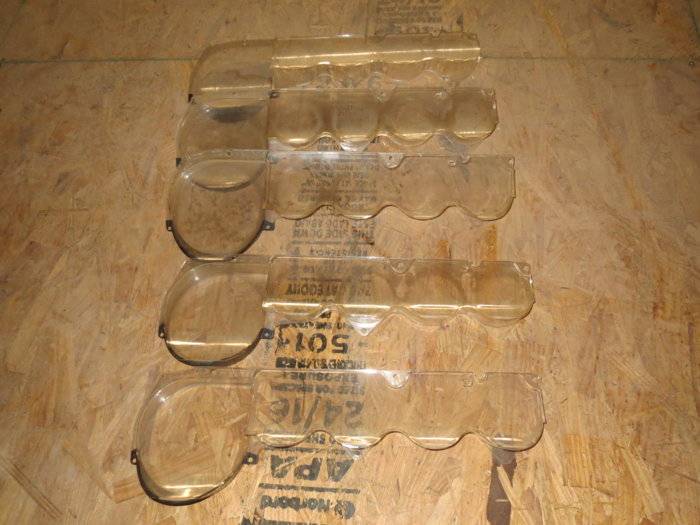

Thanks guys........ dash is out now and was trying to get the clear bezel off to clean and dropped it and cracked..............Feel like a klutz now. Anyway off to the find a new one that I can afford.

Aussie let me know if you have a stem and knob for it sir!

Brian


SFEbody

Well-Known Member
Joined
Jan 31, 2016
Messages
1,039
Reaction score
348
Location
Los Angeles CA.
Cool. Can you tell me the quality as I am restoring my car now. Does not need to be show just want a nice clean one. Also need the push button clips that hold it in.

Brian Milner
22986 Mulberry Glen Dr
ValenciaCa. 91354
