Steering box question

gtxno1

Well-Known Member
Joined
Apr 9, 2020
Messages
100
Reaction score
7
Location
Freehold N J
What box was actually used in the AAR and the T/A in trans am series race power or manual can not find any info just curious thanks


Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
344
Reaction score
136
Location
PA Flood city

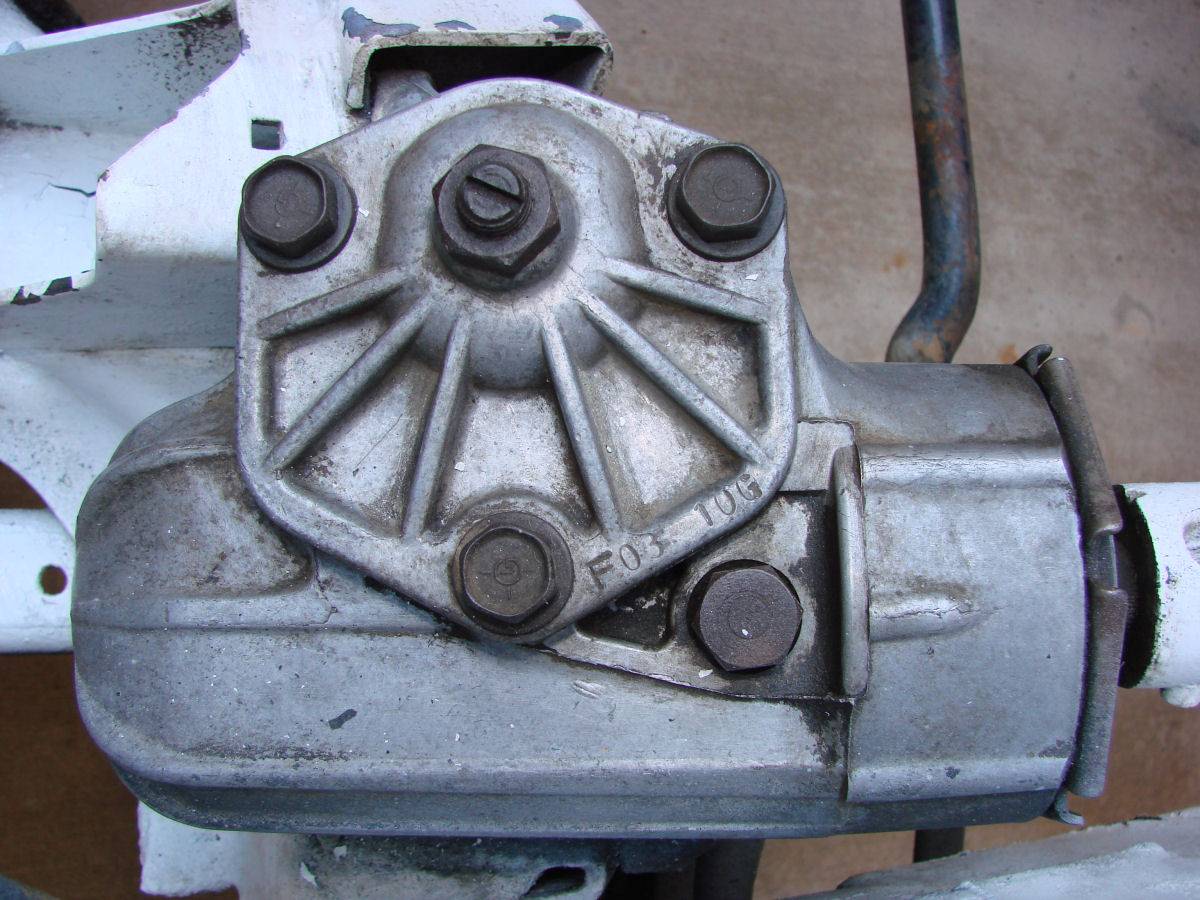

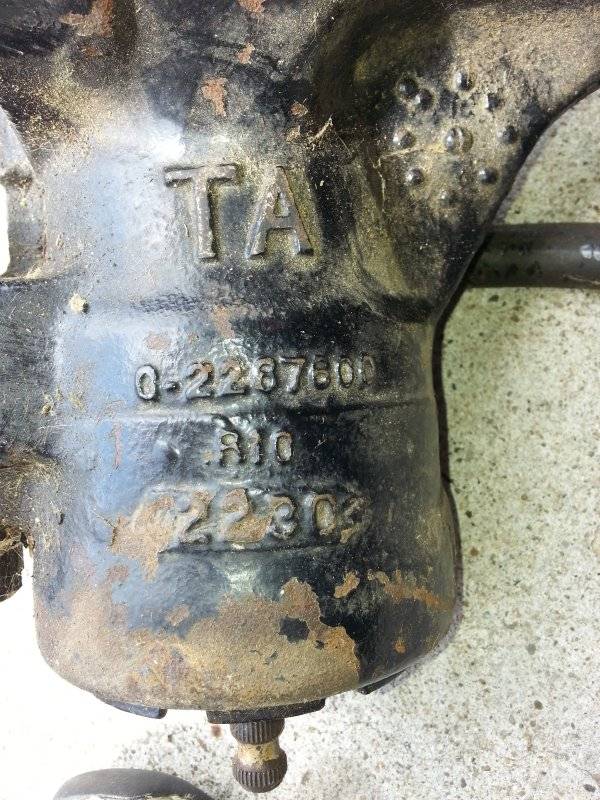

They are stamped as in the picture. also had a longer pit man and idler arm.

challenger ta steering box.jpg


Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
344
Reaction score
136
Location
PA Flood city

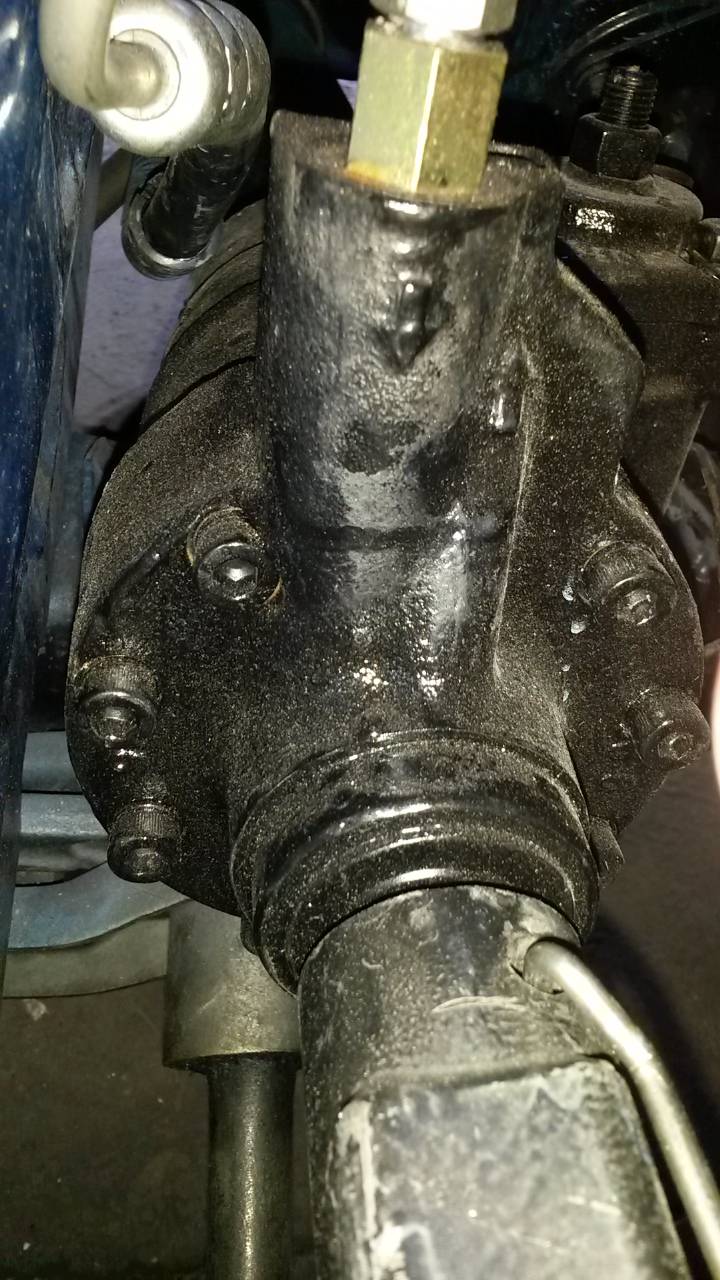

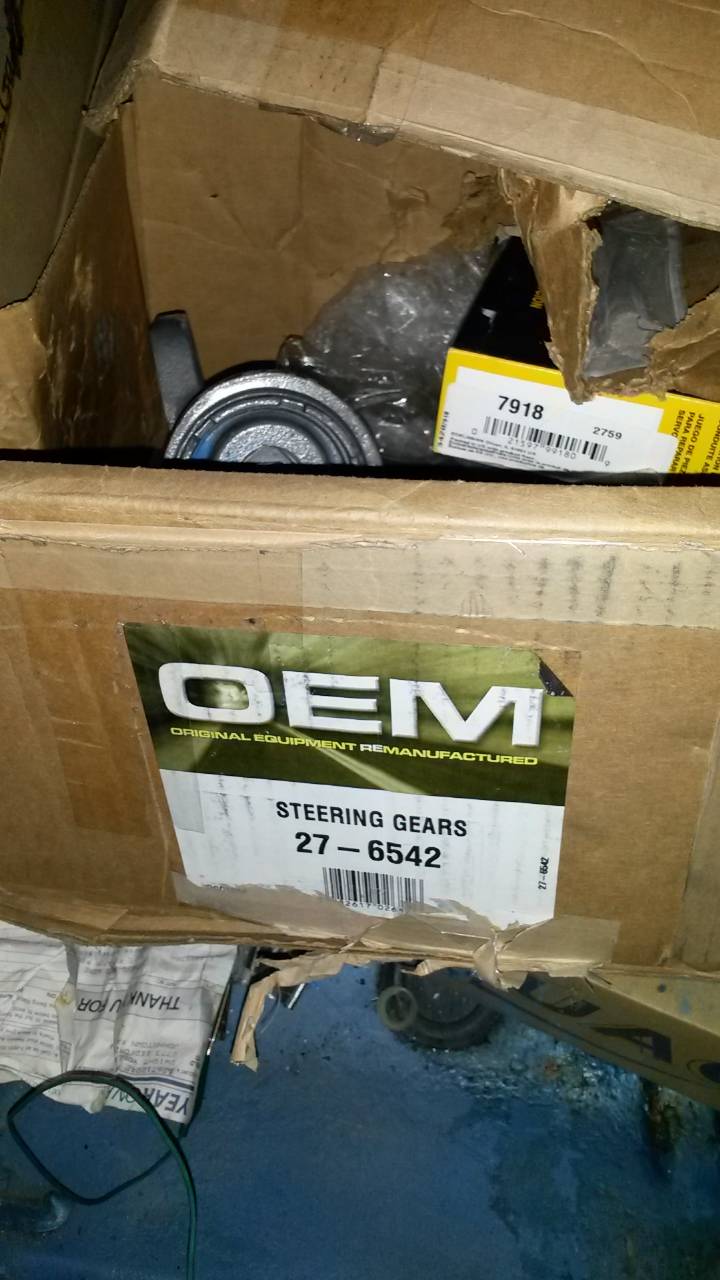

The 70-71 has a 1 1/8" pitman arm shaft. upgrade to 1 1/4" shaft longer pitmam arm and longer I think c body idler arm. If I find the number I'll post it.installed a remanufactured from advance auto until I get a chance to rebuild other one. With discount it was about $120.just give them another core.or pay extra.





70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
1,061
Reaction score
762
Location
Western Washington
Are you asking about the race cars or the production cars? The race cars used a manual box (at least the ones I have pictures of did).


ctaarman

Well-Known Member
Joined
Nov 8, 2016
Messages
82
Reaction score
18
While the vast majority of AARs were sold with the quick ratio power steering, a few documented examples had manual steering.


70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
1,061
Reaction score
762
Location
Western Washington
They were manual. I have a binder of nothing but TA/AAR stuff that includes a bunch of pictures a guy took at one of the vintage races of an original AAR.


moparleo

Well-Known Member
Joined
Oct 17, 2011
Messages
5,948
Reaction score
1,099
Location
So. Cal. Riverside area Moreno Valley
The production Trans Am cars were not the same as the race cars just like the production Superbirds were not the same as the track versions.
Similar enough for homologation but not to actually race with.
Race cars don't like the street very much and vice versa.


Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
344
Reaction score
136
Location
PA Flood city
Referring to what moparleo said. the track versions used manual for weight and power savings. ounces and fractional hp counted,for a few laps not 10,000 miles. The T/A I had and other street versions that I have seen. and AAR had power steering.


Racer Dave

Active Member
Joined
Jan 21, 2020
Messages
27
Reaction score
25
I was under the impression that the factory race cars had a different type VIN number? Mine is a regular production BS23J0B VIN. An "exception" car? I'm reasonably sure the manual box is original - I bought the car in 1975 with under 30K miles.


Mopar Mitch

Well-Known Member
Joined
Aug 5, 2013
Messages
119
Reaction score
41
Location
NW Chicago Suburbs
The factory-backed TransAm race cars only used manual steering.

The street TransAm cars had three options: manual, regular ps, or else the preferred optional T/A Fast Ratio ps (marked TA on the box)... and that option had a longer "Fast Ratio" Pitman arm (also marked "Fast Ratio"). The idler arms we all the same. Later, into the 71 model year, as you could still get the optional FAST RATIO ps on 340 Cudas and 340 Challengers, it became known that the idler arm was too short causing un-equal turning radius left-right. The corrected idler arm that matches the longer FAST RATIO Pitman arm is the same from a 70-71 big C-Body car... that is what should have been factory installed with all the optional T/A FAST RATIO ps boxes.

NOTE: No company -- Firm Feel, Hotchkis, PST or anyone else... ever "created" or designed the corrected longer idler arm to match the longer FAST RATIO Pitman arm. It always has been and will be the factory 70-71 C-body idler arm. And, this was exposed many long years ago in-print via the SIAC news letter (for T/As and AARs).. to use the C-Body longer idler arm. Furthermore, I had personal discussion with Chrysler/Mopar staff about the matter to confirm that they were aware about it.... all the way back into the early 70s.


VillaTA

Well-Known Member
Joined
Aug 18, 2021
Messages
73
Reaction score
12
Location
Cincinnati
The factory-backed TransAm race cars only used manual steering.

The street TransAm cars had three options: manual, regular ps, or else the preferred optional T/A Fast Ratio ps (marked TA on the box)... and that option had a longer "Fast Ratio" Pitman arm (also marked "Fast Ratio"). The idler arms we all the same. Later, into the 71 model year, as you could still get the optional FAST RATIO ps on 340 Cudas and 340 Challengers, it became known that the idler arm was too short causing un-equal turning radius left-right. The corrected idler arm that matches the longer FAST RATIO Pitman arm is the same from a 70-71 big C-Body car... that is what should have been factory installed with all the optional T/A FAST RATIO ps boxes.

NOTE: No company -- Firm Feel, Hotchkis, PST or anyone else... ever "created" or designed the corrected longer idler arm to match the longer FAST RATIO Pitman arm. It always has been and will be the factory 70-71 C-body idler arm. And, this was exposed many long years ago in-print via the SIAC news letter (for T/As and AARs).. to use the C-Body longer idler arm. Furthermore, I had personal discussion with Chrysler/Mopar staff about the matter to confirm that they were aware about it.... all the way back into the early 70s.
I was just going to write a post about this. My T/A has a standard steering box, but whoever put the front end on added a fast ratio pitman arm. It steers WAY too quick. I want to put a standard pitman arm on the car to determine if this will reduce the speed of the steering. My alignment is bad as well...car wanders all over! I was unsure about whether the idler arm needed to be replaced as well. Sounds like if it is the stock idler, it will work with the stock pitman arm. Is the classic industries part #2835880 the correct piece? Is there a better part I should be using?


Mopar Mitch

Well-Known Member
Joined
Aug 5, 2013
Messages
119
Reaction score
41
Location
NW Chicago Suburbs
I was just going to write a post about this. My T/A has a standard steering box, but whoever put the front end on added a fast ratio pitman arm. It steers WAY too quick. I want to put a standard pitman arm on the car to determine if this will reduce the speed of the steering. My alignment is bad as well...car wanders all over! I was unsure about whether the idler arm needed to be replaced as well. Sounds like if it is the stock idler, it will work with the stock pitman arm. Is the classic industries part #2835880 the correct piece? Is there a better part I should be using?
VillaT/A -- the idler arm number you gave, per Classic's web-site, is simply the standard length idler arm (not the longer C-body/fast ratio idler arm).

Further, you can tell if the pitman and idler arms are correct for geometry IF the steering crosslink is straight or else at an angle... angled means the arms are not equal length as they desirably should be.

You say that the steering is way too fast... what do you mean by that? The fast-ratio really isn't even all that fast... simply adding the longer pitman arm (marked FAST RATIO regardless of the source ...) is what makes the steering a little quicker.

Many newer modern vehicles of today have steering that is dramatically faster than the old Mopar T/A Fast Ratio.

What year is your power steering box? What is the size of the pitman arm spline?

There are aftermarket fast ratio pitman arms with different size splines -- small 1.125" vs large 1.25". The larger diameter pitman arm only fits the T/A box, as well as 1973 and newer ps boxes.


VillaTA

Well-Known Member
Joined
Aug 18, 2021
Messages
73
Reaction score
12
Location
Cincinnati
By fast, I mean that minor movements produce drastic darting of the car. It is disconcerting at higher speeds. Without two hands on the wheel, it will invariably pull, especially when there are ruts or bumps-and require constant correction in the tracking of the car. I discussed in my own previous post. I don’t mean to hijack this one. My steering box is stamped 2267262. My current pitman arm is stamped 10031-103. I also bought with overresized tires. Just hoping to avoid a full steering box rebuild. Maybe I need to look into the shimming suggestions as well. Alignment is a must also.


Mopar Mitch

Well-Known Member
Joined
Aug 5, 2013
Messages
119
Reaction score
41
Location
NW Chicago Suburbs
By fast, I mean that minor movements produce drastic darting of the car. It is disconcerting at higher speeds. Without two hands on the wheel, it will invariably pull, especially when there are ruts or bumps-and require constant correction in the tracking of the car. I discussed in my own previous post. I don’t mean to hijack this one. My steering box is stamped 2267262. My current pitman arm is stamped 10031-103. I also bought with overresized tires. Just hoping to avoid a full steering box rebuild. Maybe I need to look into the shimming suggestions as well. Alignment is a must also.
Sounds more like an alignment problem.... also, extra wide tires (50-40-35-30 series) typically grab the crowns of the pavement and then introduce darting. The Toe-adjustment is critical, as well.

Also, IF you have negative caster... then that is another whole new story... you want positive caster... factory setups barely allow positive caster... so.. plan to eventually change the upper control arms.. yes a hassle and a time consuming and with some expense (pending the parts source)... but very well worth it!
