Trunk Light Location

money pit

Well-Known Member
Joined
Nov 17, 2017
Messages
505
Reaction score
62
Does anyone have a photo of the mounting location for a trunk light on a 70 Barracuda? Thanks


70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
1,260
Reaction score
975
Location
Western Washington

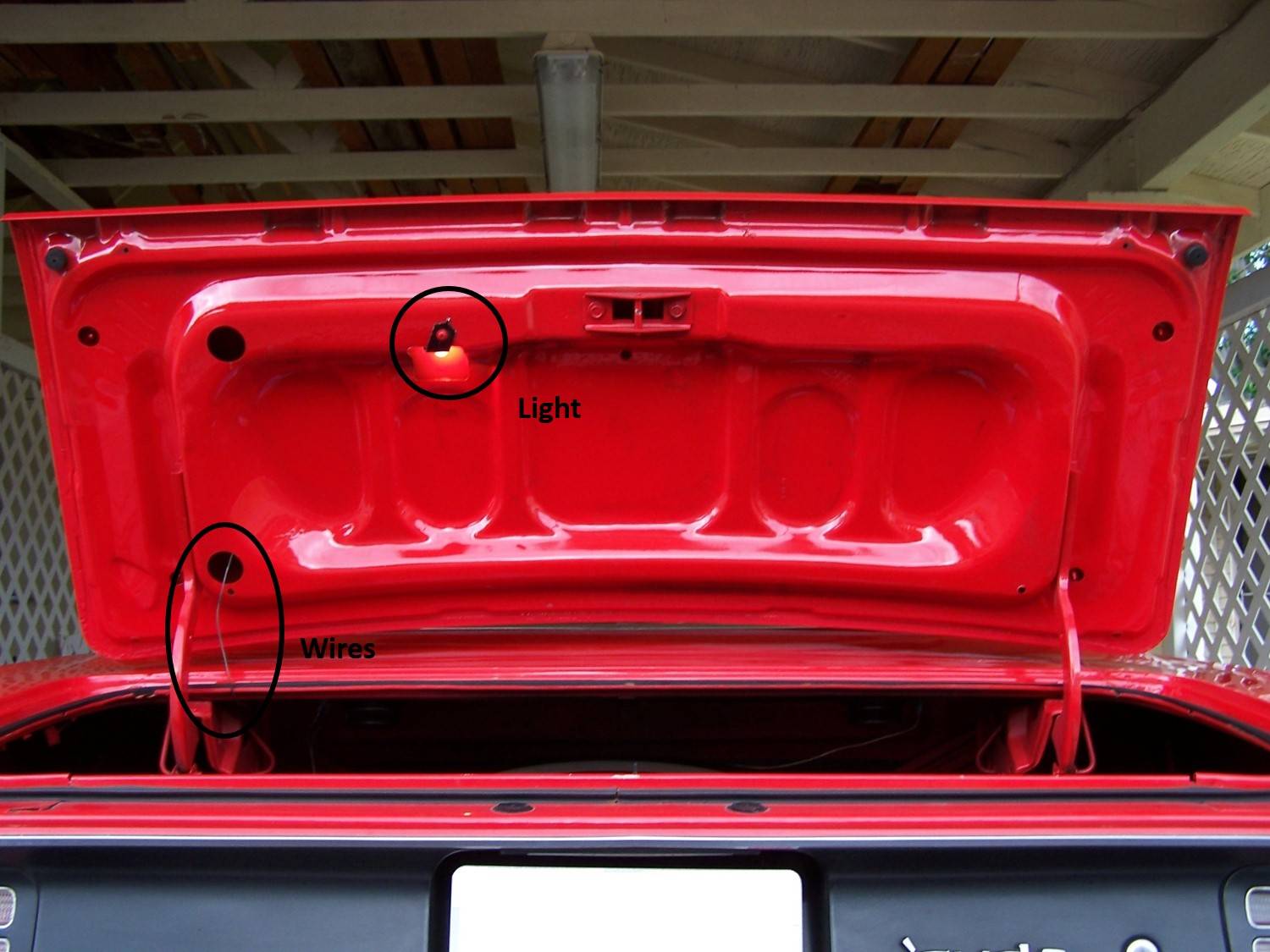

I am very sure it is in the FSM under electrical (chapter 8 I think), but here is a pic I got off the internet

Trunk light.jpg


RJHJR

Well-Known Member
Joined
Oct 14, 2013
Messages
253
Reaction score
103

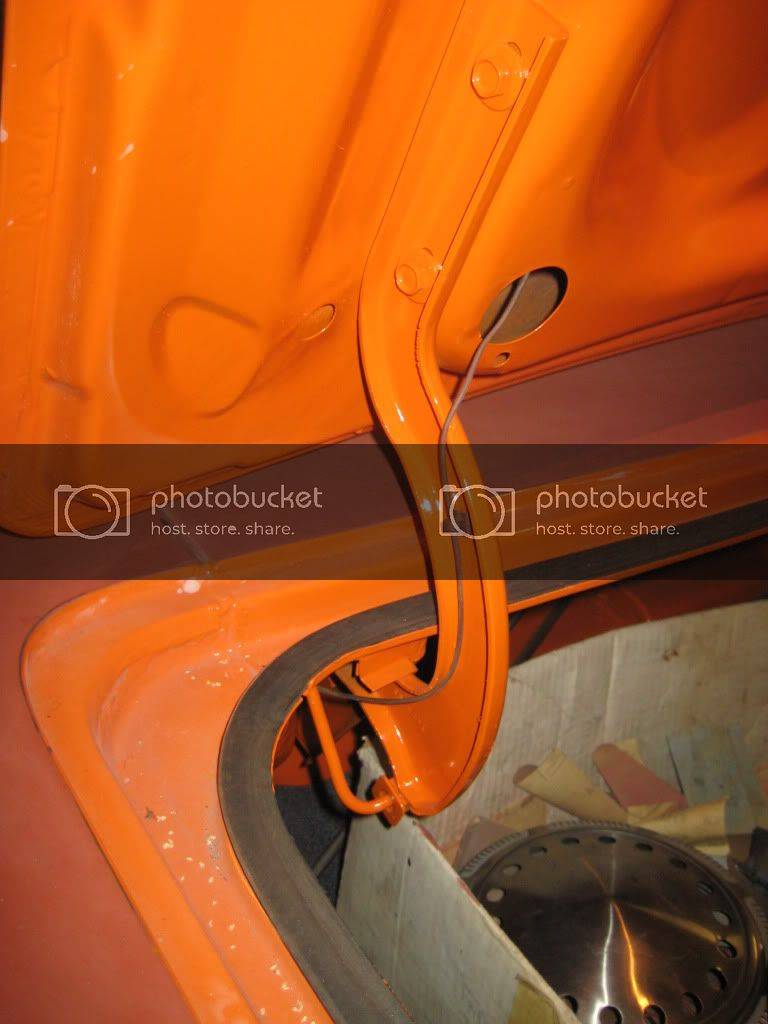

Found this on the inet as well.

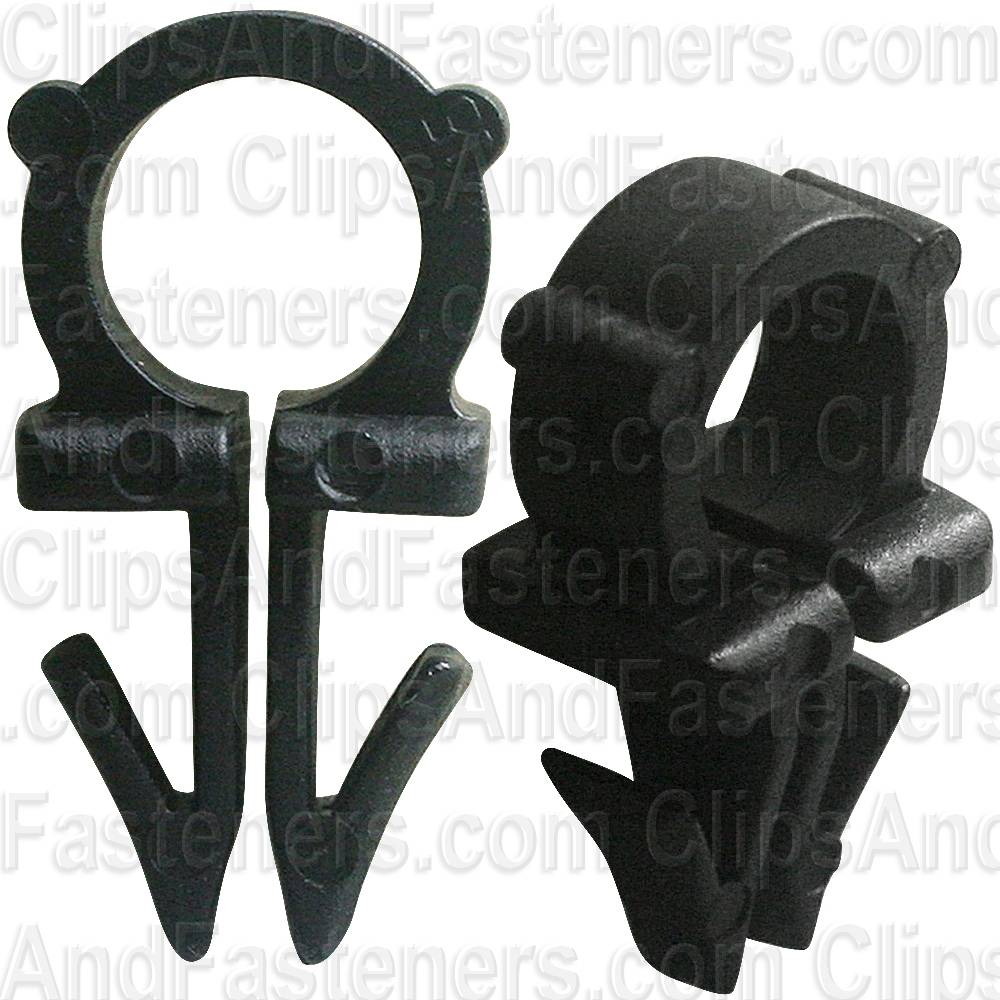

Its hard to see but there's plastic split ring clip with shoulder and half arrows each the wire goes through.
I forget where I found them.



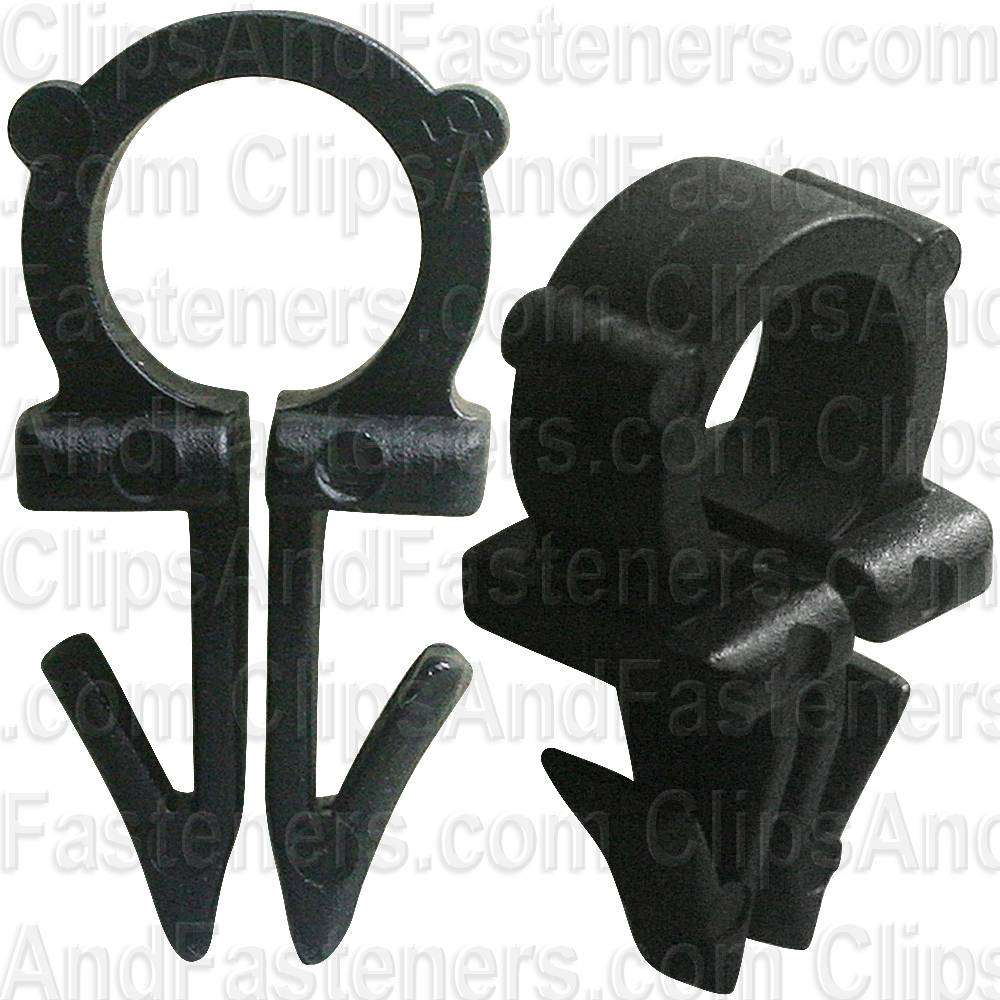

Like this.


money pit

Well-Known Member
Joined
Nov 17, 2017
Messages
505
Reaction score
62
Does anyone have a photo of the mounting location for a trunk light on a 70 Barracuda? Thanks
Thanks. I'll look at the FSM. I downloaded the manual so it's a pain to look at it on the computer.


70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
1,260
Reaction score
975
Location
Western Washington
As I remember, there is one screw that holds it in, the bracket has a bent down tab that indexes into a separate (from the screw) hole. So in other words, there are 2 holes, one for the tab and another for the screw (which I think is a #8 sheet metal screw with a pan head).


money pit

Well-Known Member
Joined
Nov 17, 2017
Messages
505
Reaction score
62
As I remember, there is one screw that holds it in, the bracket has a bent down tab that indexes into a separate (from the screw) hole. So in other words, there are 2 holes, one for the tab and another for the screw (which I think is a #8 sheet metal screw with a pan head).
Thanks. I know what you're talking about.
