Under dash question

Juan Veldez

Well-Known Member
Joined
Jan 1, 2011
Messages
740
Reaction score
294
Location
Nampa, Idaho

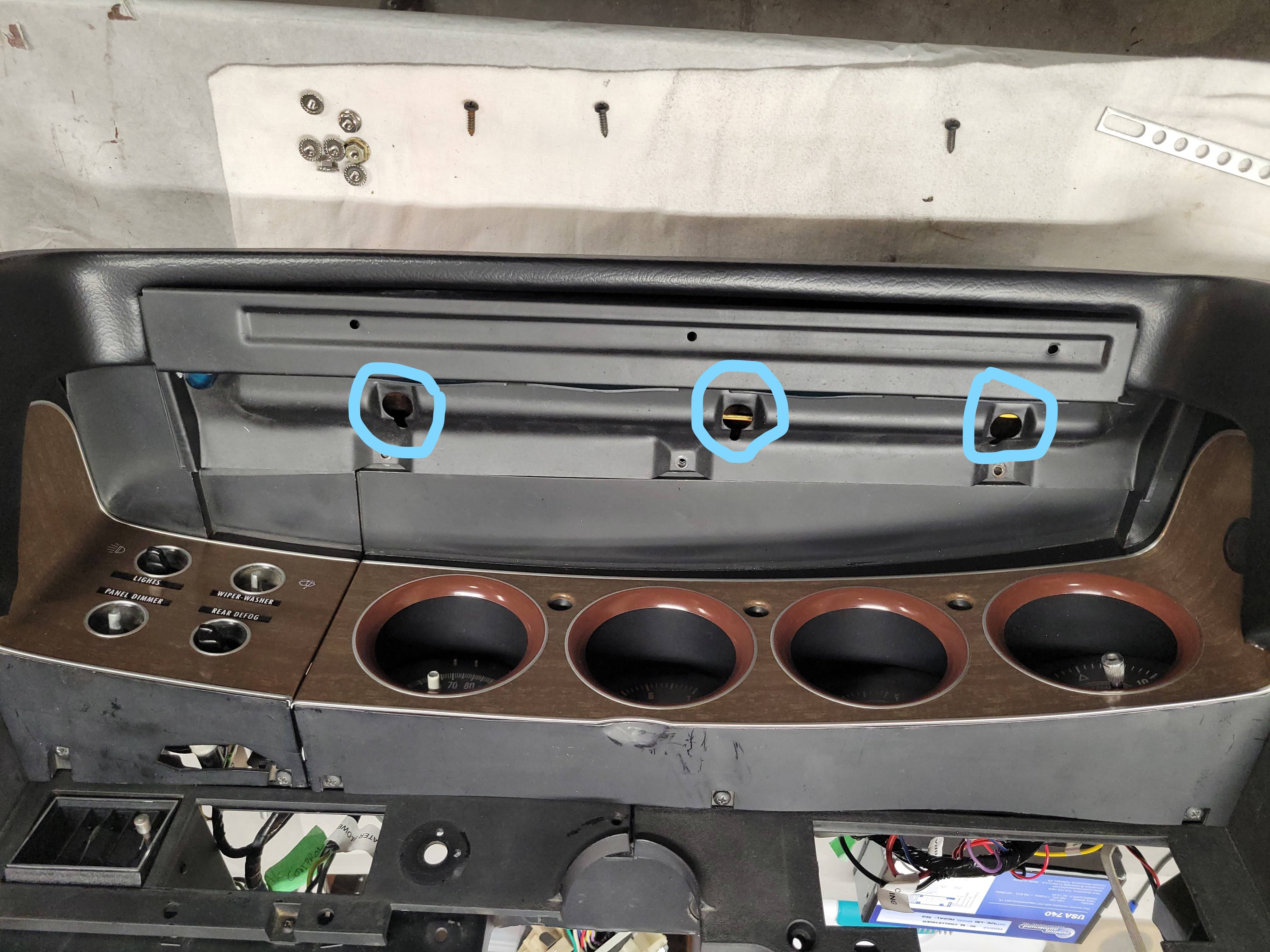

InkedDash- under.jpg
What are these three holes for? This is for a 73 Chally.


larry4406

Well-Known Member
Joined
Sep 17, 2022
Messages
56
Reaction score
29
Location
Northern VA
Down lights for illuminating the dash.

You have a 3-light bar yet a rallye dash uses a 4-light bar.



Juan Veldez

Well-Known Member
Joined
Jan 1, 2011
Messages
740
Reaction score
294
Location
Nampa, Idaho
Down lights for illuminating the dash.

You have a 3-light bar yet a rallye dash uses a 4-light bar.

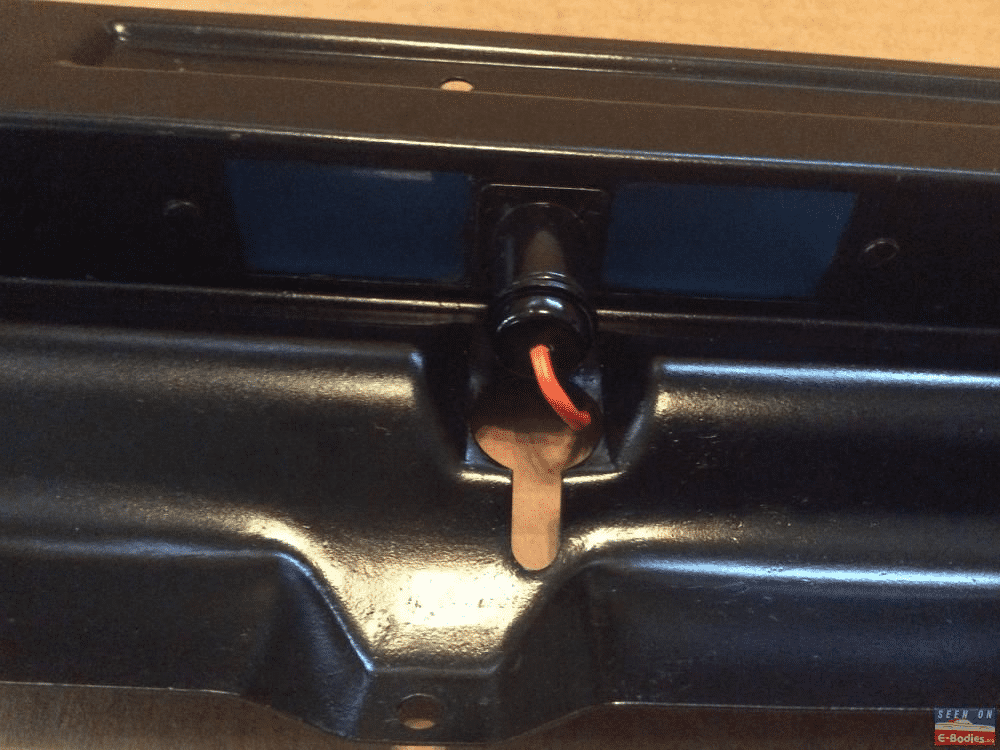

View attachment 98474
It is a Rallye dash and car. Mine has three lights behind the blue plexiglass plates and one at the end that has a blue bulb enclosure. I guess the plate is always the same, just used differently depending on which dash?


Katfish

Well-Known Member
Joined
May 14, 2022
Messages
296
Reaction score
157
Location
Palm Bay, FL
I had to look at mine, and I am now also wondering what those 3 holes are for?


moparmike65

Member
Joined
Sep 18, 2021
Messages
17
Reaction score
12
Location
Emporia, KS
There’s a few wrong answers here. Those holes are for the standard non rally cluster. The rally cluster has the lights hidden behind that cover, if it were a standard non rally cluster the light sockets would be accessible through those three holes. First picture rally dash, second picture non rally.





Juan Veldez

Well-Known Member
Joined
Jan 1, 2011
Messages
740
Reaction score
294
Location
Nampa, Idaho
There’s a few wrong answers here. Those holes are for the standard non rally cluster. The rally cluster has the lights hidden behind that cover, if it were a standard non rally cluster the light sockets would be accessible through those three holes. First picture rally dash, second picture non rally.

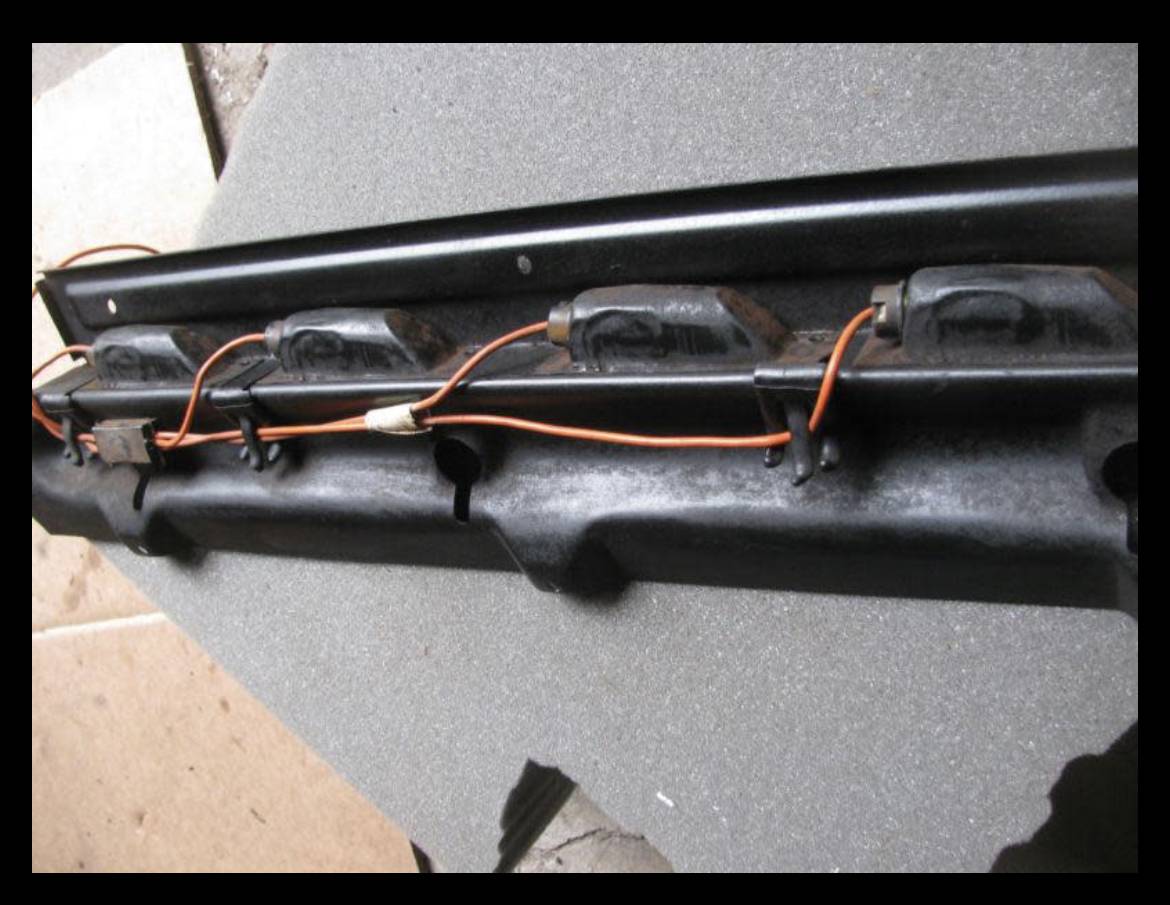

View attachment 98621

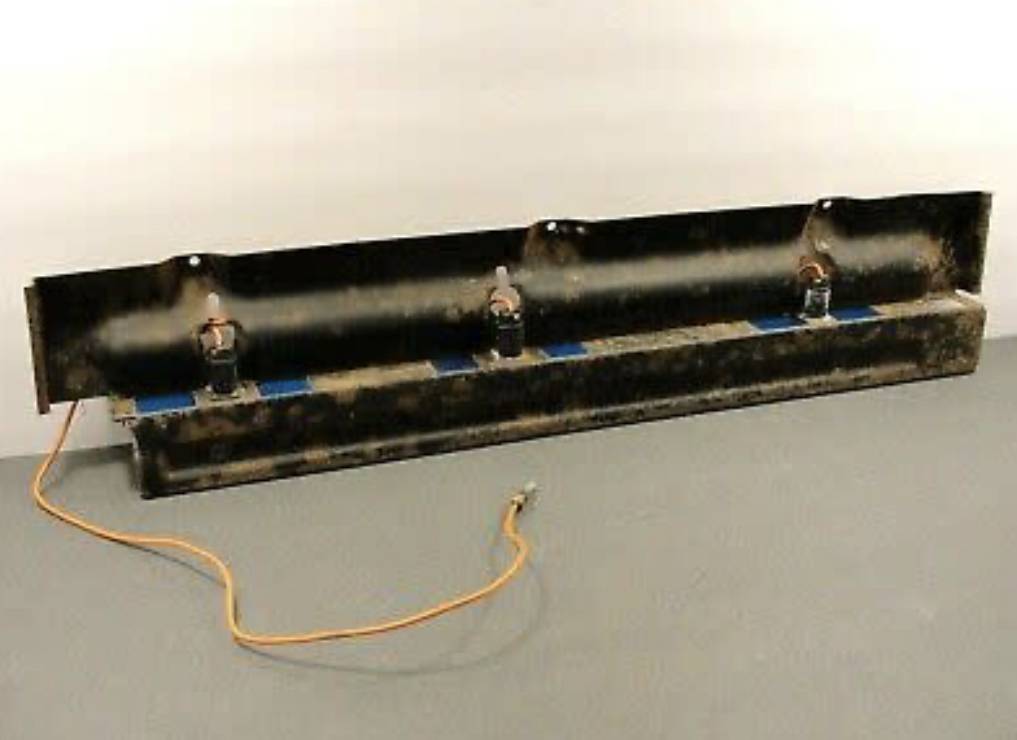

View attachment 98622

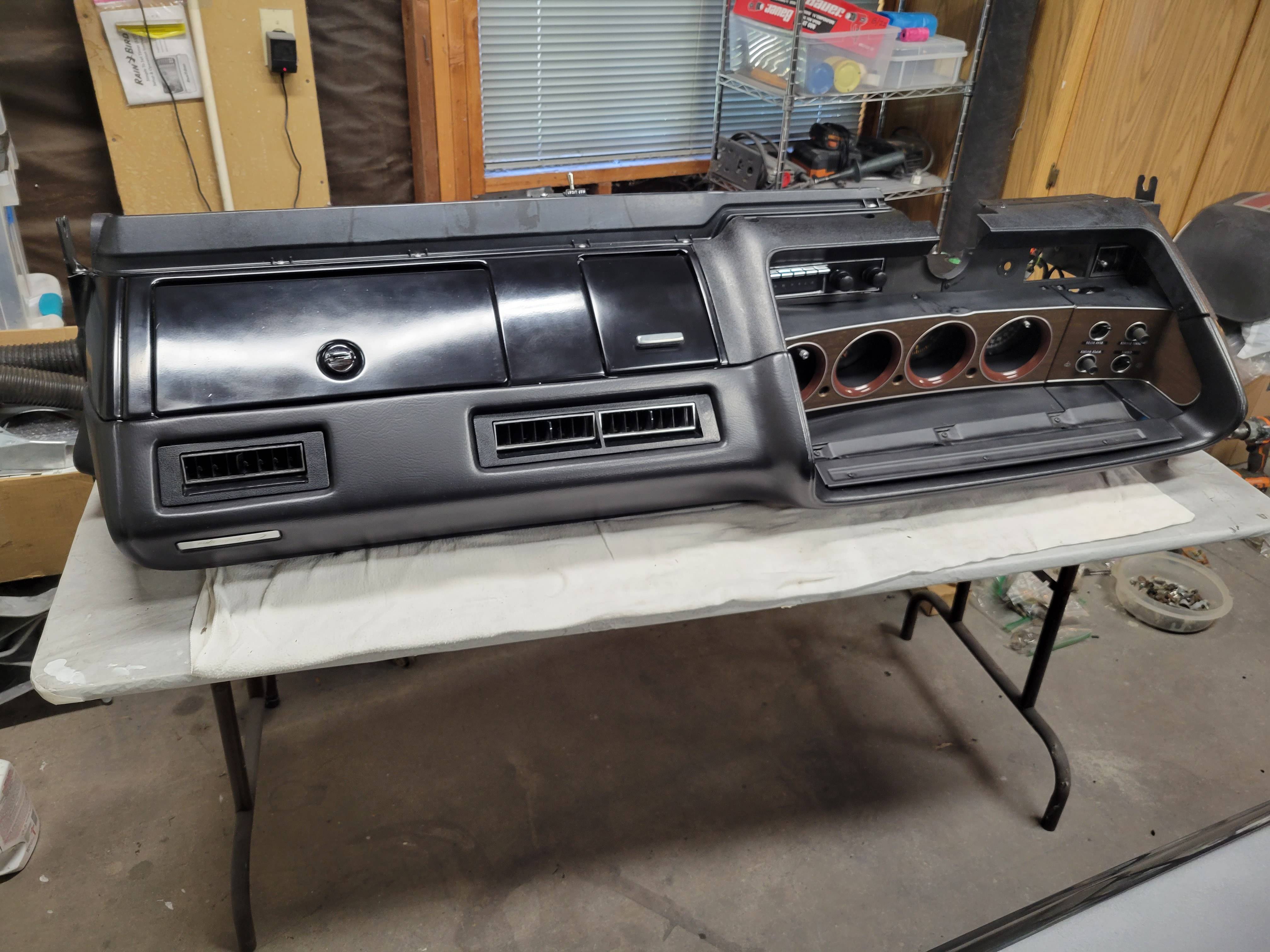

Agreed. All done, ready to install.Dash all complete.jpg


larry4406

Well-Known Member
Joined
Sep 17, 2022
Messages
56
Reaction score
29
Location
Northern VA
There’s a few wrong answers here. Those holes are for the standard non rally cluster. The rally cluster has the lights hidden behind that cover, if it were a standard non rally cluster the light sockets would be accessible through those three holes. First picture rally dash, second picture non rally.
What are the wrong answers in the thread?

OP was told he had the wrong light bar for a rallye dash application and the holes in the wrong light bar (which he asked about) allows the lights to pass thru.


Juan Veldez

Well-Known Member
Joined
Jan 1, 2011
Messages
740
Reaction score
294
Location
Nampa, Idaho
What are the wrong answers in the thread?

OP was told he had the wrong light bar for a rallye dash application and the holes in the wrong light bar (which he asked about) allows the lights to pass thru.

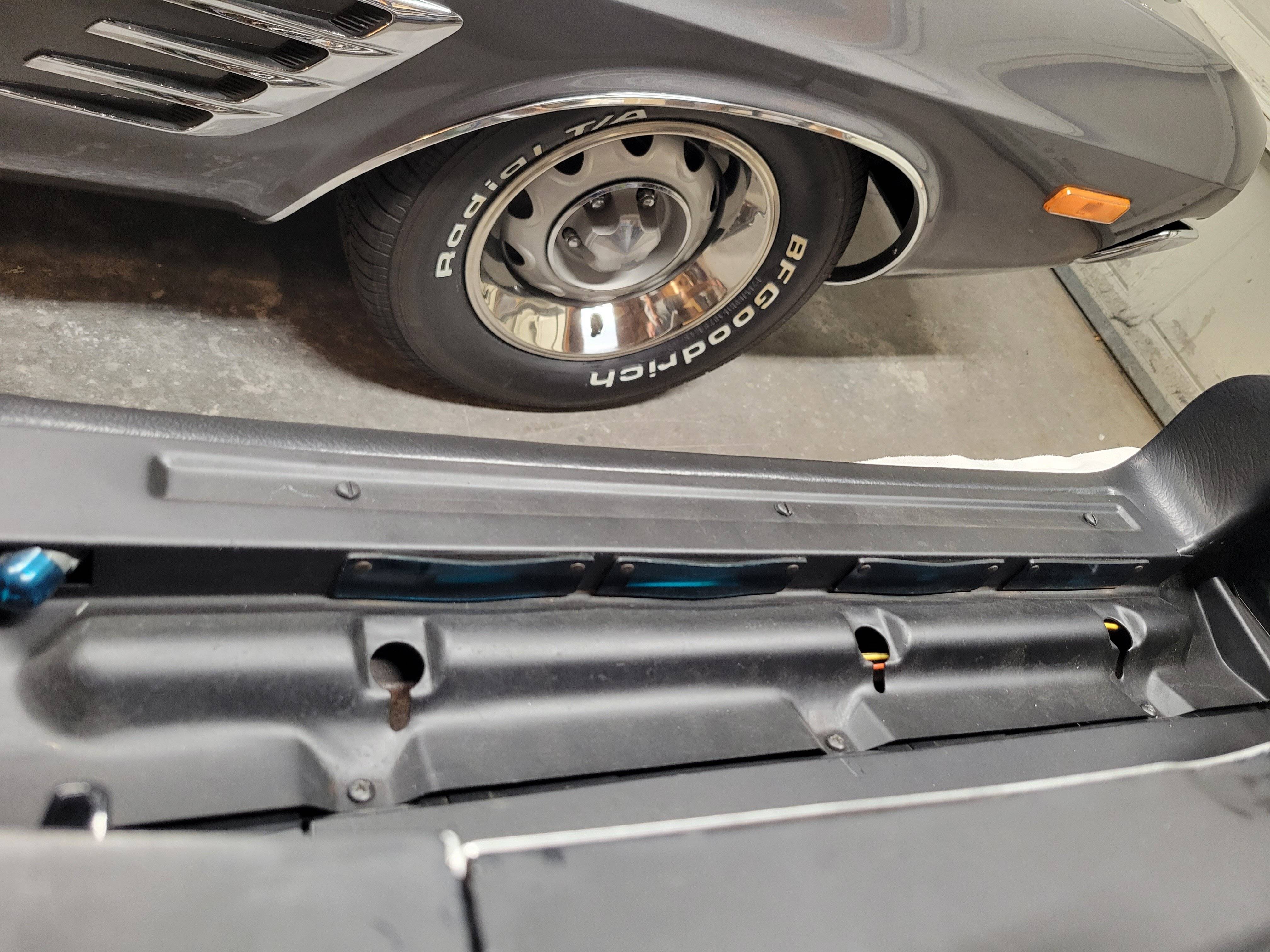

Dash light bar.jpg
Here is a better photo of the panel. I have the four blue plastic lenses with a bulb behind each one, not going though three lenses. This is a Rallye car and what seems to be a Rallye dash, including this light bar. Correct or incorrect?
