Wiper Linkage

71droptop

Well-Known Member
Joined
Feb 16, 2010
Messages
162
Reaction score
10
Location
Lower Hudson Valley
I have gotten many Good leads from the site as far as who rebuilds wiper motors.
Having a little trouble getting a handle on the whole linkage issue. Im converting from 2 spd. switch and motor to Ralley 3 spd and motor.
Im told if I use the existing linkage under the cowl the wipers wont park.
So Ive been on a search for link 2822 289 and 2822 293.
Any help Really appreciated.

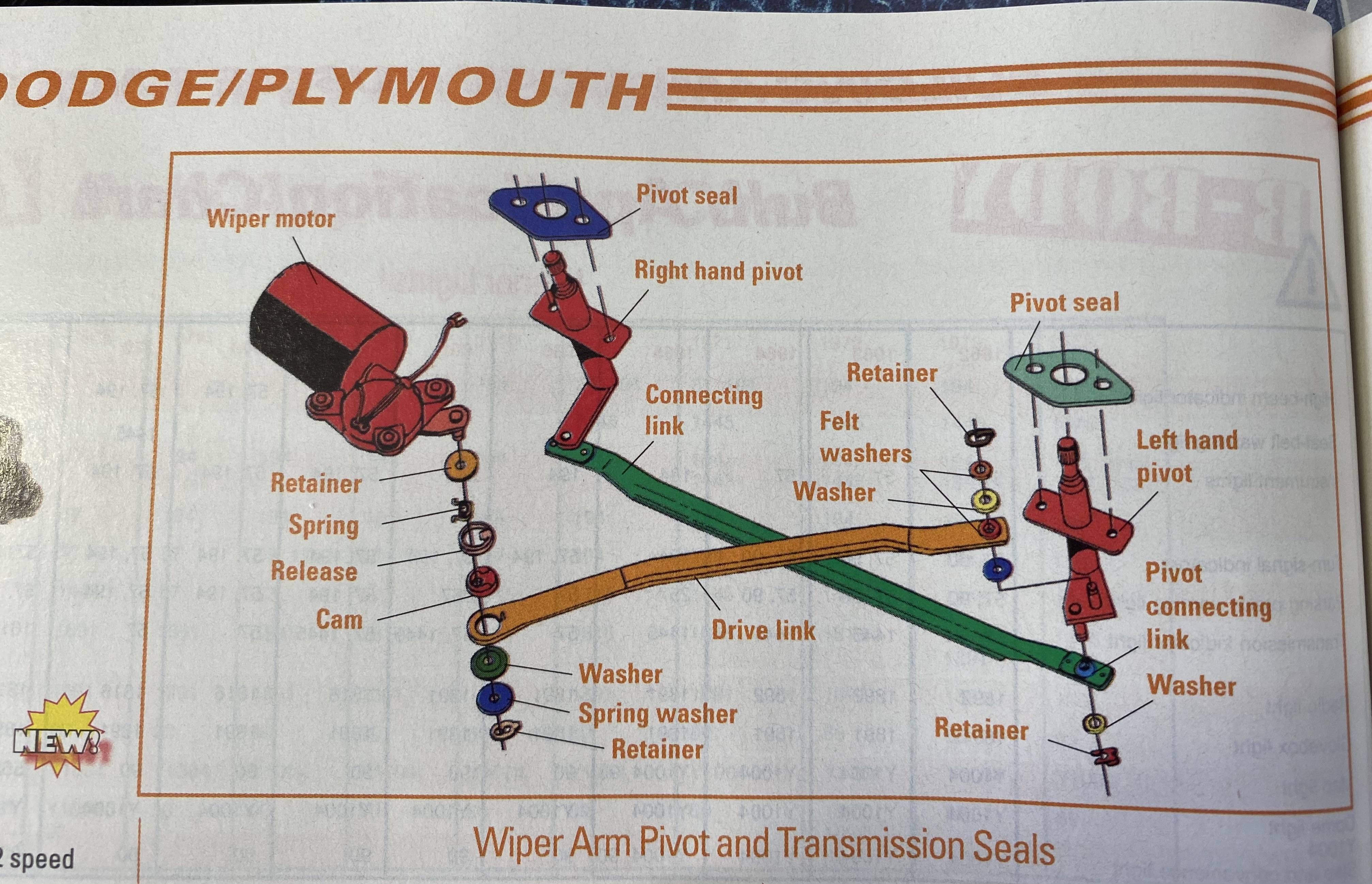

Wiper Schematic.jpg


Steve340

Well-Known Member
Joined
Sep 19, 2016
Messages
894
Reaction score
329
Location
New Zealand
The linkage is different between a 2 and 3 speed. I believe the wiper pivots that mount the actual wiper blades are the same.
The 3 speed linkage has two variations 70 -71 and 72 -74.
The cranks on the wiper motor are different for each style. From memory the little shaft that comes out from the wiper motor are different sizes so you need the wiper motor first to get the correct crank.
From there obtain the correct linkage to suit the motor/crank.
Look at Bill Meerholz Enterprises - BMCuda.com


71droptop

Well-Known Member
Joined
Feb 16, 2010
Messages
162
Reaction score
10
Location
Lower Hudson Valley
The linkage is different between a 2 and 3 speed. I believe the wiper pivots that mount the actual wiper blades are the same.
The 3 speed linkage has two variations 70 -71 and 72 -74.
The cranks on the wiper motor are different for each style. From memory the little shaft that comes out from the wiper motor are different sizes so you need the wiper motor first to get the correct crank.
From there obtain the correct linkage to suit the motor/crank.
Look at Bill Meerholz Enterprises - BMCuda.com
Ok Thanks
Appreciate it.
