Quarter panel undercoating pics

[6pack2go]

Hey anyone have pic's of your inner quarters / trunk areas?, I'm looking to duplicate the factory undercoating patterning for a 70 cuda. I recently had a customer bring in some n.o.s 70 charger quarters to get undercoated. And now he has requested to do the same for his 70 cuda build. However I don't have many clear pictures of examples to go off.



[Challenger RTA]

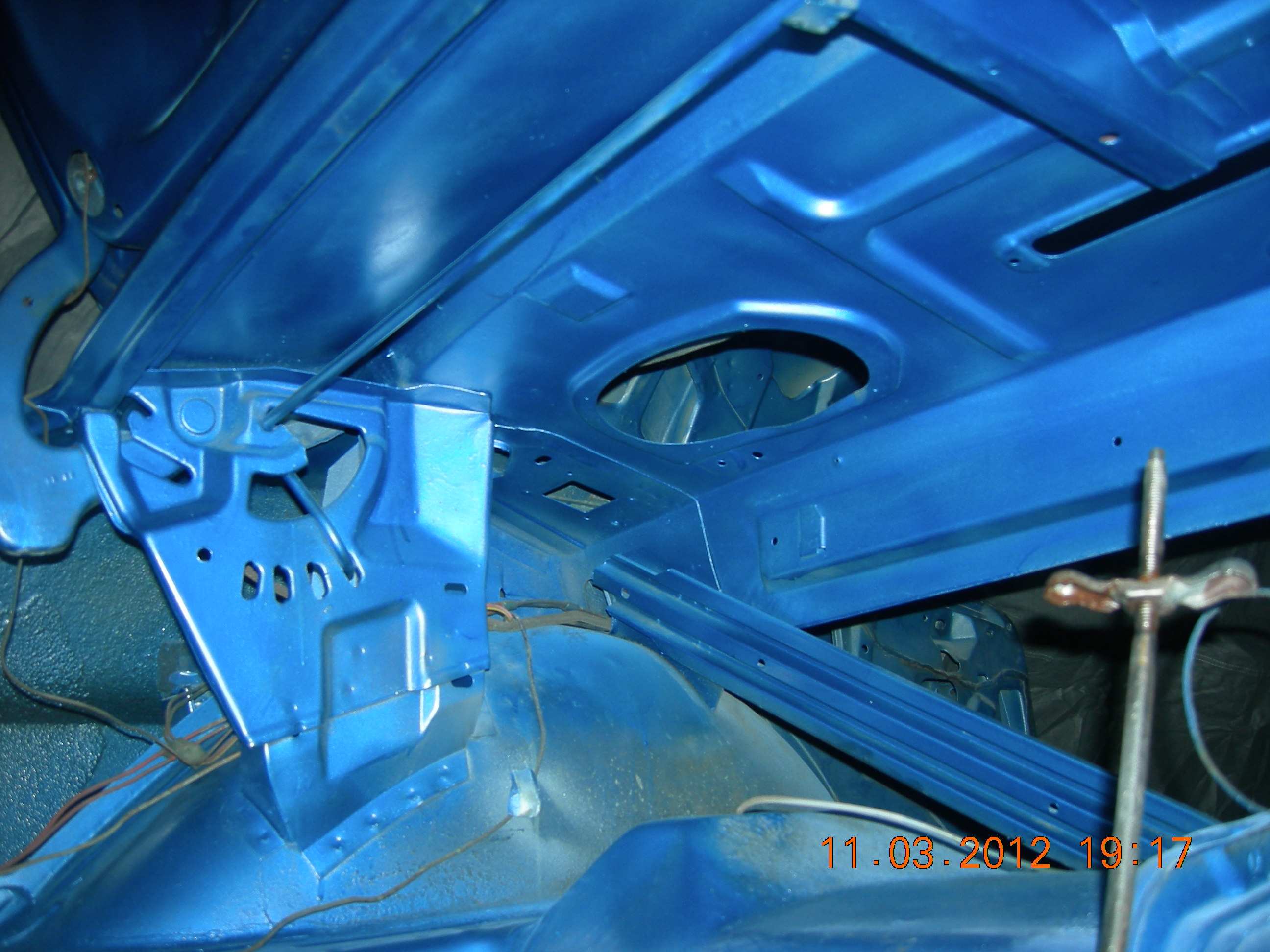

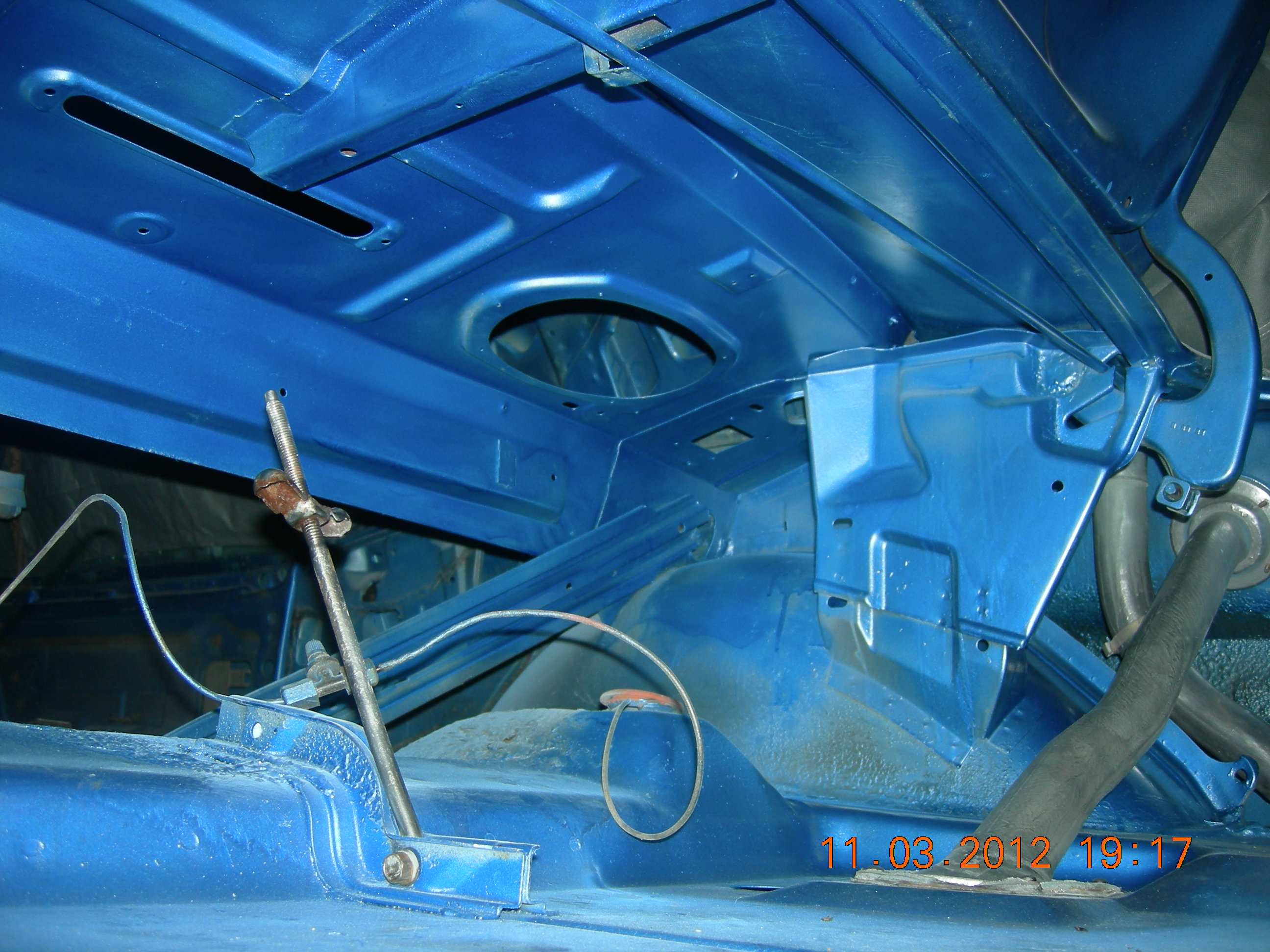

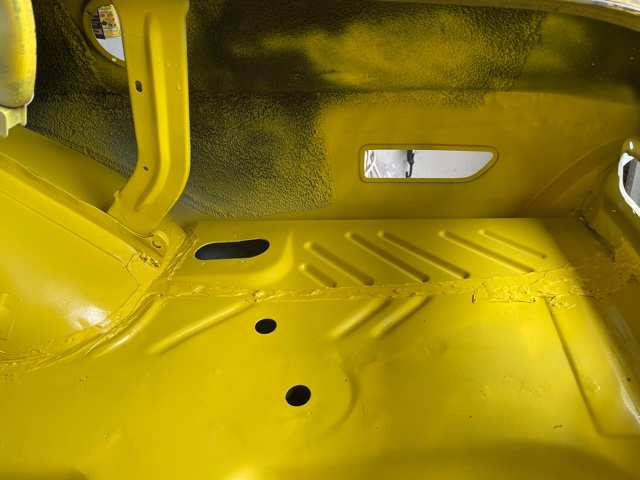

Trunk and quarter undercoating. Factory from Hamtramck



[340challconvert]

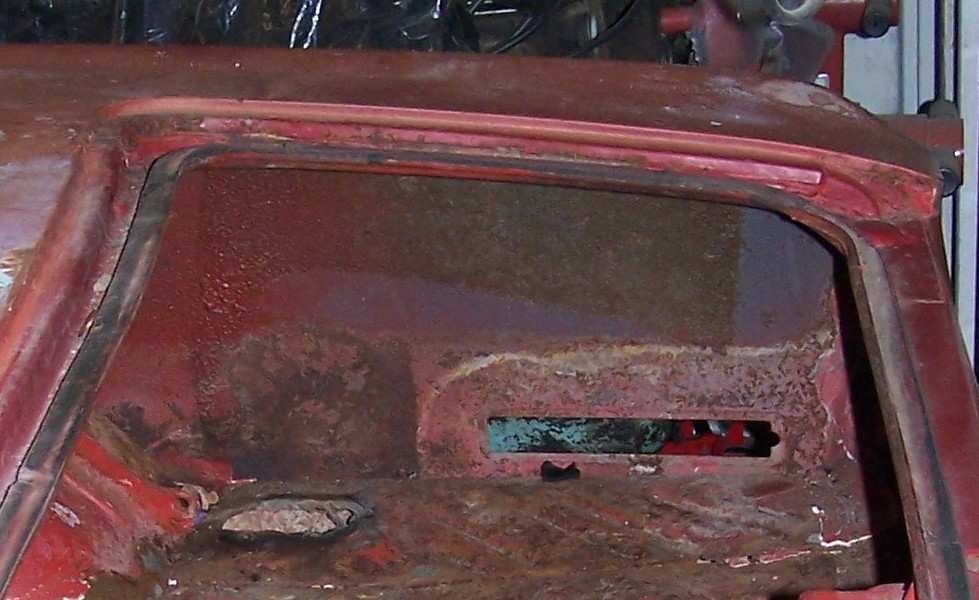

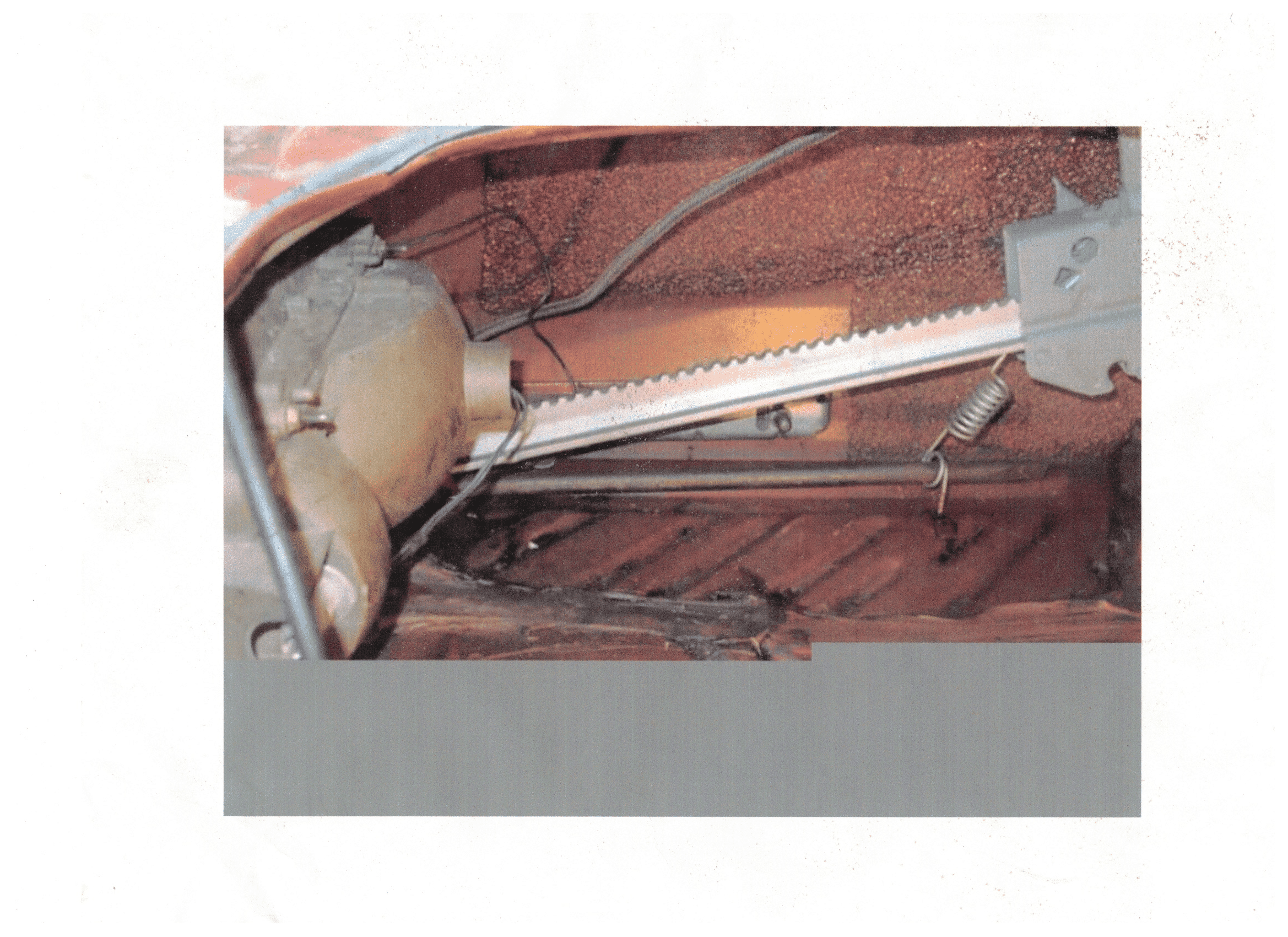

70 Challenger rt side pic and pattern of my original undercoating on quarter. L shaped pattern



[cuda joe]

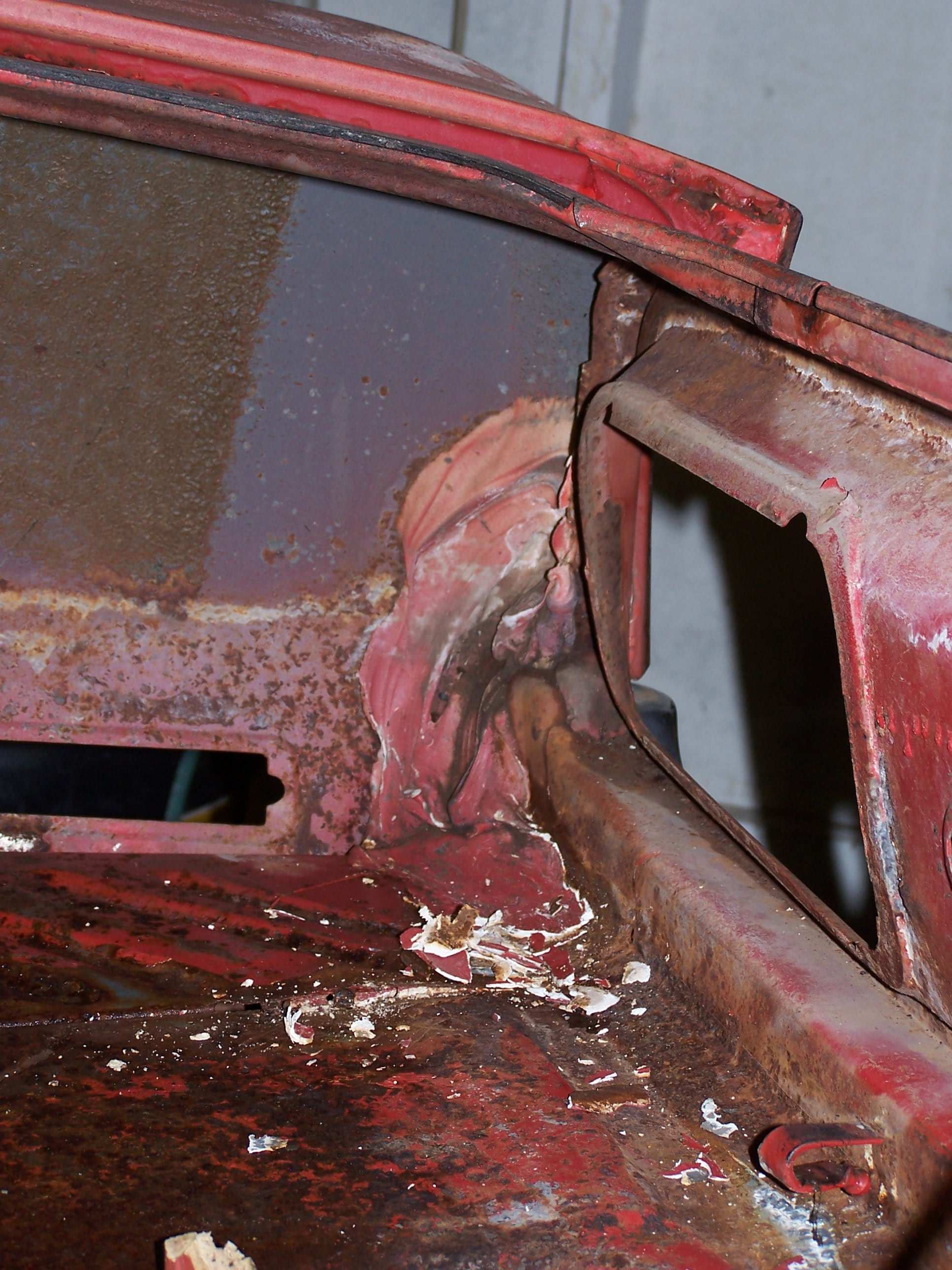

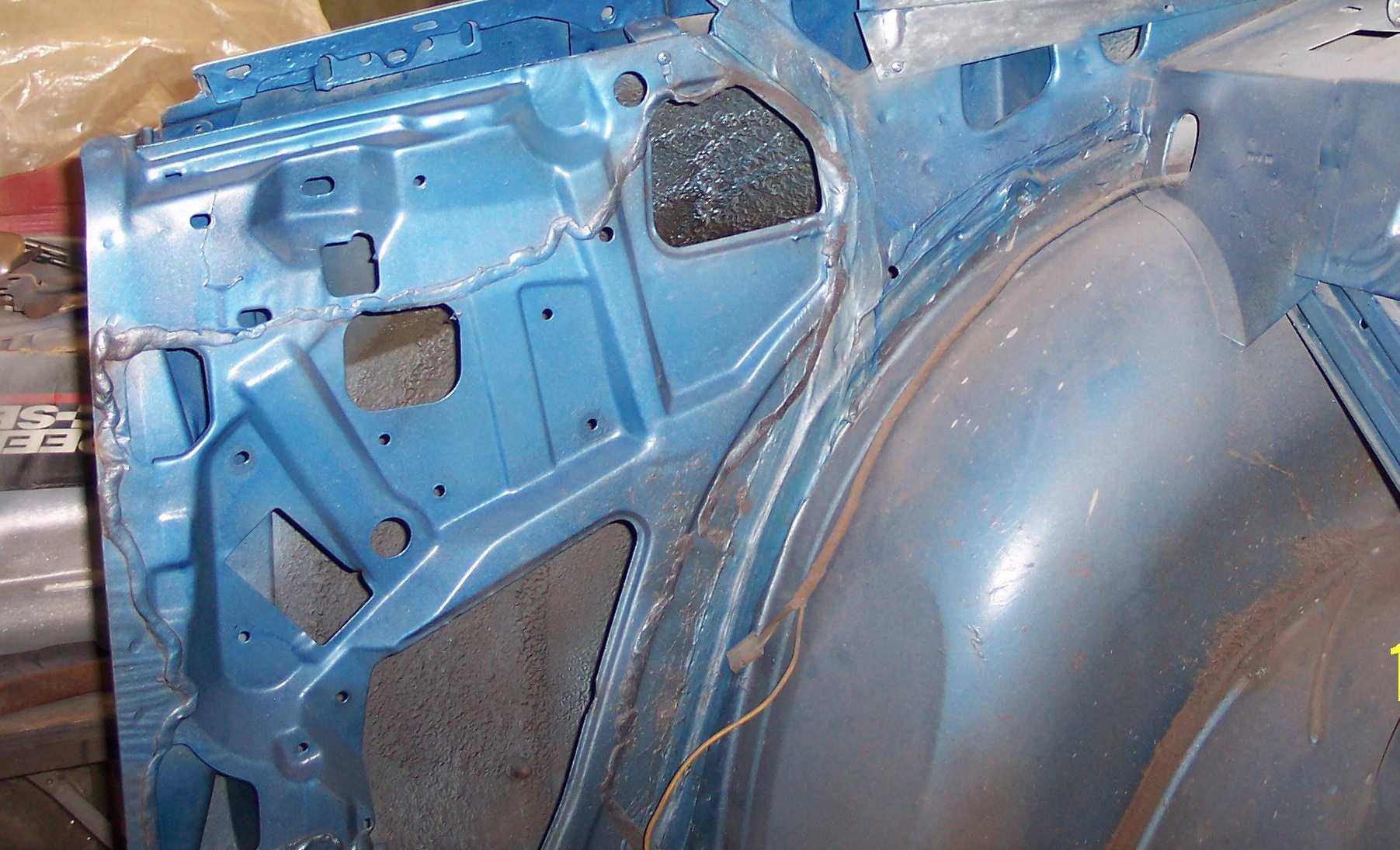

here is a cuda I don;t think its undercoating but rather spray on sound deadening that got painted over



[Cuda Hunter]

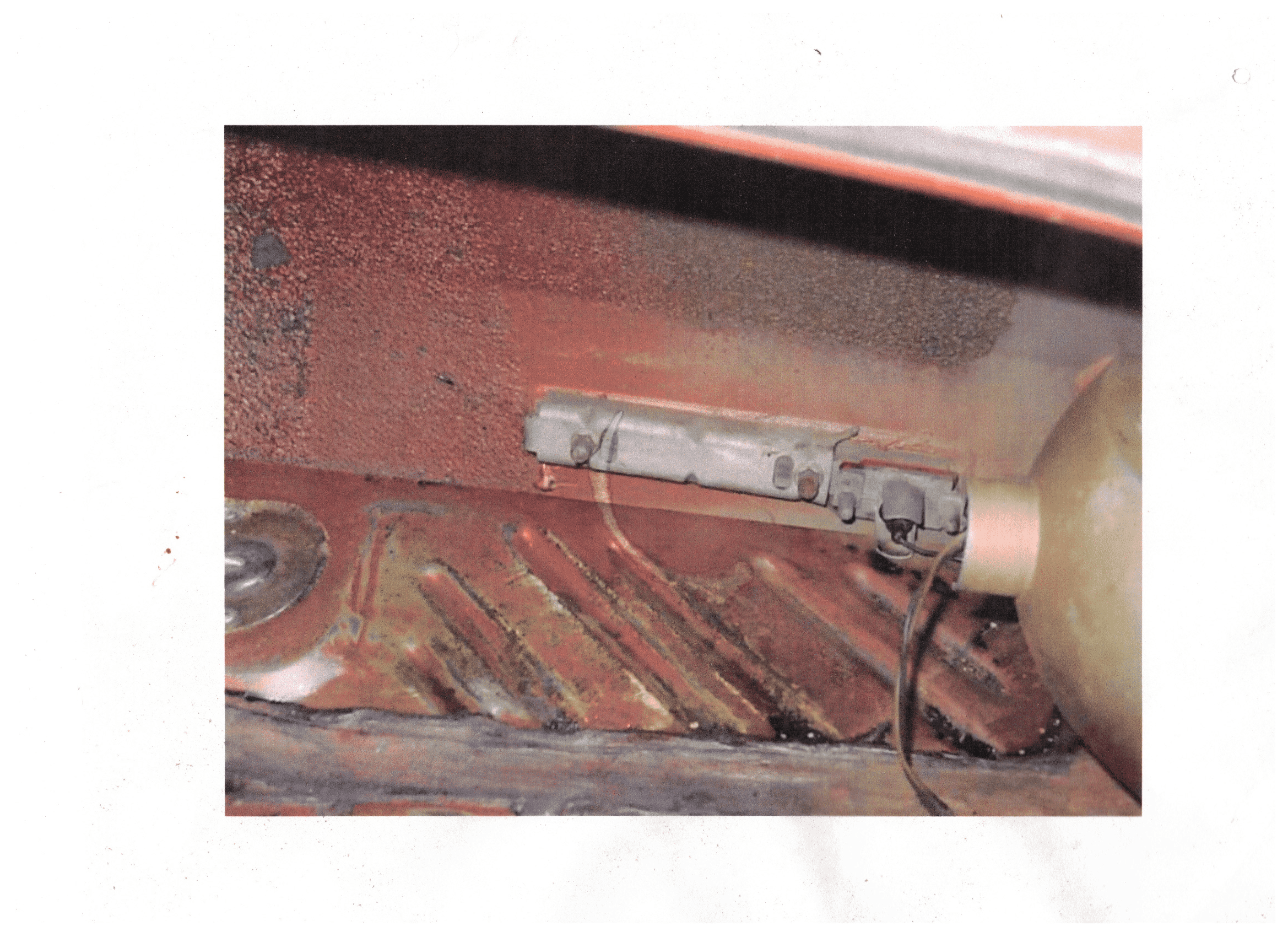

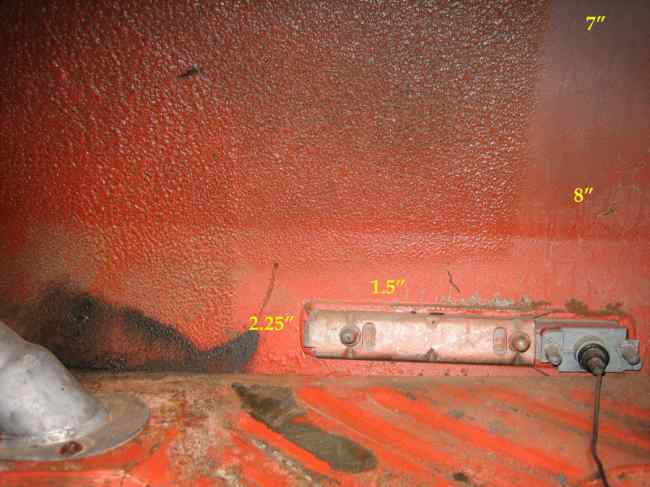

This is a 1971 BH SPD of 909

Note the double spray on the drivers side.
You can see two lines where they apparently moved their pattern board a few inches closer to the rear side light housing.



[larry4406]

Restorick used to have pictures on his website showing this. I just checked and get a 404 error at his link to the tech archive. I recall the pictures showing a cardboard mask that he applied first then sprayed it out.

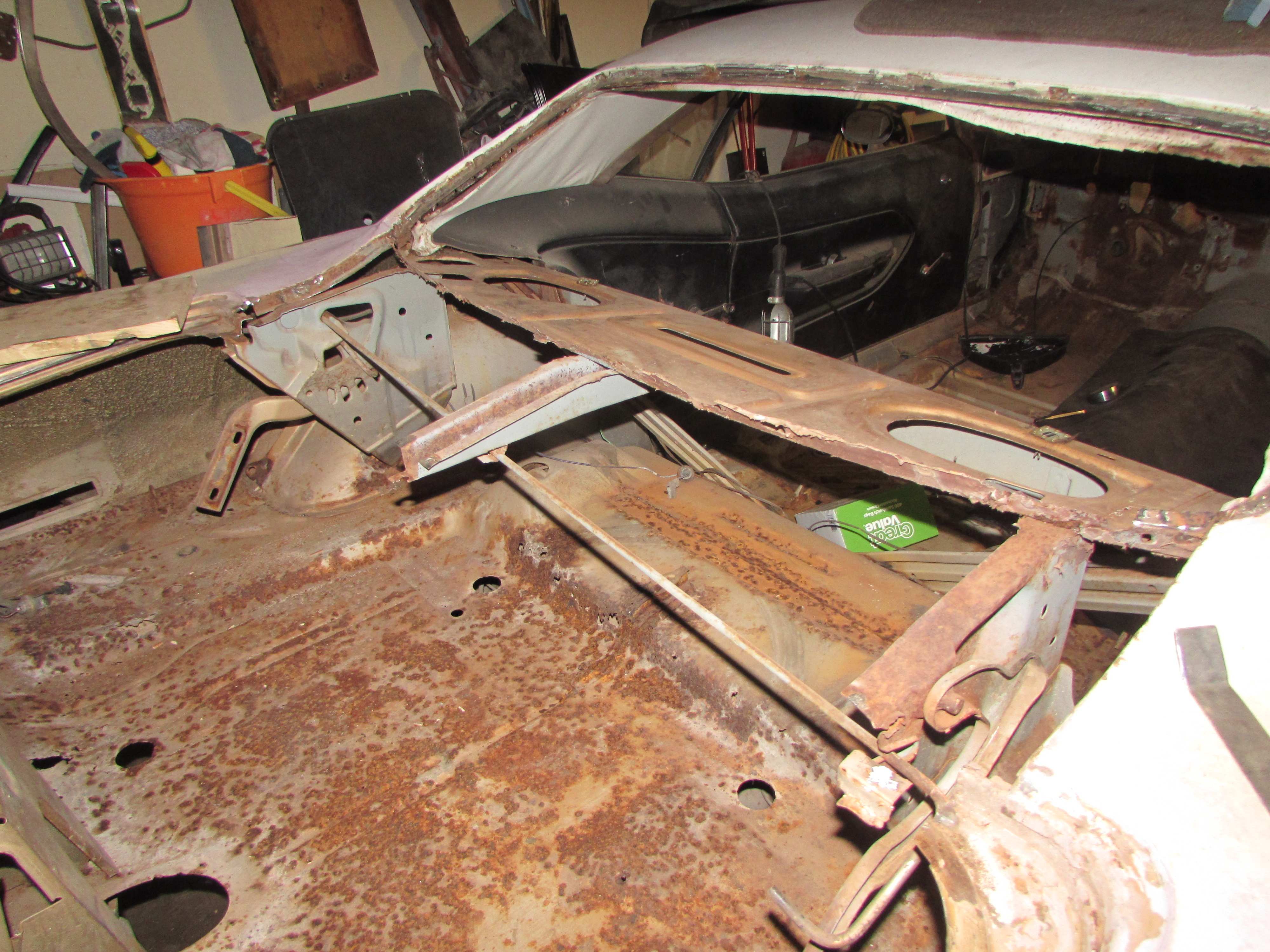

Here is a random picture I have on my computer. Not sure where it came from or who posted it originally.

Maybe this link is helpful

Undercoating inside of quarters yes/no in Body Shop - Page 2

Quote from: Jocigar on February 23, 2023, 06:41:10 AMThank you all, that was the definitive answer I was looking for... I'll give resto rick a call.

forum.e-bodies.org



[rklein71]

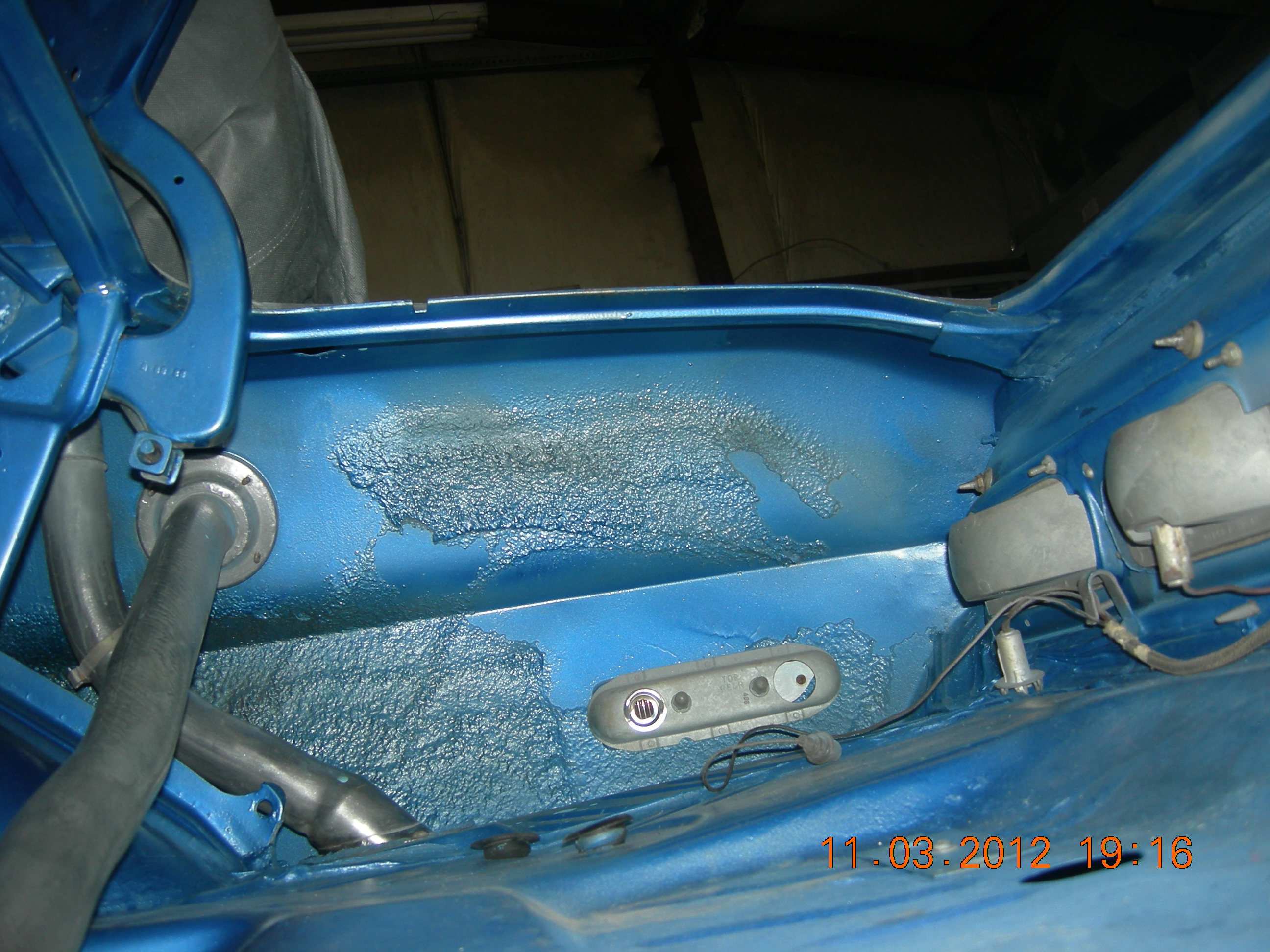

Can see a bit of the original undercoating in my 71 BHG.



[6pack2go]

Awesome thanks for the pictures definitely going to help!



[rklein71]

I did my undercoating on the quarters while they were off the car. I believe it was for sound deadening purposes. Replicated fairly closely, at least around the marker openings, I might have done more than the factory did, but I figured it couldn't hurt.



[larry4406]

I did my undercoating on the quarters while they were off the car. I believe it was for sound deadening purposes. Replicated fairly closely, at least around the marker openings, I might have done more than the factory did, but I figured it couldn't hurt.

I too believe the interior coating is for sound vs rust.
