Any images or factory drawings of cuda exhaust heat shields?

[mmissile]

I'm looking for the shop manual drawings or pictures on cars, of the muffler heat shields for a 70 cuda, and how they're attached.


Thanks....Mike.



[Racer57]

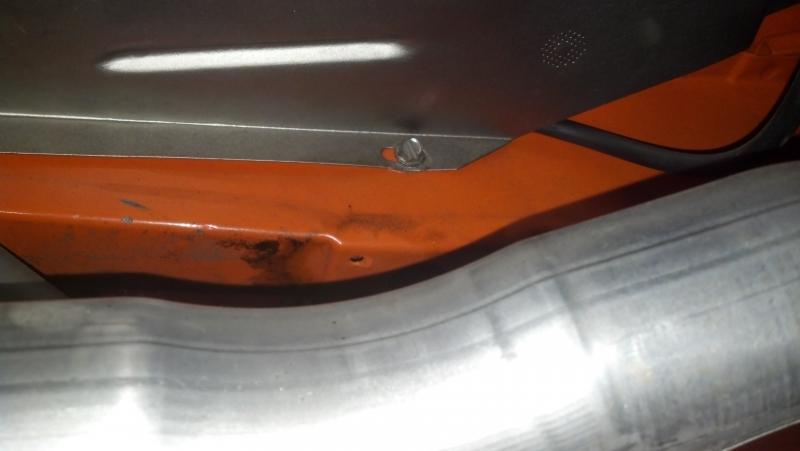

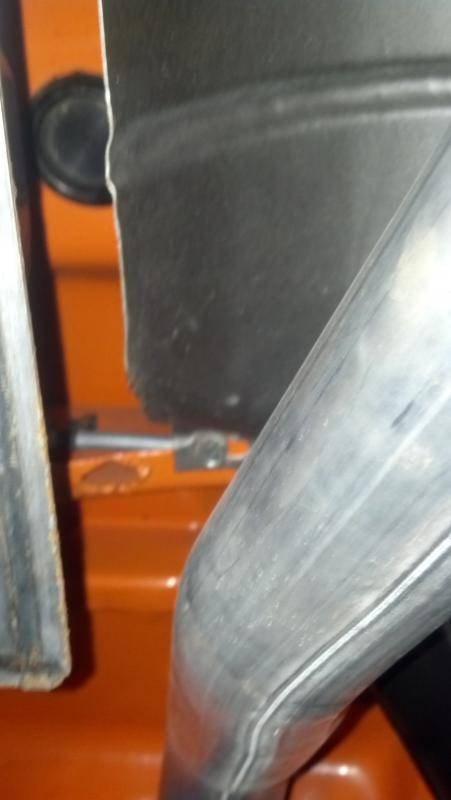

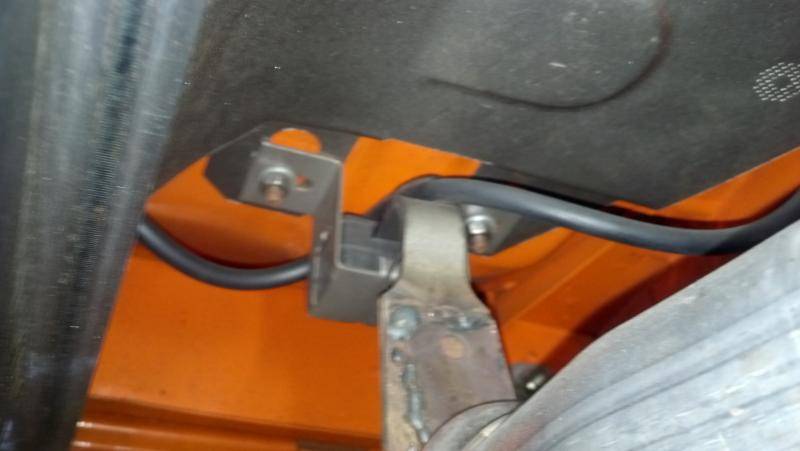

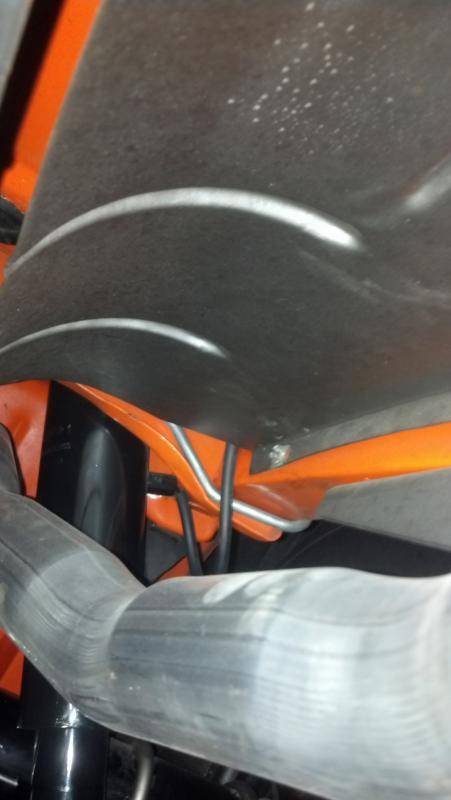

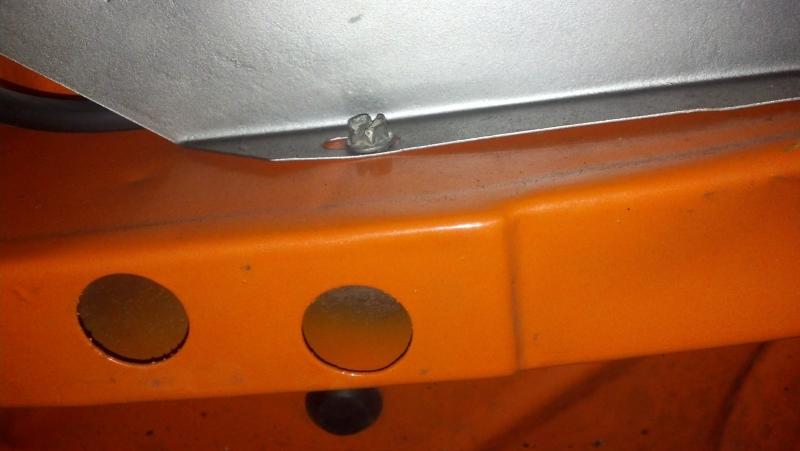

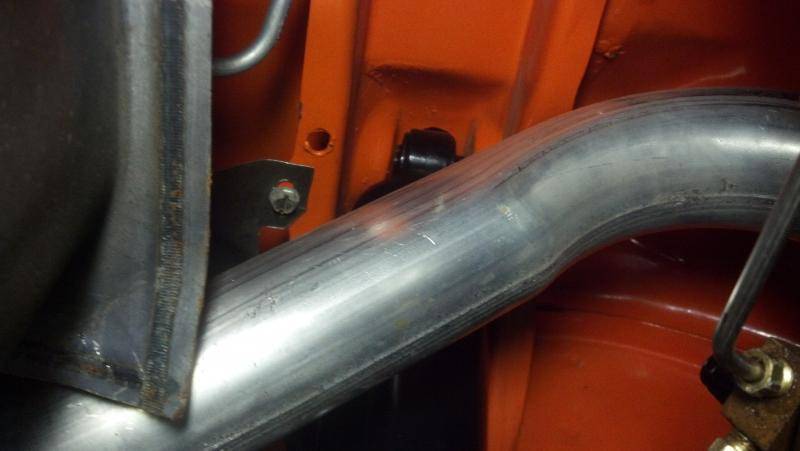

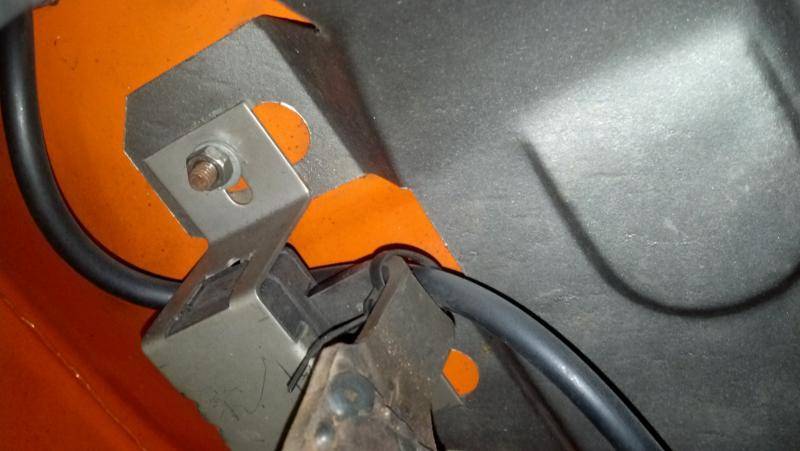

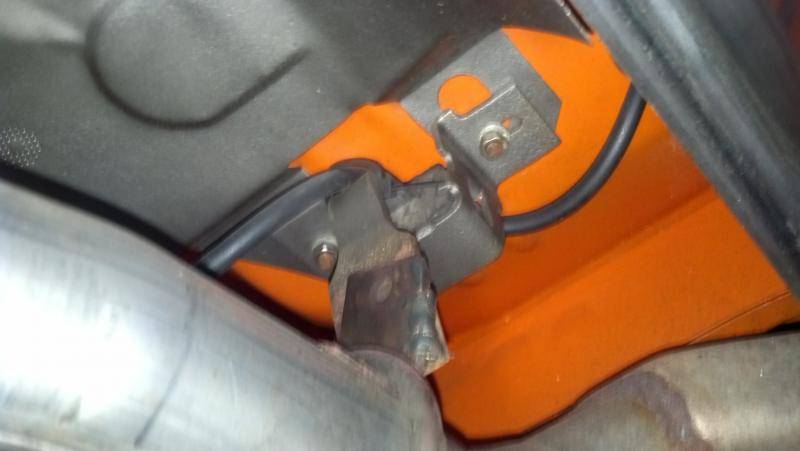

Do these help ? Combinations of left and right side.



[mmissile]

Yes, thank you.



[340challconvert]

heat shield pics very helpful

Very helpful pictures
Thank you



[340challconvert]

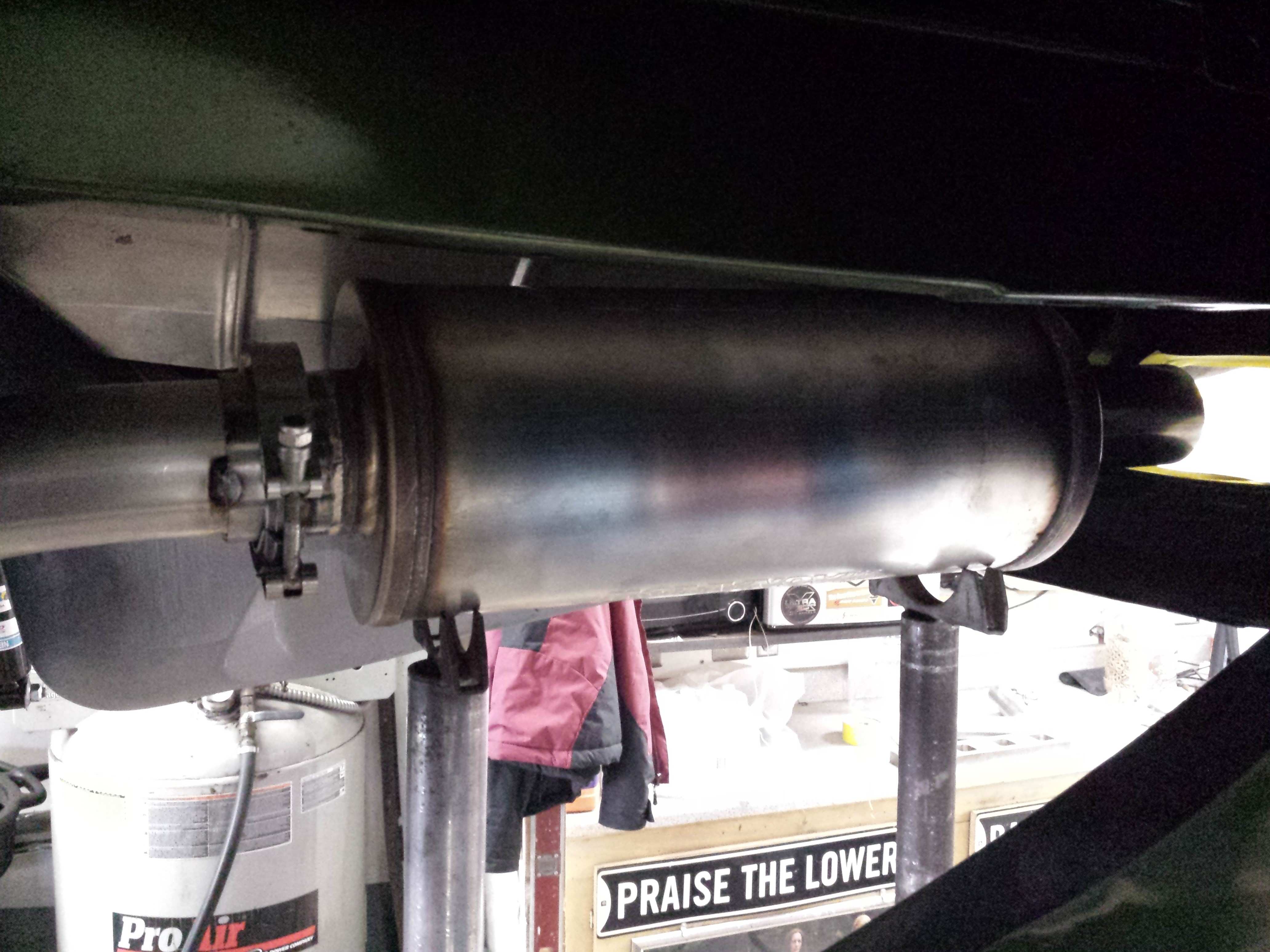

Finally getting ready to install my Accurate Exhaust and needed to back check how the muffler shields are attached. Can't believe I thanked you 9 years ago. Thank you again
Phil



[Cuda Hunter]

Time sure is fleeting.
I'll thank you for the pics also!



[mmissile]

My exhaust isn't stock, but I had stainless shields that located to the original specs.
