Anyone know the order these visor rods go back together?

themechanic

Well-Known Member
Joined
Aug 16, 2019
Messages
128
Reaction score
41
Location
Moore, OK
Working on a 70 Cuda. I broke a cardinal rule and failed to photograph the sun visors before I disassembled them to restore the metal parts. I assumed the Factory parts manual would have an exploded pic but I was wrong.

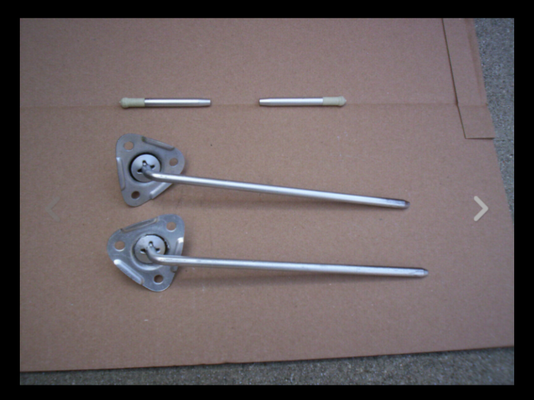

Here's a pic of how I laid them out (in order I thought) after taking the rod/hinge apart. The round parts have witness marks but the rods have been cleaned with a wire wheel. These did not have springs. Should they? I could only find one photo of the rod/hinge assembly. The set on the left have a spring and the one on the right do not. (Credit member @floyd for the pic from a prior thread).



Thanks for looking.



visor rods.jpeg

Last edited:

Rapidfire

Well-Known Member
Joined
Aug 7, 2019
Messages
756
Reaction score
572
Location
Culbertson Nebraska

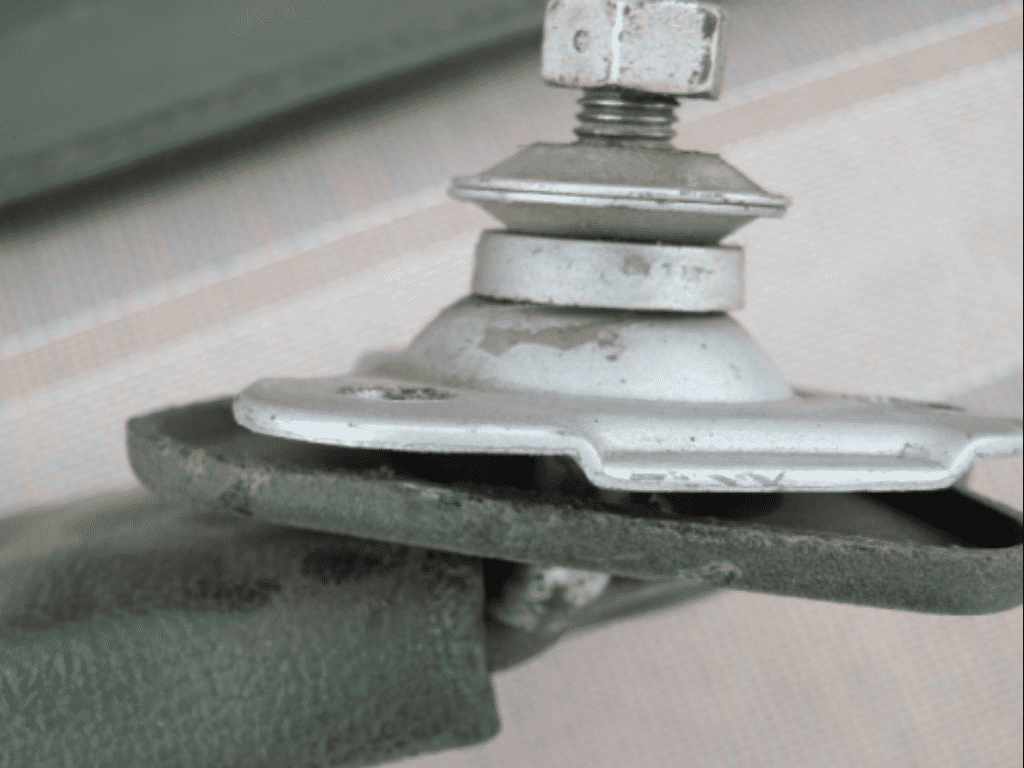

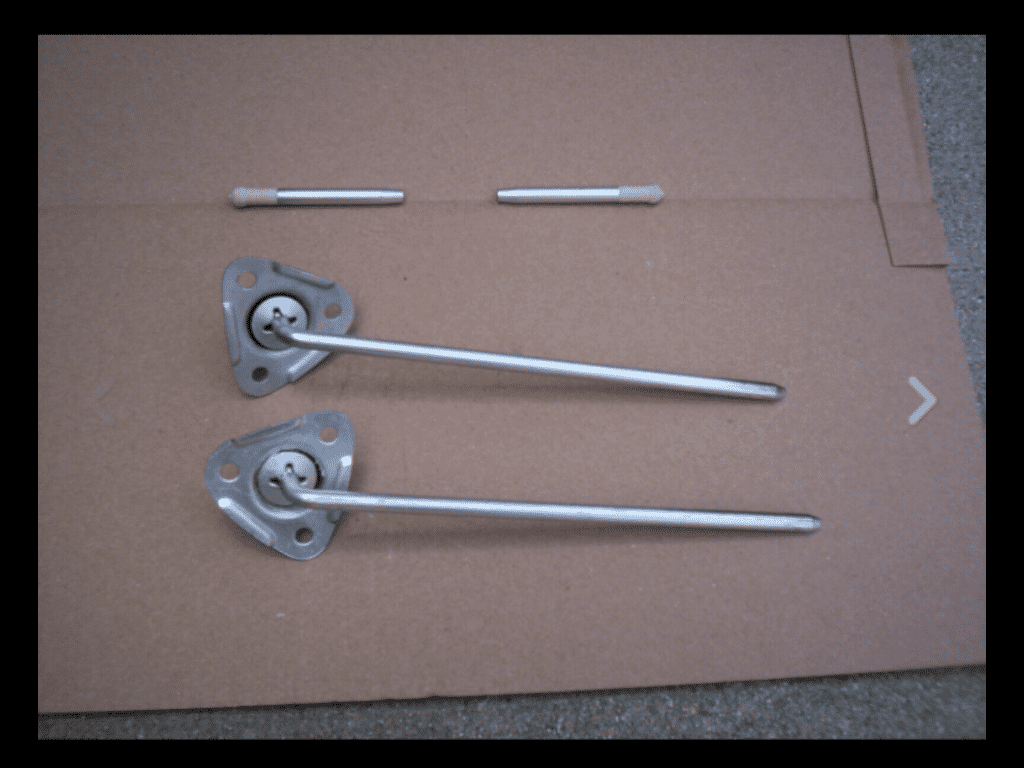

I think the earlier sun visors did not have springs and later they change them to the spring style.
