Wiring cleanup after ballast resistor delete

RayL

Active Member
Joined
May 15, 2021
Messages
34
Reaction score
10
Location
NJ
I installed Don Gould's HRR688 Ignition Box W/Coil (FBO Ignition - Home of the HRR688) and now want to delete the unused ballast resistor and cleanup the left-over wiring.

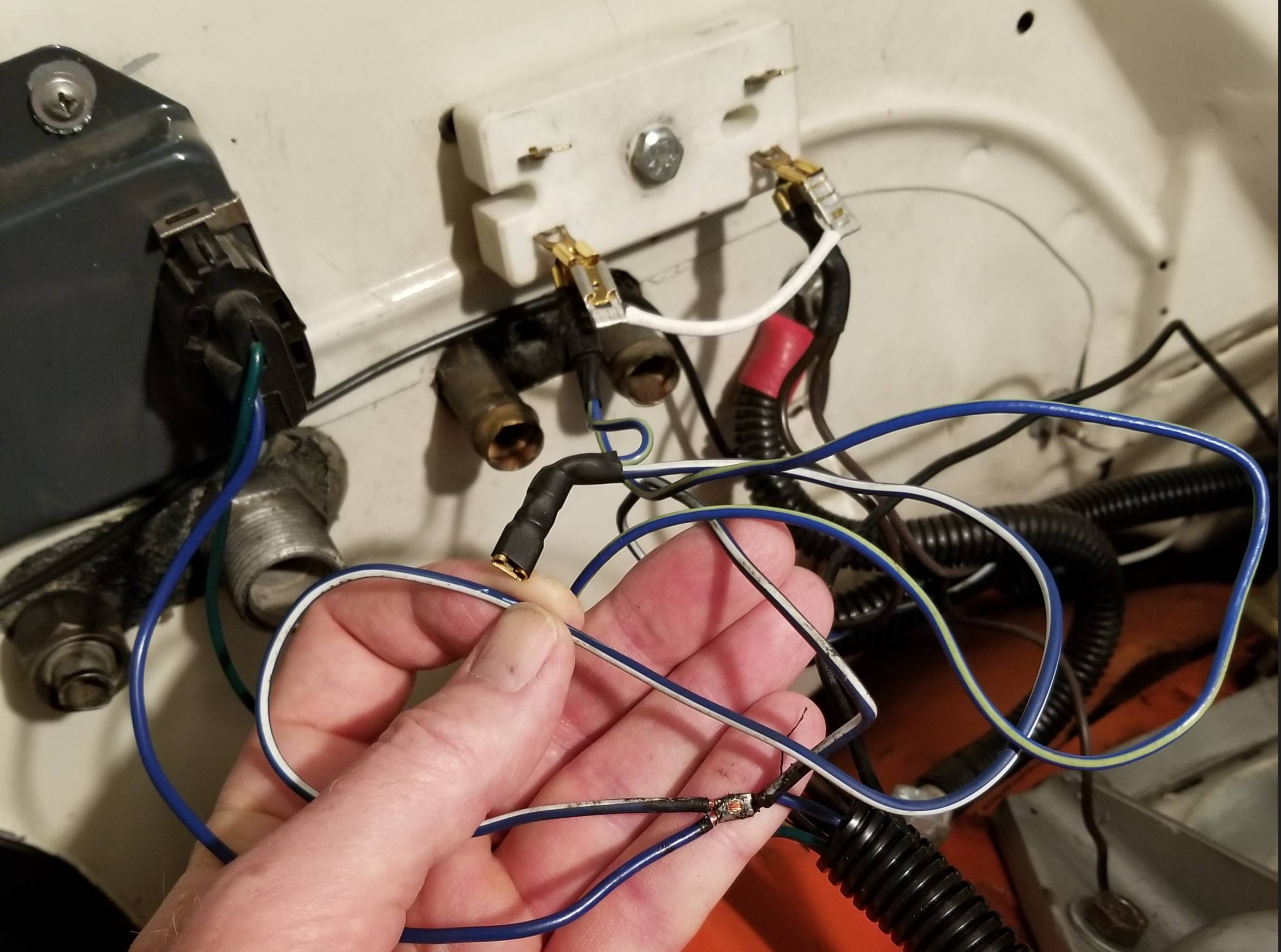

This car has obviously been through a few ignition changes and there are several splices that need to be corrected.

Does anyone have a clean simplification for these connections?

I'd like to thank whoever created the original diagram I included in this post but couldn't find who made it. Thanks if you are seeing your work reused here!

Ray





RayL

Active Member
Joined
May 15, 2021
Messages
34
Reaction score
10
Location
NJ
Adding a side note: hitting the rev limiter for the first time is an awesome, somewhat terrifying, yet highly recommended experience :)
