70 barracuda tail panel

jujuka

Well-Known Member
Joined
Aug 29, 2011
Messages
53
Reaction score
16
So I'm doing some pre body work intell on my 70 plymouth barracuda while its getting the rust and paint removed. I have searched around on the internet but can't come up with the configuration that probably came with the car when new. Am I on the right track thinking the tail panel should be the body color, without the chrome trim, the 'barracuda' emblem and the tail light bezels are the body color? or argent? The ones that came with the car are argent but I'm not sure if they are original to the car. The car color is ew1. (alpine white)
Thanks in advance


MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
505
Reaction score
388
What are the first two letters of your VIN, BH or BP?

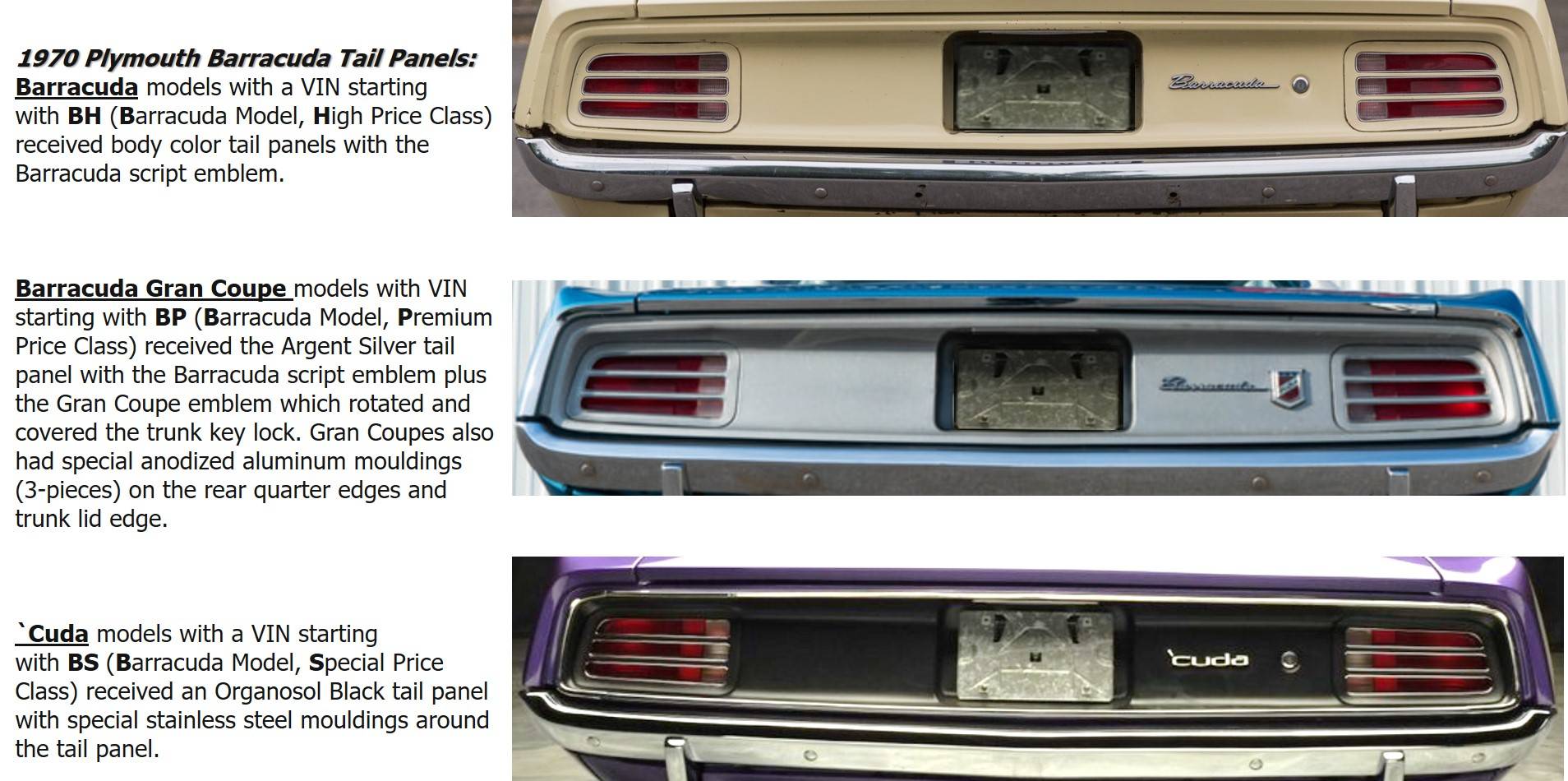

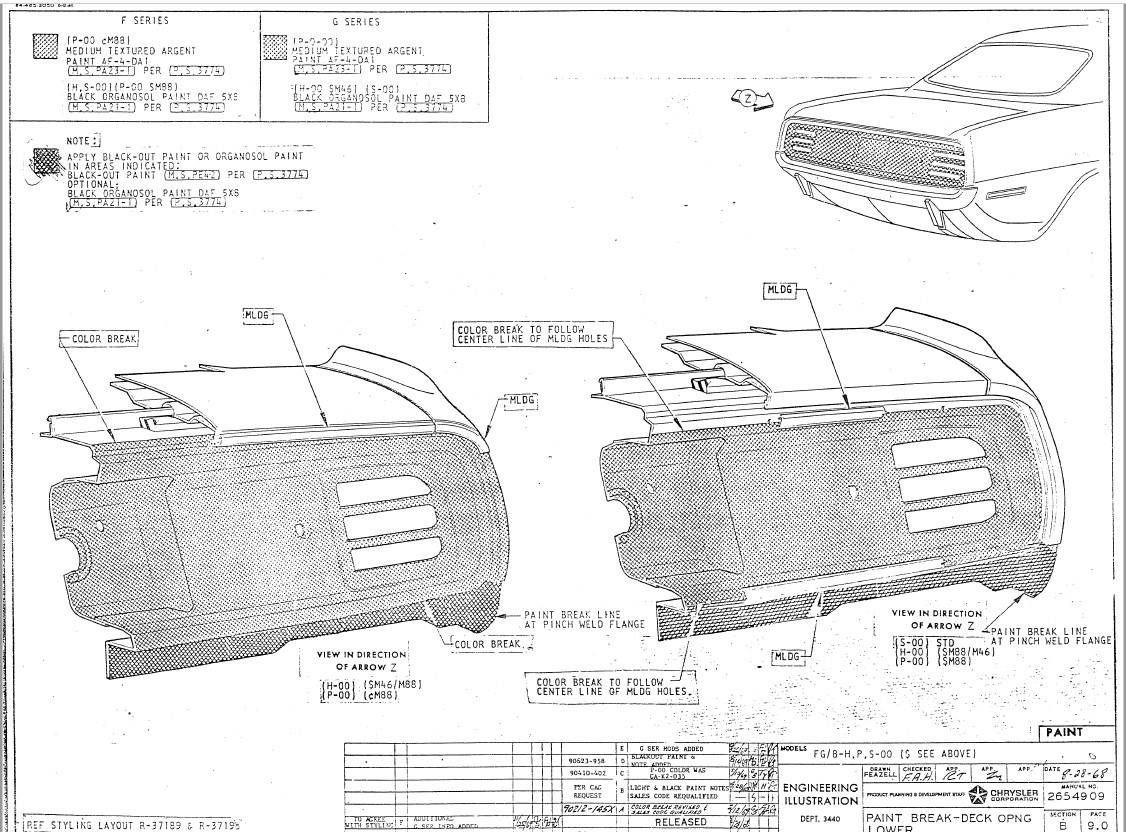

The below graphic shows the three available tail panel treatments and the engineering drawing for the BP & BS models for paint.


Attachments

  • 1970 Barracuda & Cuda Tail Panel Treatment.jpg
    1970 Barracuda & Cuda Tail Panel Treatment.jpg
    219.5 KB · Views: 205
  • S-Cuda & P-GranCoupe Tailpanel Paint Eng Drawing.jpg
    S-Cuda & P-GranCoupe Tailpanel Paint Eng Drawing.jpg
    188.2 KB · Views: 230

jujuka

Well-Known Member
Joined
Aug 29, 2011
Messages
53
Reaction score
16
Thank you MCG! Exactly what I was looking for.
I have a BH27 L code. The BH example is exactly what I want.
Cheers
