90 degree oil filter adapter

[renoraider]

Hi, I need information or a picture of the gasket placement on a 90 degree adapter for a 340 block . I have 3 gaskets 1 large which is obvious and 1 fiber which i think goes under the large bolt and 1 cork which I do not know . I have been told everyting from throw it away to it goes into the housing and the bolt passes thru it. Can anyone help ? Thanks



[moparleo]

You first take the oil filter mounting plate off of the block. The cork gasket now goes between the the new oil filter adapter and the filter mount . The other 2 gaskets are obvious in their installation.
http://chucker54.stores.yahoo.net/oilfilad.html



[renoraider]

You first take the oil filter mounting plate off of the block. The cork gasket now goes between the the new oil filter adapter and the filter mount . The other 2 gaskets are obvious in their installation.
http://chucker54.stores.yahoo.net/oilfilad.html

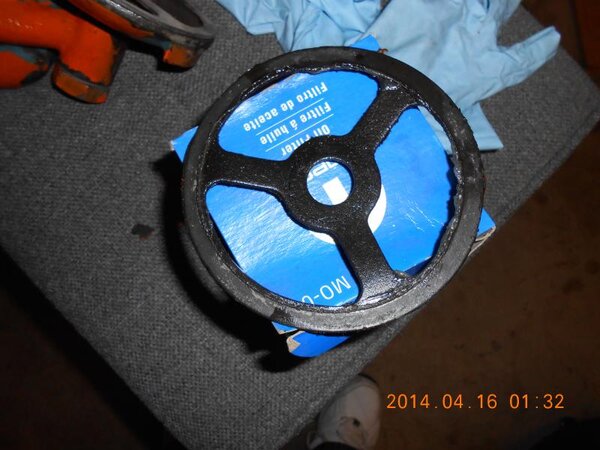

My large gasket has 3legs that go to the center where it is attached to a smaller gasket that the bolt passes thru. Do I still use the cork?



[moparleo]

The center of that gasket is supposed to eliminate the cork gasket, but sometimes is too thin. Use gasket sealer on the block side. Tighten to about 50 ftlbs.



[renoraider]

The center of that gasket is supposed to eliminate the cork gasket, but sometimes is too thin. Use gasket sealer on the block side. Tighten to about 50 ftlbs.

Great, I thought something was differant thanks for the help :hello2:
