headliner bows for challenger

[hpjunke]

ok so my headliner bows were out of my car when i got it however they are a bunch of different colors .. how can i find out what order they go in??

Thanks



[challenger6pak]

I am not sure if the colors are the same as a 70 with one less bow or not. Here are the 70 colors: http://restorick.com/tech/topic.asp?TOPIC_ID=46 I have a 73 parts car here. I don't know if the rods are in it.



[hpjunke]

I am not sure if the colors are the same as a 70 with one less bow or not. Here are the 70 colors: http://restorick.com/tech/topic.asp?TOPIC_ID=46 I have a 73 parts car here. I don't know if the rods are in it.

thank you for this .. can you check your parts car ?



[hpjunke]

Any word on your parts car sir?



[mopar4me]

what year? I got a 72 I can give you color set up for that year if that helps you any!



[Jooeys]

I would like the color chart for my 72



[challenger6pak]

mopar4me. Post them. I no longer have the parts car. I reponded in a PM about them before.



[mopar4me]

Ya I'll take a pic tomorrow and try to post it, I had difficulty posting pic's in the pass.



[hpjunke]

what year? I got a 72 I can give you color set up for that year if that helps you any!

i have a 73



[mopar4me]

Headliner bows Color setup

This the color order for a 72 challenger, starting from rear:
Left: BEIGE, BEIGE, ORANGE, ORANGE.
RIGHT: GREEN, PINK, RED, RED.

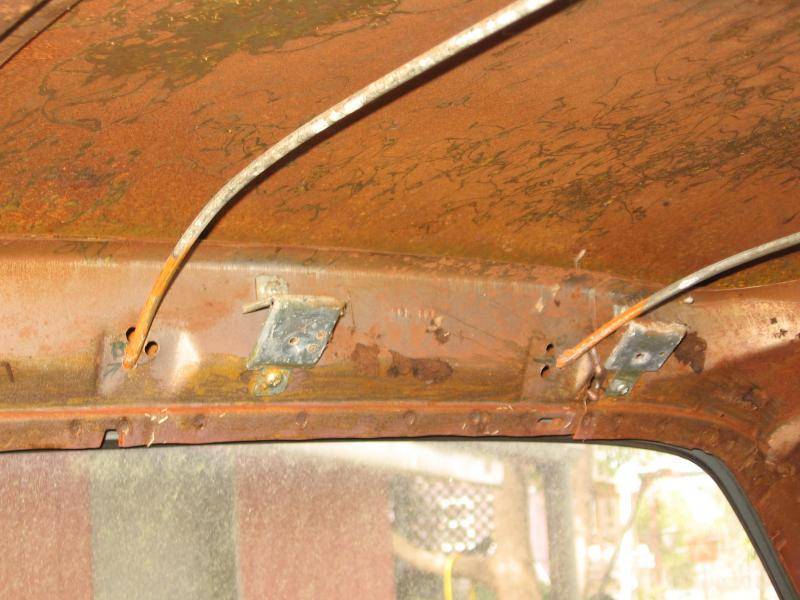

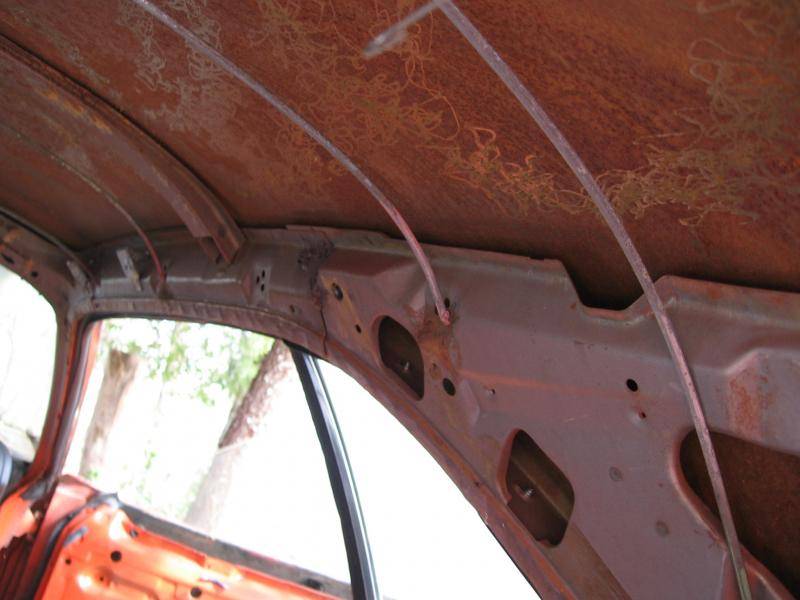

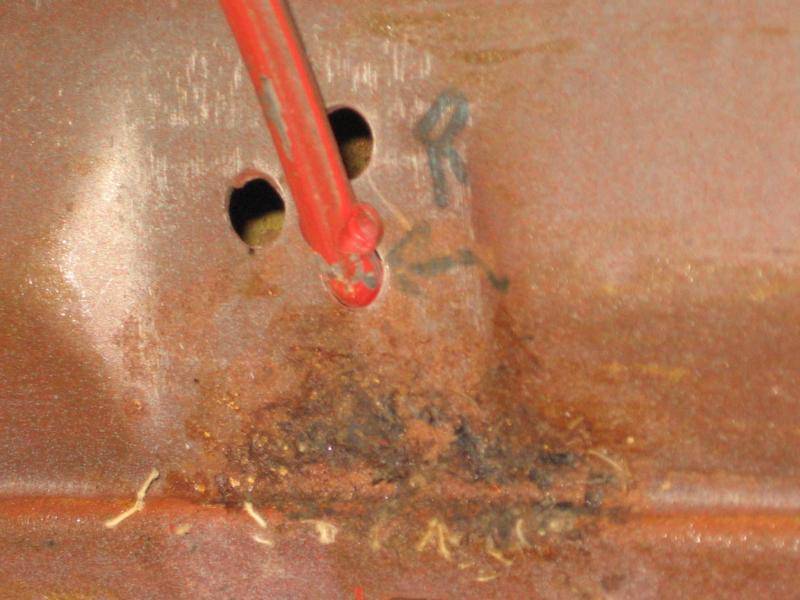

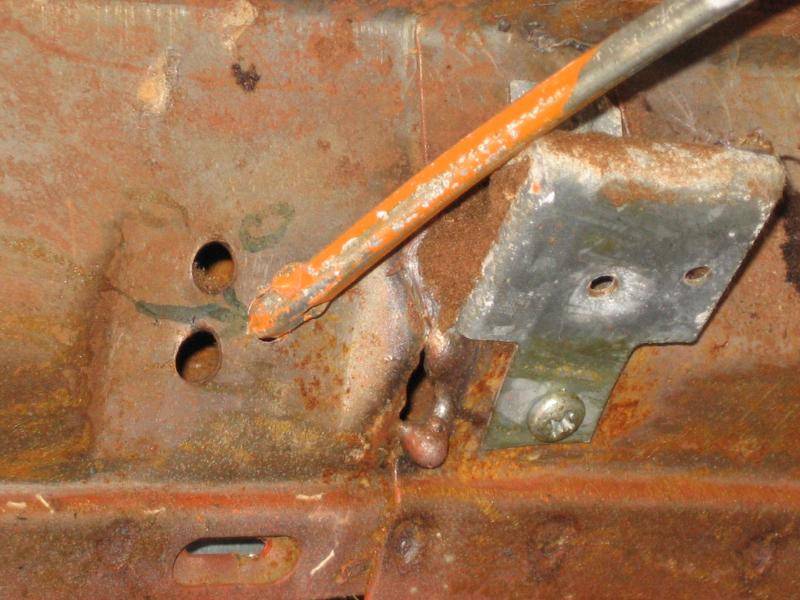

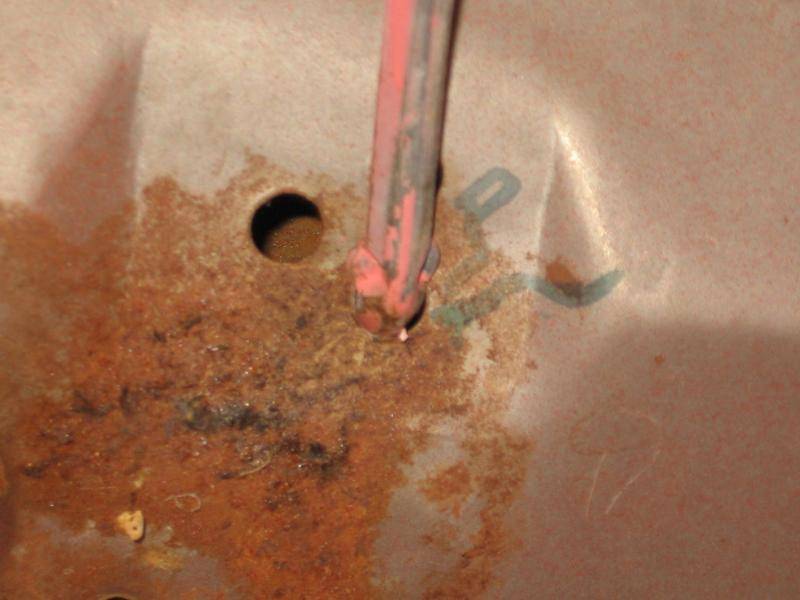

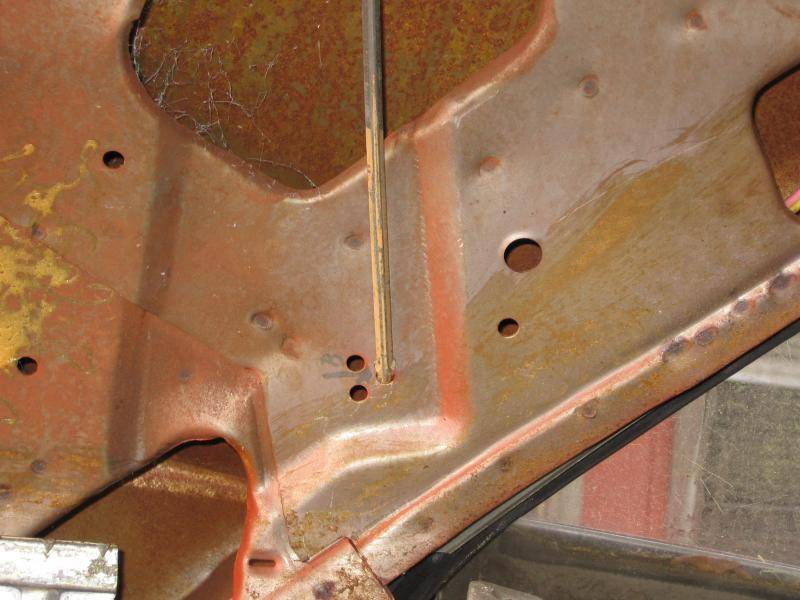

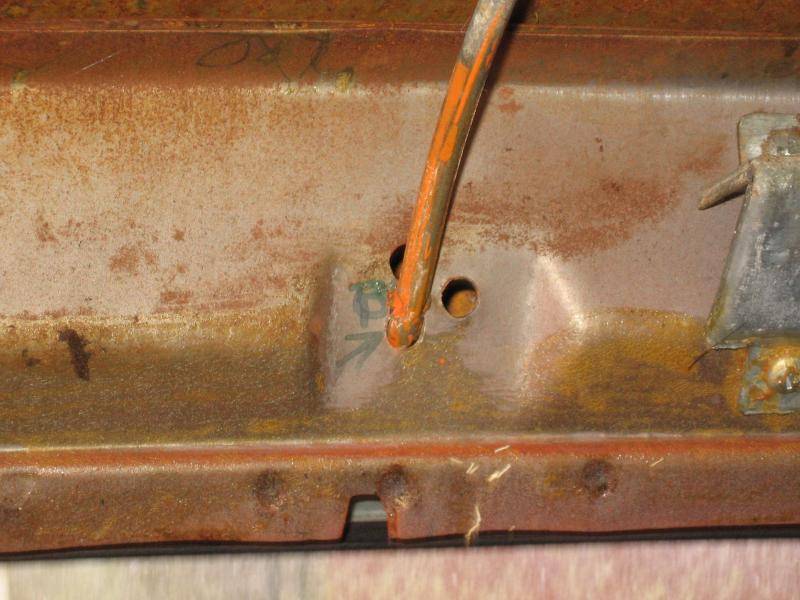

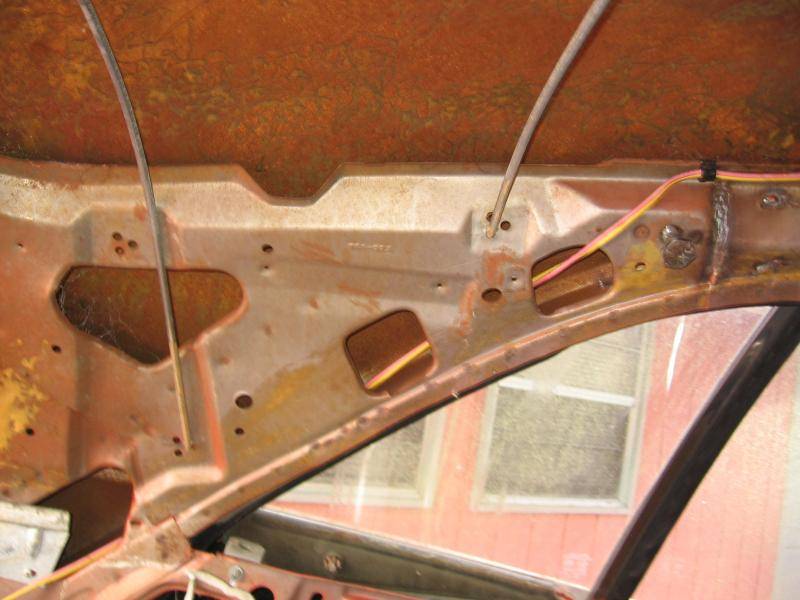

I hope you can see in the pic' in what hole they where setup in.
