70 challenger ignition coil wires

jft70

Active Member
Joined
Jan 2, 2023
Messages
35
Reaction score
1
Location
94954
I have a 70 challenger, I just replaced the wiring engine harness with one from year one.
I'm trying to figure out where the blue and gray/black wire go that coming out of engine harness on passenger side. I believe the gray and black wire is for rpm tach and goes to negative side of coil. Please advise if I'm wrong.....but where does the thicker blue wire go...positive coil??? Thank u



jft70

Active Member
Joined
Jan 2, 2023
Messages
35
Reaction score
1
Location
94954

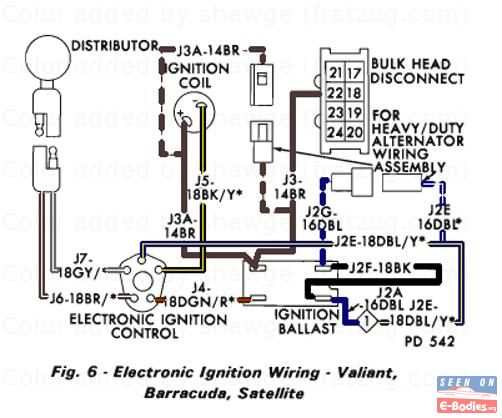

Yes the correct wires are going to ballast resistor.


Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
2,967
Reaction score
1,531
Location
PA Flood city
Ideal solenoid. I'm just taking a guess here, don't see everything. AC? You might have to follow it back to the bulkhead connector or where ever it goes. and see where it connects.

Last edited:

Ricks72Chlgr440

Well-Known Member
Joined
May 2, 2023
Messages
209
Reaction score
153
Location
Sisterdale, Texas
The older OE style coils had a notch in one of the terminals that matched the "D" in the wire. They did that to ensure the wire was placed on the correct terminal.


jft70

Active Member
Joined
Jan 2, 2023
Messages
35
Reaction score
1
Location
94954

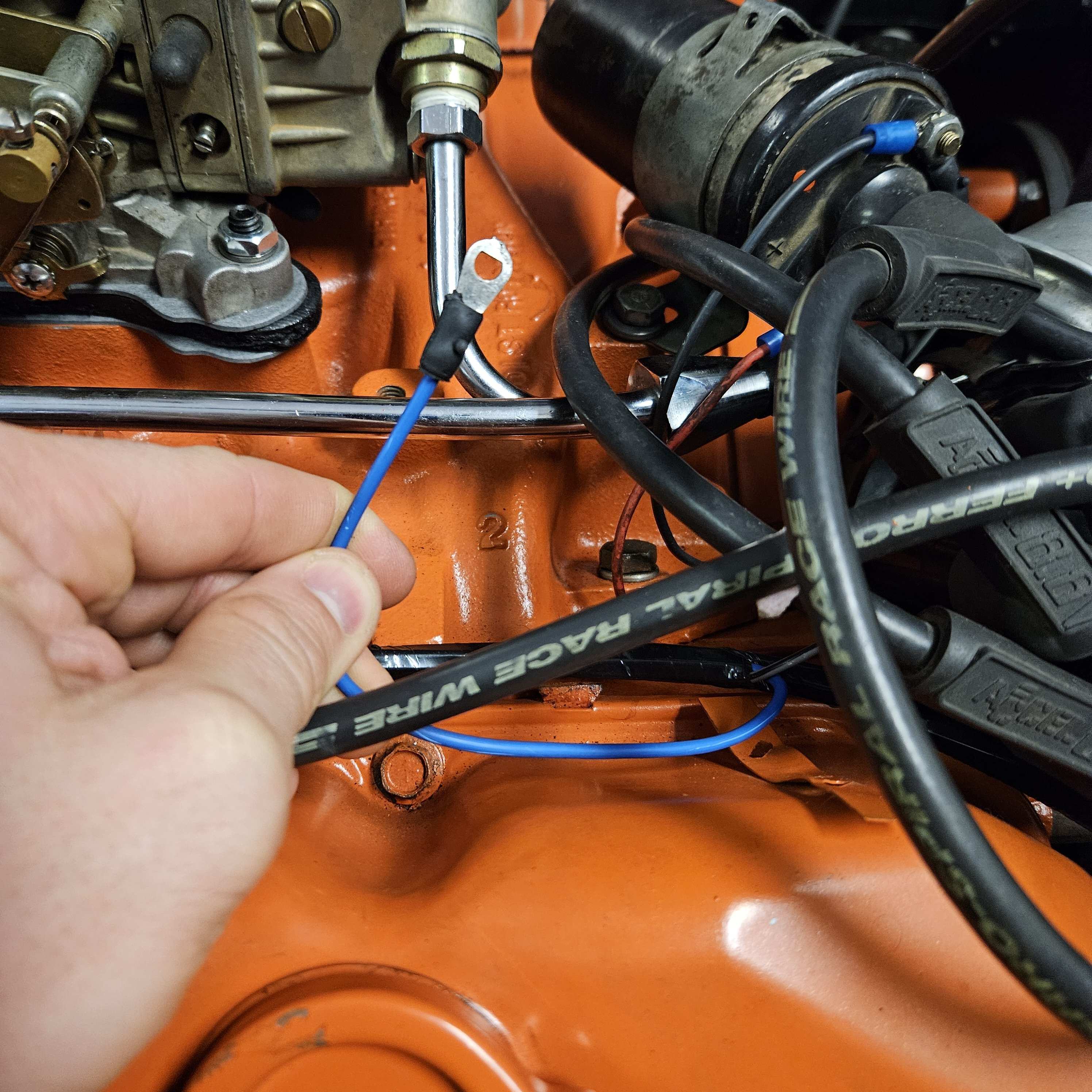

I though of that just want to be sure. There's a thick blue wire coming off ballast resistor...anyone know if a ballast resistor wire has to go to the coil to operate correctly?


Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
2,967
Reaction score
1,531
Location
PA Flood city

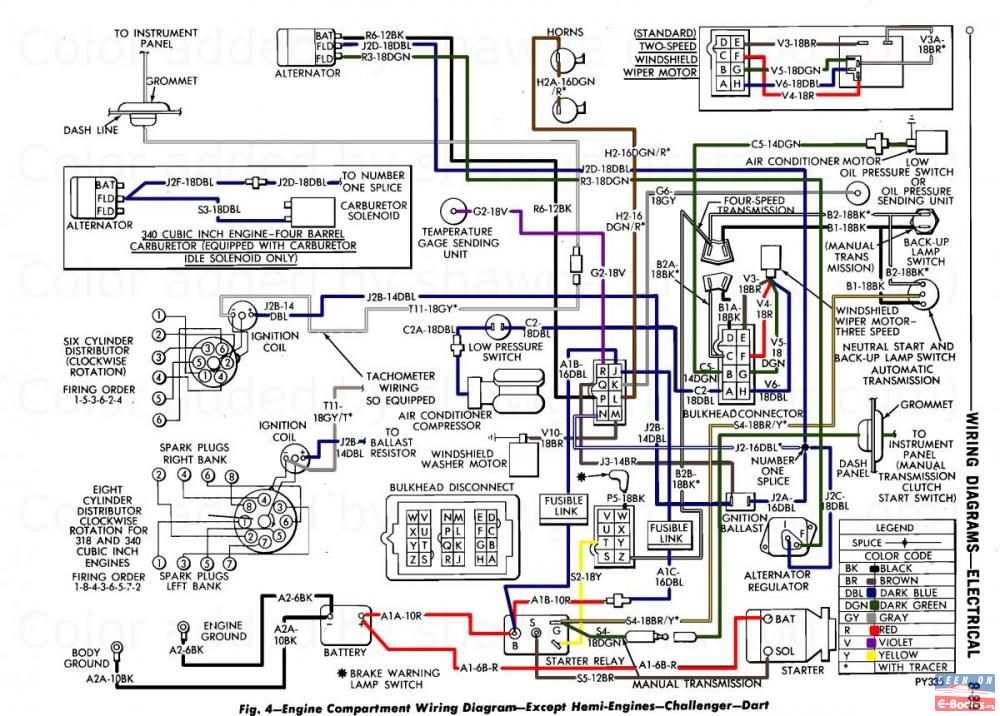

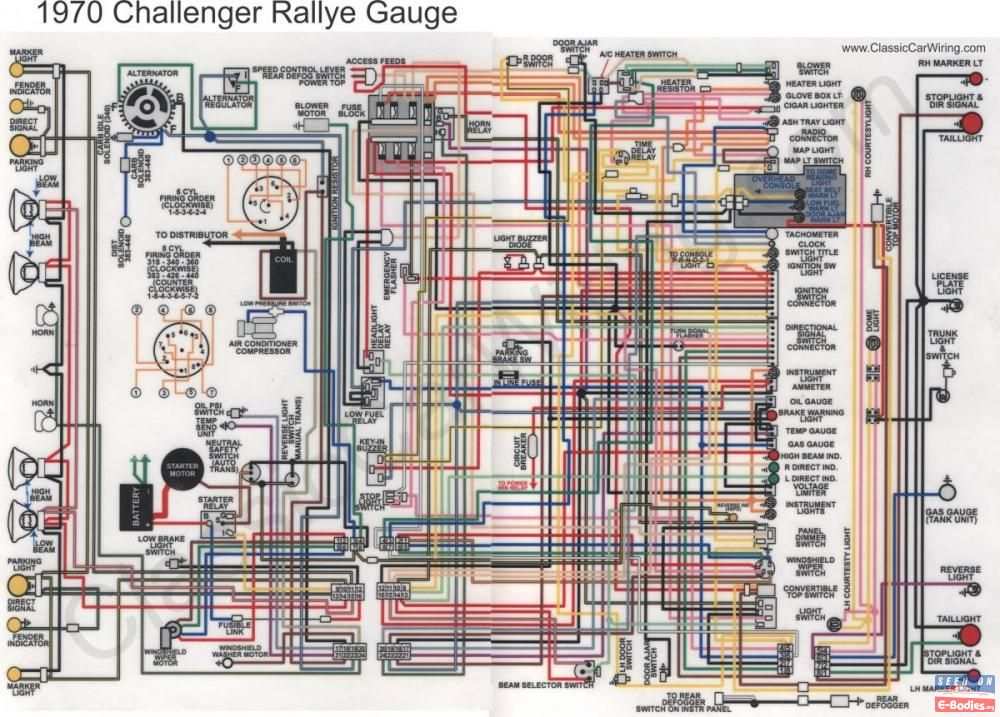

As suggested follow the blue wire to see where it's connected. Is the wiring harness of stock color configuration? There is a dark blue wire that goes to the ballast.

Last edited:

jft70

Active Member
Joined
Jan 2, 2023
Messages
35
Reaction score
1
Location
94954
Ok thanks everyone. I believe it's coming from resistor and seems like it goes to positive on coil.
