'71 Barracuda - 3-Speed Converted to Automatic

[Claudia]

I am searching for specific measurements and/or pictures for the mounting locations for the three automatic center console brackets.
Car was a factory 3-speed on the floor.
Any help is greatly appreciated!



[ronscuda]

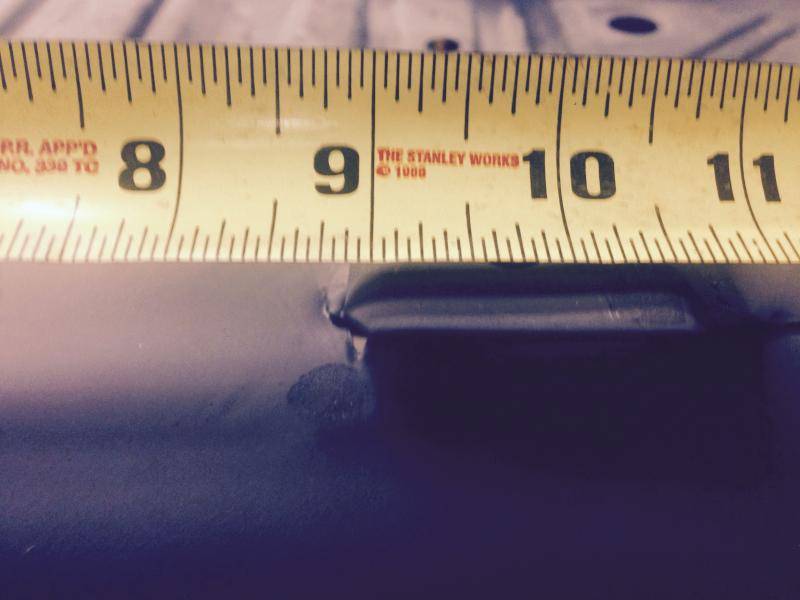

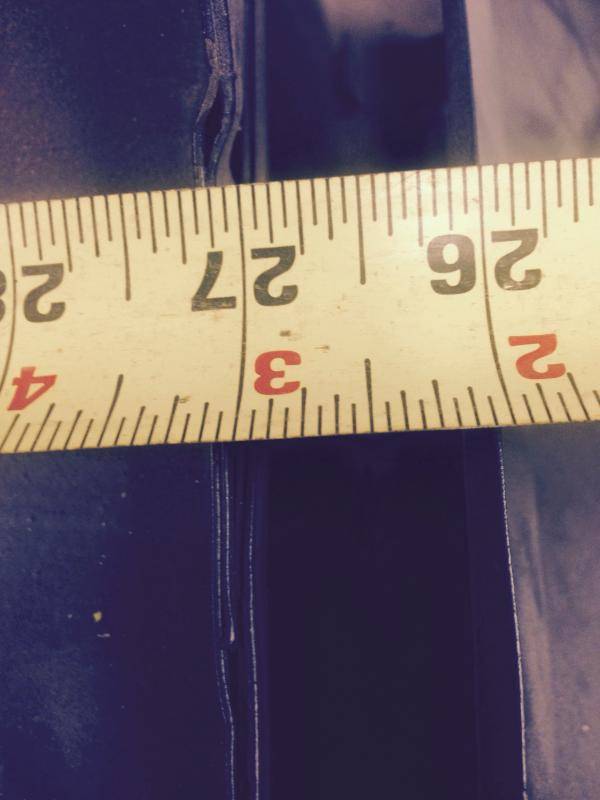

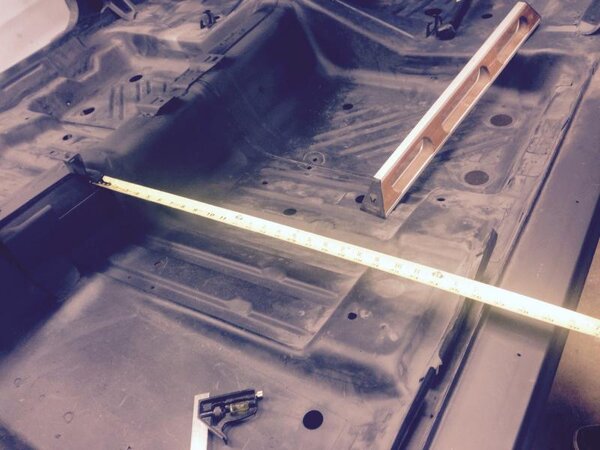

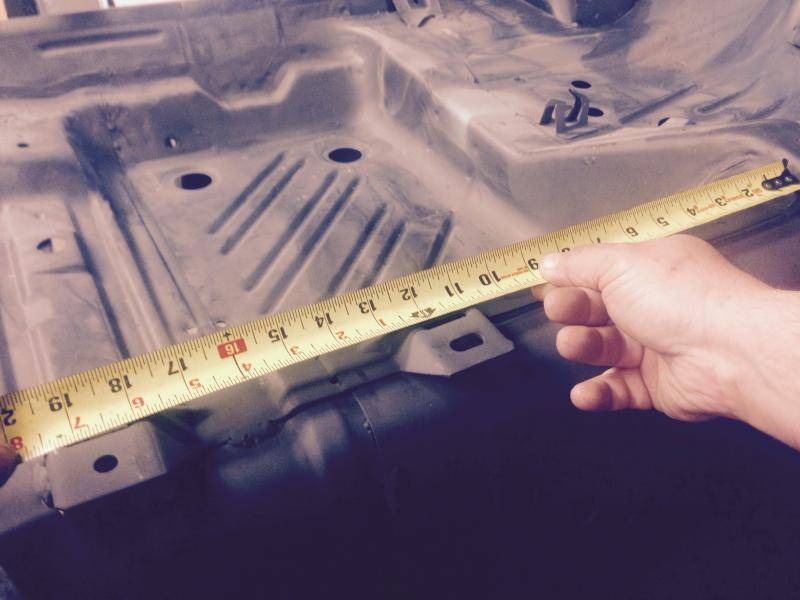

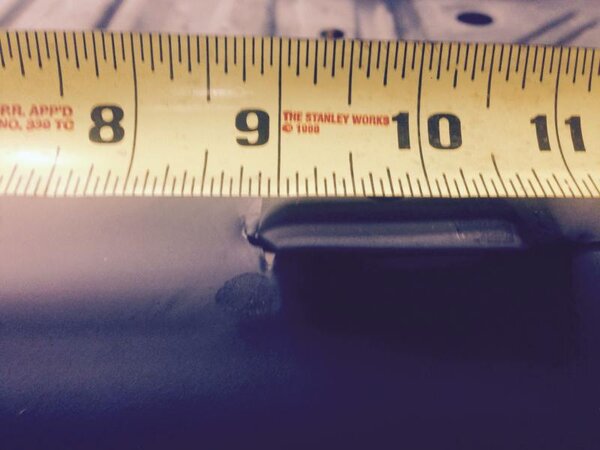

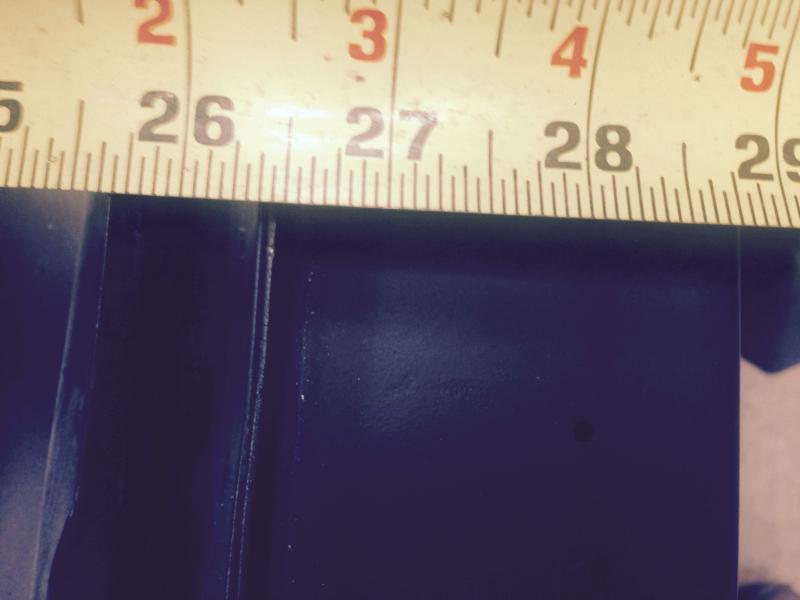

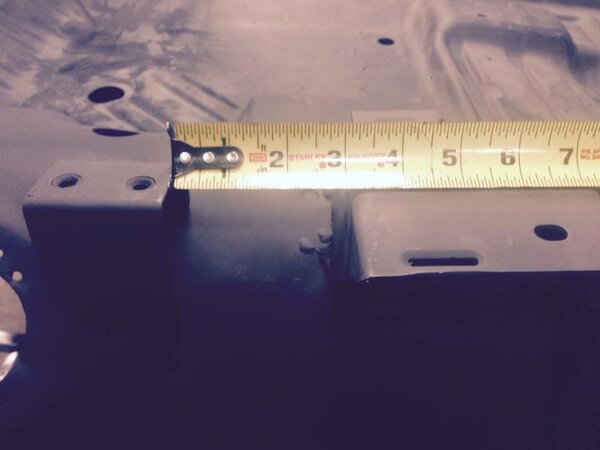

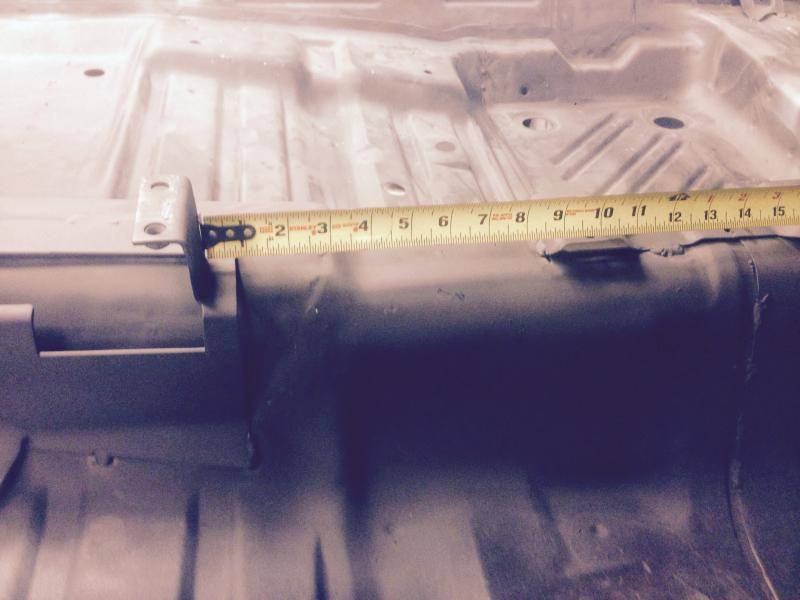

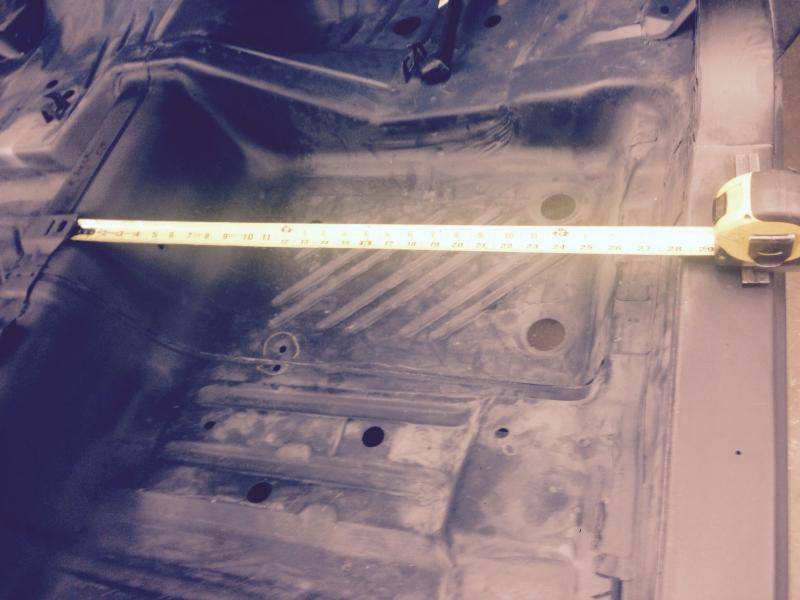

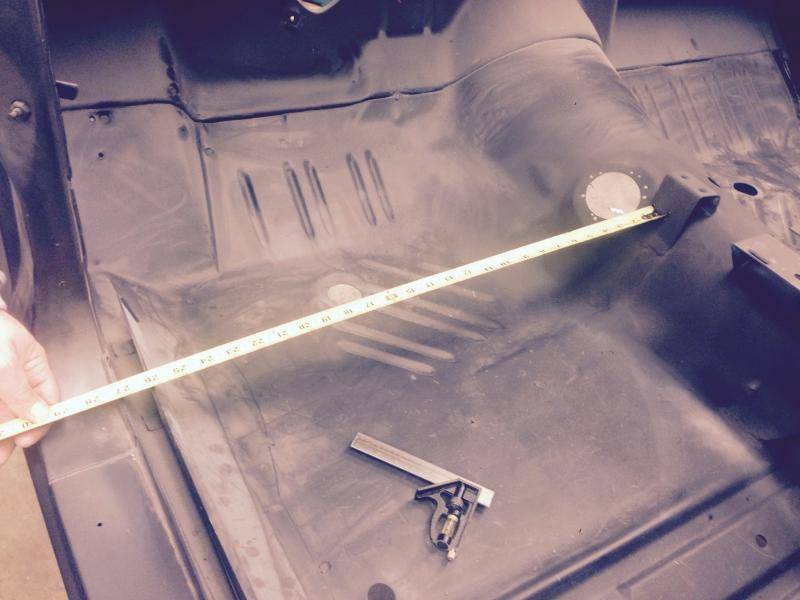

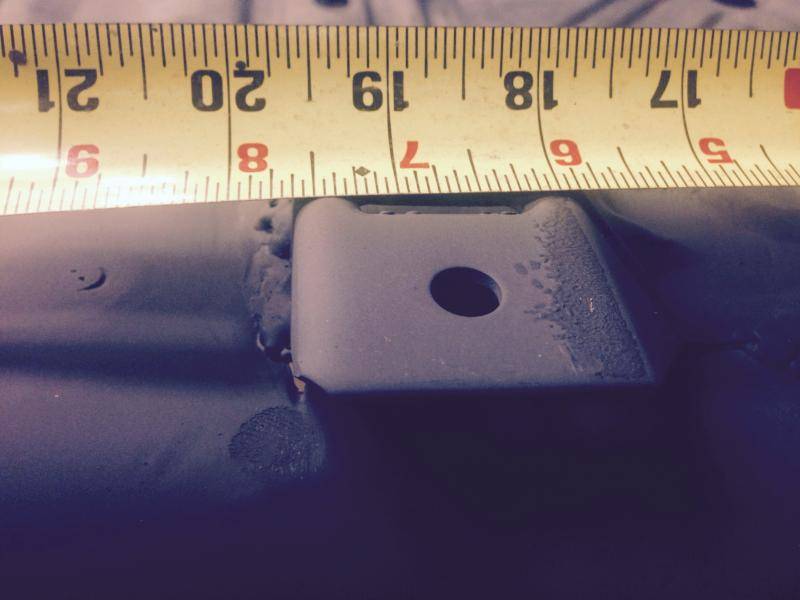

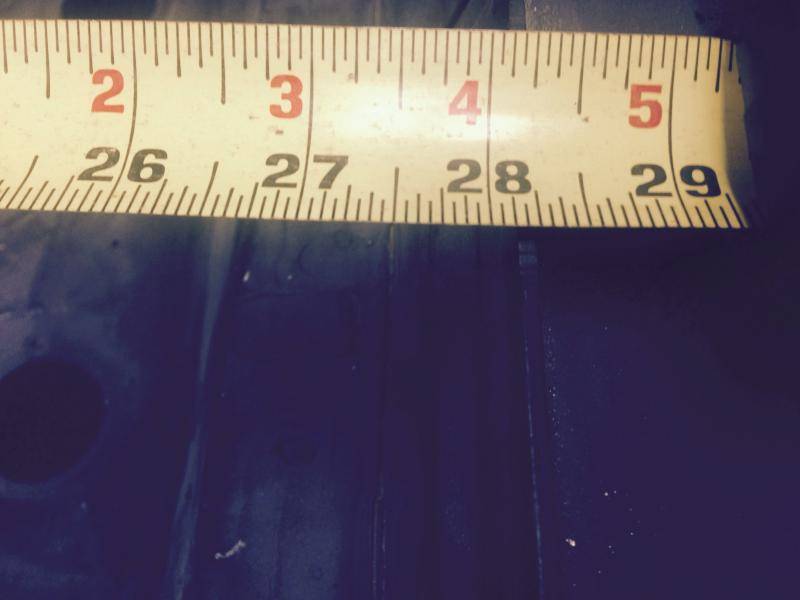

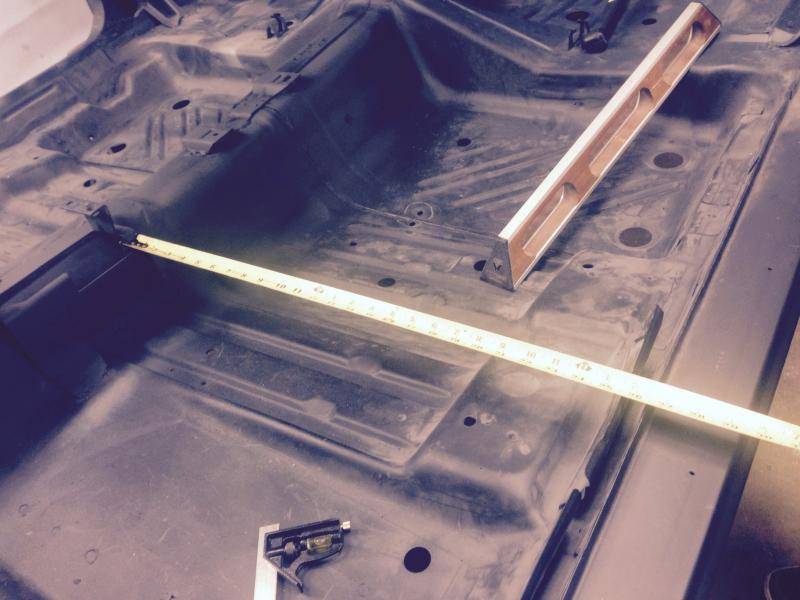

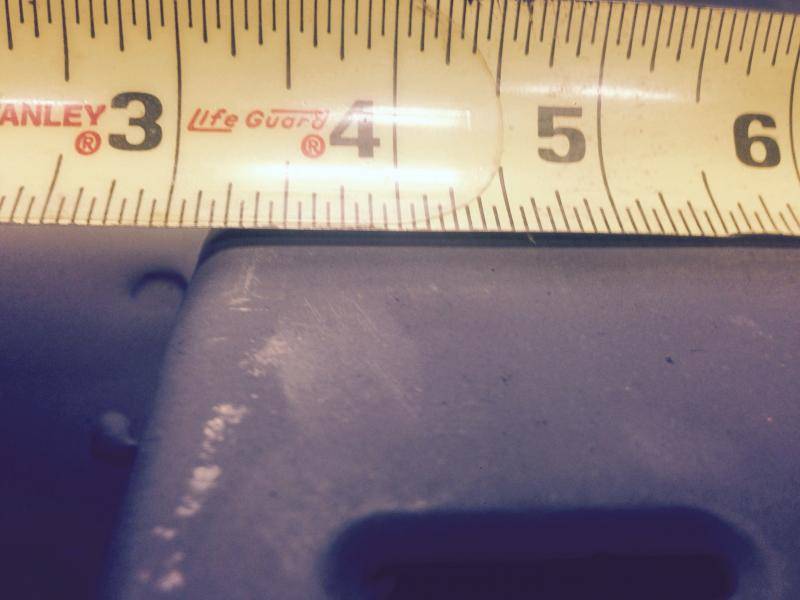

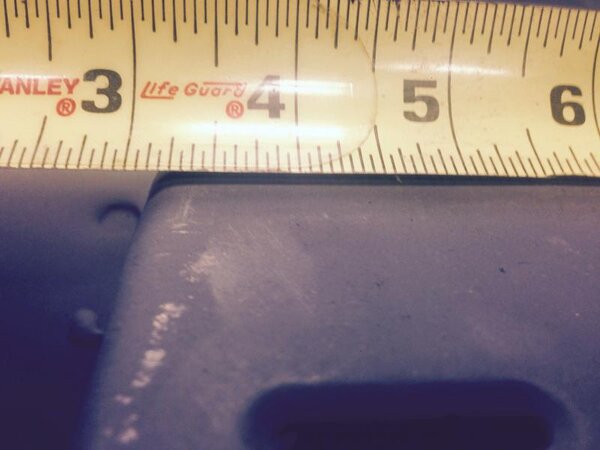

Here are a few pictures of how they are mounted in my car. These were cut off by previous owner because of a B&m shifter that had been installed. Fortunately they were removed in a way that allowed me to position them using the original welds to match up and locate the pieces back into there locations and elf them back in. I have had everything hooked up since and these measurements work for me.i



[ronscuda]

View attachment 19831



[ronscuda]

View attachment 19833View attachment 19832



[ronscuda]

View attachment 19839View attachment 19838View attachment 19837View attachment 19836View attachment 19835View attachment 19834



[ronscuda]



[ronscuda]



[ronscuda]



[ronscuda]



[ronscuda]



[ronscuda]

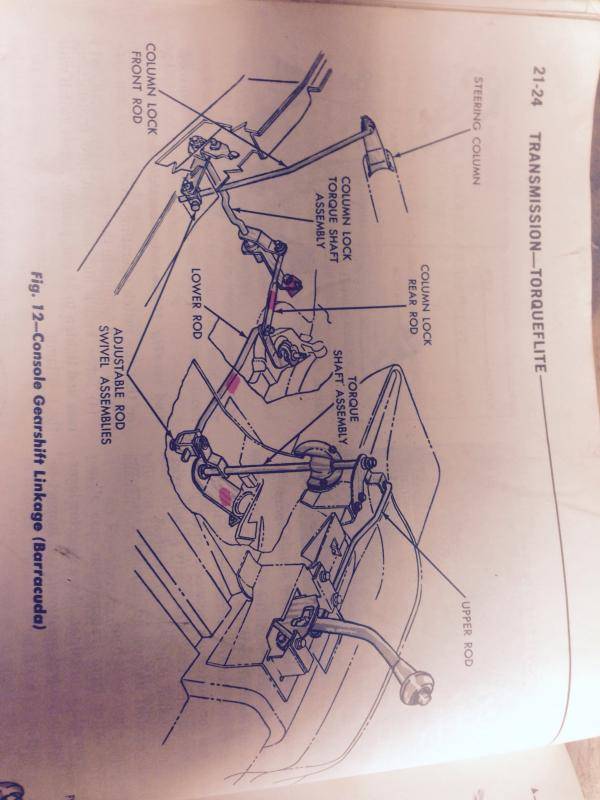

Hope this helps!! If anybody on here has factory installed brackets that haven't been removed and they have the time to double check what I have Shown it would be much appreciated:icon_winkle: I would say I am + or - 1/32. But I cannot find any schematic on its positioning but the original welds and cut marks really dictated where these pieces installed and I have had my shifter and console on with these brackets



[Claudia]

Ronscuda - You rock! Much appreciated!
