Brake Booster

jkwedge

Well-Known Member
Joined
Aug 18, 2015
Messages
48
Reaction score
3
So what is the part number for the correct brake booster for 70 challenger R/T with disc brakes .440 4 speed


MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
941
Reaction score
847
Chrysler Part Number 18268. OEM Part Number 3420987.

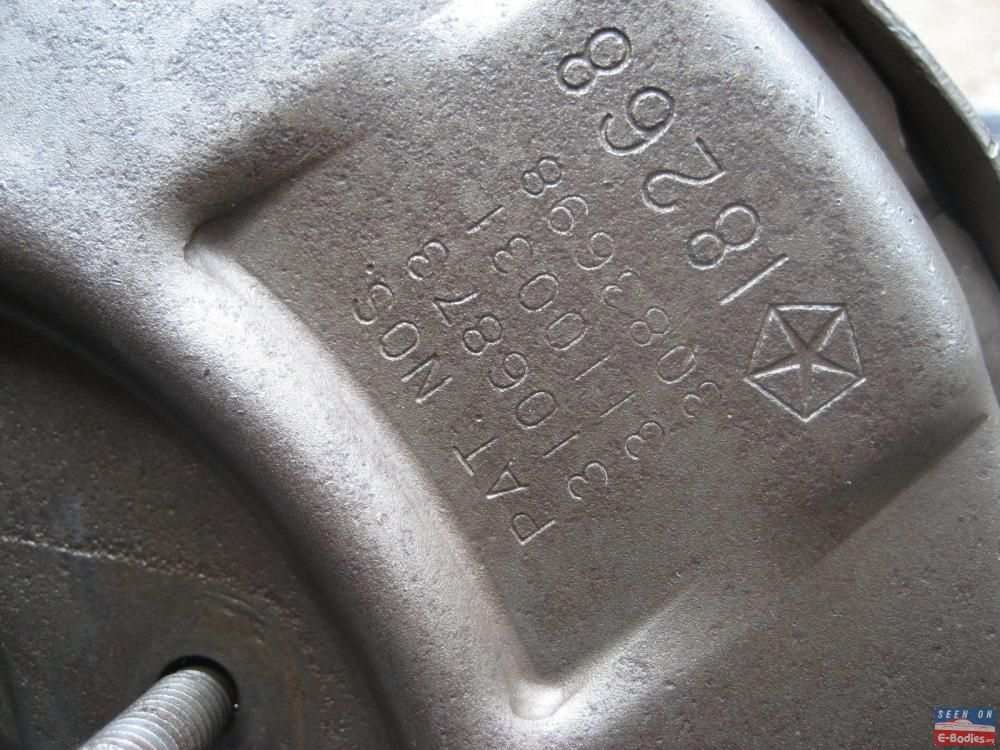

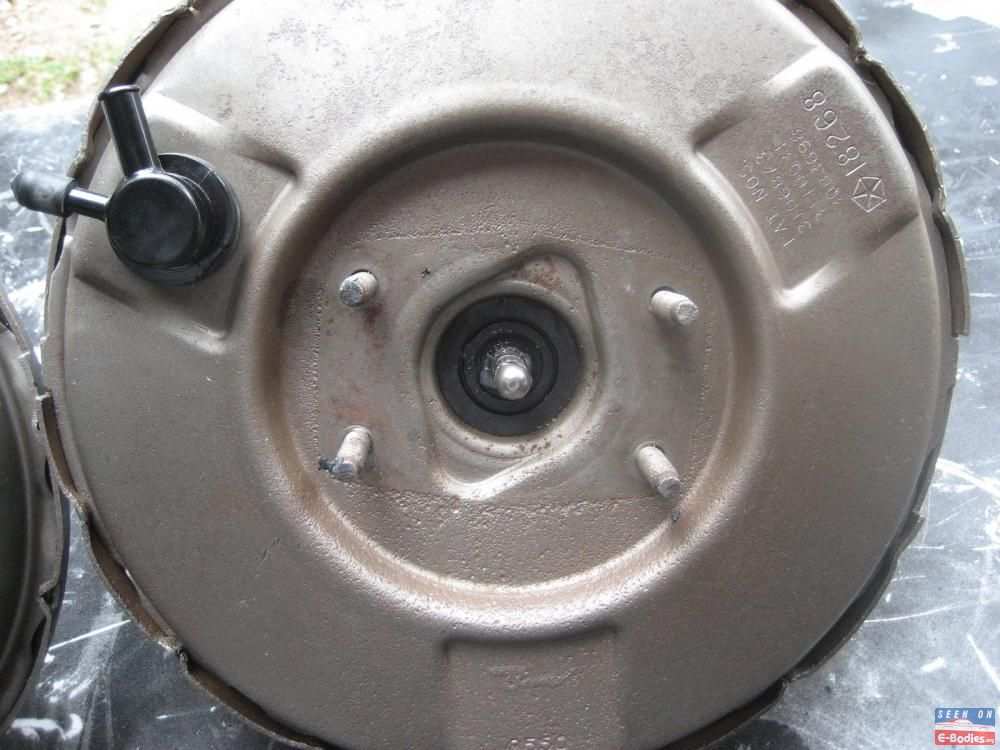

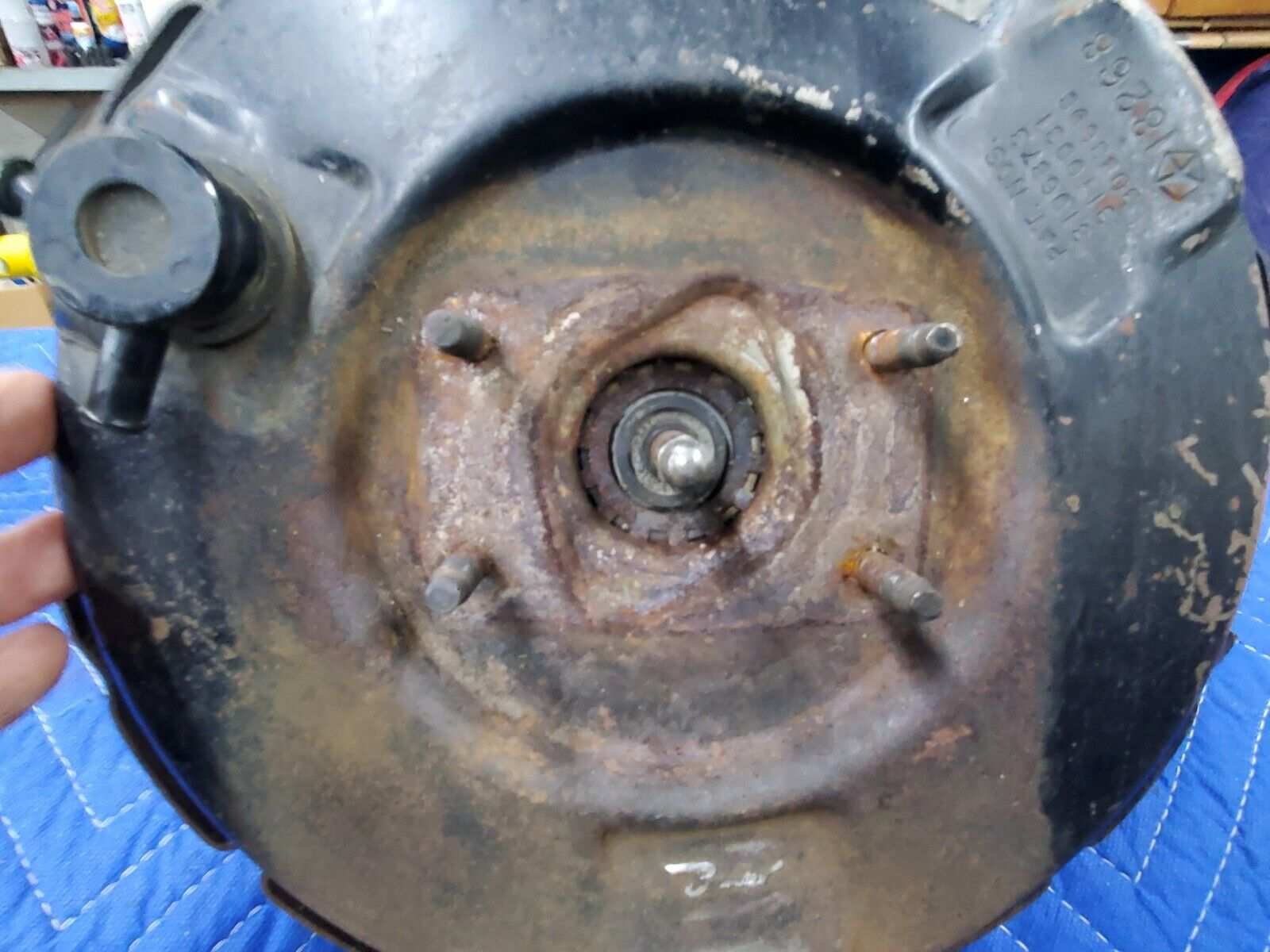

Below is the Bendix 18268.

1970 Power Brake Booster.jpg
1970 Power Brake Booster 2.jpg


jkwedge

Well-Known Member
Joined
Aug 18, 2015
Messages
48
Reaction score
3
So these are the part numbers I need for a 70 with discs brakes.i was like at one that has the18268 number, but the rest of the numbers are different.


EV2RTSE

Well-Known Member
Joined
Dec 13, 2013
Messages
428
Reaction score
279

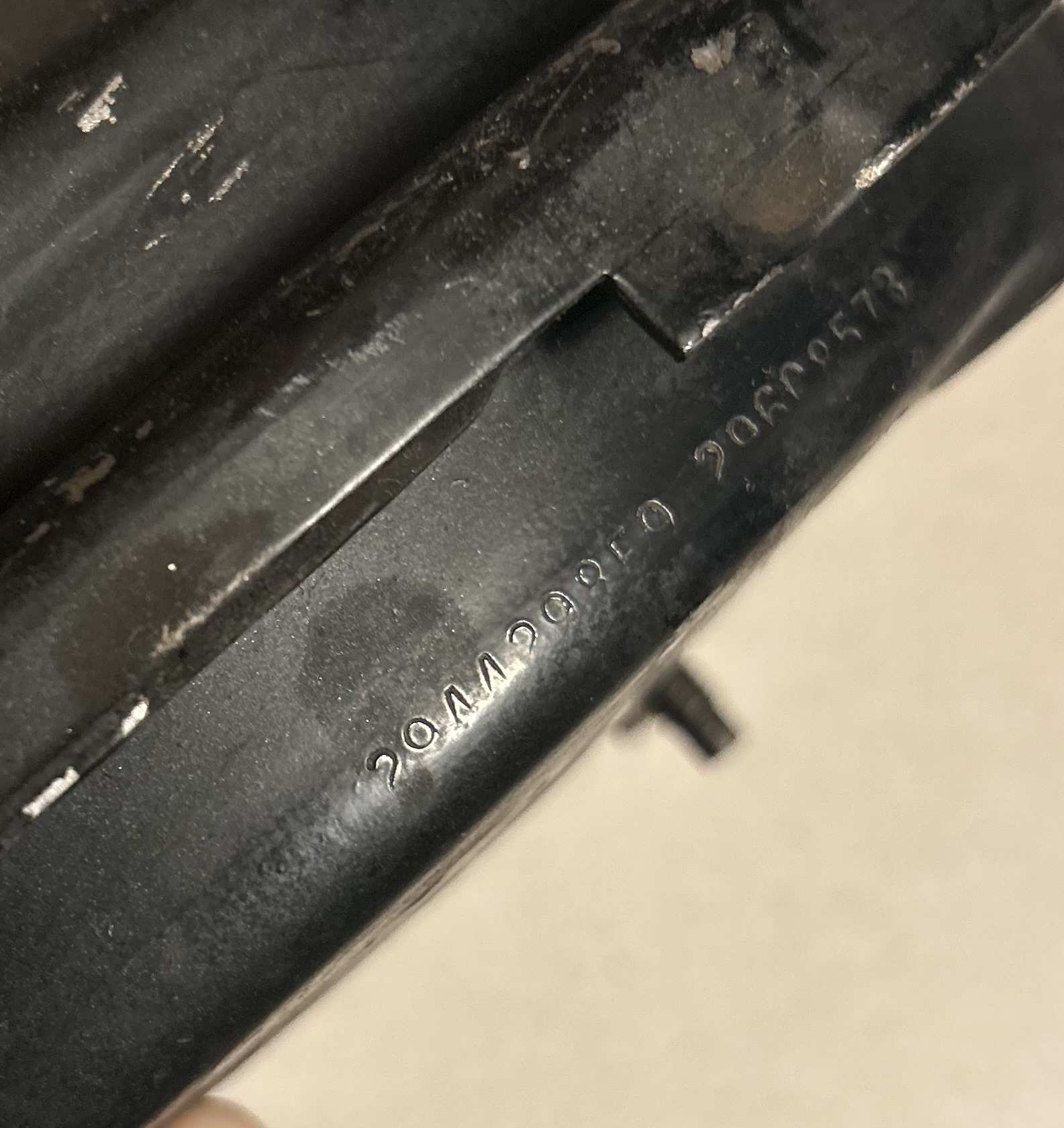

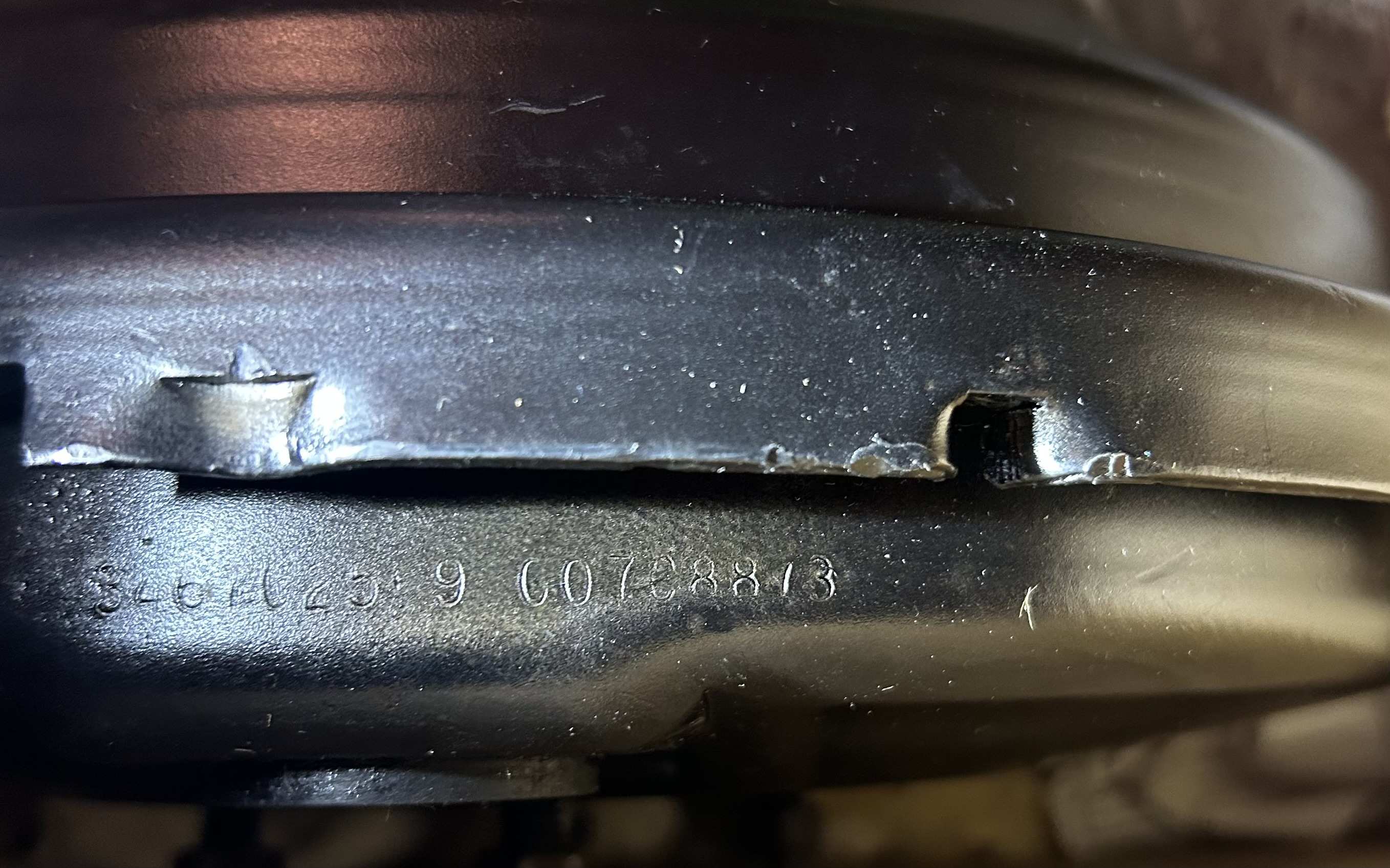

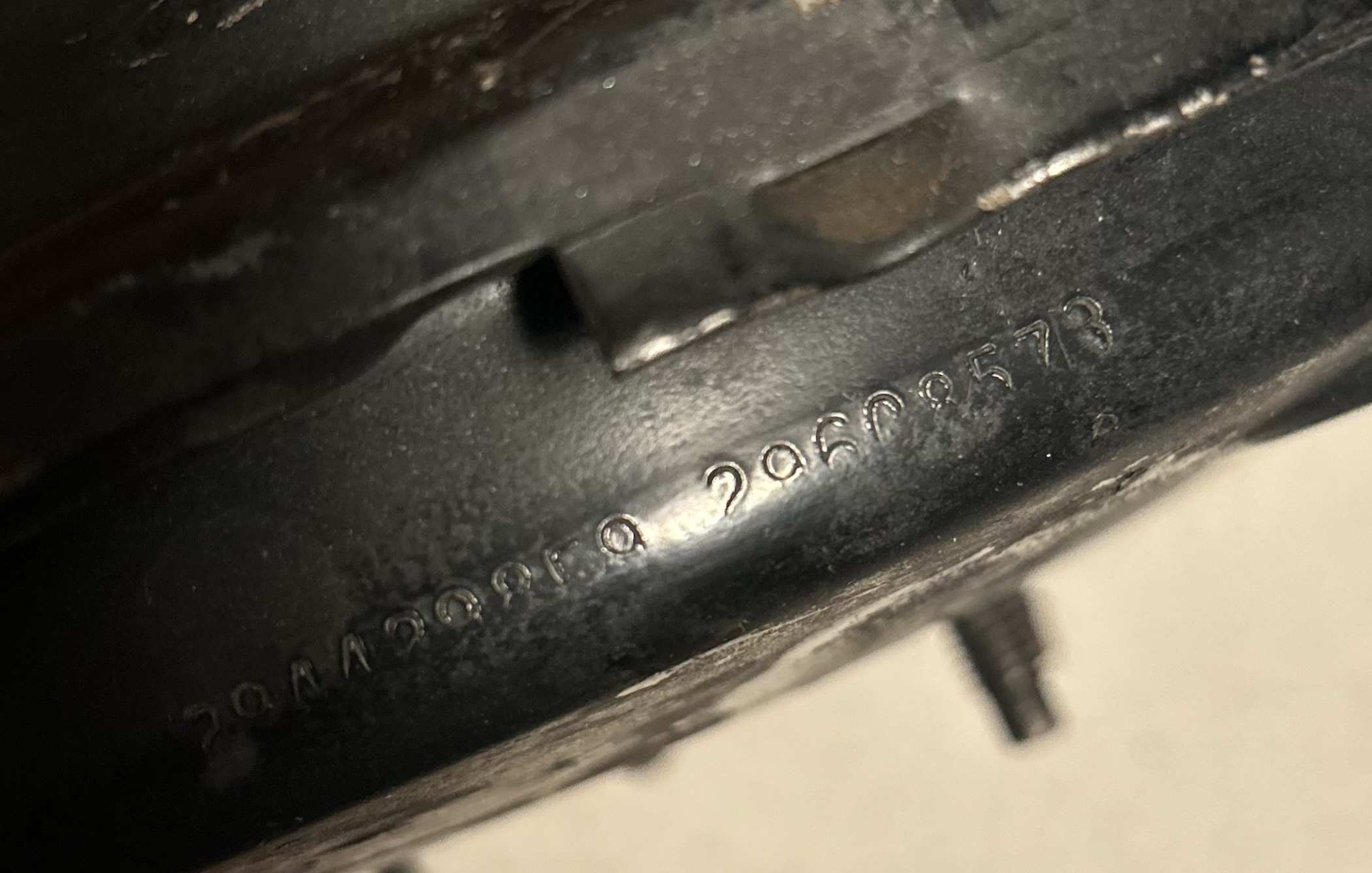

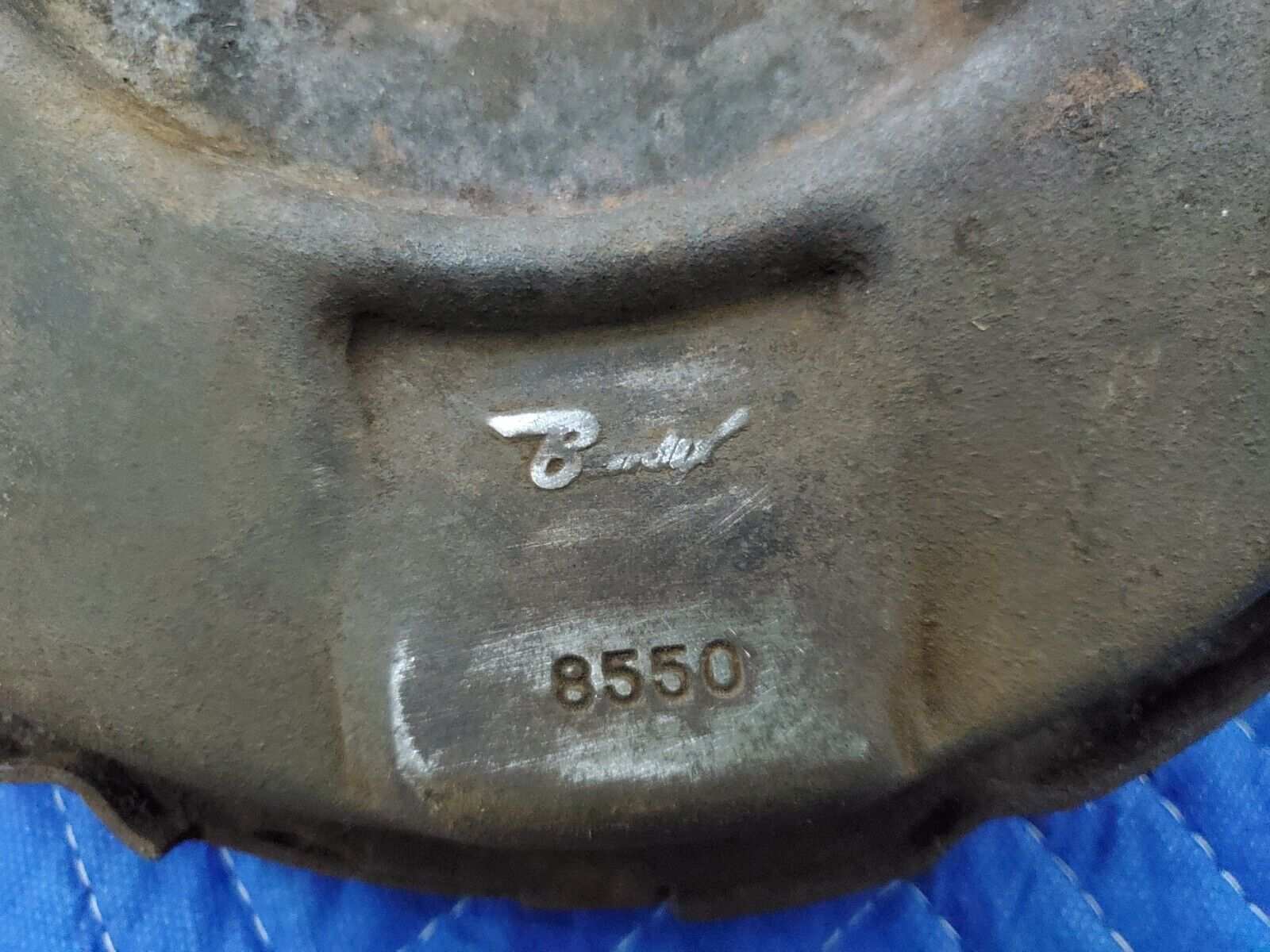

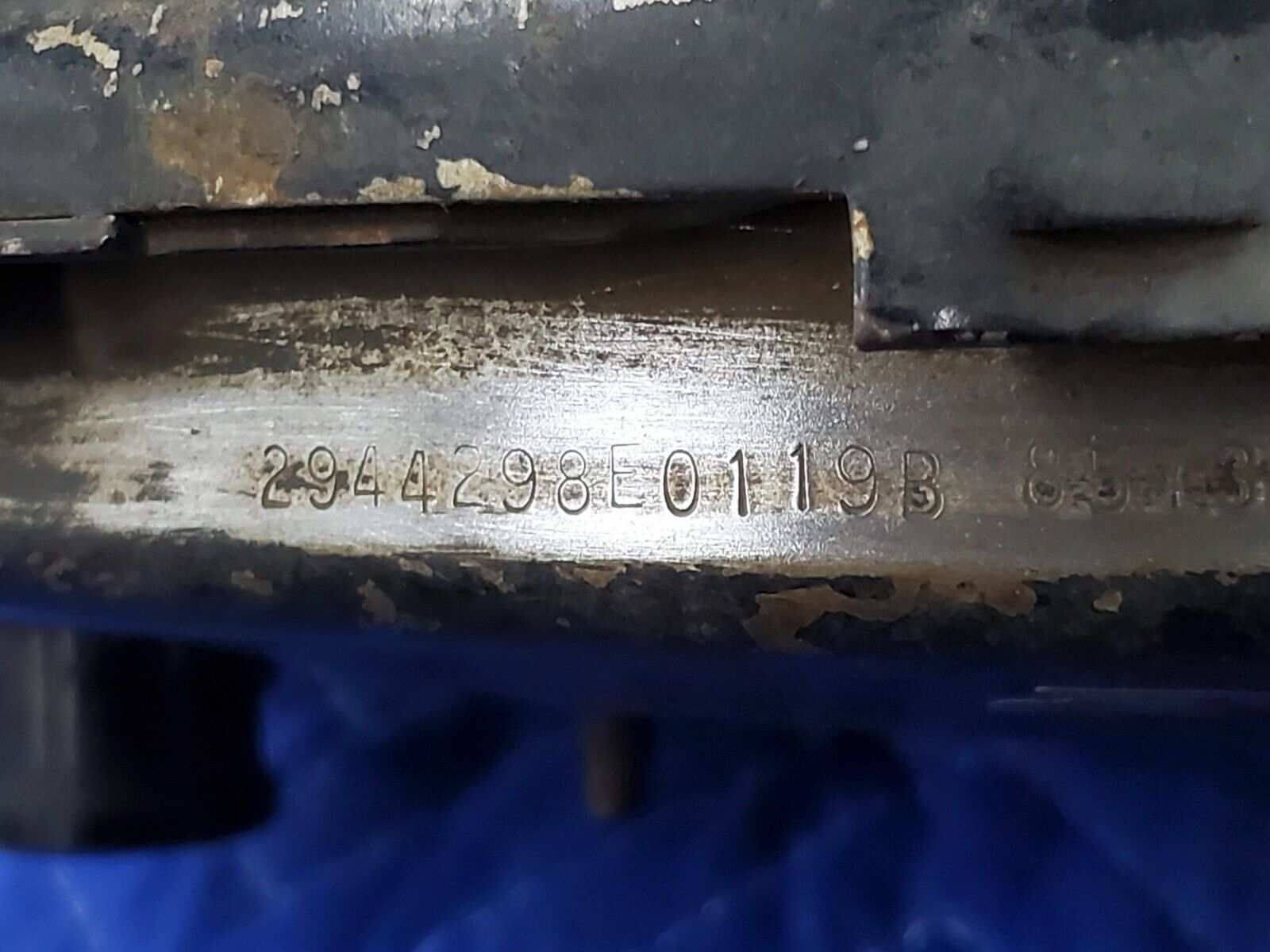

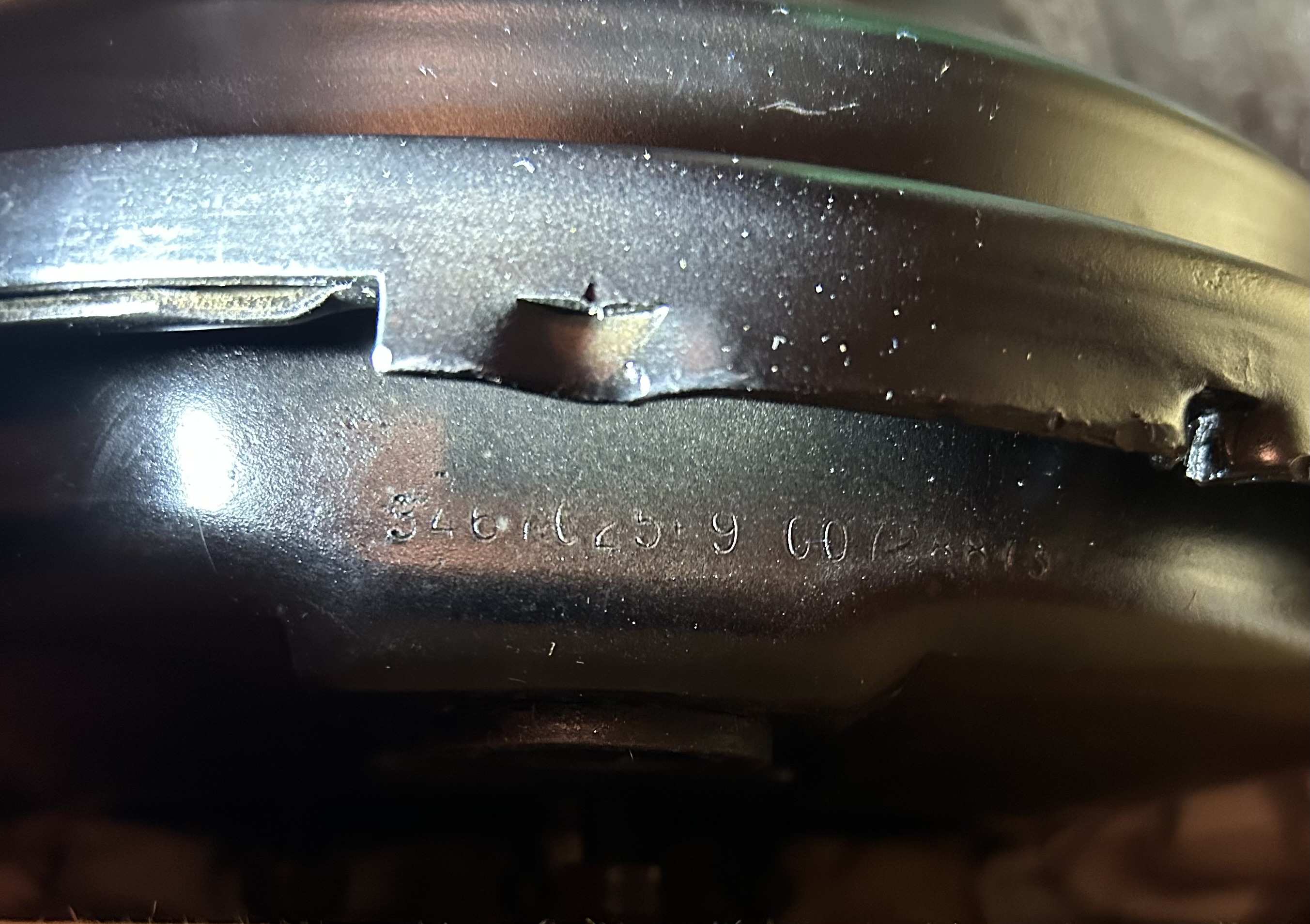

That 18268 (and the patent numbers) will appear on other Bendix boosters as well, not just the hard to find 70 E booster. I believe 18268 is Bendix's vendor code for Chrysler. The 70 E booster should have 8550 on it, that is one sure way to ID it. And the football shaped indent around the pushrod is the other thing to look for. The Chrysler part number and a date code will appear along the top edge, hard to see sometimes with the paint and sometimes faintly stamped but it will be there. I believe there are a few different possible Chrysler part numbers, post up what you find on that top edge and we can confirm.






Last edited:
