    All, I’m installing an SST TKO 5 speed in my 70 challenger. I’ve replaced the brake pedal which was obvious where it goes. I’m having issue making sense of where the included bracket goes with the clutch. Does anyone have any pics of them installed?

    thanks.



  2. Rich G.

    Rich G. Well-Known Member

    Messages:
    303
    Likes Received:
    145
    Joined:
    Feb 7, 2019
    It goes on the end of the clutch pedal shaft and then bolts to the firewall to add support to the pedal assembly. I’ll see if I can get a picture for you.

  3. Rich G.

    Rich G. Well-Known Member

    Messages:
    303
    Likes Received:
    145
    Joined:
    Feb 7, 2019

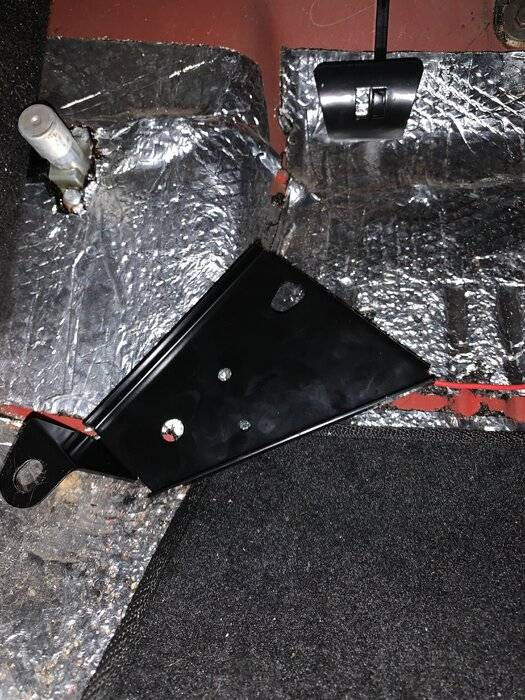

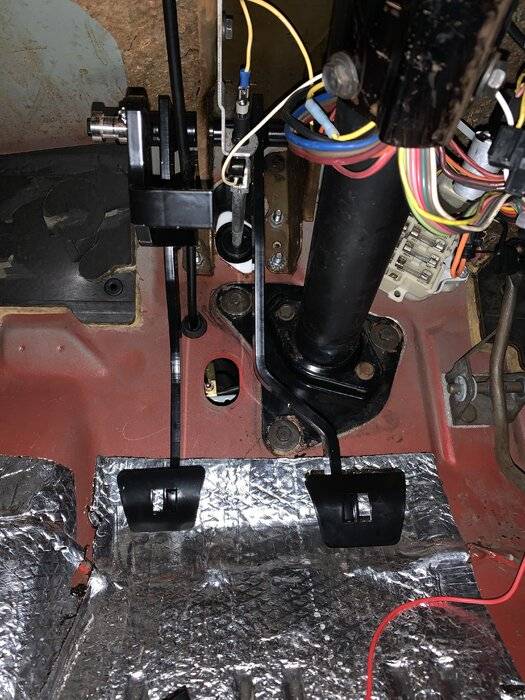

    Here you go.


    • Agree Agree x 1
  4. booyaballer

    booyaballer Well-Known Member

    Messages:
    78
    Likes Received:
    1
    Joined:
    Jan 15, 2017
    That's a perfect picture!

    any chance i can get a photo of where you attached the fluid container for the slave mastercylinder?

    Thanks.

    Last edited: Jul 7, 2020 at 2:09 AM
  5. Rich G.

    Rich G. Well-Known Member

    Messages:
    303
    Likes Received:
    145
    Joined:
    Feb 7, 2019

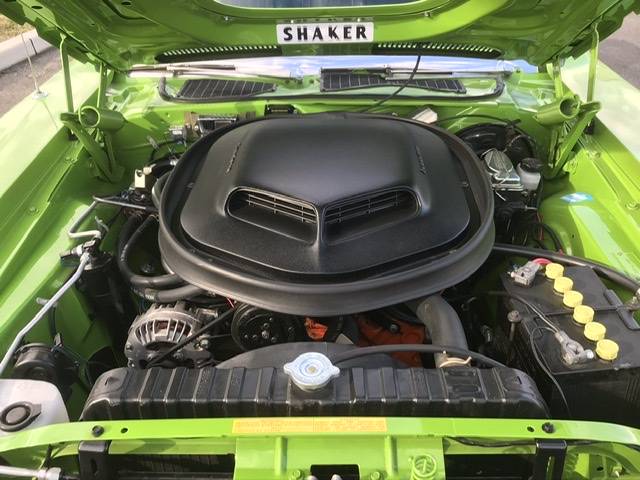

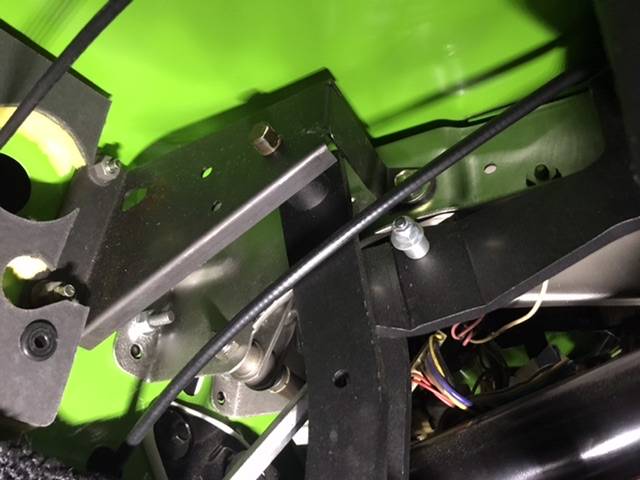

    I made a little bracket and mount it on the master cylinder stud.


    • Like Like x 1
  6. 70chall440

    70chall440 Well-Known Member

    Messages:
    136
    Likes Received:
    87
    Joined:
    Dec 11, 2010
    Location:
    Western Washington
    What type of pressure plate are you using?

  7. Rich G.

    Rich G. Well-Known Member

    Messages:
    303
    Likes Received:
    145
    Joined:
    Feb 7, 2019
    I’m pretty sure it a diaphragm. I did this about 6 years ago.

  8. 70chall440

    70chall440 Well-Known Member

    Messages:
    136
    Likes Received:
    87
    Joined:
    Dec 11, 2010
    Location:
    Western Washington
    Cool, thanks.
