Installing AM/FM radio HELP!

asaprtse

Member
Joined
Sep 12, 2021
Messages
24
Reaction score
18
Location
turlock
I have a 1970 challenger RT SE that had a factory 5 speaker system W/thumbnail radio...The owner me before pulled it cause it didn't work...They took everything out and junked it... and put crappy radio into car..I JUNKED THAT!

SO im starting from scratch here...

I have NO IDEA what I need for the AM/FM thats coming in.

I did order a crossover with complete wiring hardness attach BUT it doesn't have the FADER switch..

I think I need a fader switch with a bigger plug at the end...

If someone can instruct me that would be great!!!!


70chall440

Well-Known Member
Joined
Dec 11, 2010
Messages
1,065
Reaction score
765
Location
Western Washington
My 70 Challenger RT had the same I think but I never had a working radio in it. It did have a fader and cross over which I think is needed to make it all work. You might want to reach out to some of the companies that restore them, also check out the FSM electrical section.


asaprtse

Member
Joined
Sep 12, 2021
Messages
24
Reaction score
18
Location
turlock
My 70 Challenger RT had the same I think but I never had a working radio in it. It did have a fader and cross over which I think is needed to make it all work. You might want to reach out to some of the companies that restore them, also check out the FSM electrical section.
Thank you SIR!


340challconvert

Well-Known Member
Joined
Feb 13, 2011
Messages
4,400
Reaction score
2,101
Location
Parsippany, NJ

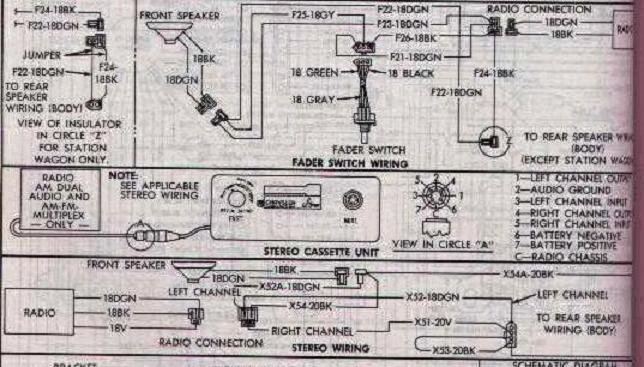

Diagram may help!


Attachments

  • radio wiring diagram.jpg
    radio wiring diagram.jpg
    59.7 KB · Views: 8

340challconvert

Well-Known Member
Joined
Feb 13, 2011
Messages
4,400
Reaction score
2,101
Location
Parsippany, NJ
You should be able to enlarge the above pic if you run Microsoft word; if not, as 70chall440 suggested; download the service manual. It will have the ability to enlarge the pages.
