Lower steering column exploded view

Steering / Suspension

  1. greatscot3

    greatscot3 Active Member

    Messages:
    44
    Likes Received:
    14
    Joined:
    Oct 17, 2009
    Hello

    In addition to my power steering pump needing to be worked on, my lower power steering column just above the coupling seems to be missing a dust seal and bearing or bushing.
    I have a .pdf manual but the exploded view I have isn't very good and I can't tell exactly what it needs and how it should go together.
    Does anyone have a good exploded view or pictures and maybe a parts list for that portion of a 1974 or compatible years Cuda steering column?

  2. 340challconvert

    340challconvert Well-Known Member

    Messages:
    3,095
    Likes Received:
    1631
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ
    This may help

    Dino2 (1).gif

    • Thanks! Thanks! x 1
  3. 340challconvert

    340challconvert Well-Known Member

    Messages:
    3,095
    Likes Received:
    1631
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ
    Another pic


  4. moparlee

    moparlee Well-Known Member

    Messages:
    1,395
    Likes Received:
    604
    Joined:
    Jul 25, 2011
    Location:
    Mid Michigan
    Phil, I think he is asking about the seal/plastic bushing between the steering shaft and the column above the coupling.

    • Thanks! Thanks! x 1
  5. 340challconvert

    340challconvert Well-Known Member

    Messages:
    3,095
    Likes Received:
    1631
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ
    Thanks

  6. 340challconvert

    340challconvert Well-Known Member

    Messages:
    3,095
    Likes Received:
    1631
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ
    Last edited: Aug 12, 2019
    • Thanks! Thanks! x 1
  7. greatscot3

    greatscot3 Active Member

    Messages:
    44
    Likes Received:
    14
    Joined:
    Oct 17, 2009
    Lee and Phil

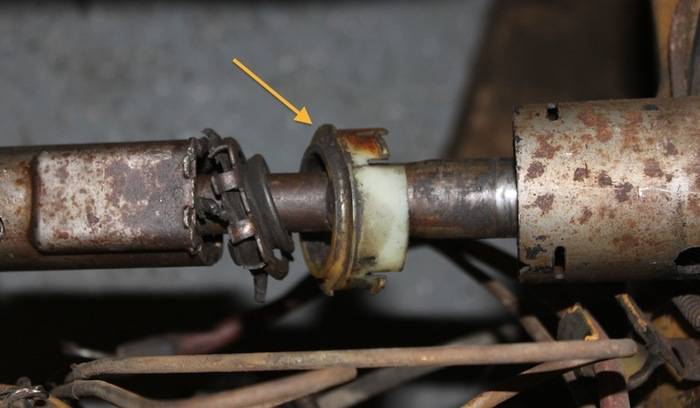

    Yes what Challcovert said is right, I need the assembly above the coupler towards the firewall that has the (yellow arrow) collar with the white plastic insert in it. I've been looking at these housings on other year Ebodies and they are not the same by a long shot.
    I think I might be able to use that specially bent "C" clip on the outside of the housing but look at the guts of the one I am dealing with. This is supposedly a 1974 Cuda column but since parts seem to be missing, maybe the P.O. put something else in there. What is in there now just doesn't make a whole lot of sense when looking at the others which are simpler.

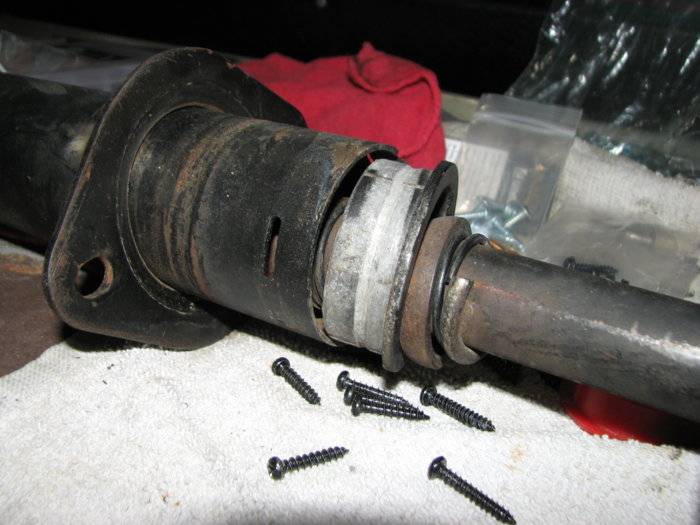

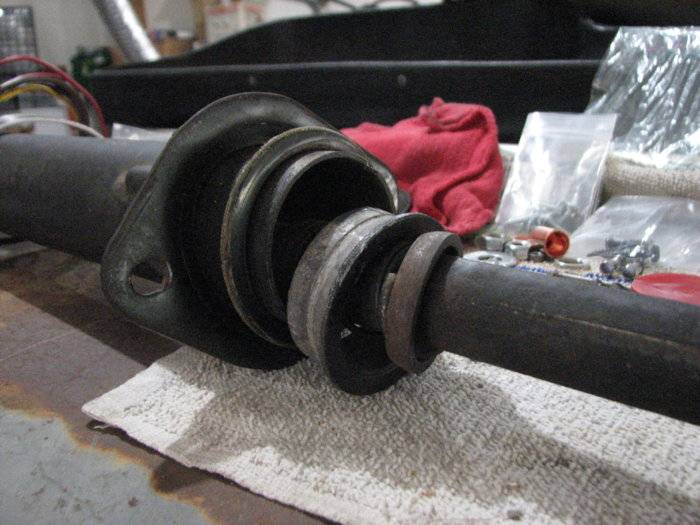

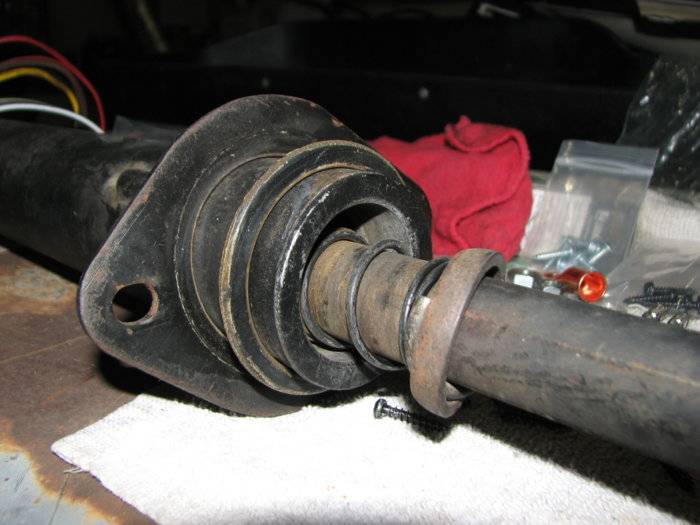

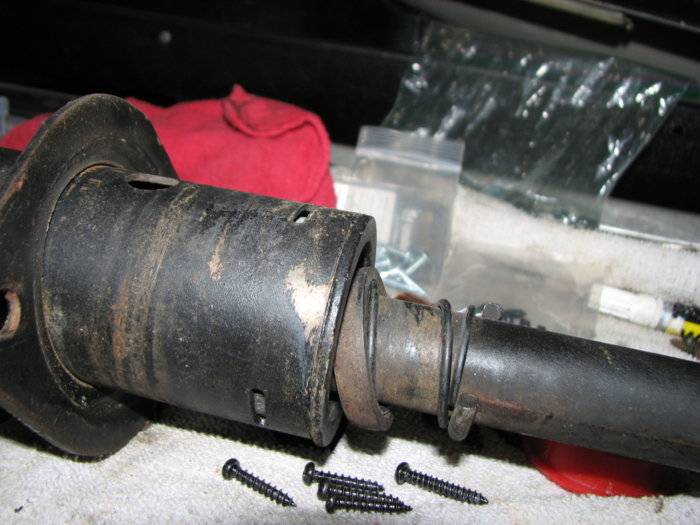

    What is up with that loose spiraled spring and that rusty steel piece that looks kind of like a bearing race. Where is the rest of it? Not any clue here. IMG_4215.JPG IMG_4219.JPG IMG_4223.JPG IMG_4224.JPG
    The upper column is much the same as the other years of E bodies but evidently there aren't many 1974 year cars out there.

  8. greatscot3

    greatscot3 Active Member

    Messages:
    44
    Likes Received:
    14
    Joined:
    Oct 17, 2009

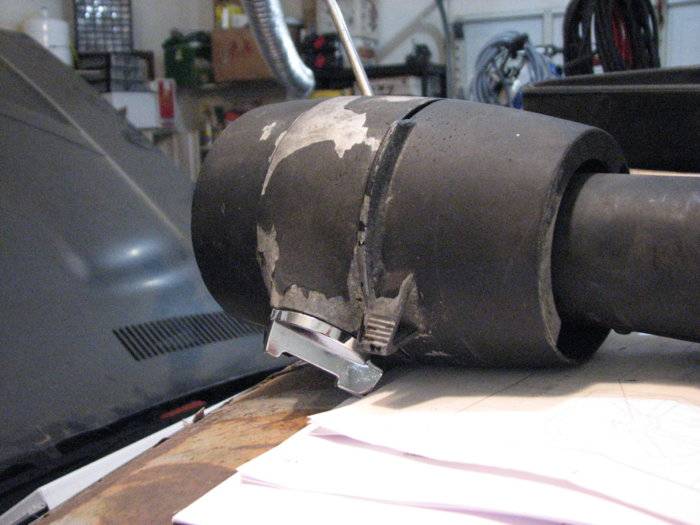

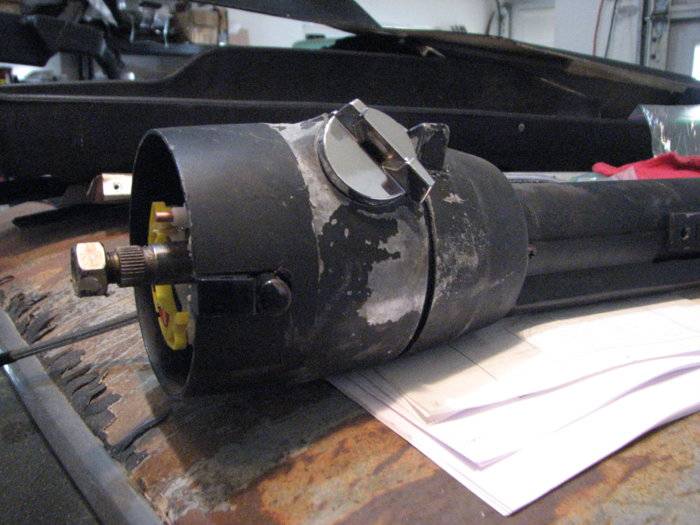

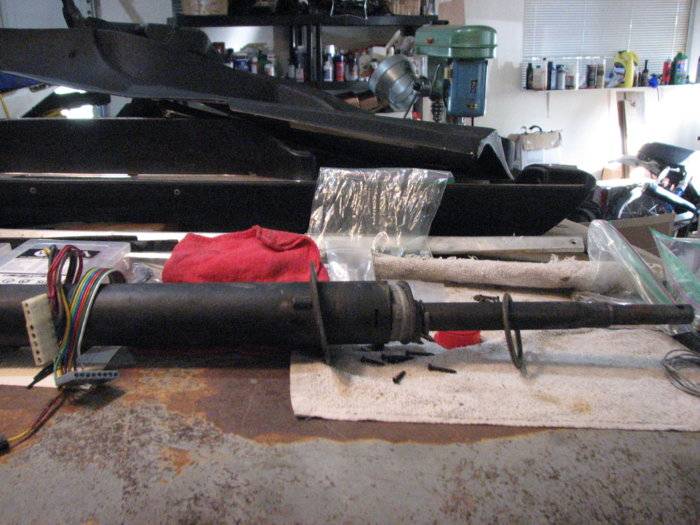

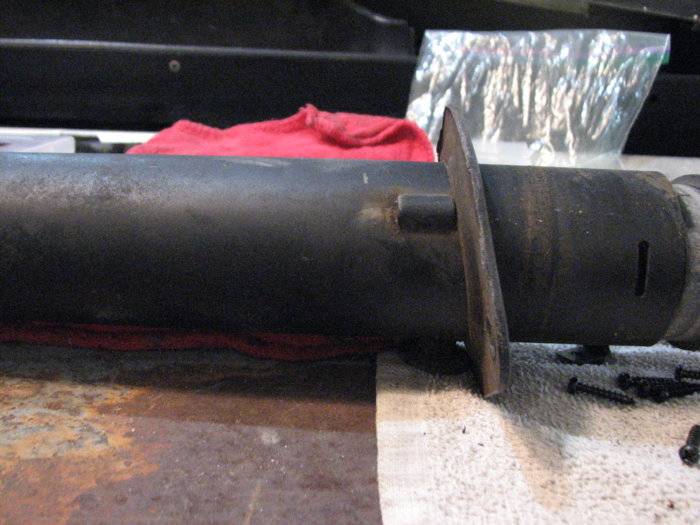

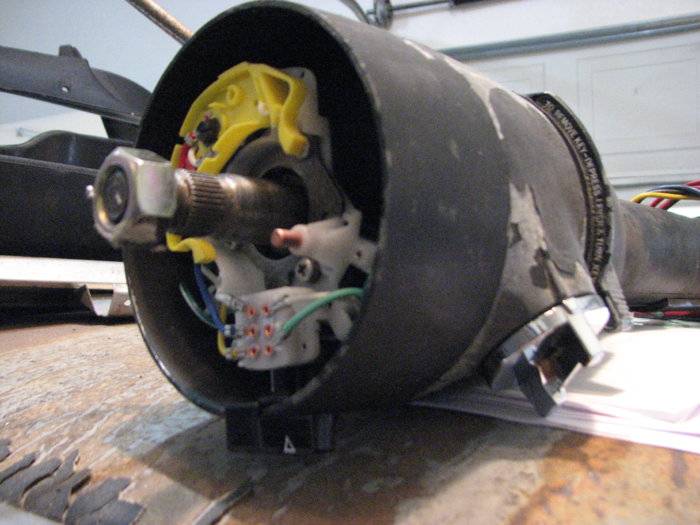

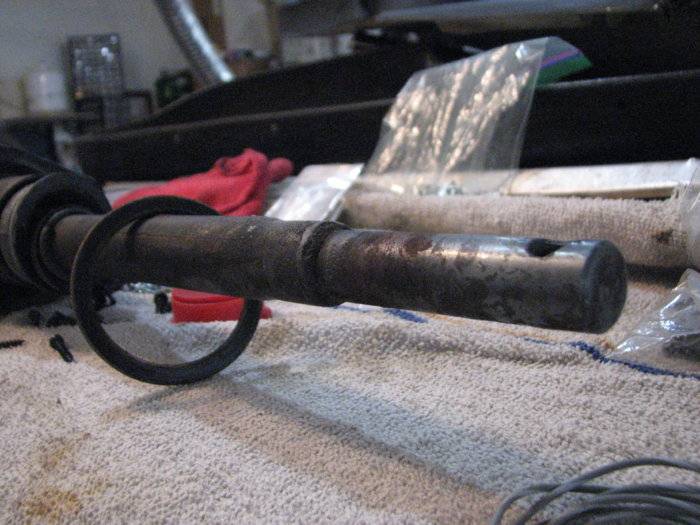

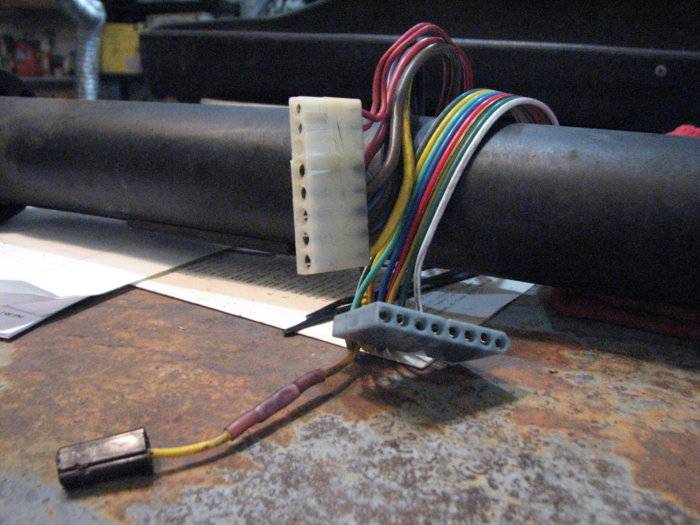

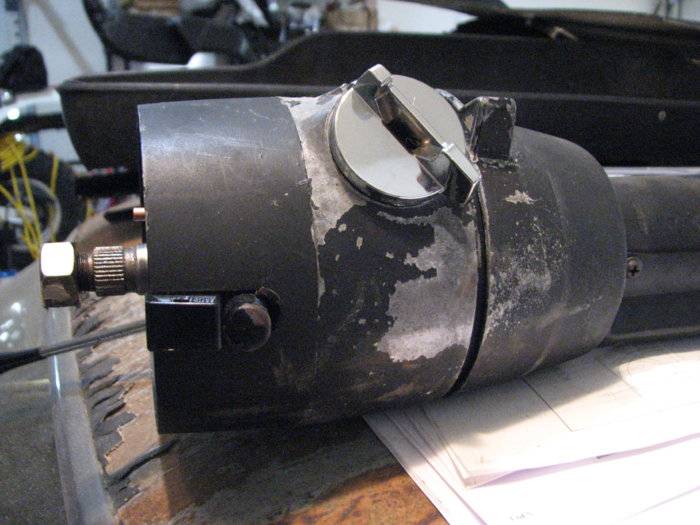

    I took some more pictures of the entire steering column minus the crush can. Not exactly sure where it is but I bought a Grant steering wheel and their crush can substit IMG_4226.JPG IMG_4227.JPG IMG_4228.JPG IMG_4229.JPG IMG_4231.JPG IMG_4233.JPG IMG_4234.JPG IMG_4236.JPG ute but have not tried to put them on yet.
    Hopefully some of these pics will help identify what I have here.

  9. greatscot3

    greatscot3 Active Member

    Messages:
    44
    Likes Received:
    14
    Joined:
    Oct 17, 2009

    340ChallConvert

    You know what? I think that just might work. I have to take some measurements but that's AWESOME! I've been trying to find a simple solution for this for a while and this looks like it would probably work.
    Thank you 1000 times!

    • Thanks! Thanks! x 1
  10. 340challconvert

    340challconvert Well-Known Member

    Messages:
    3,095
    Likes Received:
    1631
    Joined:
    Feb 13, 2011
    Location:
    Parsippany, NJ
    Great. Glad it was helpful
    The use of the bearing in the write up was for a 74 column
    Dino2 (1).gif

    • Thanks! Thanks! x 1
  11. greatscot3

    greatscot3 Active Member

    Messages:
    44
    Likes Received:
    14
    Joined:
    Oct 17, 2009
    Man, that sure was a home run because I didn't have any idea where I was going to get the right parts for that thing. I was going to end up getting a diameter of nylon or some other plastic and just having that machined into a collar. I had seen bearing blocks and pillow blocks something like that before but didn't connect those with this problem in my noggin. I've got one of those bearing blocks on order now from Amazon.

    Thanks again, that was awesome, Jon S.

    P.S. Now I have to see if anyone knows for sure I can pull my power steering box out of the car without having to remove the stock exhaust manifold and dropping that side torsion bar. This is a 440 in a Cuda with stock exhaust manifolds.
    I think someone mentioned they had done it by removing their power steering pump, raising the engine a little on that side and pulling it out towards the radiator but I wanted to make sure before I start taking all that stuff apart.

    • Like Like x 1
  12. AUSTA

    AUSTA Well-Known Member

    Messages:
    666
    Likes Received:
    275
    Joined:
    Apr 16, 2015
    Location:
    PERTH WA
    Is your column a column shifter with the stick cut off that could be a detent spring for the column shift hanging out the bottom

  13. greatscot3

    greatscot3 Active Member

    Messages:
    44
    Likes Received:
    14
    Joined:
    Oct 17, 2009
    Thanks for your reply. I am not sure what I have exactly. The P.O. has thrown me some curves and this might be one of them. Thanks to 340Challconvert he got me straightened out on a fix I am pretty sure will work using that aftermarket bearing block. I'm planning on pulling or cutting all that old stuff off the steering shaft.

  14. greatscot3

    greatscot3 Active Member

    Messages:
    44
    Likes Received:
    14
    Joined:
    Oct 17, 2009

    340Challconvert

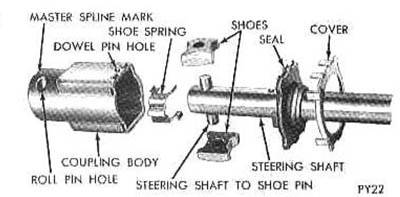

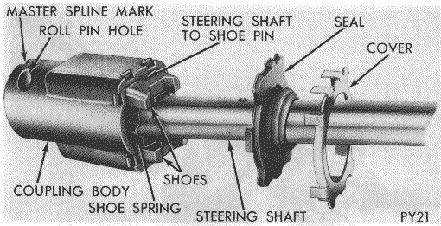

    Thanks for sending those coupler exploded views also. I'm now trying to learn what I need to know to get all that stuff back together correctly and there is a little more to it than meets the eye right away.
